Kim HJ et al. (2005), Wnt5 signaling in vertebrate pancreas development.

XB-ART-1193

BMC Biol 2005 Oct 24;3:23. doi: 10.1186/1741-7007-3-23.

Show Gene links Show Anatomy links

Wnt5 signaling in vertebrate pancreas development.

Kim HJ, Schleiffarth JR, Jessurun J, Sumanas S, Petryk A, Lin S, Ekker SC.

???displayArticle.abstract???
BACKGROUND: Signaling by the Wnt family of secreted glycoproteins through their receptors, the frizzled (Fz) family of seven-pass transmembrane proteins, is critical for numerous cell fate and tissue polarity decisions during development. RESULTS: We report a novel role of Wnt signaling in organogenesis using the formation of the islet during pancreatic development as a model tissue. We used the advantages of the zebrafish to visualize and document this process in living embryos and demonstrated that insulin-positive cells actively migrate to form an islet. We used morpholinos (MOs), sequence-specific translational inhibitors, and time-lapse imaging analysis to show that the Wnt-5 ligand and the Fz-2 receptor are required for proper insulin-cell migration in zebrafish. Histological analyses of islets in Wnt5a(-/-) mouse embryos showed that Wnt5a signaling is also critical for murine pancreatic insulin-cell migration. CONCLUSION: Our results implicate a conserved role of a Wnt5/Fz2 signaling pathway in islet formation during pancreatic development. This study opens the door for further investigation into a role of Wnt signaling in vertebrate organ development and disease.

???displayArticle.pubmedLink??? 16246260
???displayArticle.pmcLink??? PMC1276788
???displayArticle.link??? BMC Biol
???displayArticle.grants??? [+]

Species referenced: Xenopus
Genes referenced: cpa1 epha8 fzd2 gata6 gcg ins isl1 mixer pdx1 slc7a5 sst wnt11b wnt5a wnt8a

???attribute.lit??? ???displayArticles.show???

	Figure 1. Time-lapse imaging of insulin:GFP transgenic embryos shows cell migration defects in Fz-2 morphants. (A, C-H) Uninjected insulin:GFP transgenic embryo, (B, I-N) fz-2 MO-injected insulin:GFP transgenic embryo. All panels are dorsal views and anterior is to the left. Scale bar represents 100 μm. (A) Uninjected transgenic embryo, 24 hpf. (B) Fz-2 MO-injected transgenic embryo, 24 hpf. (C) At the 14-somite stage, bilateral patches of GFP-positive cells are visible in uninjected embryo. (D) At the 15–16 somite stage, GFP-positive cells have started proliferating. (E-G) At the 17 somite to 24 hpf stages, GFP-positive cells are aligned in bilateral rows of cells and undergo a medial and posterior migration. (H) At 24 hpf, all GFP-positive cells have merged to form one islet. (I) At the 14-somite stage, bilateral patches of GFP expression are apparent in fz-2 MO-injected embryos similar to uninjected embryos. (J-M) GFP-positive cells migrate in random directions in fz-2 morphant embryos. (N) At 24 hpf, GFP-positive cells have still not merged. (O) Trajectory of GFP-positive cells in uninjected insulin:GFP embryo. Notice that cells are uniformly moving posteriorly. (P) Trajectory of GFP-positive cells in fz-2 MO-injected insulin:GFP embryo. Notice cells are moving in random directions. A: anterior, P: posterior, T: time, L: left, R: right, O: origin.

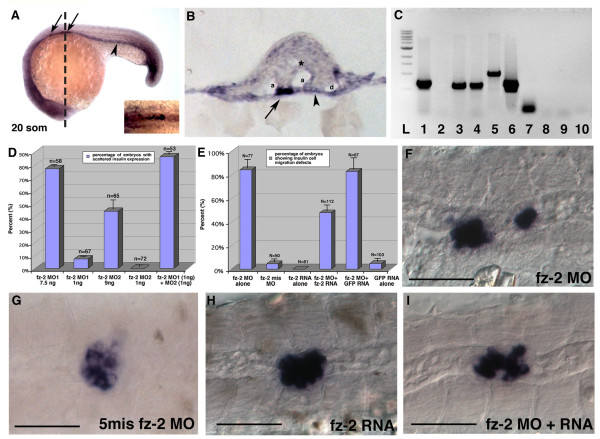

	Figure 2. Migration defects in Fz-2 morphant embryos can be rescued by synthetic fz-2 mRNA. (A) Double in situ hybridization with fz-2 and insulin at 20 somite stage of development. Arrow, insulin; arrowhead, fz-2 expression in the endoderm; dotted line, approximate position of the section in (B). (B) A section of double in situ hybridization with fz-2 and insulin. Fz-2 is expressed more strongly on the surface of mesoderm and entire endoderm. Arrow, insulin; arrowhead, fz-2 expression in the endoderm; a, arteries; asterisk, neural tube; d, pronephric duct. (C) RT-PCR using cDNA made from sorted cells of transgenic insulin:GFP zebrafish embryos. L: ladder; lanes 1–5: GFP-negative cells; lanes 6–10: GFP-positive cells; lanes 1, 6: EF1α lanes2, 7: insulin; lanes 3, 8: fz-2 primer set #1; lanes 4, 9: fz-2 primer set #2; lanes 5, 10: wnt-5. (D) High-dose injection of either fz-2 MO1 or MO2 resulted in scattered insulin expression, whereas low dose injection of either MO caused such defects in less than 10% of embryos. Co-injection of low dose fz-2 MO1 and MO2 resulted in synergistic increase of percentage of embryos with scattered insulin expression. (E) 80% of fz-2 MO-injected embryos displayed scattered insulin expression. Co-injection of fz-2 MO and fz-2 RNA reduced the percentage of embryos with abnormal insulin expression down to 45%. (F-I) In situ hybridization with insulin at 24 hpf stage, anterior is to the left, (F) fz-2 MO1-injected embryo, (G) fz-2 mismatch MO-injected embryo, (H) fz-2 RNA-injected embryo, (I) fz-2 MO- and fz-2 RNA-co-injected embryo. Notice the compact islet in this embryo that displays an undulated notochord.
	Figure 3. Wnt-5 has a specific role in islet formation. (A) Double in situ hybridization with pdx-1 and wnt-5, 10 som stage, dorsal view, the anterior is to the left. Arrow, pdx-1 expression, bracket, wnt-5 expression. (B-H) In situ hybridization with insulin at 24 hpf. (B) wild-type, (C) WNT-8 morphant embryos, (D) WNT-11 morphant embryos, (E) WNT-5 morphant embryos, (F)wnt-5 mismatch MO-injected embryos, (G) wnt-5 RNA injected embryo, (H) wnt-5 MO and wnt-5 RNA co-injected embryo. Notice the compact islet in this embryo that displays an undulated notochord. (I) Percentage of embryos with scattered insulin expression resulting from injection of wnt-5 MO reduced significantly from 60% to 10% when wnt-5 RNA was co-injected with wnt-5 MO. (J-L) Morphology at 24 hpf, (J) wild-type, (K) wnt-5 insertional mutant, (L) wnt-5 translation-blocking MO-injected embryos. Notice that wnt-5 MO injected embryos have more severe morphological phenotype than wnt-5 insertional mutant embryos. (M) RT-PCR analysis of wnt-5 transcript in wnt-5 exon-intron MO injected embryos. Injection of wnt-5 exon-intron MO results in severely shortened wnt-5 transcript. L:ladder, 1:EF-1α control, 2:wnt-5.
	Figure 4. Early endoderm markers are not affected in Wnt-5 and Fz-2 morphant embryos. All pictures are dorsal views. (A, D, G, J, M) wild-type, (B, E, H, K, N) Fz-2 morphants, (C, F, I, L, O) Wnt-5 morphants. (A-C) mixer, 50% epiboly, (D-F) sox-17, 90% epiboly, (G-I) fox-A3, 24 hpf, (J-L) anterior endoderm expression of fox-A3, arrow, pancreatic endoderm, 24 hpf, (M-O) gata-6, 24 hpf. Scale bar = 300 Î¼m.
	Figure 5. Wnt-5 and Fz-2 morphant embryos exhibit similar pancreatic islet defects at 24 hpf. In all panels, anterior is to the left and 24 hpf. .A-I, dorsal view; J-L, lateral view. (A, D, G, J) Wild-type embryos. (B, E, H, K) Fz-2 morphants. (C, F, I, L) Wnt-5 morphants. In situ hybridization analysis of (A, B, C) somatostatin, (D, E, F) glucagon, notice a hollow spot in the middle of each patch, (G, H, I) islet-1, (J, K, L) fspondin-2b. Note scattered pancreatic cells in Fz-2 and Wnt-5 morphants.
	Figure 6. Wnt-5 and Fz-2 morphant embryos have other similar defects. In all panels, view is dorsal, anterior is to the left. (A-I, M-O) 3dpf, (J-L) 24 hpf stage. (A, D, G, J, M) Wild-type embryos. (B, E, H, K, N) Fz-2 morphants. (C, F, I, L, O) Wnt-5 morphants. In situ hybridization analysis of (A-C) insulin, (D-F) carboxypeptidase A, notice the hollow spot indicating the position of the islet, (G-I) ceruloplasmin, (J-O) pdx-1, (M) arrow, pdx-1-staining in islet.

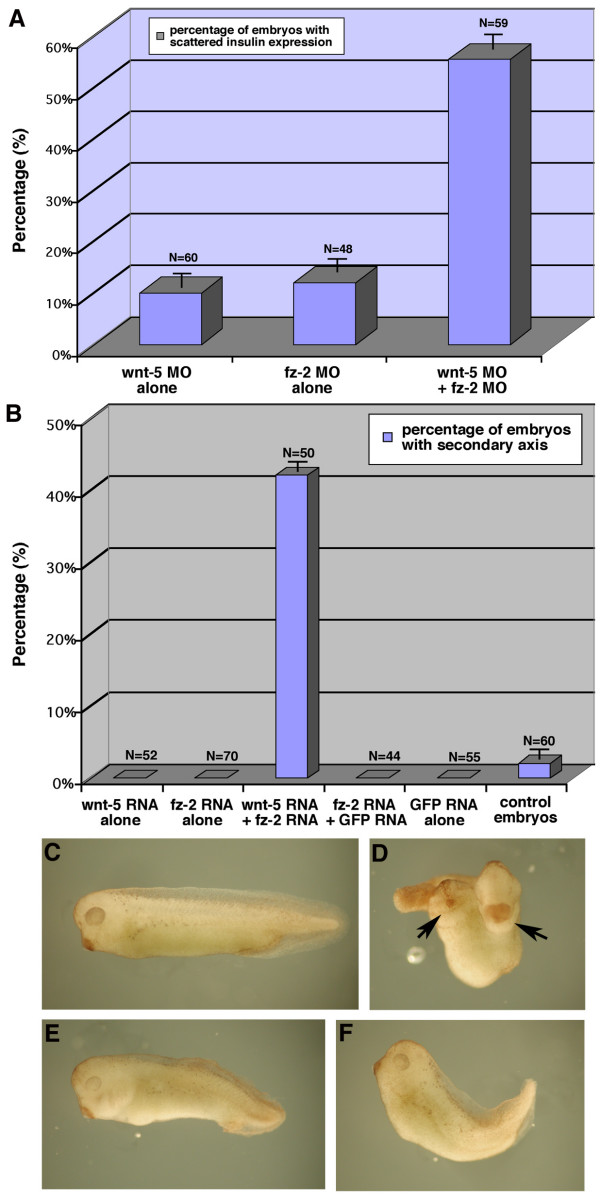

	Figure 7. Wnt-5 and fz-2 are in the same signaling pathway. (A) Injection of either wnt-5 MO or fz-2 MO mix results in less than 10% of embryos with scattered insulin expression. Co-injection of wnt-5 and fz-2 MOs results in 50% of embryos with defects. (B) Injection of either wnt-5 mRNA or fz-2 mRNA did not cause secondary axis in Xenopus embryos, whereas co-injection with both mRNAs resulted in 40% of embryos with secondary axis. Control injections of GFP mRNA alone or together with fz-2 mRNA resulted in no embryos with secondary axis. (C-F) Xenopus embryos, tailbud stage, (C) wild-type, (D) wnt-5 and fz-2 mRNA co-injected, black arrows-point to the primary and secondary hatching glands, (E) wnt-5 mRNA injected, (F) fz-2 mRNA injected.

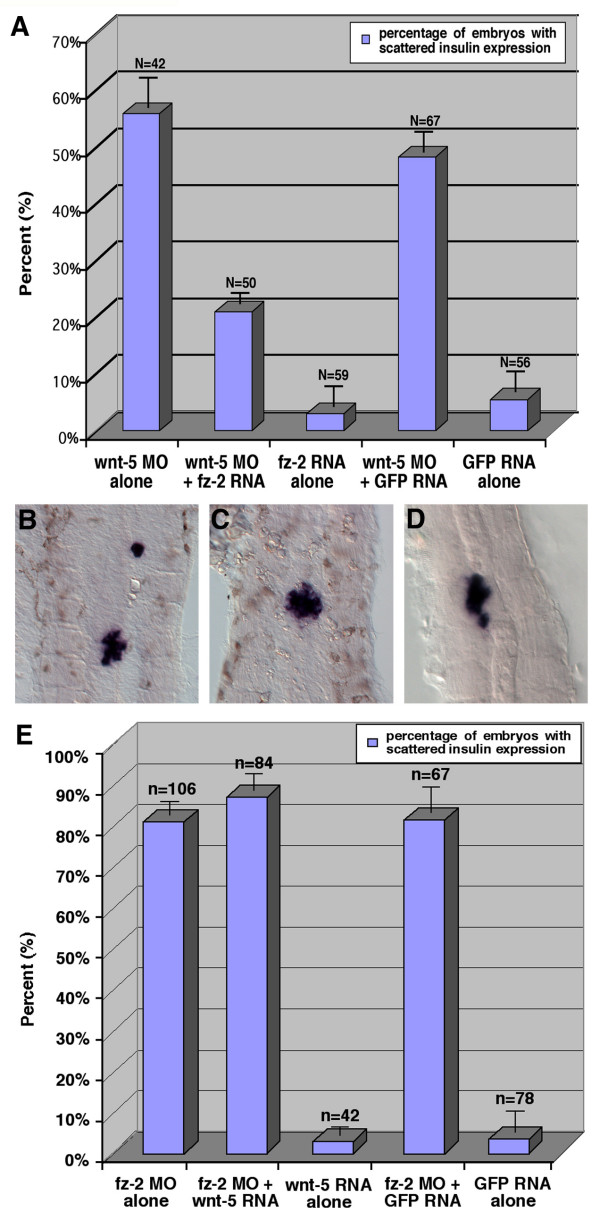

	Figure 8. Wnt-5 acts genetically upstream of fz-2. (A) Injection of wnt-5 MO alone results in 50% embryos with insulin cell defect. Injection of fz-2 mRNA results in 5% embryos with insulin cell defects. Co-injection of wnt-5 MO and fz-2 mRNA results in 20% of embryos with abnormal insulin expression. In a control experiment, co-injection of wnt-5 MO and GFP mRNA results in 45% of embryos with defects. (B-D) Insulin expression as analyzed by in situ hybridization at 24 hpf, (B) wnt-5 MO injected, (C) fz-2 RNA injected, (D) wnt-5 MO- and fz-2 RNA-injected embryos. Note that fz-2 mRNA rescues insulin cell migration defect in wnt-5 morphants. (E) Same dose of wnt-5 mRNA that can rescue the insulin cell migration defects in wnt-5 morphants cannot rescue the defects in fz-2 morphants.
	Figure 9. Pancreatic islet development in Wnt5a-/- mouse embryos is not delayed. (A-D) E16.5, (E-H) E17.5, (I-L) E18.5, (A, C, E, G, I, K) insulin antibody staining, (B, D, F, H, J, L) glucagon antibody staining, (A, B, E, F, I, J) pancreas tissue from wild-type siblings, (C, D, G, H, K, L) pancreas tissue from Wnt5a-/- mouse embryos. Notice that glucagon staining is round and spherical at E16.5, but positioned at the periphery of insulin cells at E17.5 and E8.5.

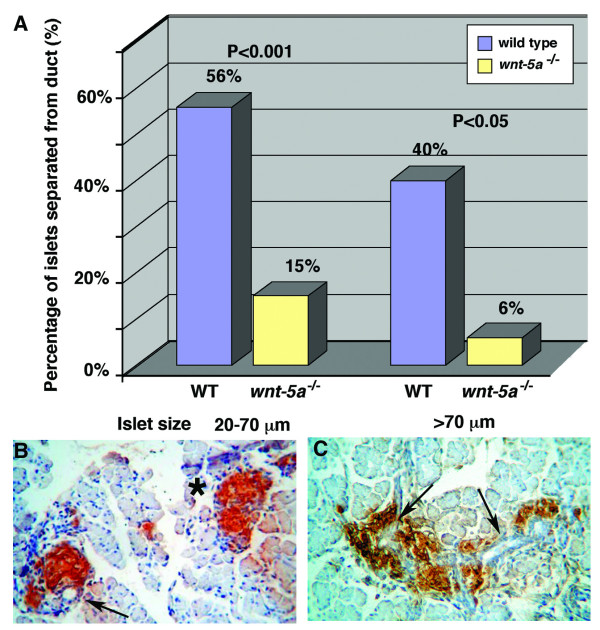

	Figure 10. Wnt5a-/- islets remain in ductal proximity and have a streaked appearance at E18.5. (A) In Wnt5a-/- embryos, most islets are associated with ducts. Both small and large β-cell aggregates are more frequently associated with pancreatic ducts in Wnt5a-/- embryos at E18.5 than in wild-type embryos. (B, C) Insulin antibody staining. (B) Round and compact islets in wild-type embryos. A normal pancreas consists of islets that are associated and separated from ducts. Arrows: pancreatic duct, asterisk: an islet separated from duct. (C) Streak-like, fragmented islets in Wnt5a-/- mutant embryos.
