Proc Natl Acad Sci U S A
1994 Oct 25;9122:10255-9.
Show Gene links
Show Anatomy links
A truncated bone morphogenetic protein receptor affects dorsal-ventral patterning in the early Xenopus embryo.
Suzuki A, Thies RS, Yamaji N, Song JJ, Wozney JM, Murakami K, Ueno N.
???displayArticle.abstract??? Bone morphogenetic proteins (BMPs), which are members of the transforming growth factor beta (TGF-beta) superfamily, have been implicated in bone formation and the regulation of early development. To better understand the roles of BMPs in Xenopus laevis embryogenesis, we have cloned a cDNA coding for a serine/threonine kinase receptor that binds BMP-2 and BMP-4. To analyze its function, we attempted to block the BMP signaling pathway in Xenopus embryos by using a dominant-negative mutant of the BMP receptor. When the mutant receptor lacking the putative serine/threonine kinase domain was expressed in ventral blastomeres of Xenopus embryos, these blastomeres were respecified to dorsal mesoderm, eventually resulting in the formation of a secondary body axis. These findings suggest that endogenous BMP-2 and BMP-4 are involved in the dorsal-ventral specification in the embryo and that ventral fate requires induction rather than resulting from an absence of dorsal specification.

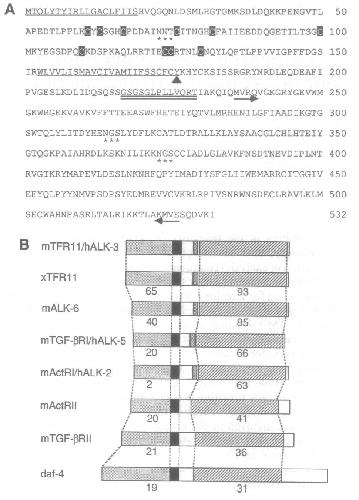

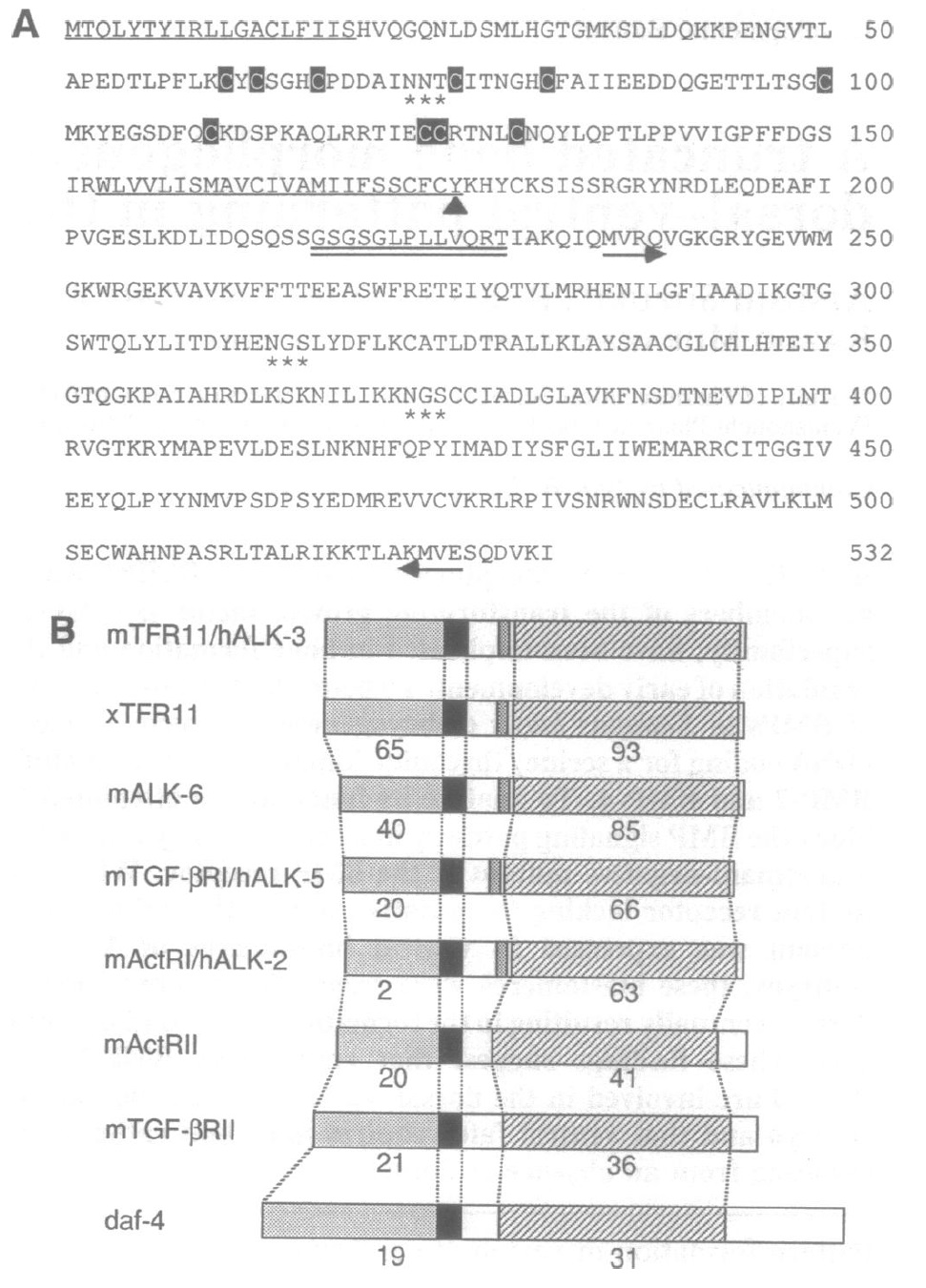

FIG. 1. Amino acid sequence and homology of mTFR11. (A)
Translated amino acid sequence of the mTFR11 cDNA. The signal
peptide and transmembrane domains are indicated by a single
underline. Potential sites of N-linked glycosylation are indicated by
asterisks. The ends of the kinase domain are indicated by arrows.
Ten of the conserved cysteine residues in the extracellular domain
are in reverse print. Type I box is indicated by a double underline.
An arrowhead is under the tyrosine residue that changes to stop
codon in the dominant negative BMP receptor. (B) Homology of the
mTFR11/hALK-3 to other receptors for ligands of the TGF-(3
superfamily. Percent amino acid identity is indicated. Light-shaded
boxes, extracellular domain; black boxes, transmembrane domain;
dark-shaded boxes, type I box; hatched boxes, intracellular kinase
domain. ALK-2, -3, -5, and -6, activin receptor-like kinases 2, 3, 5,
and 6(26); xTFR11, Xenopus TFR11 (accession no. D32066); mTGFf3RI,
mouse TGF-(3 type I receptor (27); mActRI, mouse activin type
I receptor (28); mActRII, mouse activin type II receptor (13);
mTGF-fBRII, mouse TGF-f type II receptor (29);daf4, C. elegans
daf-4 gene product (30).

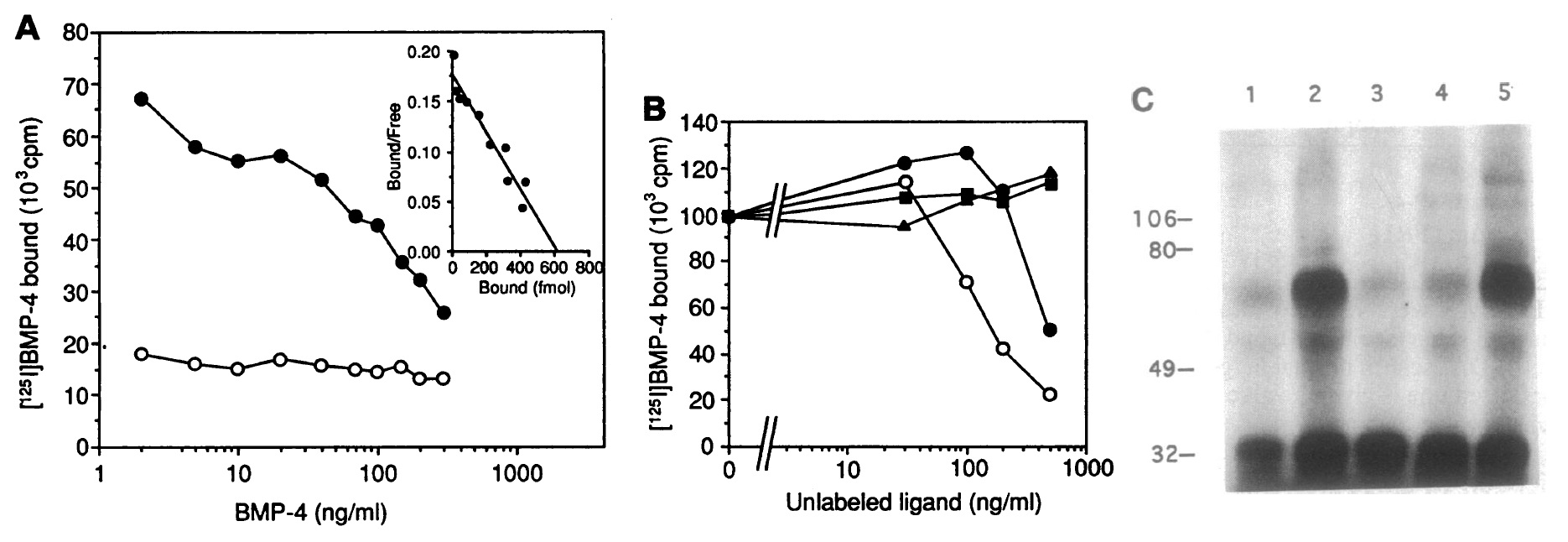

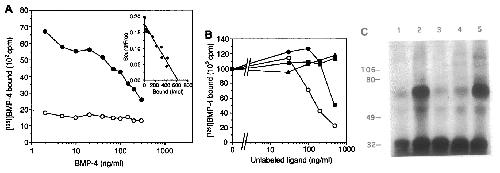

FIG. 2. Specific binding of iodinated BMP-4 to COS cells transfected with mTFR11. (A) 'MI-BMP4 binding to COS cells transfected with
mTFR11. Binding was performed on cell monolayers as described below and was competitively inhibited with unlabeled BMP-4. (Inset) Scatchard
analysis. o, pMV2; *, mTfr11/pMV2. (B) Specificity of mI-BMPA binding to COS cells transfected with mTFR11. Binding of 125I-BMP4 to
COS cells transfected with mTFR11 was performed with or without increasing concentrations ofunlabeled ligands. *, BMP-2; o, BMP-4;m, activin
A; *, TGF-.l1. (C) Chemical cross-linking ofiodinated BMP-4 to COS cells transfected with mTFR11/pMV2 orpMV2. COS cells were transfected
with either pMV2 (lane 1) or mTFR11/pMV2 (lanes 2-5) and incubated with 5 ng of 125I-BMP-4 per ml (all lanes) and 500 ng ofBMP-4 per ml (lane
3), 500 ng of BMP-2 per ml (lane 4), or 500 ng of activin per ml (lane 5). Molecular masses are indicated in kDa.
FIG. 3. Truncated BMP receptor inhibits BMP signaling pathway
in early Xenopus embryo. At the four-cell stage, embryos were
injected with the indicated samples into the dorsal marginal region
and allowed to develop until stage 37 or 38. (A) Distilled H20. (B)
BMP-4 mRNA, 200 pg. (C) AmnTFR11 mRNA, 200 pg. (D) BMP-4
plus AmTFR11 mRNA, 200 pg of each.
FIG. 5. Effect of inhibition of BMP signaling pathway on expression
of early mesodermal markers. AmTFR11 mRNA was injected
into the marginal region of ventral blastomeres at the four-cell stage.
Uninjected control embryo (A, C, and E), and AmTFR11-injected
embryos (B, D, and F) were developed until early gastrula stage and
subjected to whole-mount in situ analysis. The probe for goosecoid
was used in A and B; the probe for Xpo was used in C and D; the
probe for Xenopus brachyury was used in E and F. Views of the
vegetal pole are shown and dorsal is up. Note that the expression of
Xpo gene disappeared in the ventral part of embryo that received
truncated BMP receptor mRNA (arrowheads) but that of brachyury
gene, normally expressed through mesoderm, was not affected.
Asashima,
Presence of activin (erythroid differentiation factor) in unfertilized eggs and blastulae of Xenopus laevis.
1991, Pubmed,
Xenbase
Asashima,
Presence of activin (erythroid differentiation factor) in unfertilized eggs and blastulae of Xenopus laevis.
1991,
Pubmed
,
Xenbase Brand,
A dominant-negative receptor for type beta transforming growth factors created by deletion of the kinase domain.
1993,
Pubmed Cho,
Molecular nature of Spemann's organizer: the role of the Xenopus homeobox gene goosecoid.
1991,
Pubmed
,
Xenbase Dale,
Bone morphogenetic protein 4: a ventralizing factor in early Xenopus development.
1992,
Pubmed
,
Xenbase Ebner,
Determination of type I receptor specificity by the type II receptors for TGF-beta or activin.
1993,
Pubmed Estevez,
The daf-4 gene encodes a bone morphogenetic protein receptor controlling C. elegans dauer larva development.
1993,
Pubmed Frolik,
Characterization of a membrane receptor for transforming growth factor-beta in normal rat kidney fibroblasts.
1984,
Pubmed Hanks,
Protein kinase catalytic domain sequence database: identification of conserved features of primary structure and classification of family members.
1991,
Pubmed Harland,
The transforming growth factor beta family and induction of the vertebrate mesoderm: bone morphogenetic proteins are ventral inducers.
1994,
Pubmed
,
Xenbase Harland,
In situ hybridization: an improved whole-mount method for Xenopus embryos.
1991,
Pubmed
,
Xenbase Hemmati-Brivanlou,
A truncated activin receptor inhibits mesoderm induction and formation of axial structures in Xenopus embryos.
1992,
Pubmed
,
Xenbase Jones,
DVR-4 (bone morphogenetic protein-4) as a posterior-ventralizing factor in Xenopus mesoderm induction.
1992,
Pubmed
,
Xenbase Kao,
The entire mesodermal mantle behaves as Spemann's organizer in dorsoanterior enhanced Xenopus laevis embryos.
1988,
Pubmed
,
Xenbase Kaufman,
The phosphorylation state of eucaryotic initiation factor 2 alters translational efficiency of specific mRNAs.
1989,
Pubmed Kingsley,
What do BMPs do in mammals? Clues from the mouse short-ear mutation.
1994,
Pubmed Kingsley,
The TGF-beta superfamily: new members, new receptors, and new genetic tests of function in different organisms.
1994,
Pubmed Kondo,
Activin receptor mRNA is expressed early in Xenopus embryogenesis and the level of the expression affects the body axis formation.
1991,
Pubmed
,
Xenbase Krieg,
Functional messenger RNAs are produced by SP6 in vitro transcription of cloned cDNAs.
1984,
Pubmed
,
Xenbase Lawler,
The murine type II TGF-beta receptor has a coincident embryonic expression and binding preference for TGF-beta 1.
1994,
Pubmed Lin,
Expression cloning of the TGF-beta type II receptor, a functional transmembrane serine/threonine kinase.
1992,
Pubmed Mathews,
Expression cloning of an activin receptor, a predicted transmembrane serine kinase.
1991,
Pubmed Mathews,
Cloning of a second type of activin receptor and functional characterization in Xenopus embryos.
1992,
Pubmed
,
Xenbase Moon,
Competence modifiers synergize with growth factors during mesoderm induction and patterning in Xenopus.
1992,
Pubmed
,
Xenbase Nishimatsu,
Genes for bone morphogenetic proteins are differentially transcribed in early amphibian embryos.
1992,
Pubmed
,
Xenbase Sato,
Localized and inducible expression of Xenopus-posterior (Xpo), a novel gene active in early frog embryos, encoding a protein with a 'CCHC' finger domain.
1991,
Pubmed
,
Xenbase Shoda,
Biologically active BMP-2 in early Xenopus laevis embryos.
1994,
Pubmed
,
Xenbase Sive,
The frog prince-ss: a molecular formula for dorsoventral patterning in Xenopus.
1993,
Pubmed
,
Xenbase Smith,
Secreted noggin protein mimics the Spemann organizer in dorsalizing Xenopus mesoderm.
1993,
Pubmed
,
Xenbase Smith,
Expression of a Xenopus homolog of Brachyury (T) is an immediate-early response to mesoderm induction.
1991,
Pubmed
,
Xenbase Suzuki,
Autoinduction of activin genes in early Xenopus embryos.
1994,
Pubmed
,
Xenbase Suzuki,
Biochemical properties of amphibian bone morphogenetic protein-4 expressed in CHO cells.
1993,
Pubmed
,
Xenbase Suzuki,
A mouse TGF-beta type I receptor that requires type II receptor for ligand binding.
1994,
Pubmed Takuwa,
Bone morphogenetic protein-2 stimulates alkaline phosphatase activity and collagen synthesis in cultured osteoblastic cells, MC3T3-E1.
1991,
Pubmed ten Dijke,
Characterization of type I receptors for transforming growth factor-beta and activin.
1994,
Pubmed Thies,
Recombinant human bone morphogenetic protein-2 induces osteoblastic differentiation in W-20-17 stromal cells.
1992,
Pubmed Thomsen,
Activins are expressed early in Xenopus embryogenesis and can induce axial mesoderm and anterior structures.
1990,
Pubmed
,
Xenbase
