Tsurumi C, Hoffmann S, Geley S, Graeser R, Polanski Z.

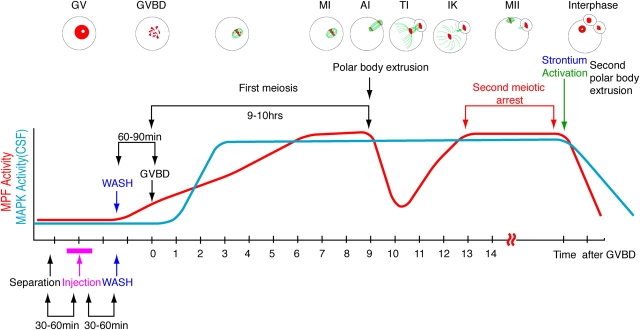

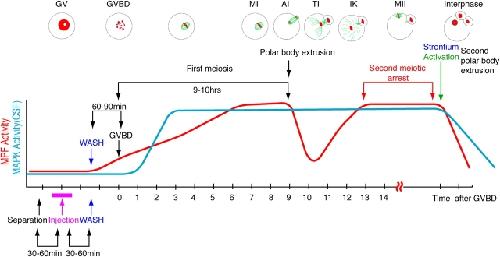

	Figure 1. Overview of the oocyte injection experiments. MI, AI, and TI indicate metaphase, anaphase, and telophase of meiosis I, respectively. IK, interkinasis; MII, metaphase of meosis II. Time after GVBD is indicated in hours.
	Figure 2. Localization of Bub1dn-YFP on kinetochores. Bub1dn-YFP and histone H2B-RFP mRNAs were coinjected into GV-stage oocytes, kept in dbcAMP for 1 h, released, and fixed 5–6 h after GVBD (1st meiosis) or overnight culture (2nd meiosis). (Left) The whole oocyte is shown in an overview, with chromosomes in red (histone H2B-RFP) and Bub1dn-YFP in green. The position of the PB is marked. (Right) Chromosomes are enlarged, and the signals from histone H2B-RFP and Bub1dn-YFP individually, as well as overlaid (merge). Note the dotted appearance of the Bub1dn-YFP signal around the chromosomes suggesting a kinetochore localization. Bar, 10 μm.

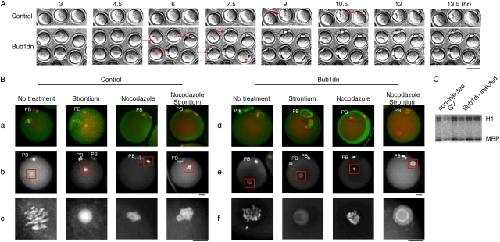

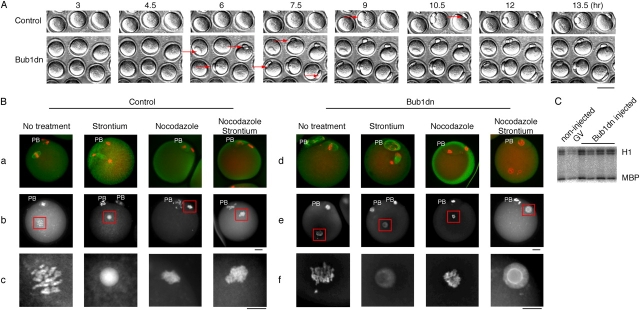

	Figure 3. The effect of Bub1dn injection on meiosis I and II in mouse oocytes. (A) Time-lapse video microscopy. Uninjected, and Bub1dn-injected oocytes were kept 1 h in dbcAMP before they were released from the prophase block. 3 h after GVBD, the oocytes were placed under the microscope in a 37°C heating box. Pictures were taken every 45 min for 12 h. Red arrows indicate the extruded PB. Time points (h) after GVBD are indicated. Bar, 50 μm. (B) Bub1dn disrupts the SAC in meiosis II. Uninjected, and Bub1dn-injected oocytes were cultured for 14–15 h after GVBD and transferred into individual drops of medium containing nocodazole, or strontium, or both, and then cultured for an additional 3–4 h. Oocytes were fixed and stained with PI (red) and an anti-tubulin antibody, followed by an FITC-labeled secondary antibody (green; a and d), or with DAPI alone (b and e). The position of the PB is marked, and the oocyte chromosomes are boxed. (c and f) The DAPI stained chromosomes from b and e were enlarged by 2.6 times. Bar, 10 μm. (C) Single cell H1/MBP kinase assay. Total H1 and MBP kinase activities were assayed in whole cell lysates prepared from uninjected, GV-stage, and Bub1dn-injected oocytes. The autoradiograph is shown.

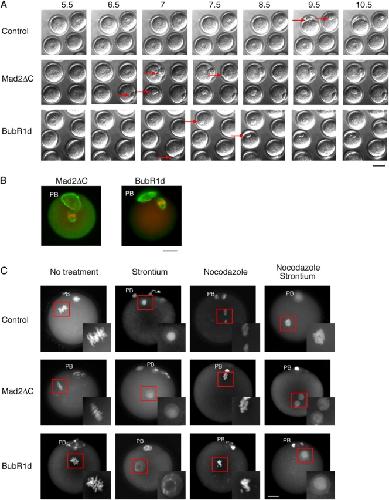

	Figure 4. The effect of Mad2ΔC and BubR1d injection on meiosis I and II in mouse oocytes. (A) Time-lapse video microscopy. Mad2ΔC or BubR1d injected oocytes were treated as in Fig. 3 A. Pictures were taken every 30 min for 12 h. Red arrows indicate the extruded PB. Time points (h) after GVBD are indicated. Bar, 50 μm. (B) Immunofluorescence staining of Mad2ΔC (left) or BubR1d-injected (right) oocytes. Mad2ΔC or BubR1d-injected oocytes were kept 1 h in dbcAMP before they were released from the prophase block. 20 h after GVBD, the oocytes were fixed, chromosomes stained with PI (red), and the meiotic spindles visualized using an anti-tubulin antibody, followed by an FITC-labeled secondary antibody (green). Note the extruded PB, and the chromosomes aligned on a metaphase plate with an intact spindle apparatus, indicating a CSF-arrest. Bar, 10 μm. (C) Activation of Mad2ΔC and BubR1d-injected oocytes. Uninjected, and Mad2ΔC- or BubR1d-injected oocytes were cultured for 14–15 h after GVBD and transferred into individual drops of medium containing nocodazole, or strontium, or both, and then cultured for an additional 3–4 h. Chromosomes were stained with DAPI. The position of the PB is marked. The oocyte nuclei are boxed, and shown enlarged in the insets. Bar, 10 μm.

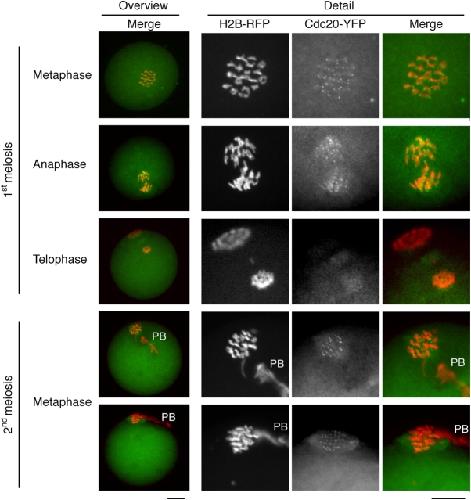

	Figure 5. Localization of Cdc20-YFP. Cdc20-YFP and histone H2B-RFP were coinjected into GV-stage oocytes, kept in dbcAMP for 1 h, released and fixed 6 h after GVBD (1st meiosis), 9–10 h after GVBD (1st anaphase and 1st telophase), or after overnight culture (2nd meiosis). (Left) The whole oocyte is shown in an overview, with chromosomes in red (histone H2B-RFP) and Cdc20-YFP in green. The position of the PB is marked in the metaphase II-arrested oocytes. (Right) The chromosomes are enlarged, and the signals from histone H2B-RFP and Cdc20-YFP are shown individually, as well as overlaid (merge). Bars, 10 μm.

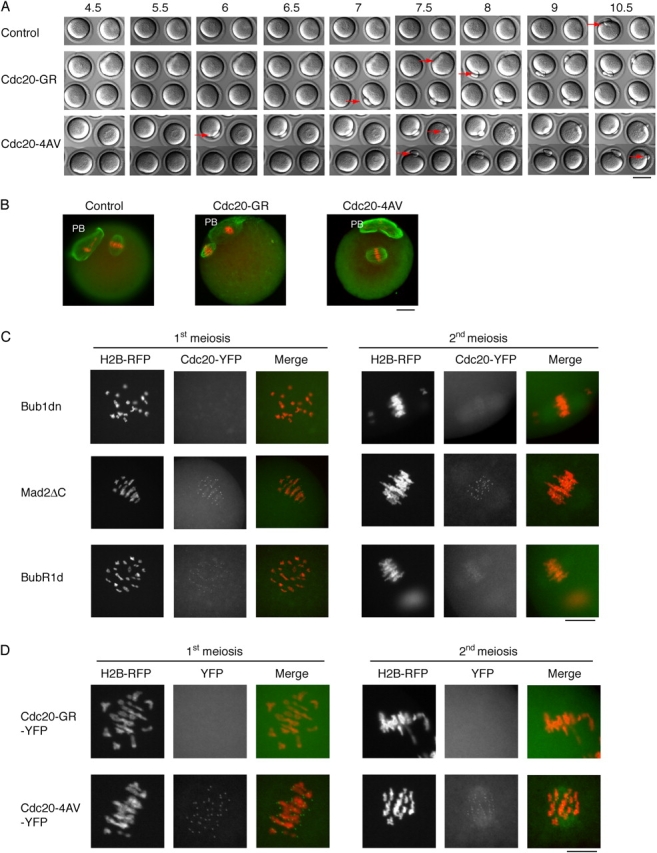

	Figure 6. The effect of Cdc20-GR and -4AV injection into mouse oocytes. (A) Time-lapse video microscopy. Uninjected, or oocytes injected with Cdc20-GR or -4AV were treated as in Fig. 3 A. Red arrows indicate the extruded PB. Time points (h) after GVBD are indicated. Bar, 50 μm. (B) Immunofluorescence staining of control (left), or Cdc20-GR injected (middle), or Cdc20-4AV injected (right) oocytes. Oocytes were treated as in Fig. 4 B. Note the extruded PB, and the chromosomes aligned on a metaphase plate with an intact spindle apparatus. (C) The localization of Cdc20 is affected by checkpoint protein mutants. Cdc20-YFP and histone H2B-RFP mRNA and Bub1dn- or Mad2ΔC- or BubR1d-injected oocytes were treated as above, and fixed 5–6 h (1st meiosis) after GVBD, or after overnight culture (2nd meiosis). The histone H2B-RFP and Cdc20-YFP signals are shown individually, as well as overlaid (merge). Note the dotted appearance of the Cdc20-YFP signal around the chromosomes, suggesting a kinetochore localization, in the Mad2ΔC coinjected oocytes, which is weaker in the BubR1d coinjected, and seems absent from the Bub1dn coinjected oocytes. (D) The localization of the Cdc20-GR or -4AV YFP-fusion proteins. Cdc20-GR-YFP– or Cdc20-4AV-YFP– and H2B-RFP–injected oocytes were treated as above, and fixed 6 h (1st meiosis) after GVBD, or after overnight culture (2nd meiosis). Note the dotted appearance of the Cdc20-4AV-YFP signal around the chromosomes, suggesting a kinetochore localization, which is not detectable in Cdc20-GR-YFP–injected oocytes. Bars: (B–D) 10 μm.

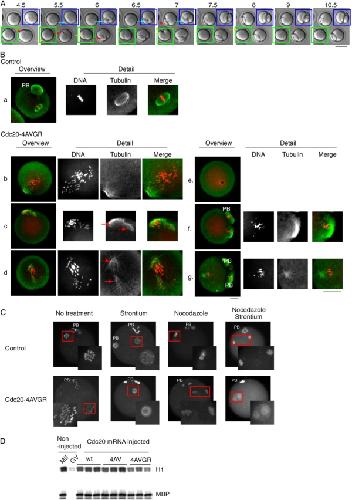

	Figure 7. The effect of Cdc20-4AVGR injection into mouse oocytes. (A) Time-lapse video microscopy. Uninjected, or oocytes injected with the Cdc20-4AVGR mutant were treated as in Fig. 3 A. Red arrows indicate the extruded PB. The oocyte marked by the green box failed, despite several attempts, to extrude its PB. The pink arrow indicates the spot where the PB should have been extruded. The oocyte marked by the blue box, however, divided abnormally and extruded two PBs, indicated by the light blue arrow. Time points (h) after GVBD are indicated. Bar, 50 μm. (B) Immunofluorescence staining of uninjected, and Cdc20-4AVGR–injected oocytes. Oocytes were treated as in Fig. 4 B. (Left) The whole oocyte is shown in an overview. (Right) The area of the spindle is enlarged, and the DNA and tubulin staining are shown individually, as well as overlaid (merge). The uninjected oocyte extruded the PB, and the chromosomes are aligned on a metaphase plate with an intact spindle apparatus. Examples of the various phenotypes of Cdc20-4AVGR–injected oocytes are shown below. In b–d, the oocytes did not extrude their first PB. The abnormal spindles in c and d are marked with red arrows. In e, an oocyte with an interphase nucleus in the absence of any extruded PB is shown. In f, a typical example of an oocyte with one PB extruded is shown. In g, an oocyte is shown with two extruded PBs. Bars, 10 μm. (C) Activation of Cdc20-4AVGR–injected oocytes. The oocytes were treated as in Fig. 4 C. The position of the PB is marked. The oocyte nuclei are boxed, and shown enlarged in the insets. (D) Single cell H1/MBP kinase assay. Total H1 and MBP kinase activities were assayed in whole cell lysates prepared from uninjected, GV-stage, and Cdc20-, Cdc20-4AV–, and Cdc20-4AVGR–injected oocytes. The autoradiograph is shown.

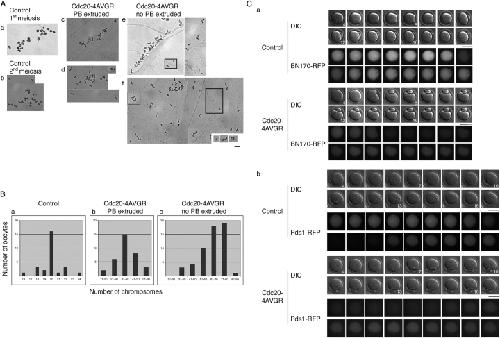

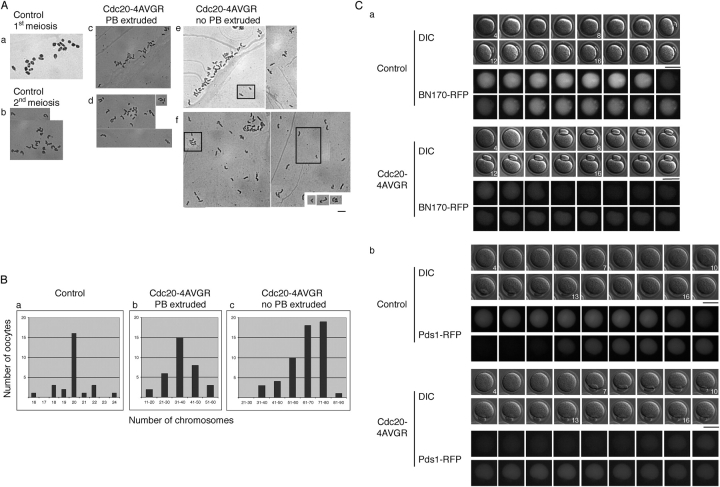

	Figure 8. Cdc20-4AVGR mutant induces sister chromatid separation. (A) Chromosome spreads were prepared from noninjected, or Cdc20-4AVGR–injected oocytes after overnight culture. The chromosomes were stained using a 2% Giemsa solution. In the insets, chromosomes are shown that were found outside the main field. a, uninjected in 1st meiosis (6 h after GVBD); b, uninjected in 2nd meiosis; c and d, Cdc20-4AVGR–injected oocytes with the PB extruded; e and f, Cdc20-4AVGR–injected oocytes with no PB extruded. Bar, 10 μm. (B) Quantification of A. On the x axis are the numbers of chromosomes counted per oocyte, on the y axis the number of oocytes. a, control; b, Cdc20-4AVGR–injected oocytes with PB extruded; c, Cdc20-4AVGR–injected oocytes with no PB extruded. (C) Time-lapse video microscopy. The Cdc20-4AVGR construct was coinjected into oocytes either with (a) cyclin B1N170-RFP (a 170–amino acid NH2-terminal fragment of cyclin B1 fused to RFP) or with (b) Pds1-RFP. The oocytes were kept in dbcAMP for 1 h, released 4 h after GVBD, and observed by differential interference contrast, and fluorescence time-lapse video microscopy. Pictures were taken every hour (BN170-RFP) or every 45 min (Pds1-RFP). The complete series is shown. Time points (h) after GVBD are indicated. Bars, 50 μm.

Basu, Localization of the Drosophila checkpoint control protein Bub3 to the kinetochore requires Bub1 but not Zw10 or Rod. 1998, Pubmed

Basu, Localization of the Drosophila checkpoint control protein Bub3 to the kinetochore requires Bub1 but not Zw10 or Rod. 1998, Pubmed
Brunet, Functionality of the spindle checkpoint during the first meiotic division of mammalian oocytes. 2003, Pubmed
Chan, Characterization of the kinetochore binding domain of CENP-E reveals interactions with the kinetochore proteins CENP-F and hBUBR1. 1998, Pubmed
Chan, Human BUBR1 is a mitotic checkpoint kinase that monitors CENP-E functions at kinetochores and binds the cyclosome/APC. 1999, Pubmed
Chen, Association of spindle assembly checkpoint component XMAD2 with unattached kinetochores. 1996, Pubmed , Xenbase
Chung, Phosphorylation of Cdc20 is required for its inhibition by the spindle checkpoint. 2003, Pubmed , Xenbase
Clouston, Cytogenetic analysis of human blastocysts. 2002, Pubmed
Cohen-Fix, Anaphase initiation in Saccharomyces cerevisiae is controlled by the APC-dependent degradation of the anaphase inhibitor Pds1p. 1996, Pubmed , Xenbase
Colledge, Disruption of c-mos causes parthenogenetic development of unfertilized mouse eggs. 1994, Pubmed , Xenbase
Dobles, Chromosome missegregation and apoptosis in mice lacking the mitotic checkpoint protein Mad2. 2000, Pubmed
Dunphy, The Xenopus cdc2 protein is a component of MPF, a cytoplasmic regulator of mitosis. 1988, Pubmed , Xenbase
Ferby, A novel p34(cdc2)-binding and activating protein that is necessary and sufficient to trigger G(2)/M progression in Xenopus oocytes. 1999, Pubmed , Xenbase
Furuno, Suppression of DNA replication via Mos function during meiotic divisions in Xenopus oocytes. 1994, Pubmed , Xenbase
Gautier, Purified maturation-promoting factor contains the product of a Xenopus homolog of the fission yeast cell cycle control gene cdc2+. 1988, Pubmed , Xenbase
Geley, Anaphase-promoting complex/cyclosome-dependent proteolysis of human cyclin A starts at the beginning of mitosis and is not subject to the spindle assembly checkpoint. 2001, Pubmed
Hashimoto, Parthenogenetic activation of oocytes in c-mos-deficient mice. 1994, Pubmed , Xenbase
Hoyt, S. cerevisiae genes required for cell cycle arrest in response to loss of microtubule function. 1991, Pubmed
Kallio, Differences in spindle association of the mitotic checkpoint protein Mad2 in mammalian spermatogenesis and oogenesis. 2000, Pubmed
King, A 20S complex containing CDC27 and CDC16 catalyzes the mitosis-specific conjugation of ubiquitin to cyclin B. 1995, Pubmed , Xenbase
Kitajima, The conserved kinetochore protein shugoshin protects centromeric cohesion during meiosis. 2004, Pubmed
Ledan, Meiotic maturation of the mouse oocyte requires an equilibrium between cyclin B synthesis and degradation. 2001, Pubmed
Li, Identification of a human mitotic checkpoint gene: hsMAD2. 1996, Pubmed
Li, Feedback control of mitosis in budding yeast. 1991, Pubmed
Lohka, Purification of maturation-promoting factor, an intracellular regulator of early mitotic events. 1988, Pubmed , Xenbase
Luo, The Mad2 spindle checkpoint protein undergoes similar major conformational changes upon binding to either Mad1 or Cdc20. 2002, Pubmed
Masui, Cytoplasmic control of nuclear behavior during meiotic maturation of frog oocytes. 1971, Pubmed
Minshull, A MAP kinase-dependent spindle assembly checkpoint in Xenopus egg extracts. 1994, Pubmed , Xenbase
Musacchio, The spindle checkpoint: structural insights into dynamic signalling. 2002, Pubmed
Polanski, Cyclin synthesis controls the progression of meiotic maturation in mouse oocytes. 1998, Pubmed
Reimann, Emi1 is required for cytostatic factor arrest in vertebrate eggs. 2002, Pubmed , Xenbase
Sagata, Function of c-mos proto-oncogene product in meiotic maturation in Xenopus oocytes. 1988, Pubmed , Xenbase
Sagata, The c-mos proto-oncogene product is a cytostatic factor responsible for meiotic arrest in vertebrate eggs. 1989, Pubmed , Xenbase
Schott, Dominant alleles of Saccharomyces cerevisiae CDC20 reveal its role in promoting anaphase. 1998, Pubmed
Schwab, Bub1 is activated by the protein kinase p90(Rsk) during Xenopus oocyte maturation. 2001, Pubmed , Xenbase
Sharp-Baker, Spindle checkpoint protein Bub1 is required for kinetochore localization of Mad1, Mad2, Bub3, and CENP-E, independently of its kinase activity. 2001, Pubmed , Xenbase
Tang, Mad2-Independent inhibition of APCCdc20 by the mitotic checkpoint protein BubR1. 2001, Pubmed , Xenbase
Taylor, Kinetochore localization of murine Bub1 is required for normal mitotic timing and checkpoint response to spindle damage. 1997, Pubmed
Taylor, The human homologue of Bub3 is required for kinetochore localization of Bub1 and a Mad3/Bub1-related protein kinase. 1998, Pubmed
Tunquist, Spindle checkpoint proteins Mad1 and Mad2 are required for cytostatic factor-mediated metaphase arrest. 2003, Pubmed , Xenbase
Tunquist, Under arrest: cytostatic factor (CSF)-mediated metaphase arrest in vertebrate eggs. 2003, Pubmed , Xenbase
Tunquist, The spindle checkpoint kinase bub1 and cyclin e/cdk2 both contribute to the establishment of meiotic metaphase arrest by cytostatic factor. 2002, Pubmed , Xenbase
Verlhac, Mos is required for MAP kinase activation and is involved in microtubule organization during meiotic maturation in the mouse. 1996, Pubmed
Wassmann, Metaphase I arrest upon activation of the Mad2-dependent spindle checkpoint in mouse oocytes. 2003, Pubmed
Weiss, The Saccharomyces cerevisiae spindle pole body duplication gene MPS1 is part of a mitotic checkpoint. 1996, Pubmed
Yew, Meiotic initiation by the mos protein in Xenopus. 1992, Pubmed , Xenbase
Yu, Regulation of APC-Cdc20 by the spindle checkpoint. 2002, Pubmed
Zhou, Attachment and tension in the spindle assembly checkpoint. 2002, Pubmed
