???displayArticle.abstract???
Most studies on the nuclear retinoid-X receptor (RXR) have focused on its role as a heterodimeric partner but less about its own activation pattern during development and the distribution of potential endogenous ligands. The aim of this study is to visualize the distribution of activated RXRalpha in live transgenic Xenopus laevis embryos across a wide range of developmental stages. We adopted a nuclear receptor-Gal4 fusion/upstream activation sequence-based reporter system for our assay. Strong activation of the RXRalpha ligand-binding domain was observed in a segment of the spinal cord just posterior to the hindbrain. This activation is first detected in neurula stage embryos and persists up to swimming tadpole stages, after which activation strongly declines. Addition of exogenous ligands, such as 9-cis retinoic acid or all-trans retinoic acid, expands the activation of RXR throughout the spinal cord but not in the brain, whereas the RXR-specific ligand LG268 expanded the Gal4-RXR activation into the brain and olfactory epithelia. Treatment with the RAR-specific ligand 4-(E-2-(5,6,7,8-tetrahydro-5,5,8,8-tetramethyl-2-naphthalenyl)-1-propenyl)benzoic acid or thyroid hormone had no effect on Gal4-RXR activation, whereas these compounds significantly increased their corresponding Gal4/receptor fusion proteins under similar conditions. Embryos expressing a Gal4-RXR fusion protein with a deletion in the ligand-dependent activation domain (AF2) show no reporter gene activation. The results shown in this paper reveal a specific activation pattern for Gal4-RXRalpha specifically in the developing spinal cord and suggest the existence of RXR ligand "hot-spots" in this region.

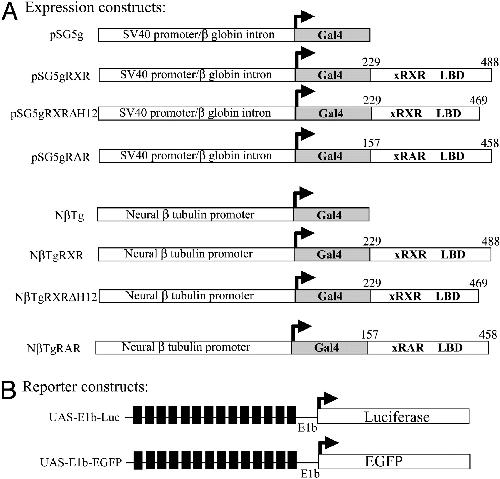

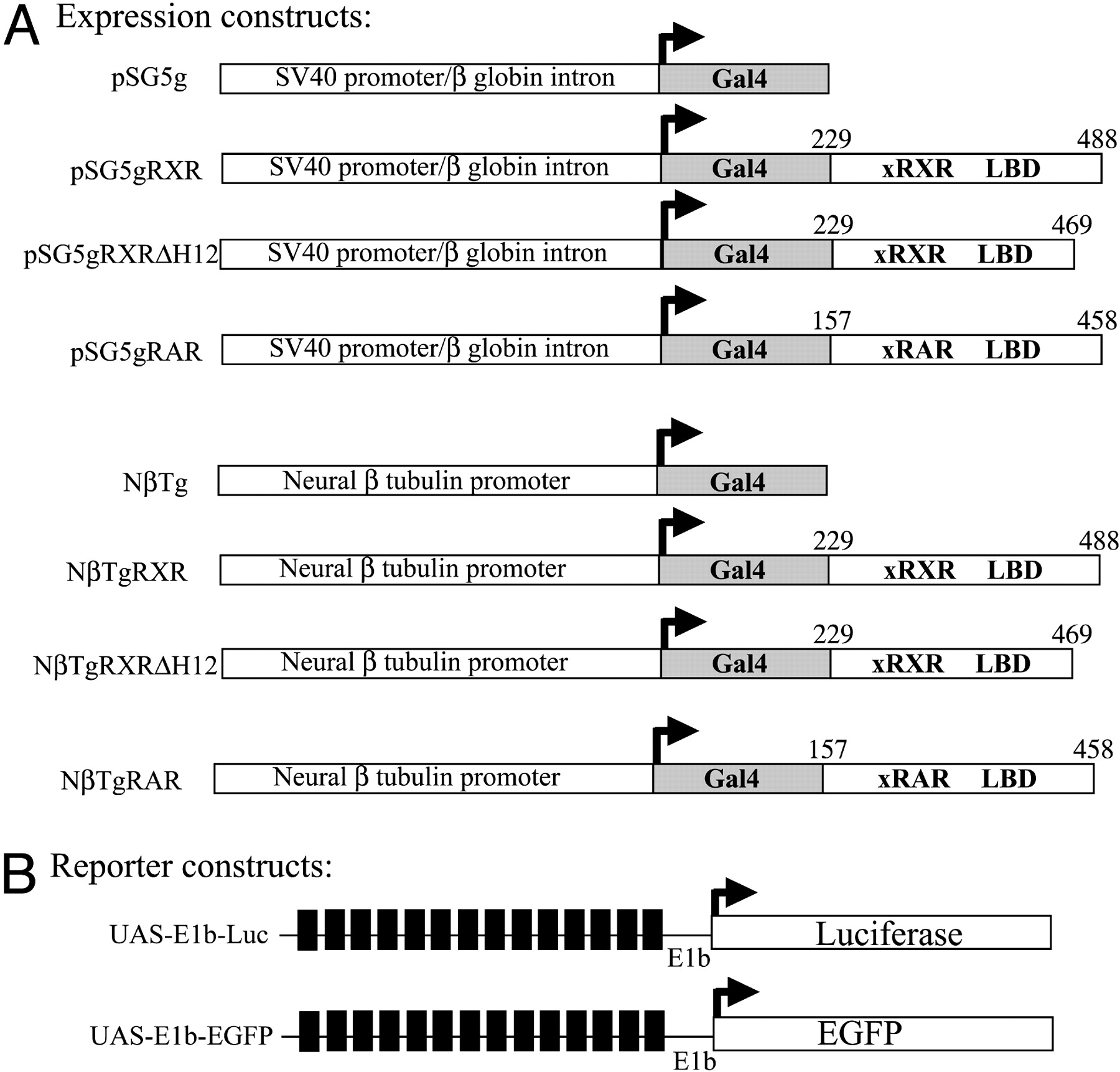

Fig. 1. Schematic diagram of expression and reporter constructs. (A) Gal4 fusion protein expression constructs. The Gal4 DNA-binding domain (amino acids 1–147) was fused in-frame with the ligand-binding domain of X. laevis RXRα (gRXR, amino acids 229–488), RXRα δH12 (gRXRδH12, amino acids 229–469), or RARα (gRAR, amino acids 157–458) under the control of a ubiquitously expressed SV40 early promoter (pSG5) for transfection experiments or the X. laevis neural-β tubulin (NβT) promoter for transgenic experiments. (B) UAS reporter constructs. The EGFP reporter construct UAS-E1b-EGFP contains 14 Gal4 upstream activation sequences (UAS, black boxes) and a minimal promoter (E1b) driving the expression of EGFP. UAS-E1b-Luc is identical to UAS-E1b-EGFP except luciferase is the reporter gene.

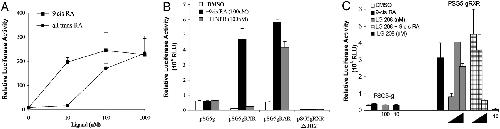

Fig. 2. gRXR fusion proteins regulate UAS reporter genes in transfected XLA cells. Relative luciferase activity was used to quantitate the transcriptional responsiveness of the gRXR or gRAR fusion proteins in response to added ligands. (A) Cells transfected with pSG5gRXR and treated with increasing concentrations of 9-cis RA (squares) or atRA (circles). (B) Cells transfected with pSG5g, pSG5gRXR, pSG5gRAR, or pSG5gRXRδH12 with UAS-E1b-Luc and treated with vehicle alone (DMSO, white bars), 100 nM 9-cis RA (black bars), or RAR selective agonist TTNPB (striped bars) as indicated. (C) Cells transfected with PSG5g or PSG5gRXR and UAS-E1b-Luc and treated with vehicle alone (DMSO), 9-cis RA (100 nM), LG100268 (1, 10, and 100 nM LG268, as indicated), or 9-cis RA with increasing concentrations of LG100208 (0.1, 1, and 10 μM LG208, as indicated). LG268 increased luciferase activity, whereas LG 208 inhibits 9-cis RA effect only at 10 μM. Error bars represent mean ± SEM of triplicates from a representative experiment.
Fig. 3. A gRXR fusion protein expressed in the nervous system activates GFP expression specifically in the rostral spinal cord. Transgenic X. laevis tadpoles were created with UAS-E1b-EGFP along with one of the following expression vectors: NβTg (A and D;g/EGFP), NβTgRXR (B and E; gRXR/EGFP), or NβT gRXRδH12 (C and F; gRXRδH12). Bright field images are shown in A–C; fluorescent images are shown in D–F. Endogenous activation of gRXR was observed only in embryos carrying gRXR/EGFP transgene, and not in g/EGFP alone or mutated gRXRδH12/EGFP. (G and H) Overlaid picture of light and fluorescent images. Cross sections of midbrain (G) and rostral spinal cord (H) of gRXR/EGFP tadpole stained with an anti-EGFP antibody. (I and J) Dorsal view of light (I) and fluorescence (J) images. (Bar, 100 μm.) This pattern was observed in all positive embryos, with few intensity changes along the spinal cord.
Fig. 4. Developmental activation of the gRXR fusion protein in the X. laevis spinal cord. EGFP expression is specifically induced in the rostral spinal cord of NβTgRXR/UAS-E1b-EGFP transgenic embryos beginning at stage 24 (A and F), and continuing through stages 26 (B and G), 35 (C and H), and 42 (D and I, overlaid image), but disappears by stage 46 (E and J). Bright field images are shown in A–E; fluorescent images are shown in F–J. Arrows indicate location of fluorescence induced above background autofluorescence, including both spinal cord and eye (in I).
Fig. 5. Exogenous ligand treatment expands GFP expression in gRXR fusion protein expressing embryos. Bright field (A–D and I) and fluorescent images (E–H and J) of transgenic embryos created with NβTgRXR (A–H) or NβTgRAR (I and J) expression vectors and the UAS-E1b-EGFP reporter gene. No expression of reporter gene was observed in untreated swimming tadpoles (A and E). Reporter gene expression was seen in gRXR tadpoles that were treated with exogenous 1 μM 9-cis RA (B and F), atRA (C and G), or LG100268 (D and H). TTNPB induced activation only in gRAR transgene embryos (I and J). Embryos were monitored daily, and activation was observed after 3 days of treatment.
Allegretto,
Transactivation properties of retinoic acid and retinoid X receptors in mammalian cells and yeast. Correlation with hormone binding and effects of metabolism.
1993, Pubmed
Allegretto,
Transactivation properties of retinoic acid and retinoid X receptors in mammalian cells and yeast. Correlation with hormone binding and effects of metabolism.
1993,
Pubmed Allenby,
Retinoic acid receptors and retinoid X receptors: interactions with endogenous retinoic acids.
1993,
Pubmed Amaya,
A method for generating transgenic frog embryos.
1999,
Pubmed
,
Xenbase Blumberg,
Novel retinoic acid receptor ligands in Xenopus embryos.
1996,
Pubmed
,
Xenbase Boehm,
Design and synthesis of potent retinoid X receptor selective ligands that induce apoptosis in leukemia cells.
1995,
Pubmed Budhu,
On the role of the carboxyl-terminal helix of RXR in the interactions of the receptor with ligand.
2000,
Pubmed Canan Koch,
Synthesis of retinoid X receptor-specific ligands that are potent inducers of adipogenesis in 3T3-L1 cells.
1999,
Pubmed Canan Koch,
Identification of the first retinoid X, receptor homodimer antagonist.
1996,
Pubmed Colbert,
Local sources of retinoic acid coincide with retinoid-mediated transgene activity during embryonic development.
1993,
Pubmed Dekker,
Overexpression of a cellular retinoic acid binding protein (xCRABP) causes anteroposterior defects in developing Xenopus embryos.
1994,
Pubmed
,
Xenbase de Roos,
Expression of retinoic acid 4-hydroxylase (CYP26) during mouse and Xenopus laevis embryogenesis.
1999,
Pubmed
,
Xenbase de Urquiza,
Docosahexaenoic acid, a ligand for the retinoid X receptor in mouse brain.
2000,
Pubmed Duester,
Involvement of alcohol dehydrogenase, short-chain dehydrogenase/reductase, aldehyde dehydrogenase, and cytochrome P450 in the control of retinoid signaling by activation of retinoic acid synthesis.
1996,
Pubmed Duester,
Families of retinoid dehydrogenases regulating vitamin A function: production of visual pigment and retinoic acid.
2000,
Pubmed Durston,
Retinoic acid causes an anteroposterior transformation in the developing central nervous system.
1989,
Pubmed
,
Xenbase Egea,
Molecular recognition of agonist ligands by RXRs.
2002,
Pubmed Fujii,
Metabolic inactivation of retinoic acid by a novel P450 differentially expressed in developing mouse embryos.
1997,
Pubmed Furlow,
A set of novel tadpole specific genes expressed only in the epidermis are down-regulated by thyroid hormone during Xenopus laevis metamorphosis.
1997,
Pubmed
,
Xenbase Furlow,
The transcription factor basic transcription element-binding protein 1 is a direct thyroid hormone response gene in the frog Xenopus laevis.
2002,
Pubmed
,
Xenbase Furlow,
In vitro and in vivo analysis of the regulation of a transcription factor gene by thyroid hormone during Xenopus laevis metamorphosis.
1999,
Pubmed
,
Xenbase Giguere,
Identification of a receptor for the morphogen retinoic acid.
,
Pubmed Hartley,
Targeted gene expression in transgenic Xenopus using the binary Gal4-UAS system.
2002,
Pubmed
,
Xenbase Heyman,
9-cis retinoic acid is a high affinity ligand for the retinoid X receptor.
1992,
Pubmed Hollemann,
Regionalized metabolic activity establishes boundaries of retinoic acid signalling.
1998,
Pubmed
,
Xenbase Huang,
Metamorphosis is inhibited in transgenic Xenopus laevis tadpoles that overexpress type III deiodinase.
1999,
Pubmed
,
Xenbase Kastner,
Genetic analysis of RXR alpha developmental function: convergence of RXR and RAR signaling pathways in heart and eye morphogenesis.
1994,
Pubmed Köster,
Tracing transgene expression in living zebrafish embryos.
2001,
Pubmed
,
Xenbase Kozlova,
Spatial patterns of ecdysteroid receptor activation during the onset of Drosophila metamorphosis.
2002,
Pubmed Kraft,
The retinoid X receptor ligand, 9-cis-retinoic acid, is a potential regulator of early Xenopus development.
1994,
Pubmed
,
Xenbase Lee,
Identification of critical residues for heterodimerization within the ligand-binding domain of retinoid X receptor.
1998,
Pubmed Levin,
9-cis retinoic acid stereoisomer binds and activates the nuclear receptor RXR alpha.
1992,
Pubmed Maden,
Retinoid signalling in the development of the central nervous system.
2002,
Pubmed Mangelsdorf,
Characterization of three RXR genes that mediate the action of 9-cis retinoic acid.
1992,
Pubmed Mangelsdorf,
Nuclear receptor that identifies a novel retinoic acid response pathway.
1990,
Pubmed Marsh-Armstrong,
Asymmetric growth and development of the Xenopus laevis retina during metamorphosis is controlled by type III deiodinase.
1999,
Pubmed
,
Xenbase Marsh-Armstrong,
Germ-line transmission of transgenes in Xenopus laevis.
1999,
Pubmed
,
Xenbase Mascrez,
The RXRalpha ligand-dependent activation function 2 (AF-2) is important for mouse development.
1998,
Pubmed McCaffery,
Hot spots of retinoic acid synthesis in the developing spinal cord.
1994,
Pubmed Means,
The roles of retinoids in vertebrate development.
1995,
Pubmed Niederreither,
Retinoic acid synthesis and hindbrain patterning in the mouse embryo.
2000,
Pubmed Petkovich,
A human retinoic acid receptor which belongs to the family of nuclear receptors.
,
Pubmed Repa,
Regulation of absorption and ABC1-mediated efflux of cholesterol by RXR heterodimers.
2000,
Pubmed Roberts,
Motoneurons of the axial swimming muscles in hatchling Xenopus tadpoles: features, distribution, and central synapses.
1999,
Pubmed
,
Xenbase Romert,
The identification of a 9-cis retinol dehydrogenase in the mouse embryo reveals a pathway for synthesis of 9-cis retinoic acid.
1998,
Pubmed Rossant,
Expression of a retinoic acid response element-hsplacZ transgene defines specific domains of transcriptional activity during mouse embryogenesis.
1991,
Pubmed Ruberte,
Differential distribution patterns of CRABP I and CRABP II transcripts during mouse embryogenesis.
1992,
Pubmed Ruiz i Altaba,
Retinoic acid modifies mesodermal patterning in early Xenopus embryos.
1991,
Pubmed
,
Xenbase Saha,
Dorsal-ventral patterning during neural induction in Xenopus: assessment of spinal cord regionalization with xHB9, a marker for the motor neuron region.
1997,
Pubmed
,
Xenbase Schlosser,
Thyroid hormone promotes neurogenesis in the Xenopus spinal cord.
2002,
Pubmed
,
Xenbase Sockanathan,
Motor neuron-derived retinoid signaling specifies the subtype identity of spinal motor neurons.
1998,
Pubmed Sockanathan,
Retinoid receptor signaling in postmitotic motor neurons regulates rostrocaudal positional identity and axonal projection pattern.
2003,
Pubmed Solomin,
Retinoid-X receptor signalling in the developing spinal cord.
1998,
Pubmed Ulven,
Quantitative axial profiles of retinoic acid in the embryonic mouse spinal cord: 9-cis retinoic acid only detected after all-trans-retinoic acid levels are super-elevated experimentally.
2001,
Pubmed van Mier,
The development of the dendritic organization of primary and secondary motoneurons in the spinal cord of Xenopus laevis. An HRP study.
1985,
Pubmed
,
Xenbase Wallen-Mackenzie,
Nurr1-RXR heterodimers mediate RXR ligand-induced signaling in neuronal cells.
2003,
Pubmed Zhang,
Mutations that alter ligand-induced switches and dimerization activities in the retinoid X receptor.
1994,
Pubmed Zhang,
Homodimer formation of retinoid X receptor induced by 9-cis retinoic acid.
1992,
Pubmed Zhao,
Molecular identification of a major retinoic-acid-synthesizing enzyme, a retinaldehyde-specific dehydrogenase.
1996,
Pubmed
