???displayArticle.abstract???
We determined the 2.45 A crystal structure of the nucleosome core particle from Drosophila melanogaster and compared it to that of Xenopus laevis bound to the identical 147 base-pair DNA fragment derived from human alpha-satellite DNA. Differences between the two structures primarily reflect 16 amino acid substitutions between species, 15 of which are in histones H2A and H2B. Four of these involve histone tail residues, resulting in subtly altered protein-DNA interactions that exemplify the structural plasticity of these tails. Of the 12 substitutions occurring within the histone core regions, five involve small, solvent-exposed residues not involved in intraparticle interactions. The remaining seven involve buried hydrophobic residues, and appear to have coevolved so as to preserve the volume of side chains within the H2A hydrophobic core and H2A-H2B dimer interface. Thus, apart from variations in the histone tails, amino acid substitutions that differentiate Drosophila from Xenopus histones occur in mutually compensatory combinations. This highlights the tight evolutionary constraints exerted on histones since the vertebrate and invertebrate lineages diverged.

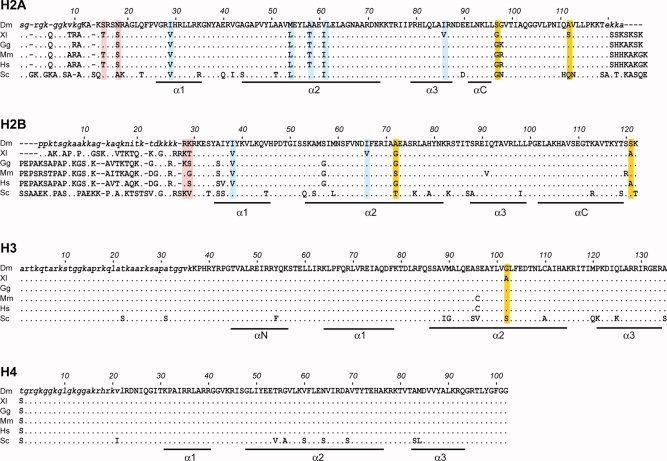

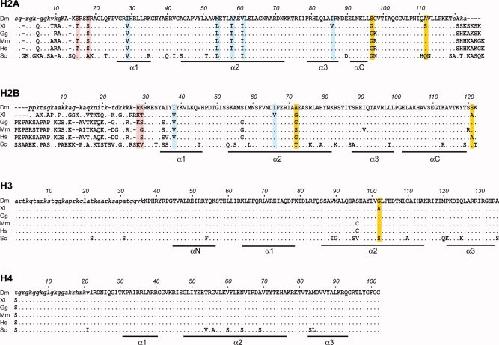

Figure 1. Sequence alignment of histones. Alignment of histones from Drosophila (Dm), Xenopus (Xl), chicken (Gg), mouse (Mm), human (Hs), and yeast (Sc). Drosophila H2A, H2B, H3, H4 sequences correspond to accession codes NP_724343, NP_724342, NP_724345, NP_724344, respectively. Only residues that differ from the Drosophila sequence are shown. Amino acid substitutions that differentiate the Drosophila and Xenopus histone core regions are highlighted in yellow and cyan; those in ordered tail residues are highlighted in pink. Unstructured residues are indicated in lower case.

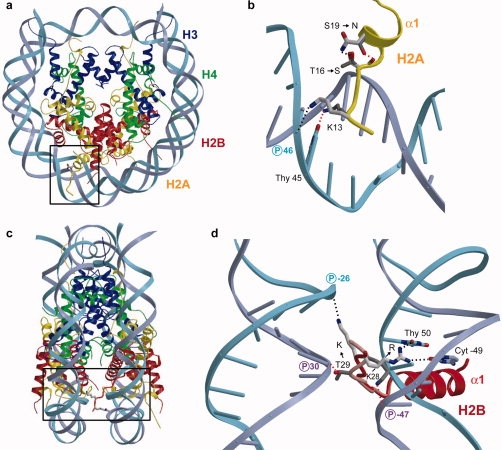

Figure 2. Structural differences within the H2A and H2B histone tails between Dm-NCP147 and Xla-NCP147. (a) Dm-NCP viewed along the superhelix showing the location of the N-terminal tail of H2A. (b) The N-terminal histone tail of H2A′, showing close-up of boxed region in a. Side chains from Drosophila are in light gray; from Xenopus in dark Grey. Hydrogen bonds unique to Drosophila are in black; those unique to Xenopus are in red. Residue substitutions are labelled in the direction from Xenopus to Drosophila. DNA bases are shown as sticks, except for Thy45. The view is slightly rotated relative to that in a. (c) Edge view of the NCP showing location of the Nterminal tail of H2B. (d) Histone tail of H2B′ showing close-up view of boxed region in c. Base atoms is shown for Thy50 and Cyt-49.

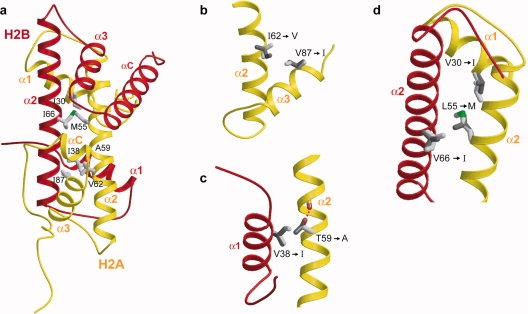

Figure 3. Structural differences in the H2A-H2B dimer between Dm-NCP147 and Xla-NCP147. (a) Overview of structured residues in the hydrophobic core of the H2A-H2B dimer that diverge between Xenopus and Drosophila. View is approximately along the pseudodyad. (b) Compensatory changes within the hydrophobic core of H2A. Residue substitutions are labeled in the direction from Xenopus to Drosophila. (c) Compensatory changes involving two residues in the H2A-H2B dimer interface. The hydrogen bond missing from the Dm structure is in red. (d) Compensatory changes involving three residues in the H2A-H2B dimer interface.
Arents,
The nucleosomal core histone octamer at 3.1 A resolution: a tripartite protein assembly and a left-handed superhelix.
1991, Pubmed
Arents,
The nucleosomal core histone octamer at 3.1 A resolution: a tripartite protein assembly and a left-handed superhelix.
1991,
Pubmed Barbera,
The nucleosomal surface as a docking station for Kaposi's sarcoma herpesvirus LANA.
2006,
Pubmed
,
Xenbase Becker,
ATP-dependent nucleosome remodeling.
2002,
Pubmed Bentley,
Crystal structure of the nucleosome core particle at 16 A resolution.
1984,
Pubmed Boyer,
Molecular control of pluripotency.
2006,
Pubmed Brünger,
Crystallography & NMR system: A new software suite for macromolecular structure determination.
1998,
Pubmed Chakravarthy,
Structural characterization of the histone variant macroH2A.
2005,
Pubmed
,
Xenbase Chothia,
The relation between the divergence of sequence and structure in proteins.
1986,
Pubmed Collaborative Computational Project, Number 4,
The CCP4 suite: programs for protein crystallography.
1994,
Pubmed Davey,
Solvent mediated interactions in the structure of the nucleosome core particle at 1.9 a resolution.
2002,
Pubmed
,
Xenbase Davey,
DNA-dependent divalent cation binding in the nucleosome core particle.
2002,
Pubmed Dyer,
Reconstitution of nucleosome core particles from recombinant histones and DNA.
2004,
Pubmed Finch,
Structure of nucleosome core particles of chromatin.
1977,
Pubmed Fischle,
Histone and chromatin cross-talk.
2003,
Pubmed Flores,
Comparison of conformational characteristics in structurally similar protein pairs.
1993,
Pubmed Harp,
Asymmetries in the nucleosome core particle at 2.5 A resolution.
2000,
Pubmed Hubbard,
Comparison of solvent-inaccessible cores of homologous proteins: definitions useful for protein modelling.
1987,
Pubmed Jones,
Improved methods for building protein models in electron density maps and the location of errors in these models.
1991,
Pubmed Khorasanizadeh,
The nucleosome: from genomic organization to genomic regulation.
2004,
Pubmed Kornberg,
Chromatin structure; oligomers of the histones.
1974,
Pubmed Kornberg,
Twenty-five years of the nucleosome, fundamental particle of the eukaryote chromosome.
1999,
Pubmed Kornberg,
Chromatin structure: a repeating unit of histones and DNA.
1974,
Pubmed Lieberman,
Chromatin regulation of virus infection.
2006,
Pubmed Luger,
Crystal structure of the nucleosome core particle at 2.8 A resolution.
1997,
Pubmed Lund,
Epigenetics and cancer.
2004,
Pubmed Narlikar,
Cooperation between complexes that regulate chromatin structure and transcription.
2002,
Pubmed Richmond,
The structure of DNA in the nucleosome core.
2003,
Pubmed Richmond,
Structure of the nucleosome core particle at 7 A resolution.
,
Pubmed Russell,
Recognition of analogous and homologous protein folds: analysis of sequence and structure conservation.
1997,
Pubmed Sullivan,
Characterization of sequence variability in nucleosome core histone folds.
2003,
Pubmed Suto,
Crystal structure of a nucleosome core particle containing the variant histone H2A.Z.
2000,
Pubmed
,
Xenbase Tsunaka,
Alteration of the nucleosomal DNA path in the crystal structure of a human nucleosome core particle.
2005,
Pubmed
,
Xenbase White,
Structure of the yeast nucleosome core particle reveals fundamental changes in internucleosome interactions.
2001,
Pubmed
,
Xenbase Workman,
Nucleosome displacement in transcription.
2006,
Pubmed
