???displayArticle.abstract???
Induction of the otic placode, the rudiment of the inner ear, is believed to depend on signals derived from surrounding tissues, the head mesoderm and the prospective hindbrain. Here we report the first attempt to define the specific contribution of the neuroectoderm to this inductive process in Xenopus. To this end we tested the ability of segments of the neural plate (NP), isolated from different axial levels, to induce the otic marker Pax8 when recombined with blastula stage animal caps. We found that one single domain of the NP, corresponding to the prospective anteriorhindbrain, had Pax8-inducing activity in this assay. Surprisingly, more than half of these recombinants formed otic vesicle-like structures. Lineage tracing experiments indicate that these vesicle-like structures are entirely derived from the animal cap and express several pan-otic markers. Pax8 activation in these recombinants requires active Fgf and canonical Wnt signaling, as interference with either pathway blocks Pax8 induction. Furthermore, we demonstrate that Fgf and canonical Wnt signaling cooperate to activate Pax8 expression in isolated animal caps. We propose that in the absence of mesoderm cues the combined activity of hindbrain-derived Wnt and Fgf signals specifies the otic placode in Xenopus, and promotes its morphogenesis into an otocyst.
Fig. 4. Ablation of the NP2 domain reduces the otic expression of Pax8 in stage 23/24 embryos. Otx2 (forebrain and eyes) and Krox20 (rhombomeres 3 and 5, arrowheads) (A, B) and Pax8 (C, D) otic expression (arrows) in control embryos at stage 23/24. (E–H) Unilateral ablation of NP2 domain results in reduced Pax8 expression on the manipulated side (G–H; arrows). Sibling embryos after NP2 domain removal (E, F) show reduced Krox20 expression in the hindbrain (residual rhombomere 5 expression can be detected in these embryos; arrowhead) without affecting Krox20 expression domain in the neural crest (nc). Dorsal (A, C, E, G) and lateral (B, D, F, H) views, anterior to left.

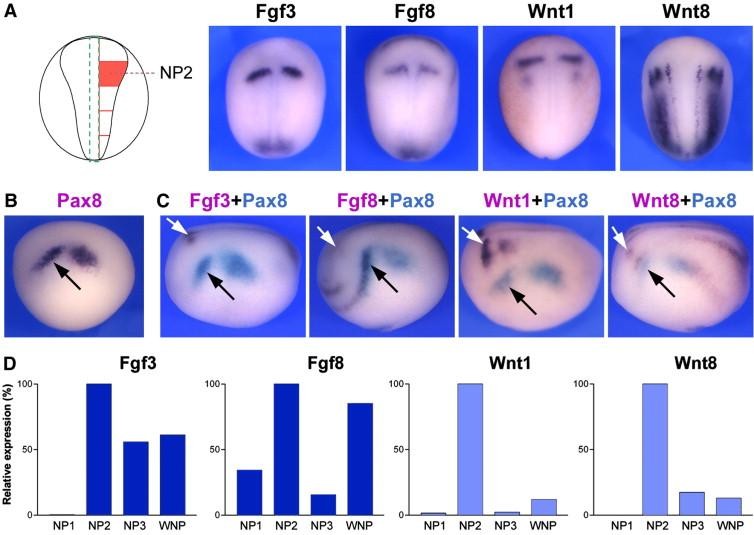

Fig. 7. Developmental expression of putative hindbrain-derived otic-inducing factors. (A) Fgf3, Fgf8, Wnt1 and Wnt8 are expressed in a region of NP corresponding to NP2 domain at the early neurula stage; dorsal views, anterior to top. (B) Pax8 otic expression at stage 15 (black arrow). (C) Double in situ hybridization showing the relationship of expression of Pax8 (black arrows; green staining) and Fgf3, Fgf8, Wnt1 and Wnt8 (white arrows; purple staining) at the neurula stage. Lateral views, anterior to the left. At this stage Wnt8 is also expressed outside of the hindbrain in a region of the ectoderm presumably corresponding to the neural crest. (D) Real-Time RT-PCR analysis of Fgf3, Fgf8, Wnt1 and Wnt8 expression in various segments of NP (NP1, NP2 and NP3) shortly after dissection. All four ligands are enriched in NP2 domain. WNP; whole NP.

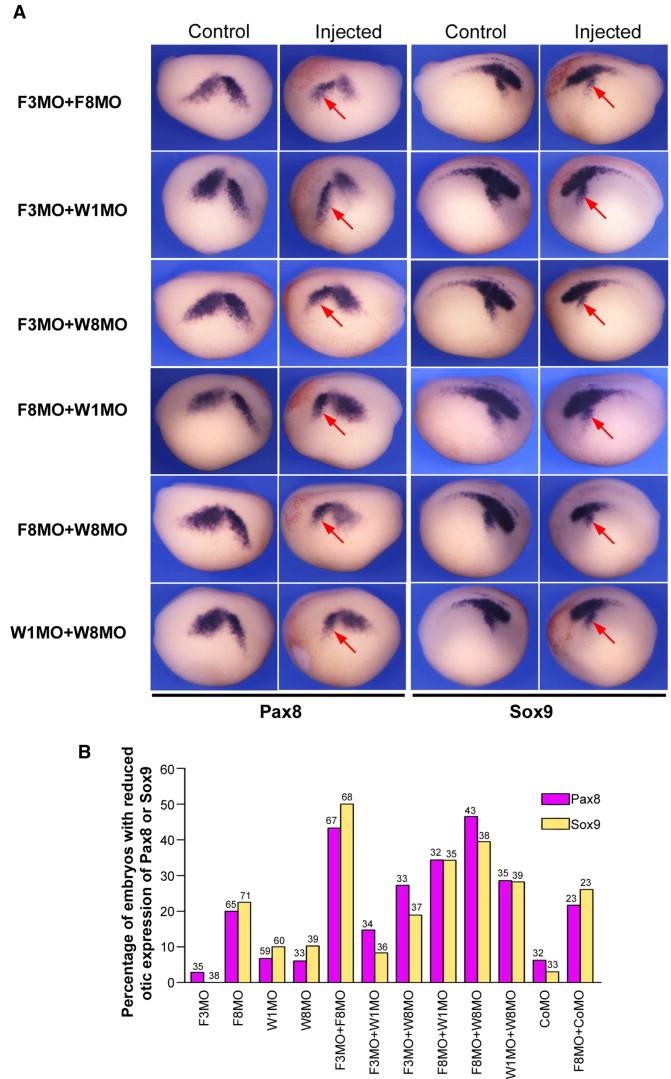

Fig. 8. Wnt and Fgf signaling are required for otic placode specification. (A) Embryos injected with different combinations of Fgf3 (F3MO), Fgf8 (F8MO), Wnt1 (W1MO) and Wnt8 (W8MO), morpholino antisense oligonucleotides show reduction of Pax8 and Sox9 otic expression at the neurula stage (stage 15). The affected otic domain is indicated by an arrow on the injected side. In these embryos two morpholinos were co-injected at the 4-cell stage to target the NP. For the same embryos the control and injected sides are shown for comparison. Lateral views. For the control panels anterior to right. For the injected panels anterior to left. (B) Quantification of the in situ hybridization results. The number on the top of each bar indicates the number of embryo analyzed.
Ahrens,
Tissues and signals involved in the induction of placodal Six1 expression in Xenopus laevis.
2005, Pubmed,
Xenbase
Ahrens,
Tissues and signals involved in the induction of placodal Six1 expression in Xenopus laevis.
2005,
Pubmed
,
Xenbase Alvarez,
Requirements for FGF3 and FGF10 during inner ear formation.
2003,
Pubmed
,
Xenbase Amaya,
Expression of a dominant negative mutant of the FGF receptor disrupts mesoderm formation in Xenopus embryos.
1991,
Pubmed
,
Xenbase Aoki,
Sox10 regulates the development of neural crest-derived melanocytes in Xenopus.
2003,
Pubmed
,
Xenbase Baker,
Vertebrate cranial placodes I. Embryonic induction.
2001,
Pubmed
,
Xenbase Bradley,
The structure and expression of the Xenopus Krox-20 gene: conserved and divergent patterns of expression in rhombomeres and neural crest.
1993,
Pubmed
,
Xenbase Brugmann,
Six1 promotes a placodal fate within the lateral neurogenic ectoderm by functioning as both a transcriptional activator and repressor.
2004,
Pubmed
,
Xenbase Christen,
FGF-8 is associated with anteroposterior patterning and limb regeneration in Xenopus.
1997,
Pubmed
,
Xenbase David,
Xenopus Eya1 demarcates all neurogenic placodes as well as migrating hypaxial muscle precursors.
2001,
Pubmed
,
Xenbase Fletcher,
FGF8 spliceforms mediate early mesoderm and posterior neural tissue formation in Xenopus.
2006,
Pubmed
,
Xenbase Gallagher,
Inductive processes leading to inner ear formation during Xenopus development.
1996,
Pubmed
,
Xenbase Glavic,
Role of BMP signaling and the homeoprotein Iroquois in the specification of the cranial placodal field.
2004,
Pubmed
,
Xenbase Harland,
In situ hybridization: an improved whole-mount method for Xenopus embryos.
1991,
Pubmed
,
Xenbase Hayata,
Expression of Xenopus T-box transcription factor, tbx2 in Xenopus embryo.
1999,
Pubmed
,
Xenbase Heasman,
Beta-catenin signaling activity dissected in the early Xenopus embryo: a novel antisense approach.
2000,
Pubmed
,
Xenbase Heller,
Xenopus Pax-2/5/8 orthologues: novel insights into Pax gene evolution and identification of Pax-8 as the earliest marker for otic and pronephric cell lineages.
1999,
Pubmed
,
Xenbase Hong,
The activity of Pax3 and Zic1 regulates three distinct cell fates at the neural plate border.
2007,
Pubmed
,
Xenbase Huang,
The doublesex-related gene, XDmrt4, is required for neurogenesis in the olfactory system.
2005,
Pubmed
,
Xenbase Ikeya,
Wnt signalling required for expansion of neural crest and CNS progenitors.
1997,
Pubmed Jacobson,
Inductive processes in embryonic development.
1966,
Pubmed Jonas,
Transcriptional regulation of a Xenopus embryonic epidermal keratin gene.
1989,
Pubmed
,
Xenbase Kil,
Distinct roles for hindbrain and paraxial mesoderm in the induction and patterning of the inner ear revealed by a study of vitamin-A-deficient quail.
2005,
Pubmed Kintner,
Expression of Xenopus N-CAM RNA in ectoderm is an early response to neural induction.
1987,
Pubmed
,
Xenbase Koebernick,
A restrictive role for Hedgehog signalling during otic specification in Xenopus.
2003,
Pubmed
,
Xenbase LaBonne,
Neural crest induction in Xenopus: evidence for a two-signal model.
1998,
Pubmed
,
Xenbase Ladher,
Identification of synergistic signals initiating inner ear development.
2000,
Pubmed Ladher,
FGF8 initiates inner ear induction in chick and mouse.
2005,
Pubmed Léger,
Fgf8 and Fgf3 are required for zebrafish ear placode induction, maintenance and inner ear patterning.
2002,
Pubmed Levi,
The distribution of E-cadherin during Xenopus laevis development.
1991,
Pubmed
,
Xenbase Litsiou,
A balance of FGF, BMP and WNT signalling positions the future placode territory in the head.
2005,
Pubmed Liu,
Fgf3 and Fgf8 dependent and independent transcription factors are required for otic placode specification.
2003,
Pubmed Lombardo,
Postgastrulation effects of fibroblast growth factor on Xenopus development.
1998,
Pubmed
,
Xenbase Lombardo,
Expression and functions of FGF-3 in Xenopus development.
1998,
Pubmed
,
Xenbase Maroon,
Fgf3 and Fgf8 are required together for formation of the otic placode and vesicle.
2002,
Pubmed Mayor,
Induction of the prospective neural crest of Xenopus.
1995,
Pubmed
,
Xenbase Mendonsa,
Genetic analysis of tissue interactions required for otic placode induction in the zebrafish.
1999,
Pubmed Mizuseki,
Xenopus Zic-related-1 and Sox-2, two factors induced by chordin, have distinct activities in the initiation of neural induction.
1998,
Pubmed
,
Xenbase Nagafuchi,
Transmembrane control of cadherin-mediated cell adhesion: a 94 kDa protein functionally associated with a specific region of the cytoplasmic domain of E-cadherin.
1989,
Pubmed Noramly,
Determination of the embryonic inner ear.
2002,
Pubmed O'Donnell,
Functional analysis of Sox8 during neural crest development in Xenopus.
2006,
Pubmed
,
Xenbase Ohyama,
The first steps towards hearing: mechanisms of otic placode induction.
2007,
Pubmed Ohyama,
Wnt signals mediate a fate decision between otic placode and epidermis.
2006,
Pubmed Pandur,
Xenopus Six1 gene is expressed in neurogenic cranial placodes and maintained in the differentiating lateral lines.
2000,
Pubmed
,
Xenbase Pannese,
The Xenopus homologue of Otx2 is a maternal homeobox gene that demarcates and specifies anterior body regions.
1995,
Pubmed
,
Xenbase Phillips,
Zebrafish fgf3 and fgf8 encode redundant functions required for otic placode induction.
2001,
Pubmed Phillips,
A direct role for Fgf but not Wnt in otic placode induction.
2004,
Pubmed Riccomagno,
Specification of the mammalian cochlea is dependent on Sonic hedgehog.
2002,
Pubmed Riccomagno,
Wnt-dependent regulation of inner ear morphogenesis is balanced by the opposing and supporting roles of Shh.
2005,
Pubmed Riley,
Ringing in the new ear: resolution of cell interactions in otic development.
2003,
Pubmed Ruiz i Altaba,
Retinoic acid modifies the pattern of cell differentiation in the central nervous system of neurula stage Xenopus embryos.
1991,
Pubmed
,
Xenbase Saint-Germain,
Specification of the otic placode depends on Sox9 function in Xenopus.
2004,
Pubmed
,
Xenbase Saint-Jeannet,
Regulation of dorsal fate in the neuraxis by Wnt-1 and Wnt-3a.
1997,
Pubmed
,
Xenbase Schimmang,
Expression and functions of FGF ligands during early otic development.
2007,
Pubmed
,
Xenbase Schlosser,
Molecular anatomy of placode development in Xenopus laevis.
2004,
Pubmed
,
Xenbase Schneider-Maunoury,
Hindbrain signals in otic regionalization: walk on the wild side.
2007,
Pubmed Smith,
Expression cloning of noggin, a new dorsalizing factor localized to the Spemann organizer in Xenopus embryos.
1992,
Pubmed
,
Xenbase Smith,
Expression of a Xenopus homolog of Brachyury (T) is an immediate-early response to mesoderm induction.
1991,
Pubmed
,
Xenbase Smith,
Injected Xwnt-8 RNA acts early in Xenopus embryos to promote formation of a vegetal dorsalizing center.
1991,
Pubmed
,
Xenbase Torres,
The development of the vertebrate inner ear.
1998,
Pubmed Vendrell,
Induction of inner ear fate by FGF3.
2000,
Pubmed Wolda,
Overlapping expression of Xwnt-3A and Xwnt-1 in neural tissue of Xenopus laevis embryos.
1993,
Pubmed
,
Xenbase Woo,
Specification of the hindbrain fate in the zebrafish.
1998,
Pubmed Wright,
The Xenopus XIHbox 6 homeo protein, a marker of posterior neural induction, is expressed in proliferating neurons.
1990,
Pubmed
,
Xenbase Wright,
Fgf3 and Fgf10 are required for mouse otic placode induction.
2003,
Pubmed Yang,
Beta-catenin/Tcf-regulated transcription prior to the midblastula transition.
2002,
Pubmed
,
Xenbase Zelarayan,
Differential requirements for FGF3, FGF8 and FGF10 during inner ear development.
2007,
Pubmed
