???displayArticle.abstract???
Two independent signals are necessary for neural crest (NC) induction in Xenopus: a Bmp signal, which must be partially attenuated by Bmp antagonists, and a separate signal mediated by either a canonical Wnt or an Fgf. The mesoderm underlying the NC-forming region has been proposed as a source of this second signal. Wnt8 and Fgf8a are expressed in this tissue around the time of NC induction and are therefore good candidate NC inducers. Loss-of-function studies indicate that both of these ligands are necessary to specify the NC; however, it is unclear whether these signaling molecules are operating in the same or in parallel pathways to generate the NC. Here, we describe experiments addressing this outstanding question. We show that although Wnt8 expression can restore NC progenitors in Fgf8a-deficient embryos, Fgf8a is unable to rescue NC formation in Wnt8-depleted embryos. Moreover, the NC-inducing activity of Fgf8a in neuralized explants is strongly repressed by co-injection of a Wnt8 or a beta-catenin morpholino, suggesting that the activity of these two signaling molecules is linked. Consistent with these observations, Fgf8a is a potent inducer of Wnt8 in both whole embryos and animal explants, and Fgf8a knockdown results in a dramatic loss of Wnt8 expression in the mesoderm. We propose that Fgf8a induces NC indirectly through the activation of Wnt8 in the paraxial mesoderm, which in turn promotes NC formation in the overlying ectoderm primed by Bmp antagonists.

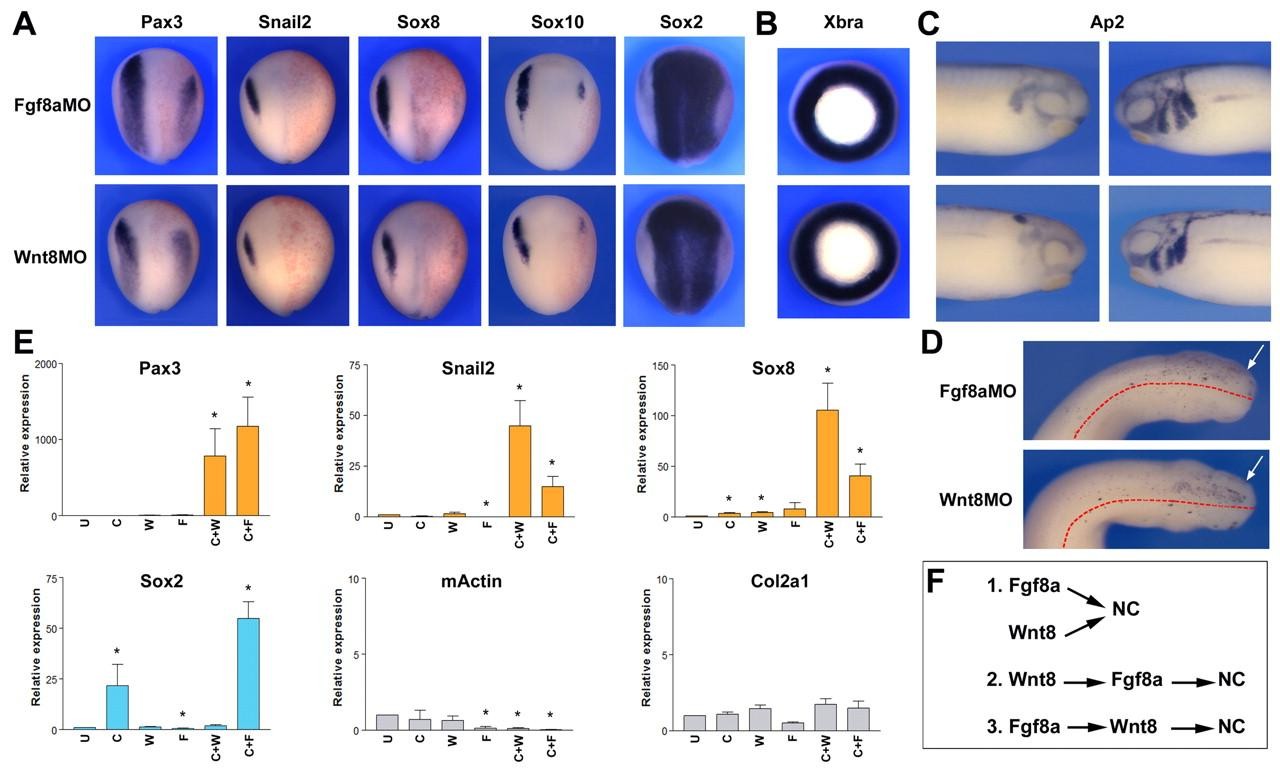

Fig. 1. Wnt8 and Fgf8a are necessary for NC formation. (A) Embryos injected with Fgf8a (Fgf8aMO; 50 ng) or Wnt8 (Wnt8MO; 40 ng) morpholino antisense oligonucleotides exhibit a strong reduction of Pax3, Snail2, Sox8 and Sox10 expression at the neurula stage, while the expression domain of the pan-neural marker Sox2 is expanded. Embryos are viewed from the dorsal side anterior to the top. Injected side is on the right. (B) At the gastrula stage, Fgf8aMO- and Wnt8MO-injected embryos show normal expression of the mesoderm marker Xbra. Embryos are viewed from the vegetal pole. (C) At the tailbud stage the migration pattern of cranial NC cells is severely perturbed in both Fgf8aMO- and Wnt8MO-injected embryos, as revealed by expression of the cranial NC marker Ap2. Lateral views, dorsal to top. Left panels, anterior to the right (injected side); right panels, anterior to the left (control side). (D) TUNEL staining shows a similar increase in apoptotic cells in the cranial region of Fgf8aMO- and Wnt8MO-injected embryos at the tailbud stage (arrows). Embryos are viewed from the dorsal side, anterior to the right. The dotted lines indicate the position of the midline. (E) In animal explants, Wnt8 (W, 25 pg) or Fgf8a (C, 5 pg) share the same ability to induce NC markers (Pax3, Snail2 and Sox8) when co-expressed with the Bmp antagonist Chordin (C, 10 pg; C+W and C+F, respectively). In these explants the induction of NC fate occurs in the absence of mesoderm formation (mActin and Col2a1). Fgf8a also synergizes with Chordin to induce neural tissue (Sox2). Values (n=3) are presented as mean±s.e.m.; *P<0.05, versus uninjected animal explant (U). (F) The dual requirement of Fgf8a and Wnt8 suggests that these factors are acting either in parallel (1), or in the same pathway, one upstream of the other (2,3), to generate the NC.

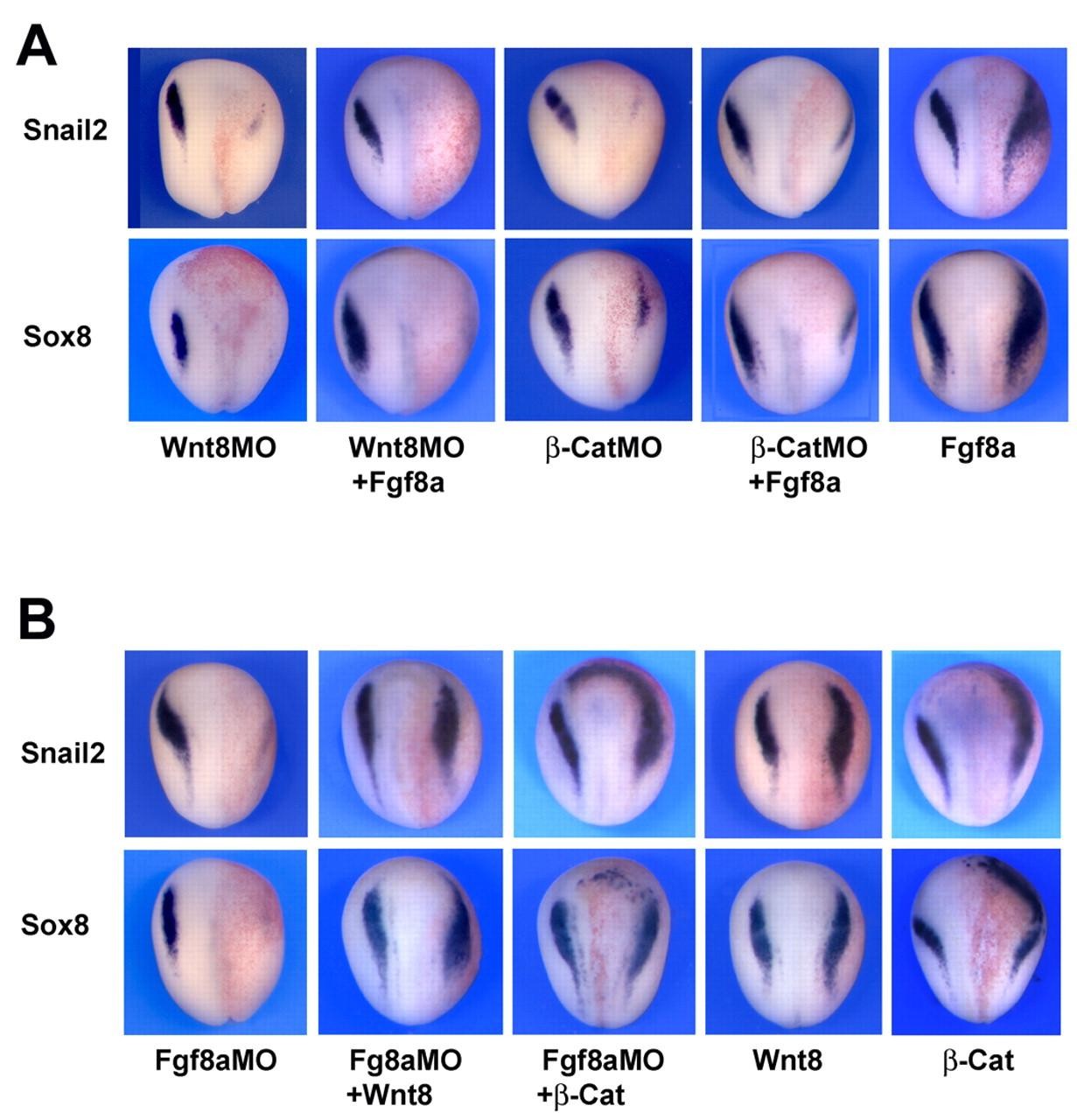

Fig. 2. Fgf8a and Wnt8 differ in their ability to restore NC progenitors in Wnt8- and Fgf8a-deficient embryos. (A) Fgf8a mRNA injection fails to rescue Snail2 and Sox8 expression at the neural plate border of embryos injected with Wnt8MO (25ng) or β-CatMO (25 ng). A single injection of Fgf8a mRNA (2.5 pg) expands Snail2 and Sox8 expression domains. (B) Conversely, Wnt8 (100 pg) or β-catenin (200 pg) plasmid DNA injection restores Snail2 and Sox8 expression in embryos injected with Fgf8aMO (50 ng). Injection of Wnt8 or β-catenin in sibling embryos expanded Snail2 and Sox8 expression domains. In all panels, embryos are viewed from the dorsal side with anterior to the top. The injected side is to the right.

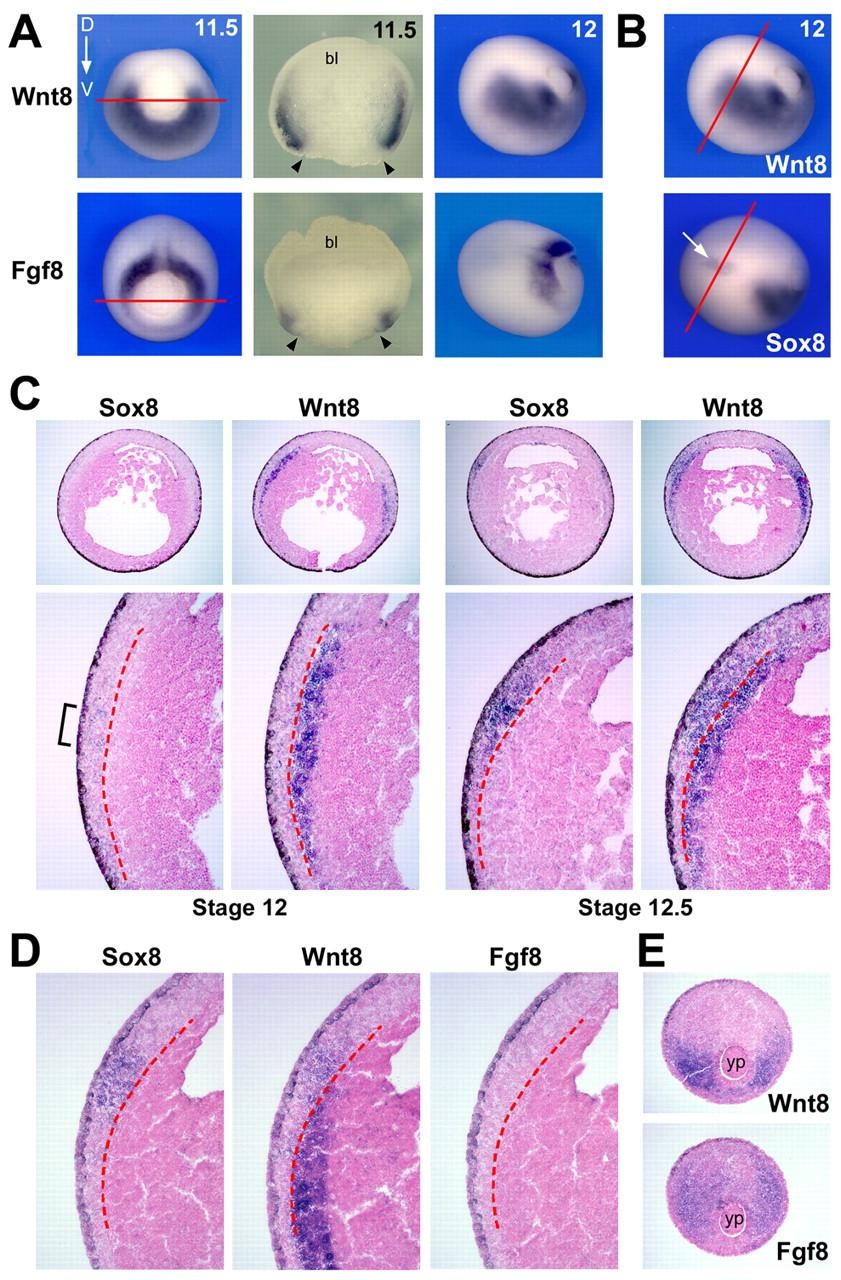

Fig. 4. Developmental expression of Wnt8 and Fgf8. (A) Comparison of Wnt8 and Fgf8 expression at the gastrula stage. At the mid-gastrula stage (11.5), Wnt8 and Fgf8 have a complementary expression pattern in the ventrolateral and dorsolateral mesoderm, respectively. The embryos are oriented dorsal (D) to the top. Hemi-sections (red lines in the left panels) of these embryos along the animal-vegetal axis reveal that both genes are co-expressed in the lateralmesoderm. The arrowheads indicate the position of the lateral lip of the blastopore (bl, blastocoel). At stage 12, the Wnt8 expression domain expands anteriorly into the involuting mesoderm, the future paraxial mesoderm, while Fgf8 remains confined to the posteriormesoderm. (B) Comparative expression of Wnt8 and Sox8 at stage 12. Sox8 expression in the ectoderm (arrow) is adjacent to Wnt8 expression in the mesoderm. The red lines indicate the level of the serial sections shown in C,D. (C) Expression of Sox8 and Wnt8 on adjacent sections of a stage 12 embryo highlights the mesoderm expression of Wnt8 underlying the first Sox8-positive cells in the NC-forming region (bracket). At stage 12.5, Sox8 expression is stronger in the NC domain, and Wnt8 becomes more broadly expressed in both the ectoderm and the mesoderm layers. The red dotted lines in the lower panels demarcate the separation between the ectoderm and the mesoderm layers. Lower panels are higher magnifications of the upper panels. (D) Comparative expression of Sox8, Wnt8 and Fgf8 on adjacent sections of a stage 12/12.5 embryo confirms that Fgf8 is not co-expressed with Wnt8 in the mesoderm underlying the NC-forming region. The red dotted lines indicate the separation between the ectoderm and the mesoderm layers. (E) In the posterior region of the same embryo, Fgf8 is detected in the dorsolateral mesoderm, around the yolk plug (yp), while Wnt8 is confined to the ventrolateral region. Dorsal to the top.

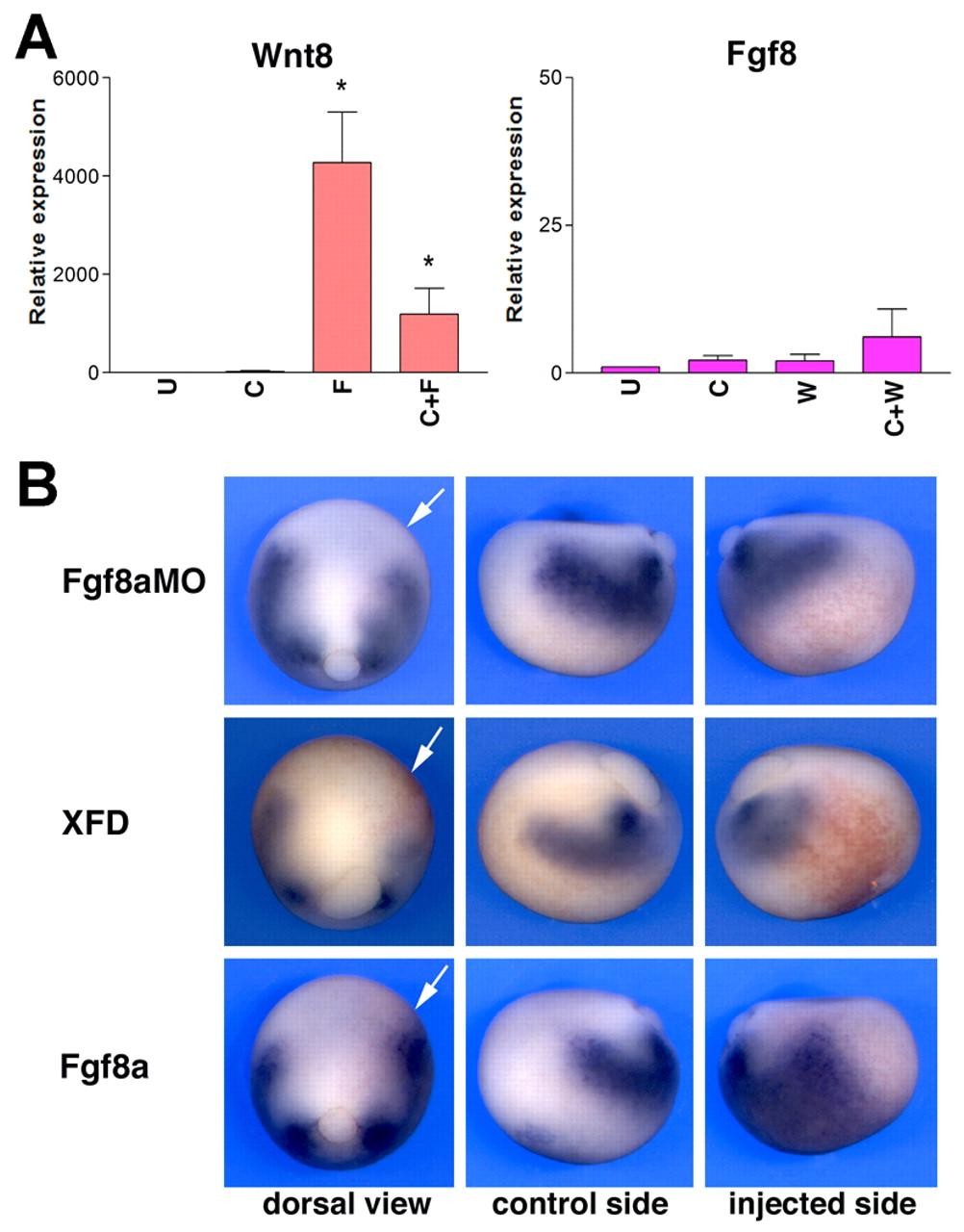

Fig. 5. Fgf8a is a strong inducer of Wnt8 in animal explants and in whole embryos. (A) Animal explants derived from embryos injected with Fgf8a (F) or with a combination of Fgf8a and Chordin (C+F) show a strong upregulation of Wnt8 after 4 hours in culture. For comparison, Wnt8 (W) or Wnt8 and Chordin (C+W) co-injection had little effect on the expression levels of Fgf8. U, uninjected animal explant. Values (n=3) are presented as mean±s.e.m.; *P<0.05, versus uninjected animal explant (U). (B) In whole embryos, loss of Fgf function by injection (arrow) of Fgf8aMO (50 ng) or a dominant-negative Fgf receptor (XFD; 2 ng) results in a reduction of Wnt8 expression in the involuting mesoderm at stage 12. Conversely, Fgf8a (5 pg) mis-expression strongly upregulates Wnt8. For all injections, dorsal and lateral views (control and injected sides) of the same embryo are shown. Dorsal views, anterior to the top, injected side to the right (arrows). Lateral views, dorsal to the top; for the control side anterior is to the left, for the injected side anterior is to the right.

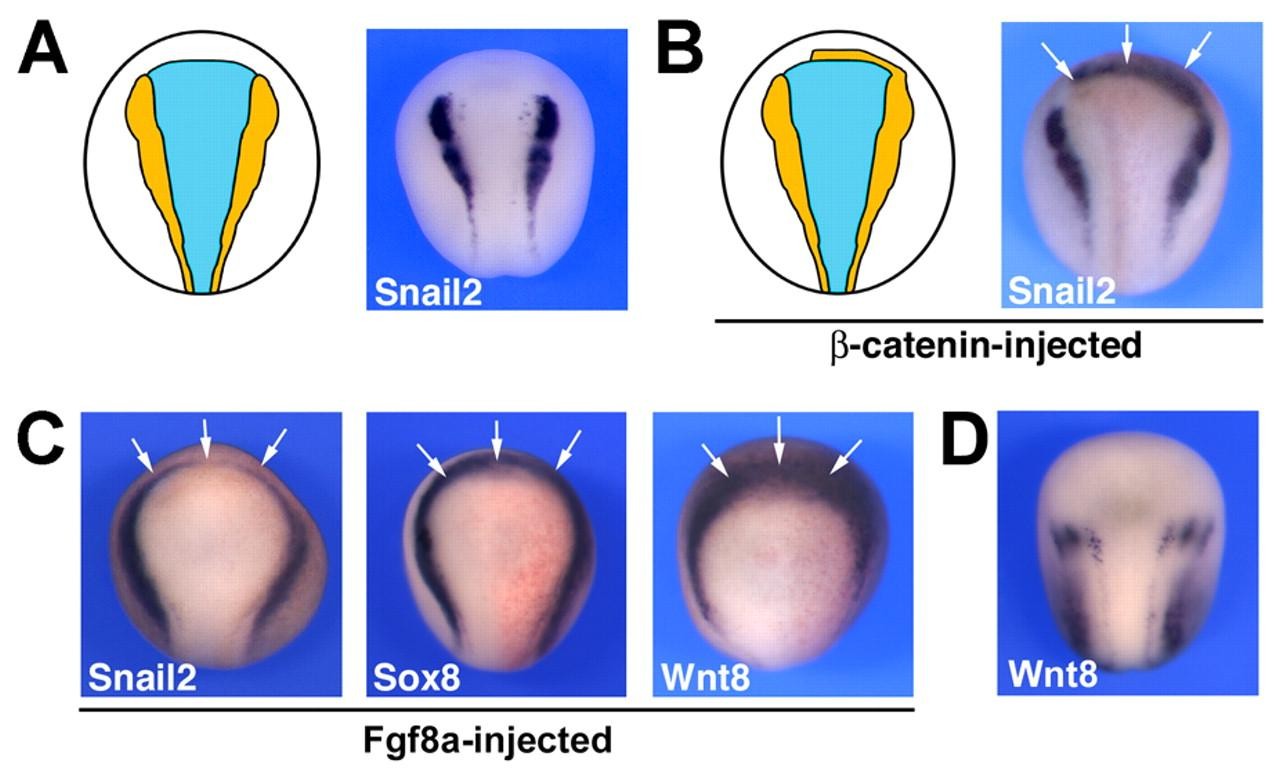

Fig. 6. Fgf8a induces NC at the anterior neural fold indirectly. (A) The anterior neural plate (blue) is devoid of NC tissue (orange) as a result of the activity of a Wnt inhibitor, Dkk1 (Carmona-Fontaine et al., 2007). Snail2 expression is shown in a control embryo at stage 15. (B) β-catenin misexpression (200 pg) can overcome this inhibition to induce NC markers (Snail2) at the anterior neural fold (arrows). (C) Fgf8a (5 pg) misexpression can also induce NC markers (Snail2 and Sox8) at the anterior neural fold (arrows), an activity that is mediated by upregulation of Wnt8 in this region of the embryo (arrows). (D) Normal pattern of expression of Wnt8 in a control embryo at the same stage. In all panels the embryos are viewed from the dorsal side, anterior to the top.
Abu-Elmagd,
Frizzled7 mediates canonical Wnt signaling in neural crest induction.
2006,
Pubmed
,
Xenbase Amaya,
Expression of a dominant negative mutant of the FGF receptor disrupts mesoderm formation in Xenopus embryos.
1991,
Pubmed
,
Xenbase Aoki,
Sox10 regulates the development of neural crest-derived melanocytes in Xenopus.
2003,
Pubmed
,
Xenbase Bang,
Expression of Pax-3 in the lateral neural plate is dependent on a Wnt-mediated signal from posterior nonaxial mesoderm.
1999,
Pubmed
,
Xenbase Bang,
Expression of Pax-3 is initiated in the early neural plate by posteriorizing signals produced by the organizer and by posterior non-axial mesoderm.
1997,
Pubmed
,
Xenbase Bonstein,
Paraxial-fated mesoderm is required for neural crest induction in Xenopus embryos.
1998,
Pubmed
,
Xenbase Carmona-Fontaine,
Neural crests are actively precluded from the anterior neural fold by a novel inhibitory mechanism dependent on Dickkopf1 secreted by the prechordal mesoderm.
2007,
Pubmed
,
Xenbase Chang,
Neural crest induction by Xwnt7B in Xenopus.
1998,
Pubmed
,
Xenbase Christen,
FGF-8 is associated with anteroposterior patterning and limb regeneration in Xenopus.
1997,
Pubmed
,
Xenbase Deardorff,
A role for frizzled 3 in neural crest development.
2001,
Pubmed
,
Xenbase Delaune,
Neural induction in Xenopus requires early FGF signalling in addition to BMP inhibition.
2005,
Pubmed
,
Xenbase Fletcher,
FGF8 spliceforms mediate early mesoderm and posterior neural tissue formation in Xenopus.
2006,
Pubmed
,
Xenbase García-Castro,
Ectodermal Wnt function as a neural crest inducer.
2002,
Pubmed Hari,
Lineage-specific requirements of beta-catenin in neural crest development.
2002,
Pubmed Harland,
In situ hybridization: an improved whole-mount method for Xenopus embryos.
1991,
Pubmed
,
Xenbase Hassler,
Kremen is required for neural crest induction in Xenopus and promotes LRP6-mediated Wnt signaling.
2007,
Pubmed
,
Xenbase Heasman,
Beta-catenin signaling activity dissected in the early Xenopus embryo: a novel antisense approach.
2000,
Pubmed
,
Xenbase Henry,
TGF-beta signals and a pattern in Xenopus laevis endodermal development.
1996,
Pubmed
,
Xenbase Hensey,
Programmed cell death during Xenopus development: a spatio-temporal analysis.
1998,
Pubmed
,
Xenbase Hong,
The activity of Pax3 and Zic1 regulates three distinct cell fates at the neural plate border.
2007,
Pubmed
,
Xenbase Huang,
Induction of the neural crest and the opportunities of life on the edge.
2004,
Pubmed
,
Xenbase Ikeya,
Wnt signalling required for expansion of neural crest and CNS progenitors.
1997,
Pubmed Isaacs,
Expression of a novel FGF in the Xenopus embryo. A new candidate inducing factor for mesoderm formation and anteroposterior specification.
1992,
Pubmed
,
Xenbase Jones,
Role of morphogens in neural crest cell determination.
2005,
Pubmed Kengaku,
Basic fibroblast growth factor induces differentiation of neural tube and neural crest lineages of cultured ectoderm cells from Xenopus gastrula.
1993,
Pubmed
,
Xenbase Knecht,
Induction of the neural crest: a multigene process.
2002,
Pubmed Kuroda,
Default neural induction: neuralization of dissociated Xenopus cells is mediated by Ras/MAPK activation.
2005,
Pubmed
,
Xenbase LaBonne,
Neural crest induction in Xenopus: evidence for a two-signal model.
1998,
Pubmed
,
Xenbase Lamb,
Fibroblast growth factor is a direct neural inducer, which combined with noggin generates anterior-posterior neural pattern.
1995,
Pubmed
,
Xenbase Launay,
A truncated FGF receptor blocks neural induction by endogenous Xenopus inducers.
1996,
Pubmed
,
Xenbase Le Douarin,
Neural crest cell plasticity and its limits.
2004,
Pubmed Lewis,
Reiterated Wnt signaling during zebrafish neural crest development.
2004,
Pubmed Luo,
Induction of neural crest in Xenopus by transcription factor AP2alpha.
2003,
Pubmed
,
Xenbase Marchant,
The inductive properties of mesoderm suggest that the neural crest cells are specified by a BMP gradient.
1998,
Pubmed
,
Xenbase Mayor,
Induction of the prospective neural crest of Xenopus.
1995,
Pubmed
,
Xenbase Mayor,
Role of FGF and noggin in neural crest induction.
1997,
Pubmed
,
Xenbase Mizuseki,
Xenopus Zic-related-1 and Sox-2, two factors induced by chordin, have distinct activities in the initiation of neural induction.
1998,
Pubmed
,
Xenbase Monsoro-Burq,
Msx1 and Pax3 cooperate to mediate FGF8 and WNT signals during Xenopus neural crest induction.
2005,
Pubmed
,
Xenbase Monsoro-Burq,
Neural crest induction by paraxial mesoderm in Xenopus embryos requires FGF signals.
2003,
Pubmed
,
Xenbase Nguyen,
Ventral and lateral regions of the zebrafish gastrula, including the neural crest progenitors, are established by a bmp2b/swirl pathway of genes.
1998,
Pubmed
,
Xenbase O'Donnell,
Functional analysis of Sox8 during neural crest development in Xenopus.
2006,
Pubmed
,
Xenbase Park,
Hindbrain-derived Wnt and Fgf signals cooperate to specify the otic placode in Xenopus.
2008,
Pubmed
,
Xenbase Saint-Jeannet,
Regulation of dorsal fate in the neuraxis by Wnt-1 and Wnt-3a.
1997,
Pubmed
,
Xenbase Sasai,
Xenopus chordin: a novel dorsalizing factor activated by organizer-specific homeobox genes.
1994,
Pubmed
,
Xenbase Sato,
Neural crest determination by co-activation of Pax3 and Zic1 genes in Xenopus ectoderm.
2005,
Pubmed
,
Xenbase Schohl,
Beta-catenin, MAPK and Smad signaling during early Xenopus development.
2002,
Pubmed
,
Xenbase Smith,
Injected Xwnt-8 RNA acts early in Xenopus embryos to promote formation of a vegetal dorsalizing center.
1991,
Pubmed
,
Xenbase Smith,
Expression of a Xenopus homolog of Brachyury (T) is an immediate-early response to mesoderm induction.
1991,
Pubmed
,
Xenbase Tamai,
LDL-receptor-related proteins in Wnt signal transduction.
2000,
Pubmed
,
Xenbase Tribulo,
Regulation of Msx genes by a Bmp gradient is essential for neural crest specification.
2003,
Pubmed
,
Xenbase Vallin,
Cloning and characterization of three Xenopus slug promoters reveal direct regulation by Lef/beta-catenin signaling.
2001,
Pubmed
,
Xenbase Villanueva,
Posteriorization by FGF, Wnt, and retinoic acid is required for neural crest induction.
2002,
Pubmed
,
Xenbase Voigt,
A dominant-negative form of the E3 ubiquitin ligase Cullin-1 disrupts the correct allocation of cell fate in the neural crest lineage.
2006,
Pubmed
,
Xenbase Wolda,
Overlapping expression of Xwnt-3A and Xwnt-1 in neural tissue of Xenopus laevis embryos.
1993,
Pubmed
,
Xenbase Wu,
Neural crest induction by the canonical Wnt pathway can be dissociated from anterior-posterior neural patterning in Xenopus.
2005,
Pubmed
,
Xenbase Wu,
Wnt-frizzled signaling in neural crest formation.
2003,
Pubmed
