???displayArticle.abstract???
Human idiopathic scoliosis is characterized by severe deformations of the spine and skeleton. The occurrence of vestibular-related deficits in these patients is well established but it is unclear whether a vestibular pathology is the common cause for the scoliotic syndrome and the gaze/posture deficits or if the latter behavioral deficits are a consequence of the scoliotic deformations. A possible vestibular origin was tested in the frog Xenopus laevis by unilateral removal of the labyrinthine endorgans at larval stages. After metamorphosis into young adult frogs, X-ray images and three-dimensional reconstructed micro-computer tomographic scans of the skeleton showed deformations similar to those of scoliotic patients. The skeletal distortions consisted of a curvature of the spine in the frontal and sagittal plane, a transverse rotation along the body axis and substantial deformations of all vertebrae. In terrestrial vertebrates, the initial postural syndrome after unilateral labyrinthectomy recovers over time and requires body weight-supporting limb proprioceptive information. In an aquatic environment, however, this information is absent. Hence, the lesion-induced asymmetric activity in descending spinal pathways and the resulting asymmetric muscular tonus persists. As a consequence the mostly cartilaginous skeleton of the frog tadpoles progressively deforms. Lack of limb proprioceptive signals in an aquatic environment is thus the element, which links the Xenopus model with human scoliosis because a comparable situation occurs during gestation in utero. A permanently imbalanced activity in descending locomotor/posture control pathways might be the common origin for the observed structural and behavioral deficits in humans as in the different animal models of scoliosis.
Figure 1.
Postural deficits after a UL. A, Top view of a stage 56 larval Xenopus laevis after removal of the left labyrinth (arrow), illustrating the induced bending of the body/tail. B–E, Top and front views of a stage 65 young adult control frog (B, C) and after UL (D, E). F, Schematic drawing depicting the organization of descending vestibulo-spinal/vestibulo-reticulo-spinal, spinal motor activity, contraction of axial musculature, and relative orientation of cartilaginous skeletal elements in controls (F1) and after a UL on the left side (F2).

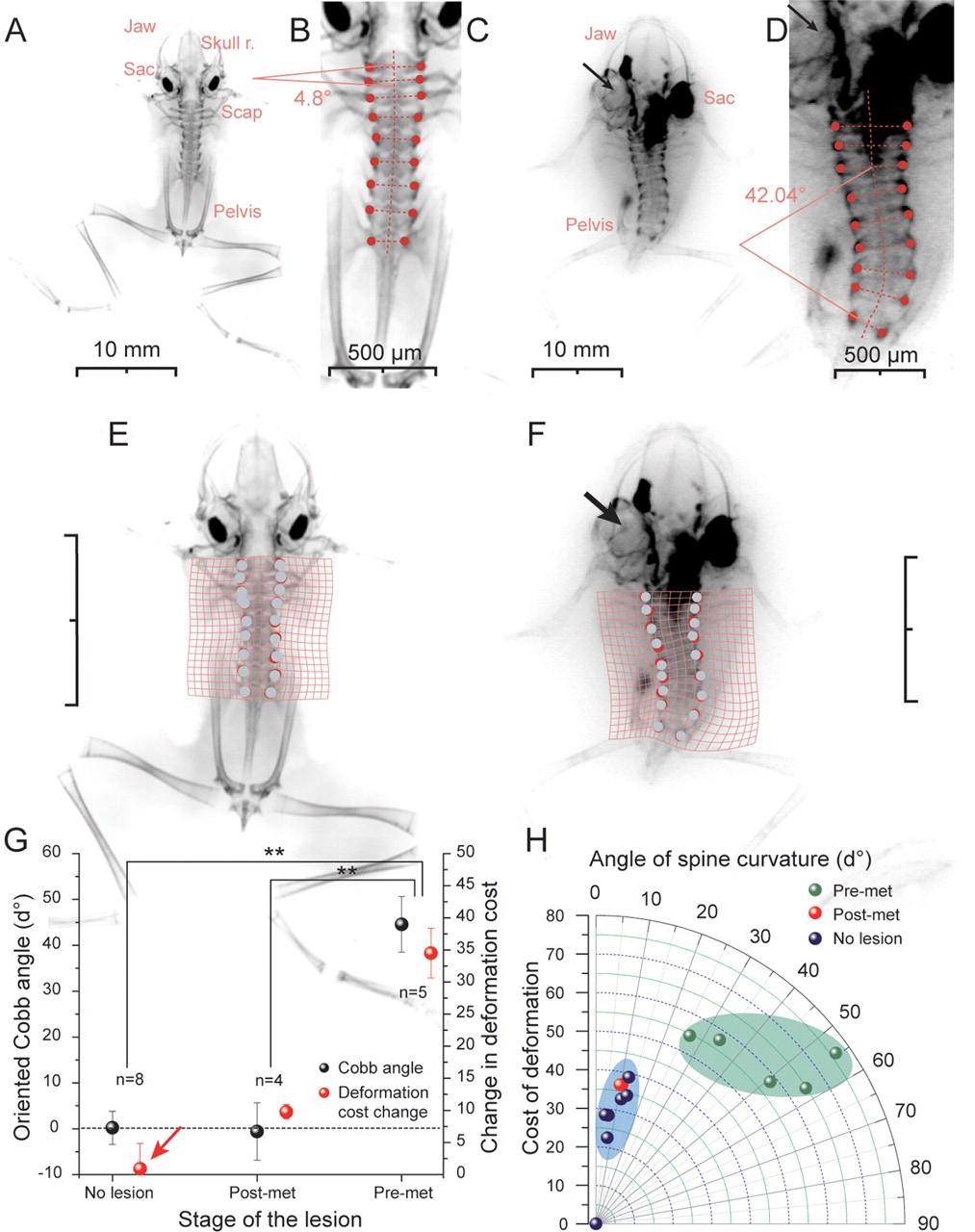

Figure 2.
Skeletal deformations in young adult Xenopus after a UL. A–F, X-ray images of stage 65–66 young adult control frogs (A, B) and of frogs that received a UL on the left side at larval stage 58 (C, D); Cobb angle measurements (B, D) of the spine and deformation matching grid application on X-ray skeletal images of normal (E) and UL frogs (F); black arrows indicate the side of lesion and absent endorgans. G, Cobb angles and changes in the deformation cost of controls and pre-metamorphic and post-metamorphic Xenopus frogs with a UL. H, relation between Cobb angle (angle of spine curvature) and the deformation cost. Scale bars: C, E, F, 10 mm. Post-met, Post-metamorphosis (stage 65–66); Pre-met, pre-metamorphosis (stage 57–59). Skull r., Skull roof; Sac, saccule; Scap, scapula. **p ≤ 0.001, Mann–Whitney U test; error bars are SE.

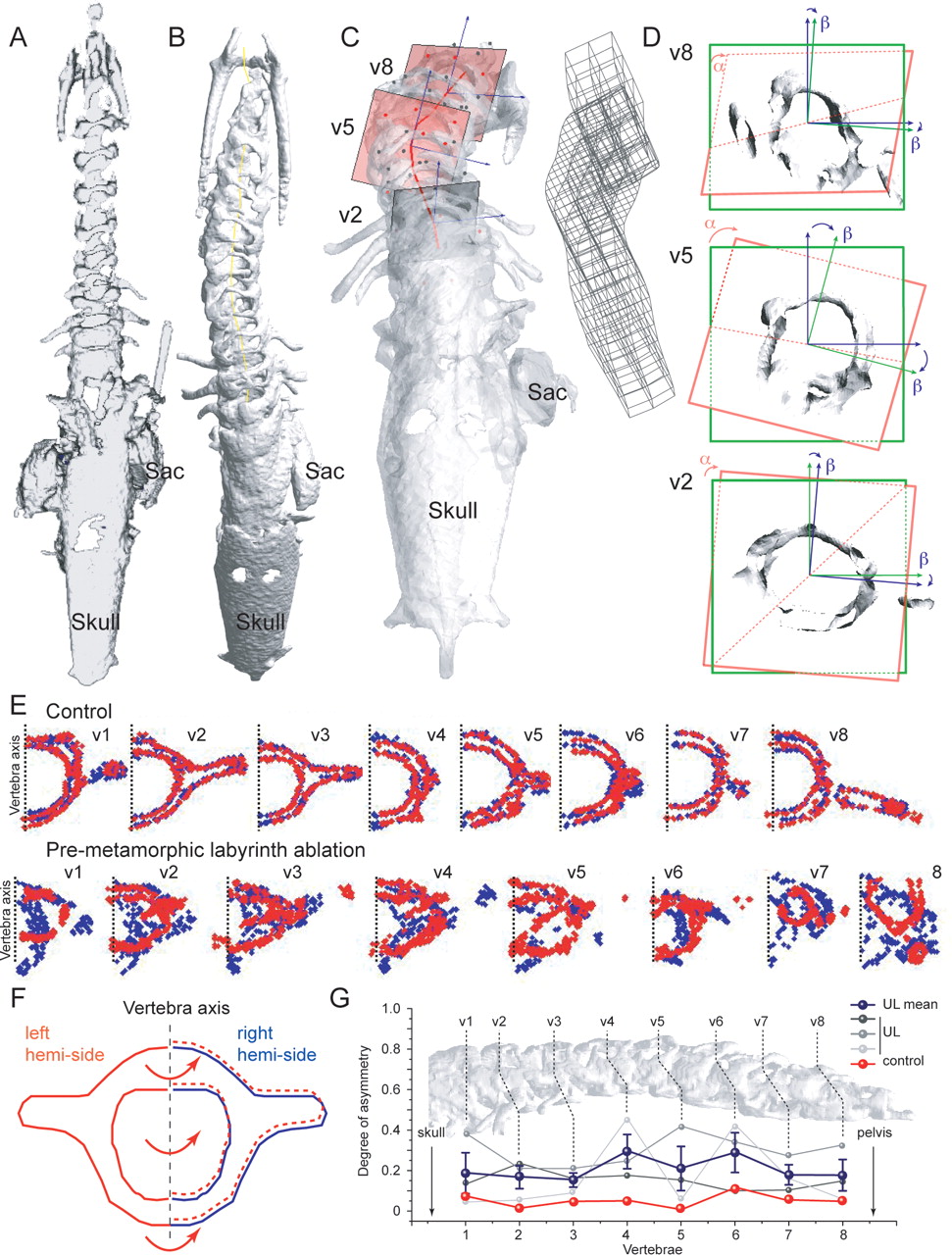

Figure 3.
3D quantification of the skeletal geometry in young adult Xenopus (stage 65–66). A, B, 3D reconstructed micro-CT scans of the vertebral column in a young adult control frog (A) and a frog that received a UL at pre-metamorphic stage 56 (B). C, Optical extraction of 3 vertebrae (v2, v5, v8) and 3D grid of the deformation in a young adult UL frog. D, Plane and axis of rotation of v2, v5, and v8 in the coronal plane; α indicates the rotation of the actual frontal plane (red) of the vertebra relative to the theoretical coronal plane (green); β indicates the rotation of the vertebral axis (green) relative to the dorsoventral axis (blue). E, F, Quantification of vertebrae (v1-8) symmetry in a young adult control frog (E, upper row) and in a frog that received a UL at pre-metamorphic stage 56 (E, lower row); blue dots indicate the outline of the right and red dots the left half of the vertebra which was optically flipped and superimposed on the right half (F). G, Normalized degree of asymmetry (0, perfect symmetry between right and left side of the vertebra; 1, complete asymmetry) of individual vertebrae (v1-8) in a young adult control frog (in red) and three frogs that received a UL at pre-metamorphic stage 56–58; the blue line indicates the mean of the 3 UL frog; error bars are SE; dashed lines indicate the level of the vertebra along the rostro-caudal extent of the spine shown in the background.
Ahn,
The etiology of adolescent idiopathic scoliosis.
2002, Pubmed
Ahn,
The etiology of adolescent idiopathic scoliosis.
2002,
Pubmed Angelaki,
Vestibular system: the many facets of a multimodal sense.
2008,
Pubmed Angevine,
Idiopathic scoliosis.
2008,
Pubmed Assaiante,
Development of postural control in healthy children: a functional approach.
2005,
Pubmed Azeddine,
Molecular determinants of melatonin signaling dysfunction in adolescent idiopathic scoliosis.
2007,
Pubmed Barrios,
Scoliosis induced by medullary damage: an experimental study in rabbits.
1987,
Pubmed Barrios,
Experimental kyphoscoliosis induced in rats by selective brain stem damage.
1992,
Pubmed Byl,
Postural imbalance and vibratory sensitivity in patients with idiopathic scoliosis: implications for treatment.
1997,
Pubmed Cheung,
Recent advances in the aetiology of adolescent idiopathic scoliosis.
2008,
Pubmed Cheung,
The effect of pinealectomy on scoliosis development in young nonhuman primates.
2005,
Pubmed Curthoys,
Vestibular compensation and substitution.
2000,
Pubmed De Waele,
A radiological analysis of the postural syndromes following hemilabyrinthectomy and selective canal and otolith lesions in the guinea pig.
1989,
Pubmed Dieringer,
'Vestibular compensation': neural plasticity and its relations to functional recovery after labyrinthine lesions in frogs and other vertebrates.
1995,
Pubmed Dolan,
Surgical rates after observation and bracing for adolescent idiopathic scoliosis: an evidence-based review.
2007,
Pubmed Gorman,
Teleosts as models for human vertebral stability and deformity.
2007,
Pubmed Griffet,
Relationship between gibbosity and Cobb angle during treatment of idiopathic scoliosis with the SpineCor brace.
2000,
Pubmed Herman,
Idiopathic scoliosis and the central nervous system: a motor control problem. The Harrington lecture, 1983. Scoliosis Research Society.
1985,
Pubmed Jensen,
Horizontal postrotatory nystagmus response in female subjects with adolescent idiopathic scoliosis.
1979,
Pubmed Kindsfater,
Levels of platelet calmodulin for the prediction of progression and severity of adolescent idiopathic scoliosis.
1994,
Pubmed Leboeuf,
Do estrogens impact adolescent idiopathic scoliosis?
2009,
Pubmed Lincoln,
Infantile idiopathic scoliosis.
2007,
Pubmed Machida,
Pathological mechanism of idiopathic scoliosis: experimental scoliosis in pinealectomized rats.
2005,
Pubmed Machida,
Experimental scoliosis in melatonin-deficient C57BL/6J mice without pinealectomy.
2006,
Pubmed Machida,
An experimental study in chickens for the pathogenesis of idiopathic scoliosis.
1993,
Pubmed Machida,
Serum melatonin levels in adolescent idiopathic scoliosis prediction and prevention for curve progression--a prospective study.
2009,
Pubmed Mallau,
Locomotor skills and balance strategies in adolescents idiopathic scoliosis.
2007,
Pubmed Manzoni,
Vestibular mechanisms involved in idiopathic scoliosis.
2002,
Pubmed Miller,
Genetics of familial idiopathic scoliosis.
2007,
Pubmed Mirovsky,
Postural control in patients with severe idiopathic scoliosis: a prospective study.
2006,
Pubmed Miura,
Skeletogenesis in Xenopus tropicalis: characteristic bone development in an anuran amphibian.
2008,
Pubmed
,
Xenbase Moreau,
Melatonin signaling dysfunction in adolescent idiopathic scoliosis.
2004,
Pubmed O'Kelly,
The production of scoliosis after pinealectomy in young chickens, rats, and hamsters.
1999,
Pubmed Pompeiano,
Pineal gland hormone and idiopathic scoliosis: possible effect of melatonin on sleep-related postural mechanisms.
2002,
Pubmed Rousie,
Oculomotor, postural, and perceptual asymmetries associated with a common cause. Craniofacial asymmetries and asymmetries in vestibular organ anatomy.
1999,
Pubmed Sahlstrand,
Vestibulospinal reflex activity in patients with adolescent idiopathic scoliosis. Postural effects during caloric labyrinthine stimulation recorded by stabilometry.
1979,
Pubmed Sahlstrand,
A study of labyrinthine function in patients with adolescent idiopathic scoliosis. I. An electro-nystagmographic study.
1979,
Pubmed Straka,
Intrinsic membrane properties of vertebrate vestibular neurons: function, development and plasticity.
2005,
Pubmed Vibert,
Post-lesional plasticity in the central nervous system of the guinea-pig: a "top-down" adaptation process?
1999,
Pubmed Weinstein,
Adolescent idiopathic scoliosis.
2008,
Pubmed Wiener-Vacher,
Asymmetric otolith vestibulo-ocular responses in children with idiopathic scoliosis.
1998,
Pubmed Yamada,
Etiology of idiopathic scoliosis.
1984,
Pubmed
