Planar cell polarity (PCP) genes are essential for establishing planar cell polarity in both invertebrate and vertebrate tissues and are known to regulate cellular morphogenesis and cell movements during development. We focused on Prickle, one of the core components of the PCP pathway, and deleted one of two mouse prickle homologous genes, mpk1. We found that the deletion of mpk1 gene resulted in early embryonic lethality, between embryonic day (E)5.5 and E6.5, associated with failure of distal visceral endoderm migration and primitive streak formation. The mpk1(-/-) epiblast tissue was disorganized, and analyses at the cellular level revealed abnormal cell shapes, mislocalized extracellular matrix (ECM) proteins, and disrupted orientation of mitotic spindles, from which loss of apico-basal (AB) polarity of epiblast cells are suspected. Furthermore, we show mpk1 genetically interacts with another core PCP gene Vangl2/stbm in the epiblast formation, suggesting that PCP components are commonly required for the establishment and/or the maintenance of epiblast AB polarity. This was further supported by our finding that overexpression of DeltaPET/LIM (DeltaP/L), a dominant-negative Pk construct, in Xenopus embryo disrupted uniform localization of an apical marker PKCzeta, and expanded the apical domain of ectoderm cells. Our results demonstrate a role for mpk1 in AB polarity formation rather than expected role as a PCP gene.

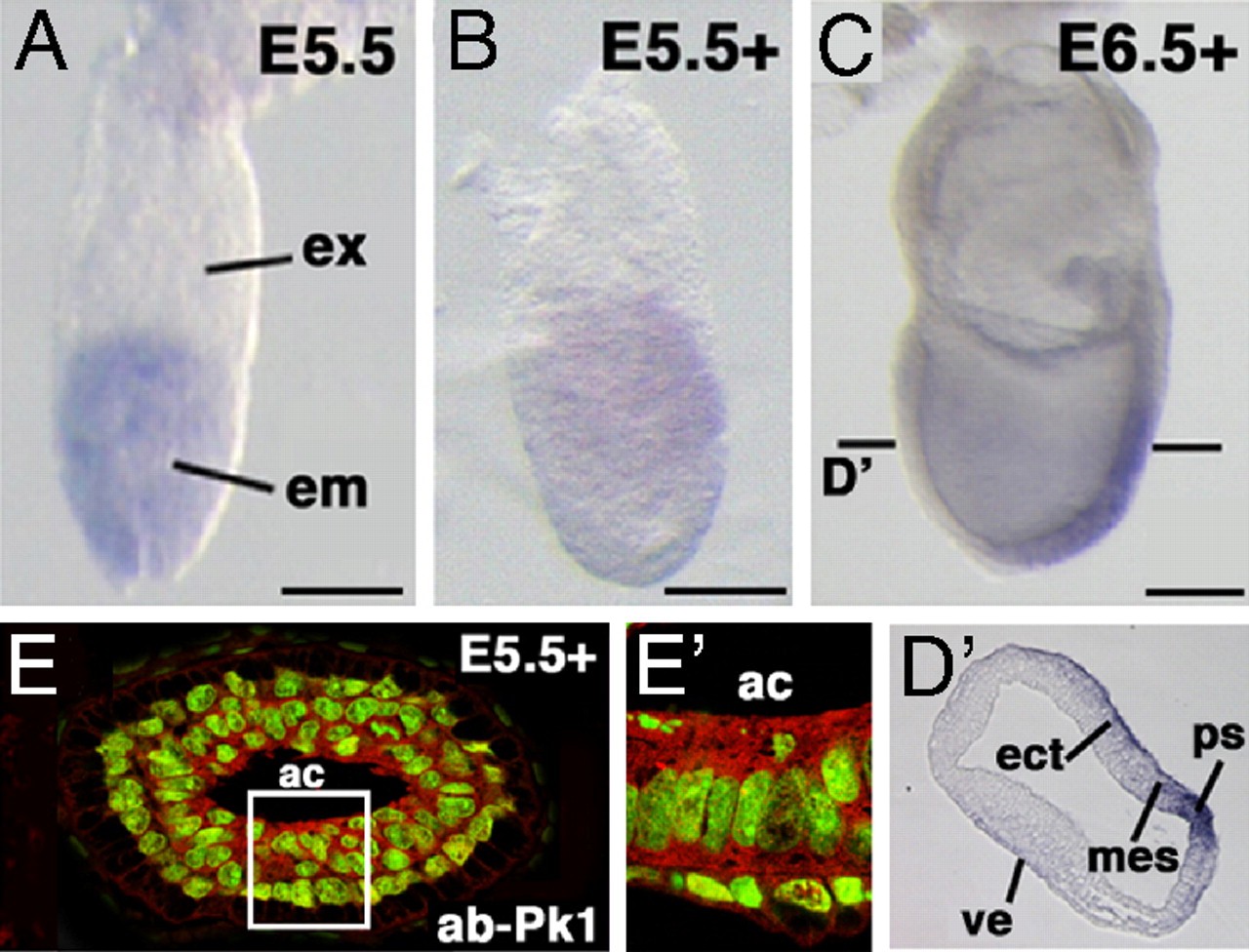

Fig. 1. Expression pattern of mpk1 in postimplantation embryos. (A–D′) Expression of mpk1 transcripts in postimplantation embryos. (E and E′) Immunostaining for Pk1-specifc protein (red) within the cytoplasm of the E5.5+ epiblast. Nuclei were stained with Draq5 (green). ex, extraembryonic region; em, embryonic region; ect, ectoderm; ps, primitive streak; mes, mesoderm; ve, visceral endoderm; ac, proamniotic cavity. Anterior is to the left in B–D′. (Scale bars, 50 μm in B–D.)

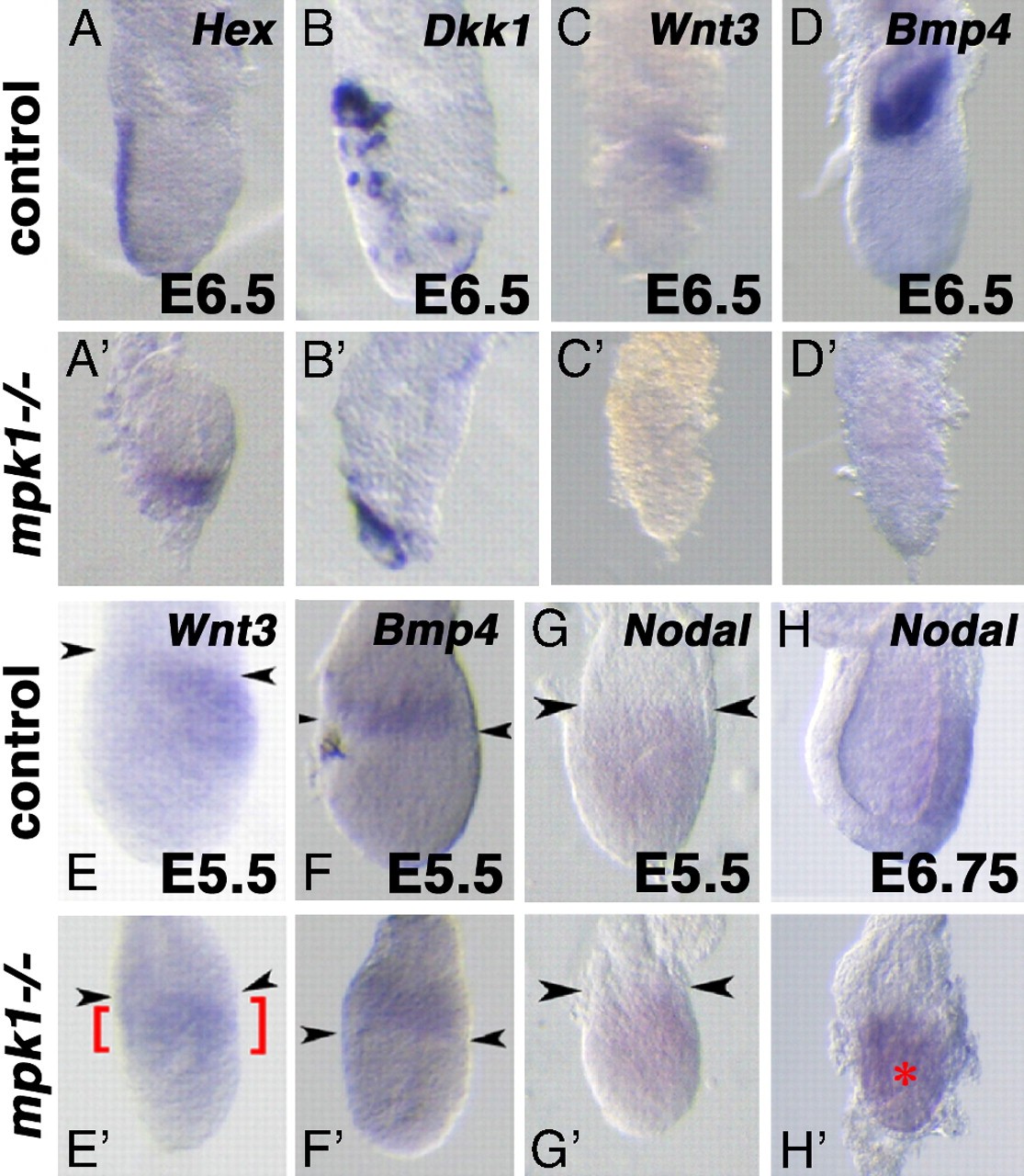

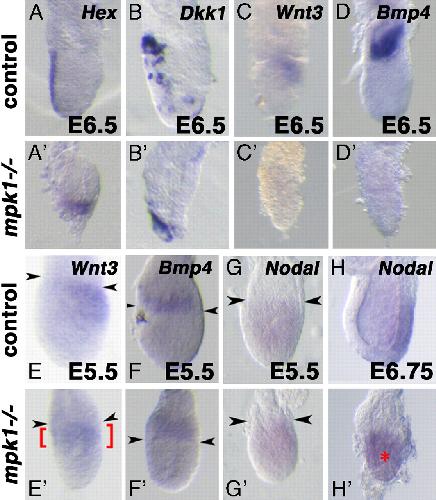

Fig. 3. Marker analysis in the mpk1−/− mutant. Whole-mount in situ hybridization analysis of control (A–H) and mpk−/− mutant (A′–H′) embryos at E5.5–6.75. The number of analyzed mpk1−/− mutant embryos were following; E5.5, Hex, n = 5/5; Dkk1, n = 4/5; E6.5, Wnt3, n = 4/5; Bmp4, n = 5/6; E5.5, Wnt3, n = 4/5, Bmp4, n = 3/3; E5.5, Nodal, n = 3/3; E6.75, Nodal, n = 5/7. Arrowheads indicate the boundary between the embryonic and extraembryonic regions. Anterior is to the left in all panels.

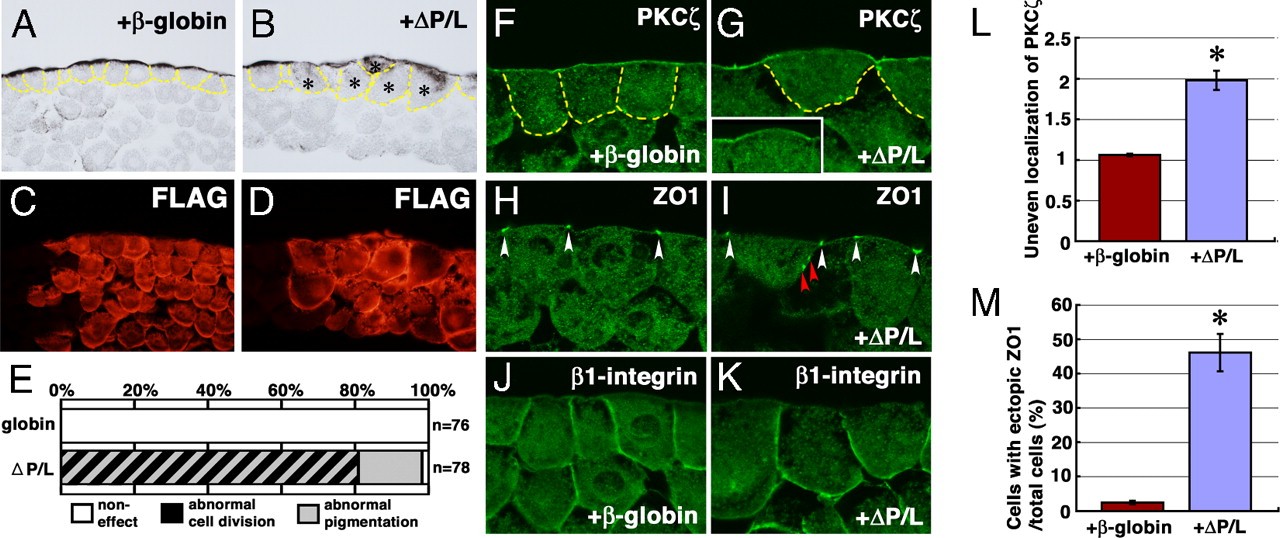

Fig. 6. Overexpression of δP/L disrupts the apical and basolateral domains in the presumptive ectoderm of the Xenopus embryo. (A–D) δP/L caused partial pigment defects and/or expanded cells (B, asterisks) compared with controls (A). (C and D) FLAG-tagged β-globin or FLAG-tagged δP/L (1 ng each) was injected. (E) The effect of δP/L overexpression, which was scored blind, is shown. (F–K) Immunostaining with AB markers is shown in each panel. (F, H, and J) The β-globin-injected embryos were entirely normal. The number of analyzed δP/L overexpressing embryos were following; (G) n = 18; (I) n = 20; (K) n = 15. (G) The injection of δP/L caused the abnormal localization of PKCζ in the apical region. Inset is another image. These images are of single planes of optical sections (F and G). (I) The injection of δP/L caused the ectopic localization of ZO-1 to the basolateral side (red arrowheads). (K) The localization of β1-integrin to the basolateral region was not altered by the injection of δP/L. (L) The quantification of namely uneven localization of PKCζ at the apical membrane in the δP/L-injected embryo compared with the control (n = 8, each injected cells) (see SI Materials and Methods). (M) The quantification of ectopic ZO-1 in the δP/L-injected embryo compared with β-globin-expressing cells (embryos); n = 291 (13), 196 (7), 197 (10), δP/L-expressing cells (embryos); n = 110 (9), 169 (10), 204 (12). This experiment was carried out 3 times. Error bars, the s.e.m.; asterisk denotes a significant difference (P < 0.05), compared with the control. Apical is at the top (A–D, F–K).
Bassuk,
A homozygous mutation in human PRICKLE1 causes an autosomal-recessive progressive myoclonus epilepsy-ataxia syndrome.
2008, Pubmed
Bassuk,
A homozygous mutation in human PRICKLE1 causes an autosomal-recessive progressive myoclonus epilepsy-ataxia syndrome.
2008,
Pubmed Carreira-Barbosa,
Prickle 1 regulates cell movements during gastrulation and neuronal migration in zebrafish.
2003,
Pubmed Chalmers,
aPKC, Crumbs3 and Lgl2 control apicobasal polarity in early vertebrate development.
2005,
Pubmed
,
Xenbase Ciruna,
Planar cell polarity signalling couples cell division and morphogenesis during neurulation.
2006,
Pubmed Crompton,
Early embryonic expression patterns of the mouse Flamingo and Prickle orthologues.
2007,
Pubmed Curtin,
Mutation of Celsr1 disrupts planar polarity of inner ear hair cells and causes severe neural tube defects in the mouse.
2003,
Pubmed Djiane,
The apical determinants aPKC and dPatj regulate Frizzled-dependent planar cell polarity in the Drosophila eye.
2005,
Pubmed Dollar,
Regulation of Lethal giant larvae by Dishevelled.
2005,
Pubmed
,
Xenbase Gardner,
Complete dissipation of coherent clonal growth occurs before gastrulation in mouse epiblast.
1998,
Pubmed Gong,
Planar cell polarity signalling controls cell division orientation during zebrafish gastrulation.
2004,
Pubmed Goto,
Planar cell polarity genes regulate polarized extracellular matrix deposition during frog gastrulation.
2005,
Pubmed
,
Xenbase Gubb,
The balance between isoforms of the prickle LIM domain protein is critical for planar polarity in Drosophila imaginal discs.
1999,
Pubmed Jenny,
Prickle and Strabismus form a functional complex to generate a correct axis during planar cell polarity signaling.
2003,
Pubmed
,
Xenbase Jones,
Ciliary proteins link basal body polarization to planar cell polarity regulation.
2008,
Pubmed Katoh,
Identification and characterization of human PRICKLE1 and PRICKLE2 genes as well as mouse Prickle1 and Prickle2 genes homologous to Drosophila tissue polarity gene prickle.
2003,
Pubmed
,
Xenbase Kibar,
Ltap, a mammalian homolog of Drosophila Strabismus/Van Gogh, is altered in the mouse neural tube mutant Loop-tail.
2001,
Pubmed Lake,
Strabismus regulates asymmetric cell divisions and cell fate determination in the mouse brain.
2009,
Pubmed Lee,
The FERM protein Epb4.1l5 is required for organization of the neural plate and for the epithelial-mesenchymal transition at the primitive streak of the mouse embryo.
2007,
Pubmed Montcouquiol,
Identification of Vangl2 and Scrb1 as planar polarity genes in mammals.
2003,
Pubmed Murdoch,
Disruption of scribble (Scrb1) causes severe neural tube defects in the circletail mouse.
2003,
Pubmed Pfister,
Gene expression pattern and progression of embryogenesis in the immediate post-implantation period of mouse development.
2007,
Pubmed Ross,
Disruption of Bardet-Biedl syndrome ciliary proteins perturbs planar cell polarity in vertebrates.
2005,
Pubmed Shen,
Nodal signaling: developmental roles and regulation.
2007,
Pubmed Simons,
Planar cell polarity signaling: from fly development to human disease.
2008,
Pubmed Solnica-Krezel,
Conserved patterns of cell movements during vertebrate gastrulation.
2005,
Pubmed Suzuki,
The PAR-aPKC system: lessons in polarity.
2006,
Pubmed Takeuchi,
The prickle-related gene in vertebrates is essential for gastrulation cell movements.
2003,
Pubmed
,
Xenbase Tam,
Building the mouse gastrula: signals, asymmetry and lineages.
2006,
Pubmed Tissir,
Expression of planar cell polarity genes during development of the mouse CNS.
2006,
Pubmed Vandenberg,
Non-canonical Wnt signaling regulates cell polarity in female reproductive tract development via van gogh-like 2.
2009,
Pubmed Veeman,
Chongmague reveals an essential role for laminin-mediated boundary formation in chordate convergence and extension movements.
2008,
Pubmed Veeman,
Zebrafish prickle, a modulator of noncanonical Wnt/Fz signaling, regulates gastrulation movements.
2003,
Pubmed Ybot-Gonzalez,
Convergent extension, planar-cell-polarity signalling and initiation of mouse neural tube closure.
2007,
Pubmed Zallen,
Planar polarity and tissue morphogenesis.
2007,
Pubmed
