Han DY, Nie HG, Gu X, Nayak RC, Su XF, Fu J, Chang Y, Rao V, Ji HL.

HL095435 NHLBI NIH HHS , HL87017 NHLBI NIH HHS , R01 GM085237-01A2 NIGMS NIH HHS , R01 GM085237 NIGMS NIH HHS , R03 HL095435 NHLBI NIH HHS , R01 HL087017 NHLBI NIH HHS

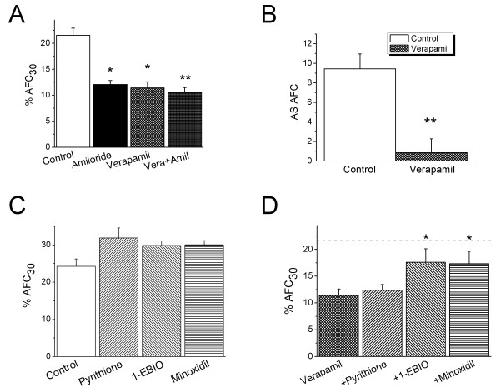

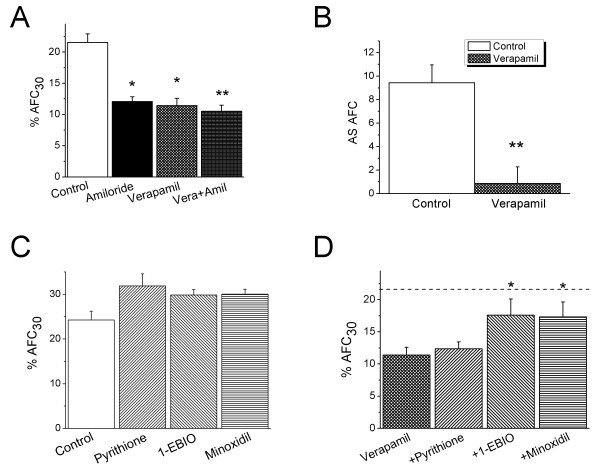

	Figure 1. Recovery of verapamil-reduced alveolar fluid clearance (AFC) by K+ channel openers in vivo. (A) Verapamil intratracheal application reduces alveolar fluid clearance. Verapamil (100 μM) was intratracheally delivered to mouse lung. Average AFC values in the absence of drugs (Control), in the presence of amiloride (Amiloride), verapamil (Verapamil), and both (Amiloride+Verapamil). Unpaired two-sample two-tailed Student t-test. *P < 0.05 and **P < 0.01 when compared with Control. n = 4-15. (B) Amiloride-sensitive (AS) AFC. The mean and SE values were computed as described in Methods. Unpaired two-sample two-tailed Student t-test. **P < 0.01. n = 12-15. (C) Effects of K+ channel openers on basal AFC. Unpaired two-sample two-tailed Student t-test. n = 5-15. (D) K+ channel openers restore verapamil-reduced AFC. AFC values were measured for Verapamil (100 μM) alone, + Pyrithione-Na (1 mM), + 1-EBIO (1 mM), and +Minoxidil (0.6 mM). The dashed line indicates the Control level. Unpaired two-sample two-tailed Student t-test. *P < 0.05 vs Verapamil alone. n = 4-12.

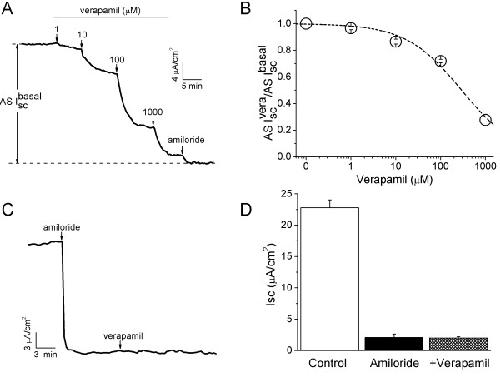

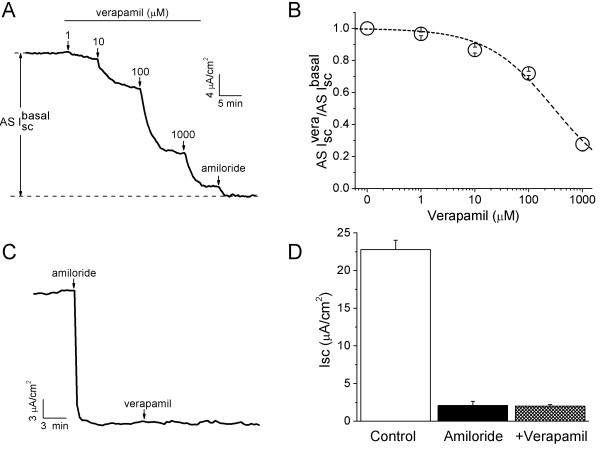

	Figure 2. Verapamil reduces short-circuit (Isc) level in H441 monolayers in a dose-dependent manner. (A) Representative Isc trace showing applications of a series of concentrations. Amiloride-sensitive Isc level (AS Ibasalsc) is the sum of verapamil-inhibitable and residual amiloride-sensitive fractions. (B) Normalized AS Isc levels (AS Iverasc/AS Ibasalsc) at each concentration were plotted as a dose-response curve. n = 6. The raw data were fitted with the Hill equation. IC50 value, 294.2 μM. (C) & (D) Verapamil on amiloride-insensitive Isc levels in amiloride pretreated cells. Representative trace (C) and corresponding average Isc levels before (Control) and after addition of amiloride and verapamil (D). n = 3. P = 0.89 for the Isc levels before and after verapamil. Paired t-test.

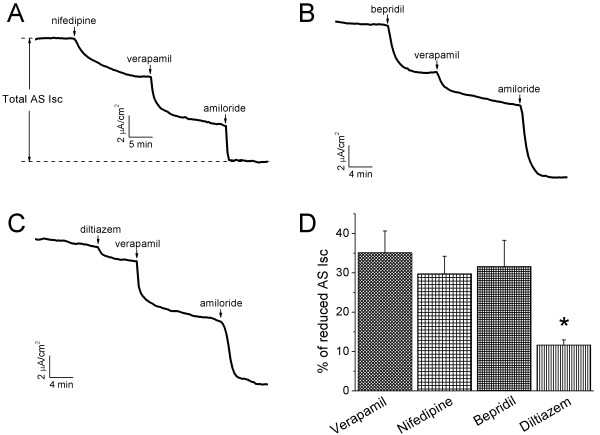

	Figure 3. Effects of CCB compounds on transepithelial short-circuit currents (Isc) in intact H441 monolayers. (A-C) Typical traces. 200 μM nifedipine (A), 10 μM bepridil (B) or 50 μM diltiazem (C) was added to the basolateral compartment followed by verapamil. Amiloride (100 μM, apical side) was finally applied to inhibit residual amiloride-sensitive currents. Arrows show the time point of addition. Total AS Isc is the difference between the Isc level before CCB and the amiloride-insensitive fraction, as indicated by a pair of vertical arrows. (D) CCB-sensitive fraction: CCB-inhibitable Isc/total AS Isc. One-way ANOVA. *P < 0.05 vs Verapamil. n = 3-10.

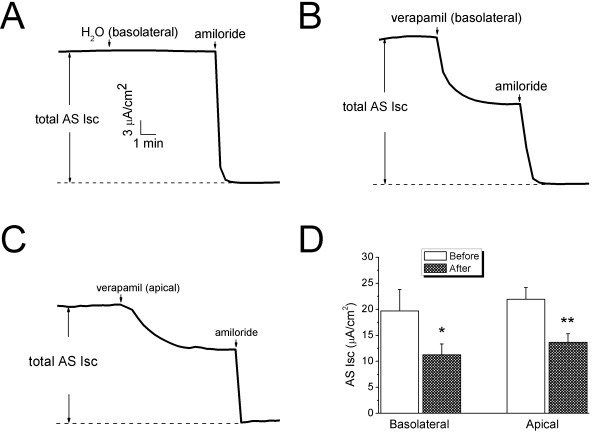

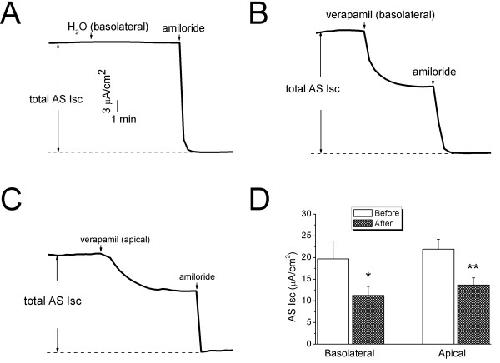

	Figure 4. Comparison of verapamil-inhibitable Isc levels in H441 monolayers when applied to the apical or basolateral compartments. (A-C) Representative Isc traces showing the effects of water (H2O), verapamil applied to basolateral (B) and apical (C) compartments. The total AS Isc levels associated with ENaC are designated by pairs of vertical arrows. (D) AS Isc levels before and after verapamil delivery to the basolateral side or apical compartment. Paired t-test for comparison of current levels before and after verapamil. *P < 0.05 and **P < 0.01. n = 4-17.

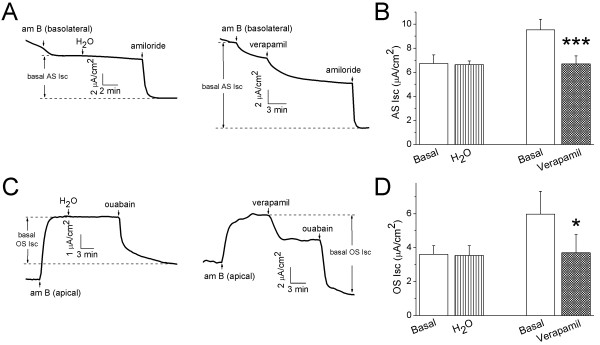

	Figure 5. Inhibition of transapical and transbasolateral Isc levels by verapamil in permeabilized H441 monolayers. (A) Representative Isc traces obtained in basolateral permeabilized H441 monolayers with amphotericin B (am B). 1 mM ouabain was added to the basolateral side to exclude any potential residual Isc across basolateral membrane. Amiloride (100 μM) was applied at the end of recording to calculate basal amiloride-sensitive (AS) Isc level as indicated between dashed lines. (B) AS Isc levels before (Basal) and after water (H2O) and verapamil (Verapamil). Paired t-test. ***P < 0.001. n = 4-8. (C) Representative Isc trace recorded in apically permeabilized H441 monolayers with amphotericin B. 100 μM amiloride was added to the apical compartment to inhibit possible residual Isc level carried by ENaC. Ouabain (1 mM) was added at the end of the recording to calculate total ouabain-sensitive (OS) Isc level. (D) Mean OS Isc levels in the absence (Basal) and presence of water (H2O) and verapamil (Verapamil). Paired t-test. *P < 0.05. n = 4.

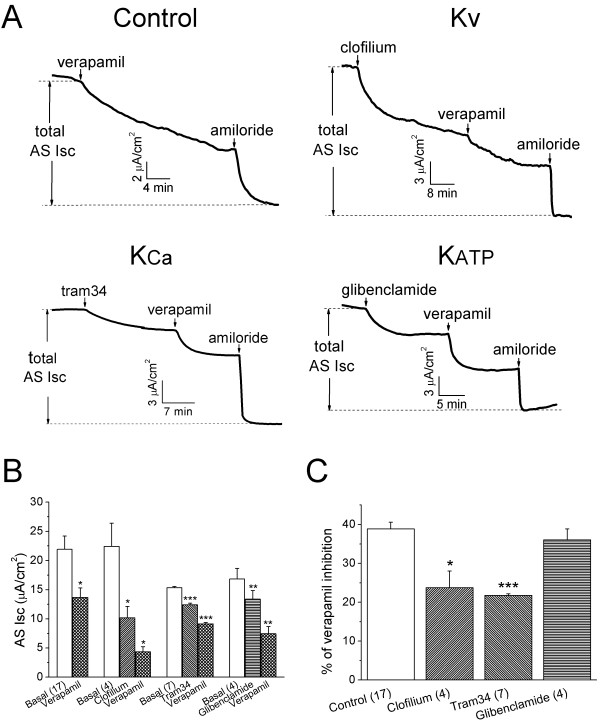

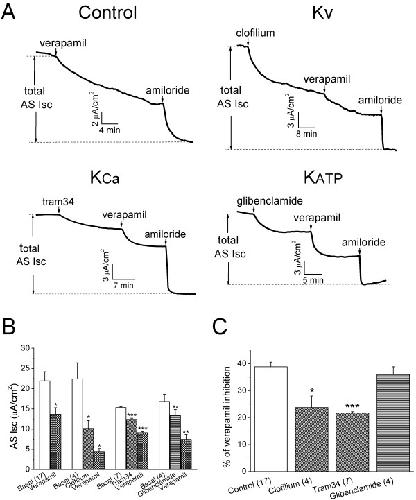

	Figure 6. K+ channel blockers alter the inhibitory effects of verapamil in H441 cells. (A) Typical Isc traces showing the application of 100 μM verapamil alone (control), 100 μM clofilium (KV inhibitor), 20 μM tram34 (KCa3.1 inhibitor), and 100 μM glibenclamide (KATP inhibitor), respectively. These K+ channel blockers were applied to basolateral side followed by verapamil and amiloride (apical side) to compute total AS Isc. (B) Summary of average AS Isc levels. Paired t-test. *P < 0.05, **P < 0.01, *** P < 0.001 for comparison of pre- and post exposure of CCB. n = 4-17. (C) Reduced percentages of AS Isc levels by verapamil in H441 cells with and without pretreatment of K+ channel blockers. Two-sample, two-tailed t-test. *P < 0.05 vs Control. n = 4-17.

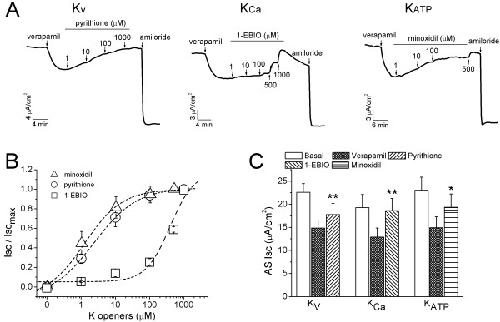

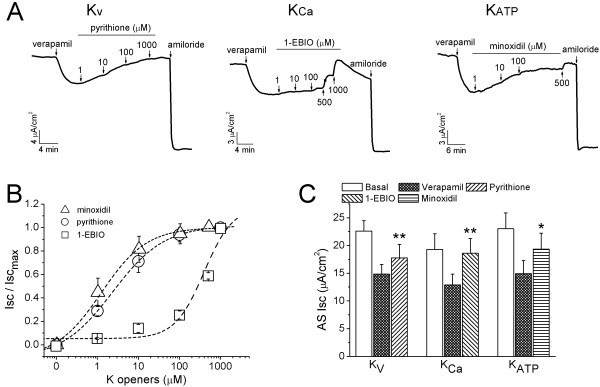

	Figure 7. Stimulatory effects of K+ channel openers subsequent to verapamil in H441 monolayers. (A) Representative traces showing response to a set of K+ channel openers from 1 μM to 1 mM in the presence of verapamil. (B) Corresponding concentration-response curves. The raw data were fitted with the Hill equation and the EC50 were 2.4, 391.8, and 1.2 μM, respectively, for pyrithione-Na, 1-EBIO, and minoxidil. (C) Summary of AS Isc levels before (Basal) and after verapamil (Verapamil) and K+ channel openers (10 μM Pyrithione-Na, 600 μM 1-EBIO, 10 μM Minoxidil). Paired t-test. *P < 0.05, **P < 0.01 for comparison of before and after K+ channel openers. n = 3-6.

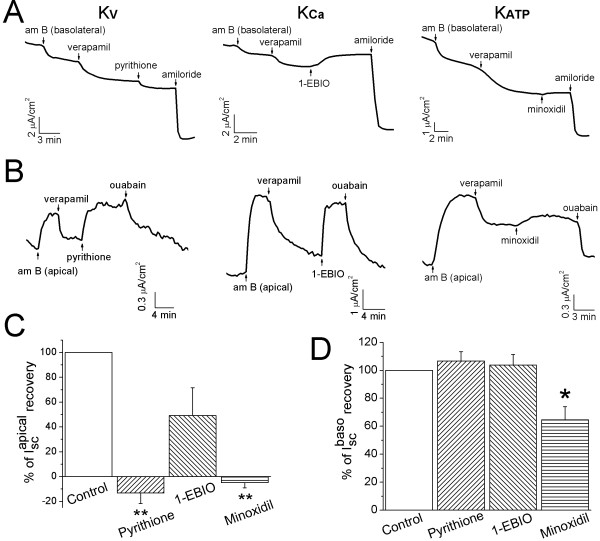

	Figure 8. Compartment-dependent recovery of verapamil-inhibited Isc levels by K+ channel openers in permeabilized H441 monolayers. (A) Representative Isc traces of apical Isc level in the presence of 1 mM ouabain in the basolateral membrane permeabilized monolayers. (B) Representative Isc traces of basolateral Isc level in the presence of 100 mM amiloride in the apical permeabilized H441 monolayers. (C & D) Recovered apical (C) and basolateral (D) Isc levels by K+ channel openers. One-way ANOVA for comparing normalized Isc level post K+ channel openers with total AS or OS Isc levels. *P < 0.05 and **P < 0.01. n = 3-5.

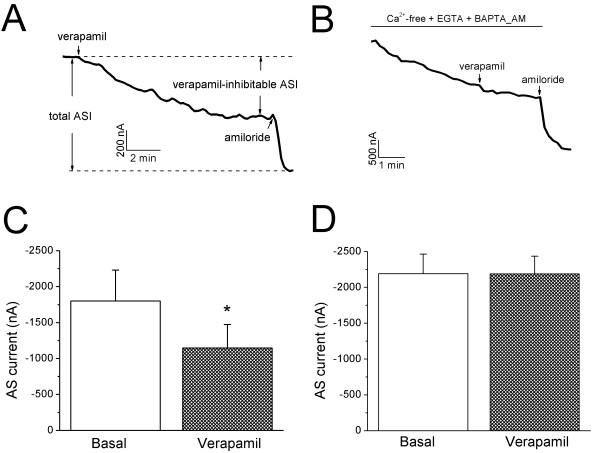

	Figure 9. Verapamil regulates heterologously expressed human αβγ ENaC in oocytes in a Ca2+-dependent pattern. (A & B) Time-courses of whole-cell current traces at -100 mV recorded in oocytes perfused with verapamil under normal (A) and Ca2+-chelated conditions (B). 10 μM amiloride were added at the end of recording to compute basal and verapamil-inhibitable ASI levels. (C & D) Effects of verapamil on ENaC activity in control (C) and Ca2+-chelated (D) oocytes. The shift of base line in Ca2+-chelated cells (B) was corrected for comparing the current levels before (Basal) and after verapamil (Verapamil). Paired t-test. *P < 0.05.

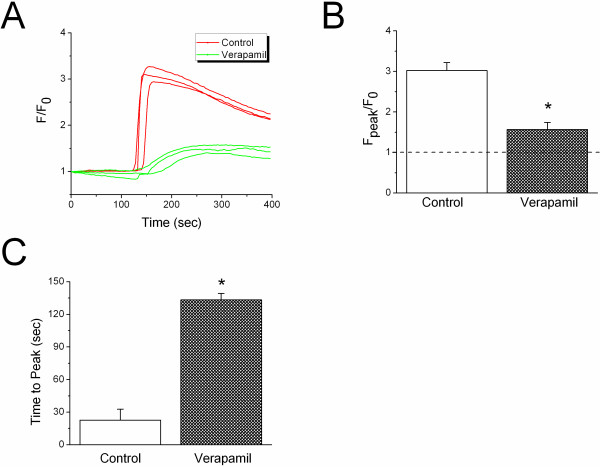

	Figure 10. Verapamil inhibits ionophore-induced Ca2+ mobilization. Transient Ca2+ signal evoked by ionomycin was measured as relative fluorescent intensity with Fluo 4AM dye in real time with paired manner, in both control and verapamil incubated H441 cells. (A) Original traces showing on-time Ca2+ signal digitized in control (red) and verapamil exposed cells (green). (B) Maximal relative change in fluorescent intensity (Fpeak/F0). Nonparametric Mann-Whitney U-test. *P < 0.05 vs Control. n = 3. (C) The time to reach peak signal. Nonparametric Mann-Whitney U-test. *P < 0.05

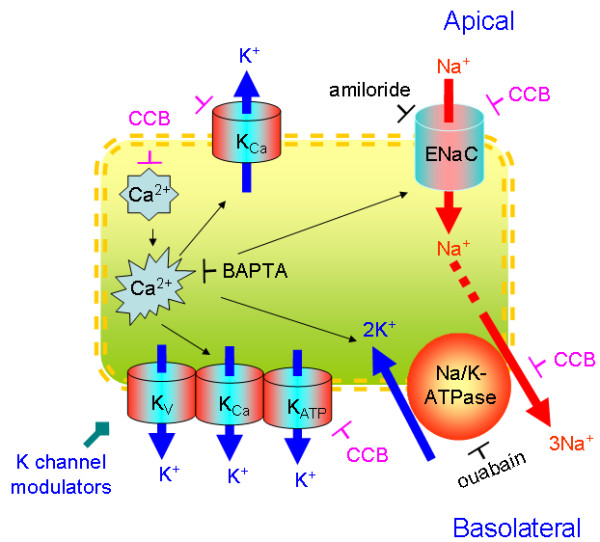

	Figure 11. Schematic model for the multiple mechanisms of CCB-inhibited transepithelial Na+ transport and recovery by K+ channels. CCB compounds alter Ca2+ signal most likely via modifying Ca2+ release from cytosolic compartments. In addition, CCB compounds directly regulate K+ channels, ENaC, and Na+/K+-ATPase. Disrupted basolateral K+ recycling and apical ion transport will abrogate transalveolar salt and fluid transport. K+ channel openers significantly restore the CCB-inhibited transepithelial Na+ transport by activating K+ channel, then facilitating Na+/K+-ATPase.

Abbas, Acute pulmonary edema during tocolytic therapy with nifedipine. 2006, Pubmed

Abbas, Acute pulmonary edema during tocolytic therapy with nifedipine. 2006, Pubmed
Amuzescu, Zinc is a voltage-dependent blocker of native and heterologously expressed epithelial Na+ channels. 2003, Pubmed , Xenbase
Bancila, Two SUR1-specific histidine residues mandatory for zinc-induced activation of the rat KATP channel. 2005, Pubmed
Bardou, Molecular diversity and function of K+ channels in airway and alveolar epithelial cells. 2009, Pubmed
Bernard, Modulation of calcium-dependent chloride secretion by basolateral SK4-like channels in a human bronchial cell line. 2003, Pubmed
Berthiaume, Lung edema clearance: 20 years of progress: invited review: alveolar edema fluid clearance in the injured lung. 2002, Pubmed
Bossy-Wetzel, Crosstalk between nitric oxide and zinc pathways to neuronal cell death involving mitochondrial dysfunction and p38-activated K+ channels. 2004, Pubmed
Brass, Massive verapamil overdose complicated by noncardiogenic pulmonary edema. 1996, Pubmed
Briot, Elevated levels of the receptor for advanced glycation end products, a marker of alveolar epithelial type I cell injury, predict impaired alveolar fluid clearance in isolated perfused human lungs. 2009, Pubmed
Chapuis, [Acute pulmonary edema during nicardipine and salbutamol therapy for preterm labor in twin pregnancy]. 2005, Pubmed
Chen, Mechanisms of cystic fibrosis transmembrane conductance regulator activation by S-nitrosoglutathione. 2006, Pubmed
Chen, Inhibition of Na+ transport in lung epithelial cells by respiratory syncytial virus infection. 2009, Pubmed
Chen, Regulation of inositol 1,4,5-trisphosphate receptor-mediated calcium release by the Na/K-ATPase in cultured renal epithelial cells. 2008, Pubmed
DeWitt, Pharmacology, pathophysiology and management of calcium channel blocker and beta-blocker toxicity. 2004, Pubmed
Eaton, The contribution of epithelial sodium channels to alveolar function in health and disease. 2009, Pubmed
Espelt, Oscillatory Ca2+ signaling in the isolated Caenorhabditis elegans intestine: role of the inositol-1,4,5-trisphosphate receptor and phospholipases C beta and gamma. 2005, Pubmed
Factor, Adenosine regulation of alveolar fluid clearance. 2007, Pubmed
Gao, Role of S3 and S4 transmembrane domain charged amino acids in channel biogenesis and gating of KCa2.3 and KCa3.1. 2008, Pubmed
Greenwood, KCNQ-encoded channels regulate Na+ transport across H441 lung epithelial cells. 2009, Pubmed
Gu, Denopamine stimulates alveolar fluid clearance via cystic fibrosis transmembrane conductance regulator in rat lungs. 2006, Pubmed
Guo, Nitric oxide inhibits Na+ absorption across cultured alveolar type II monolayers. 1998, Pubmed
Hohenhaus, Nifedipine does not prevent acute mountain sickness. 1994, Pubmed
Humbert, Noncardiogenic pulmonary edema complicating massive diltiazem overdose. 1991, Pubmed
Hummler, Early death due to defective neonatal lung liquid clearance in alpha-ENaC-deficient mice. 1996, Pubmed , Xenbase
Inglis, A Ba2+-resistant, acid-sensitive K+ conductance in Na+-absorbing H441 human airway epithelial cells. 2007, Pubmed
Ismailov, Mechanosensitivity of an epithelial Na+ channel in planar lipid bilayers: release from Ca2+ block. 1997, Pubmed
Janower, [Acute pulmonary edema during preterm labor: role of nicardipine tocolysis (three cases)]. 2005, Pubmed
Ji, Delta-subunit confers novel biophysical features to alpha beta gamma-human epithelial sodium channel (ENaC) via a physical interaction. 2006, Pubmed
Kirk, Active sodium transport by turtle colon via an electrogenic Na-K exchange pump. 1980, Pubmed
Lazrak, cAMP-induced changes of apical membrane potentials of confluent H441 monolayers. 2003, Pubmed
Lazrak, Alpha(1)-antitrypsin inhibits epithelial Na+ transport in vitro and in vivo. 2009, Pubmed , Xenbase
Leroy, Molecular identity and function in transepithelial transport of K(ATP) channels in alveolar epithelial cells. 2004, Pubmed
Leroy, Regulation of ENaC and CFTR expression with K+ channel modulators and effect on fluid absorption across alveolar epithelial cells. 2006, Pubmed
Marunaka, Regulation of an amiloride-sensitive Na+-permeable channel by a beta2-adrenergic agonist, cytosolic Ca2+ and Cl- in fetal rat alveolar epithelium. 1999, Pubmed
Marunaka, Effects of Ca(2+) channel blockers on amiloride-sensitive Na(+) permeable channels and Na(+) transport in fetal rat alveolar type II epithelium. 2002, Pubmed
Matalon, Invited review: biophysical properties of sodium channels in lung alveolar epithelial cells. 2002, Pubmed
Matthay, Alveolar epithelium: role in lung fluid balance and acute lung injury. 2005, Pubmed
Matthay, Lung epithelial fluid transport and the resolution of pulmonary edema. 2002, Pubmed
Monaghan, Inwardly rectifying K+ currents of alveolar type II cells isolated from fetal guinea-pig lung: regulation by G protein- and Mg2+-dependent pathways. 1997, Pubmed
Musa-Aziz, Signaling pathways in the biphasic effect of ANG II on Na+/H+ exchanger in T84 cells. 2005, Pubmed
Nassar, Nifedipine-associated pulmonary complications in pregnancy. 2007, Pubmed
Nie, Regulation of epithelial sodium channels by cGMP/PKGII. 2009, Pubmed , Xenbase
Niisato, Beta 2-agonist regulation of cell volume in fetal distal lung epithelium by cAMP-independent Ca2+ release from intracellular stores. 1997, Pubmed
Ninomiya, Verapamil, a Ca2+ entry blocker, targets the pore-forming subunit of cardiac type KATP channel (Kir6.2). 2003, Pubmed
Norlin, Ca(2+)-dependent stimulation of alveolar fluid clearance in near-term fetal guinea pigs. 2002, Pubmed
O'Grady, Chloride and potassium channel function in alveolar epithelial cells. 2003, Pubmed
O'Grady, Molecular diversity and function of voltage-gated (Kv) potassium channels in epithelial cells. 2005, Pubmed
Pancrazio, Verapamil-induced blockade of voltage-activated K+ current in small-cell lung cancer cells. 1991, Pubmed
Pendurthi, Plasmin induces Cyr61 gene expression in fibroblasts via protease-activated receptor-1 and p44/42 mitogen-activated protein kinase-dependent signaling pathway. 2002, Pubmed
Peth, K+ channel activation with minoxidil stimulates nasal-epithelial ion transport and blunts exaggerated hypoxic pulmonary hypertension. 2006, Pubmed
Praetorius, Released nucleotides amplify the cilium-dependent, flow-induced [Ca2+]i response in MDCK cells. 2009, Pubmed
Rossier, Epithelial sodium channel and the control of sodium balance: interaction between genetic and environmental factors. 2002, Pubmed
Sakuma, Effects of ATP-sensitive potassium channel opener on potassium transport and alveolar fluid clearance in the resected human lung. 1998, Pubmed
Sami Karti, Non-cardiogenic pulmonary oedema in the course of verapamil intoxication. 2002, Pubmed
Schild, Identification of amino acid residues in the alpha, beta, and gamma subunits of the epithelial sodium channel (ENaC) involved in amiloride block and ion permeation. 1997, Pubmed , Xenbase
Stanek, Amlodipine overdose. 1997, Pubmed
Swaminath, Identification of an allosteric binding site for Zn2+ on the beta2 adrenergic receptor. 2003, Pubmed
Swystun, Apical trypsin increases ion transport and resistance by a phospholipase C-dependent rise of Ca2+. 2005, Pubmed
Szkotak, Regulation of K(+) current in human airway epithelial cells by exogenous and autocrine adenosine. 2001, Pubmed
Thomas, cAMP-stimulated Na+ transport in H441 distal lung epithelial cells: role of PKA, phosphatidylinositol 3-kinase, and sgk1. 2004, Pubmed
Thome, Modulation of sodium transport in fetal alveolar epithelial cells by oxygen and corticosterone. 2003, Pubmed
Thome, Na,K-ATPase gene transfer mitigates an oxidant-induced decrease of active sodium transport in rat fetal ATII cells. 2001, Pubmed
Vaast, Acute pulmonary oedema during nicardipine therapy for premature labour; Report of five cases. 2004, Pubmed
Waldegger, Effect of verapamil enantiomers and metabolites on cardiac K+ channels expressed in Xenopus oocytes. 1999, Pubmed , Xenbase
Woollhead, Forskolin-induced cell shrinkage and apical translocation of functional enhanced green fluorescent protein-human alphaENaC in H441 lung epithelial cell monolayers. 2006, Pubmed
Zemans, Bench-to-bedside review: the role of the alveolar epithelium in the resolution of pulmonary edema in acute lung injury. 2004, Pubmed
Zhang, Mechanism of block and identification of the verapamil binding domain to HERG potassium channels. 1999, Pubmed
