CLC-5 is a H(+)/Cl(-) exchanger that is expressed primarily in endosomes but can traffic to the plasma membrane in overexpression systems. Mutations altering the expression or function of CLC-5 lead to Dent's disease. Currents mediated by this transporter show extreme outward rectification and are inhibited by acidic extracellular pH. The mechanistic origins of both phenomena are currently not well understood. It has been proposed that rectification arises from the voltage dependence of a H(+) transport step, and that inhibition of CLC-5 currents by low extracellular pH is a result of a reduction in the driving force for exchange caused by a pH gradient. We show here that the pH dependence of CLC-5 currents arises from H(+) binding to a single site located halfway through the transmembrane electric field and driving the transport cycle in a less permissive direction, rather than a reduction in the driving force. We propose that protons bind to the extracellular gating glutamate E211 in CLC-5. It has been shown that CLC-5 becomes severely uncoupled when SCN(-) is the main charge carrier: H(+) transport is drastically reduced while the rate of anion movement is increased. We found that in these conditions, rectification and pH dependence are unaltered. This implies that H(+) translocation is not the main cause of rectification. We propose a simple transport cycle model that qualitatively accounts for these findings.
???displayArticle.pubmedLink???
20513761 ???displayArticle.pmcLink???PMC2888053 ???displayArticle.link???J Gen Physiol ???displayArticle.grants???[+]

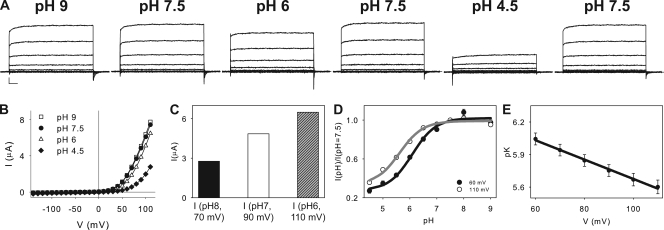

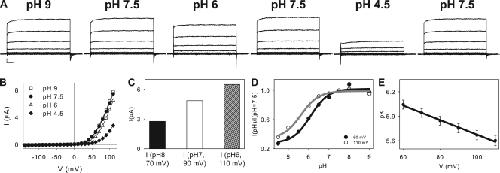

Figure 1. Inhibition of CLC-5 currents by extracellular H+’s. (A) CLC-5 currents recorded from the same oocyte at various pHex. Scale bars represent 1 µA and 10 ms. (B) Current–voltage plots for the currents shown in A. Squares, pH 9; circles, pH 7.5; triangles, pH 6.0; diamonds, pH 4.5. Solid lines hold no theoretical meaning. (C) Bar representation of the currents recorded at various voltages and pHs: black bar, I(pH 8, +70 mV); white bar, I(pH 7, +90 mV); hatched gray bar, I(pH 6, +110 mV). (D) Plot of normalized currents at +60 (filled circles) and +110 (open circles) mV as a function of pH. Solid lines are fits to Eq. 3 as described in Results, with K = 8.1 × 10−7, Imax = 1.02 and Imin = 0.27 at +60 mV, and K = 2.4 × 10−6, Imax = 0.99 and Imin = 0.33 at +110 mV. (E) Plot of the mean values of the pK obtained as in D, versus voltage. Solid line is a fit to pK(V) = pK(0) + zFV/RT, where pK(V) is the pK at voltage V, pK(0) = 6.6 is the pK extrapolated at V = 0, z = 0.51 is the fraction of the membrane potential acting on the blocking ion, and F, R, and T have their usual meanings.
Figure 2. Proton inhibition of CLC-5 currents in low extracellular Cl−. (A) Plot of normalized currents at +60 (filled circles) and +110 (open circles) mV as a function of pH. Solid lines are fits to Eq. 3 as described in Results, with K = 7.1 × 10−7, Imax = 0.98 and Imin = 0.25 at +60 mV, and K = 2.1 × 10−6, Imax = 0.97 and Imin = 0.24 at +110 mV. Dotted lines represent the fits at +110 (gray) and +60 (black) mV at 100 mM [Cl−]ex. (B) Plot of the mean values of the pK obtained as in A, versus voltage. Solid line is a fit to pK(V) = pK(0) + zFV/RT, where pK(V) is the pK at voltage V, pK(0) = 6.7 is the pK extrapolated at V = 0, z = 0.56 is the fraction of the membrane potential acting on the blocking ion, and F, R, and T have their usual meanings.

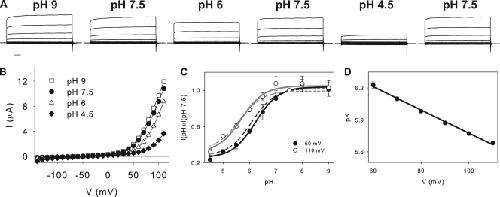

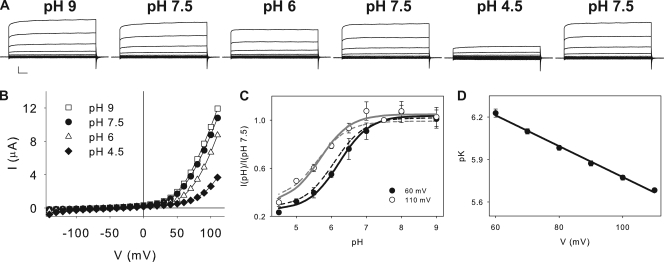

Figure 3. Inhibition of CLC-5 currents in SCN−. (A) CLC-5 currents recorded from the same oocyte in various pHex. Scale bars represent 2 µA and 10 ms. (B) Current–voltage plots for the currents shown in A. Squares, pH 9; circles, pH 7.5; triangles, pH 6.0; diamonds, pH 4.5. Solid lines hold no theoretical meaning. (C) Plot of normalized currents at +60 (filled circles) and +110 (open circles) mV as a function of pH. Solid lines are fits to Eq. 3 as described in Results, with K = 6.0 × 10−7, Imax = 1.04 and Imin = 0.25 at +60 mV, and K = 2.1 × 10−6, Imax = 1.05 and Imin = 0.31 at +110 mV. Dotted lines represent the fits at +110 (gray) and +60 (black) mV at 100 mM [Cl−]ex. (D) Plot of the mean values of the pK obtained as in C, versus voltage. Solid line is a fit to pK(V) = pK(0) + zFV/RT, where pK(V) is the pK at voltage V, pK(0) = 6.9 is the pK extrapolated at V = 0, z = 0.63 is the fraction of the membrane potential acting on the blocking ion, and F, R, and T have their usual meanings.

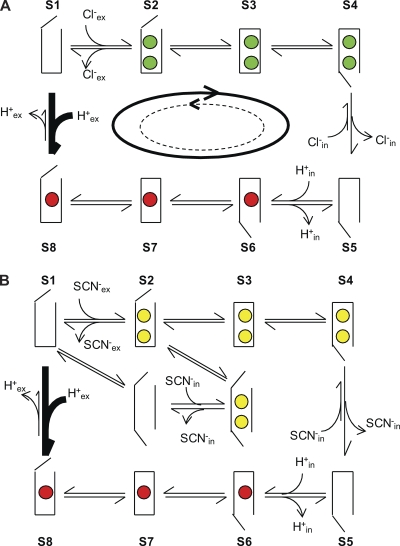

Figure 4. Simplified transport model for CLC-5. (A) Coupled transport in Cl−. (B) Uncoupled transport mode in SCN−. Green circles, Cl− ions; red circles, H+; yellow circles, SCN− ions. The model is described in the Discussion.
Accardi,
Secondary active transport mediated by a prokaryotic homologue of ClC Cl- channels.
2004, Pubmed
Accardi,
Secondary active transport mediated by a prokaryotic homologue of ClC Cl- channels.
2004,
Pubmed Accardi,
Synergism between halide binding and proton transport in a CLC-type exchanger.
2006,
Pubmed Accardi,
Separate ion pathways in a Cl-/H+ exchanger.
2005,
Pubmed Alekov,
Channel-like slippage modes in the human anion/proton exchanger ClC-4.
2009,
Pubmed Chen,
Different fast-gate regulation by external Cl(-) and H(+) of the muscle-type ClC chloride channels.
2001,
Pubmed
,
Xenbase De Angeli,
The nitrate/proton antiporter AtCLCa mediates nitrate accumulation in plant vacuoles.
2006,
Pubmed Dutzler,
Gating the selectivity filter in ClC chloride channels.
2003,
Pubmed
,
Xenbase Dutzler,
X-ray structure of a ClC chloride channel at 3.0 A reveals the molecular basis of anion selectivity.
2002,
Pubmed Engh,
The mechanism of fast-gate opening in ClC-0.
2007,
Pubmed Friedrich,
Mutational analysis demonstrates that ClC-4 and ClC-5 directly mediate plasma membrane currents.
1999,
Pubmed
,
Xenbase Gadsby,
Steady-state current-voltage relationship of the Na/K pump in guinea pig ventricular myocytes.
1989,
Pubmed Graves,
The Cl-/H+ antiporter ClC-7 is the primary chloride permeation pathway in lysosomes.
2008,
Pubmed Hara-Chikuma,
Impaired acidification in early endosomes of ClC-5 deficient proximal tubule.
2005,
Pubmed Hebeisen,
Anion permeation in human ClC-4 channels.
2003,
Pubmed Jayaram,
Ion permeation through a Cl--selective channel designed from a CLC Cl-/H+ exchanger.
2008,
Pubmed Jentsch,
CLC chloride channels and transporters: from genes to protein structure, pathology and physiology.
2008,
Pubmed Kuang,
Proton pathways and H+/Cl- stoichiometry in bacterial chloride transporters.
2007,
Pubmed Lobet,
Ion-binding properties of the ClC chloride selectivity filter.
2006,
Pubmed Miller,
A provisional transport mechanism for a chloride channel-type Cl-/H+ exchanger.
2009,
Pubmed Nakao,
[Na] and [K] dependence of the Na/K pump current-voltage relationship in guinea pig ventricular myocytes.
1989,
Pubmed Nguitragool,
Uncoupling of a CLC Cl-/H+ exchange transporter by polyatomic anions.
2006,
Pubmed Niemeyer,
Voltage-dependent and -independent titration of specific residues accounts for complex gating of a ClC chloride channel by extracellular protons.
2009,
Pubmed Picollo,
Chloride/proton antiporter activity of mammalian CLC proteins ClC-4 and ClC-5.
2005,
Pubmed Piwon,
ClC-5 Cl- -channel disruption impairs endocytosis in a mouse model for Dent's disease.
2000,
Pubmed Scheel,
Voltage-dependent electrogenic chloride/proton exchange by endosomal CLC proteins.
2005,
Pubmed
,
Xenbase Steinmeyer,
Cloning and functional expression of rat CLC-5, a chloride channel related to kidney disease.
1995,
Pubmed
,
Xenbase Wang,
Proton transport pathway in the ClC Cl-/H+ antiporter.
2009,
Pubmed Woodhull,
Ionic blockage of sodium channels in nerve.
1973,
Pubmed Zdebik,
Determinants of anion-proton coupling in mammalian endosomal CLC proteins.
2008,
Pubmed Zifarelli,
Conversion of the 2 Cl(-)/1 H+ antiporter ClC-5 in a NO3(-)/H+ antiporter by a single point mutation.
2009,
Pubmed
,
Xenbase Zifarelli,
Intracellular proton regulation of ClC-0.
2008,
Pubmed
,
Xenbase
