Coulon V, Chebli K, Cavelier P, Blanchard JM.

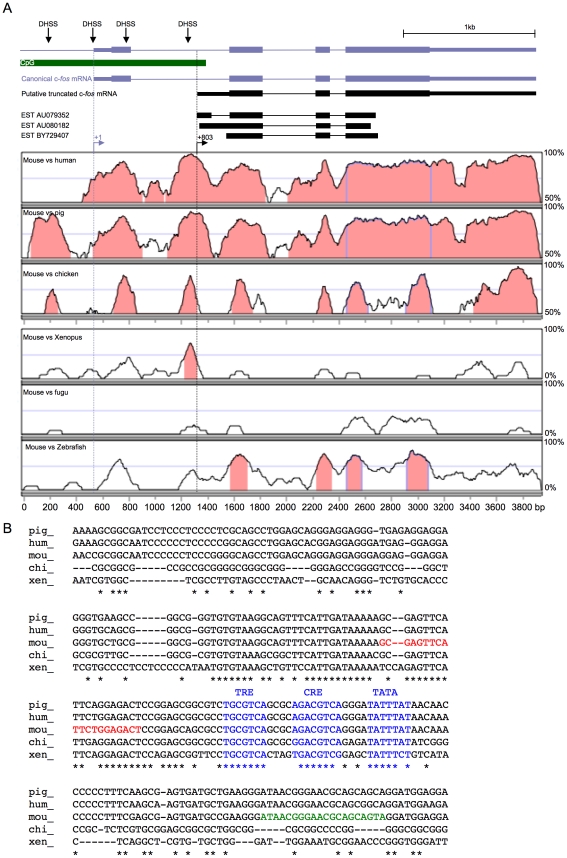

	Figure 1. An extremely conserved region in c-fos first intron: evidence for a nested promoter.A. c-fos gene conservation profile between the mouse gene and 6 other indicated species (VISTA genome server). The baseline corresponds to 50% identity for human, pig and chicken genomes, and to 0% identity for xenopus, fugu, and zebrafish genomes in 100 bp windows. Peaks culminating at more than 70% identity (in 100 bp windows) are painted in pink by the software. Note that the 3′ half of first intron is more conserved than surrounding exons in the four top species. Confirmed start site for canonical mRNA and putative intronic mRNA appear respectively as blue and black broken arrows. A CpG island (green box) extends from the canonical promoter to the putative intronic promoter. Blue boxes represent exons, black mRNAs correspond to the putative mRNA starting in the conserved region and three ESTs previously sequenced and mapping to the same region (UCSC genome server). DNase I hypersensitive sites from Renz et al. are shown as black downward arrows. B. Nucleotide alignment of the most conserved part of c-fos first intron (from +619 to +849 relative to mouse canonical TSS) from 5 species (pig, human, mouse, chicken, xenopus). Asterisks depict nucleotides identical in all 5 species. Conservation culminates in motifs resembling a TRE, a CRE, and a TATA box (shown in blue). Red and green sequences respectively correspond to primers 1 and 2 used in figure 6.

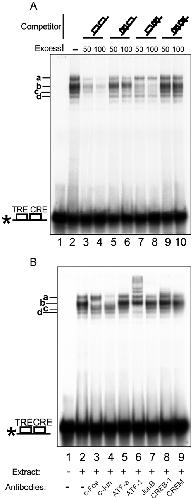

	Figure 2. The intronic TRE and CRE sites bind members of the CREB and AP-1 families of transcription factors.EMSA using HeLa nuclear extracts and probes corresponding to the TRE and CRE sites of c-fos first intron. A. Competition analysis with non-radioactive probes wt (lanes 3, 4) or mutated on the TRE (lanes 5, 6), the CRE (lanes 7, 8), or both (lanes 9, 10). Lane 1 shows the probe without extract, lane 2 with extract but without competing cold probe. B. Disruption or supershift of the protein/DNA complexes. The probe (lane 1) was incubated with HeLa nuclear extract (lanes 2 to 9) and antibodies to c-Fos (lane 3), c-Jun (lane 4), ATF-a (lane 5), ATF-1 (lane 6), JunB (lane 7), CREB-1 (lane 8), and CREM (lane 9).

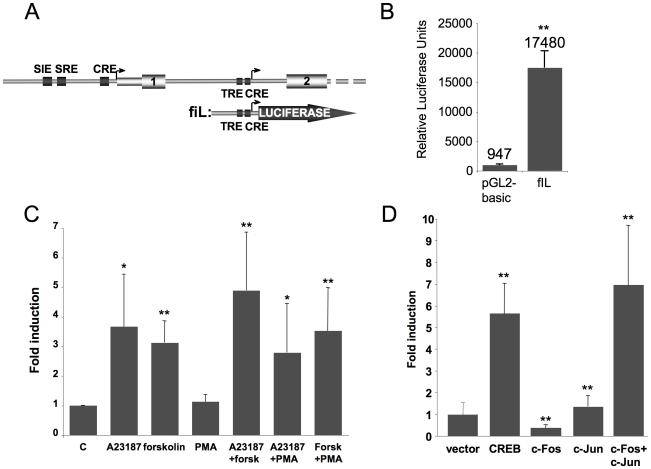

	Figure 3. The c-fos conserved intronic region drives luciferase expression and responds to the CREB and AP-1 pathways.A. 5′ part of mouse c-fos gene (up) and our reporter construct (bottom), fiL (fos intron Luciferase). B. The fos intronic region suffices to drive Luciferase activity in NIH3T3 cells in transient transfection. The promoterless pGL2 basic vector background activity is shown as a control. Error bars represent standard deviation, n = 7. C. The fIL construct responds to the calcium and cAMP pathways, but not to PMA. NIH3T3 transfected with fiL were treated with the indicated drugs. Error bars correspond to standard deviation, n = 6. D. Co-transfection with CREB or AP-1 expression vectors stimulates fIL promoter activity. Error bars correspond to standard deviation, n = 5. Statistical analysis of variance (ANOVA) was performed (*: p<0.05; **: p<0.01 relative to control).
	Figure 4. Transgenic analysis of the putative promoter shows expression restricted to the spinal cord and mammary bud of mouse embryos.A. 5′ part of mouse c-fos gene (up) and our NLS-containing, betagalactosidase reporter construct (bottom), fiZ (fos intron lacZ). 7 Transgenic mouse lines were created with fiZ and transgenic embryos were stained for betagalactosidase activity. Here are shown transgenic embryos from mouse line #60 at day 10.5 (B), 11.5 (C, K), 12.5 (D, G, H), and 13.5 (F, I, J). B, C, D, F: whole-mount embryos showing the spinal cord staining starting day 11.5 p. c. and the mammary gland anlage staining starting 12.5 p. c. G. Close-up view of the developing mammary buds showing the stained ring corresponding to mesenchymal cells. H, I, J: sagittal frozen sections showing the nuclear staining in the mesenchymal part of the mammary bud, but not in the central, epithelial part. K. Transverse frozen section on a 11.5 d. p. c. embryo showing the extremely restricted, ventral spinal cord staining. E: wild-type, e13.5 embryo as a control. Scale bars: 1 mm (B, C, D, E, F, G) then 150 µm (H, I, J, K).
	Figure 5. Brain-specific but variegated expression in newborn and adults from three different transgenic mouse lines.Newborn pups (A, D, G) or adult brains (B, C, E, F, H, I) from mouse transgenic lines 3 (A, B, C), 12 (D, E, F), and 21 (G, H, I) were stained for betagalactosidase activity, along with wild-type controls (J, K). Newborn pups (A, D, G, H) and adult brains (C, F, I, K) were cut sagitally or transversely, respectively, for X-Gal penetration and structure identification. Note the different patterns of expression in different mouse lines. Asterisks show a territory of endogenous, cytoplasmic betagalactosidase expression, the nasal pits, also seen in the wild-type controls (J). Scale bars: 5 mm (A, B, D, E, G, H, J) or 1 mm (C, F, I, K).

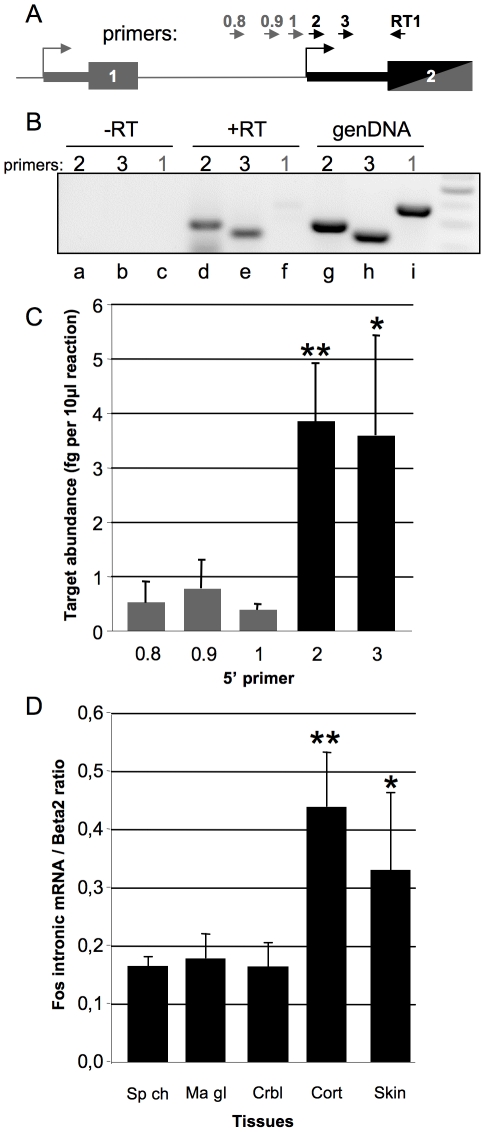

	Figure 6. Validation of the expression profile and start site region of c-fos intronic mRNA by RT-QPCR.A. Schematic representation of the primers used in this RT-PCR study. Boxes represent exons, larger boxes are translated regions, arrows depict primers. The 3′ PCR primer was always RT1. 5′ primers in grey lie upstream the putative TSS, whereas primers in black are downstream. B. RT-PCR mapping of the c-fos intronic mRNA start site region. RNA extracted from E12.5 mouse embryo mammary buds was reverse transcribed with primer RT1, then cDNAs were amplified with primers used for detection of the intronic mRNA (primer 2 lane d, primer 3 lane e) and canonical pre-mRNA (primer 1, lane f). Minus RT control ensures that no genomic DNA contaminant was amplified with any primer (-RT: lanes a, b, c), while PCR on genomic DNA (genDNA: lanes g, h, i) shows that primer 1 is PCR-competent (lane i). The DNA ladder (last lane) shows fragments of 600, 500, 400, 300, and 200 bp. n = 4. C. Quantitative PCR-mediated mapping of the intronic mRNA start site on cDNA from adult mouse cortex. The five different 5′ primers described earlier were used along with RT1 for amplification. Signal was normalized according to standard curves elaborated for each primer pair, allowing a measure of the targeted RNA independently of primer efficiency. The scale shows the amount of RNA in fg per 10 µl of reaction. Error bars represent standard deviation, n = 4. D. RT-QPCR analysis of fos intronic mRNA expression in adult tissues. Quantitative PCR was ran with primers 2 and RT1 on cDNA prepared from dissected candidate adult mouse tissues (from left to right: spinal chord, mammary gland, cerebellum, cortex, skin). Normalization was done over the expression of beta-2 microgobulin. Error bars represent standard deviation, n = 4. Statistical analysis of variance (ANOVA) was performed relative to primer 0.8 (C) or to spinal chord level (D). *: p<0.05; **: p<0.01.

Bonnerot, A beta-galactosidase hybrid protein targeted to nuclei as a marker for developmental studies. 1987, Pubmed

Bonnerot, A beta-galactosidase hybrid protein targeted to nuclei as a marker for developmental studies. 1987, Pubmed
Boulon, Oct-1 potentiates CREB-driven cyclin D1 promoter activation via a phospho-CREB- and CREB binding protein-independent mechanism. 2002, Pubmed
Caubet, c-fos proto-oncogene expression in the nervous system during mouse development. 1989, Pubmed
Charital, A functional NF-kappaB enhancer element in the first intron contributes to the control of c-fos transcription. 2009, Pubmed
Chatton, Jun and Fos heterodimerize with ATFa, a member of the ATF/CREB family and modulate its transcriptional activity. 1994, Pubmed
Collart, c-fos gene transcription in murine macrophages is modulated by a calcium-dependent block to elongation in intron 1. 1991, Pubmed
Coulon, A novel calcium signaling pathway targets the c-fos intragenic transcriptional pausing site. 1999, Pubmed
Coulon, A muscle-specific promoter directs Pitx3 gene expression in skeletal muscle cells. 2007, Pubmed
Devary, Rapid and preferential activation of the c-jun gene during the mammalian UV response. 1991, Pubmed
Dignam, Accurate transcription initiation by RNA polymerase II in a soluble extract from isolated mammalian nuclei. 1983, Pubmed
Dony, Proto-oncogene c-fos expression in growth regions of fetal bone and mesodermal web tissue. , Pubmed
Duret, Strong conservation of non-coding sequences during vertebrates evolution: potential involvement in post-transcriptional regulation of gene expression. 1993, Pubmed
Fisch, Multiple sequence elements in the c-fos promoter mediate induction by cAMP. 1989, Pubmed
Fort, Regulation of c-fos gene expression in hamster fibroblasts: initiation and elongation of transcription and mRNA degradation. 1987, Pubmed
Grigoriadis, c-Fos: a key regulator of osteoclast-macrophage lineage determination and bone remodeling. 1994, Pubmed
Hafezi, The absence of c-fos prevents light-induced apoptotic cell death of photoreceptors in retinal degeneration in vivo. 1997, Pubmed
Herrera, Chromatin structure analysis of the human c-fos promoter reveals a centrally positioned nucleosome. 1997, Pubmed
Hipskind, Ets-related protein Elk-1 is homologous to the c-fos regulatory factor p62TCF. , Pubmed
Johnson, Pleiotropic effects of a null mutation in the c-fos proto-oncogene. 1992, Pubmed
Kania, Coordinate roles for LIM homeobox genes in directing the dorsoventral trajectory of motor axons in the vertebrate limb. 2000, Pubmed
Kovacs, Induction of c-fos and c-myc expression in T lymphocytes after treatment with recombinant interleukin 1-alpha. 1986, Pubmed
Lamb, Demonstration in living cells of an intragenic negative regulatory element within the rodent c-fos gene. 1990, Pubmed
Lange, The role of putative intragenic control elements in c-fos regulation by calcium and growth factor signalling pathways. 2001, Pubmed
Lee, Dual modes of control of c-fos mRNA induction by intracellular calcium in T cells. 1994, Pubmed
Leonard, Role of Jak kinases and STATs in cytokine signal transduction. 2001, Pubmed
Lucibello, Mutual transrepression of Fos and the glucocorticoid receptor: involvement of a functional domain in Fos which is absent in FosB. 1990, Pubmed
Mayr, Transcriptional regulation by the phosphorylation-dependent factor CREB. 2001, Pubmed
Mechti, Sequence requirements for premature transcription arrest within the first intron of the mouse c-fos gene. 1991, Pubmed
Mohun, Temporal and tissue-specific expression of the proto-oncogene c-fos during development in Xenopus laevis. 1989, Pubmed , Xenbase
Morgan, Mapping patterns of c-fos expression in the central nervous system after seizure. 1987, Pubmed
Müller, Induction of c-fos gene and protein by growth factors precedes activation of c-myc. , Pubmed
Paylor, Behavioral assessment of c-fos mutant mice. 1994, Pubmed
Philips, Differential effect of Rac and Cdc42 on p38 kinase activity and cell cycle progression of nonadherent primary mouse fibroblasts. 2000, Pubmed
Piechaczyk, c-fos proto-oncogene regulation and function. 1994, Pubmed
Reichardt, DNA binding of the glucocorticoid receptor is not essential for survival. 1998, Pubmed
Reichardt, Mammary gland development and lactation are controlled by different glucocorticoid receptor activities. 2001, Pubmed
Ren, Microarray transfection analysis of conserved genomic sequences from three immediate early genes. 2009, Pubmed
Renz, Regulation of c-fos transcription in mouse fibroblasts: identification of DNase I-hypersensitive sites and regulatory upstream sequences. 1985, Pubmed
Robertson, Regulation of c-fos expression in transgenic mice requires multiple interdependent transcription control elements. 1995, Pubmed
Routal, A study of motoneuron groups and motor columns of the human spinal cord. 1999, Pubmed
Sadoshima, Mechanical stretch rapidly activates multiple signal transduction pathways in cardiac myocytes: potential involvement of an autocrine/paracrine mechanism. 1993, Pubmed
Shaulian, AP-1 in cell proliferation and survival. 2001, Pubmed
Shaw, The ability of a ternary complex to form over the serum response element correlates with serum inducibility of the human c-fos promoter. 1989, Pubmed
Sheng, Calcium and growth factor pathways of c-fos transcriptional activation require distinct upstream regulatory sequences. 1988, Pubmed
Susini, Essentiality of intron control in the induction of c-fos by glucose and glucoincretin peptides in INS-1 beta-cells. 2000, Pubmed
Thompson, L-type voltage-sensitive Ca2+ channel activation regulates c-fos transcription at multiple levels. 1995, Pubmed
Treisman, Identification of a protein-binding site that mediates transcriptional response of the c-fos gene to serum factors. 1986, Pubmed
Treisman, Transient accumulation of c-fos RNA following serum stimulation requires a conserved 5' element and c-fos 3' sequences. 1985, Pubmed
Treisman, Journey to the surface of the cell: Fos regulation and the SRE. 1995, Pubmed
van Haasteren, Essential contribution of intron sequences to Ca(2+)-dependent activation of c-fos transcription in pituitary cells. 2000, Pubmed
Wagner, The SIF binding element confers sis/PDGF inducibility onto the c-fos promoter. 1990, Pubmed
Wang, Bone and haematopoietic defects in mice lacking c-fos. , Pubmed
Watanabe, Null mutation of c-fos impairs structural and functional plasticities in the kindling model of epilepsy. 1996, Pubmed
