Lussi YC, Hügi I, Laurell E, Kutay U, Fahrenkrog B.

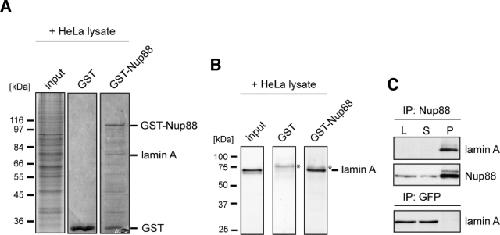

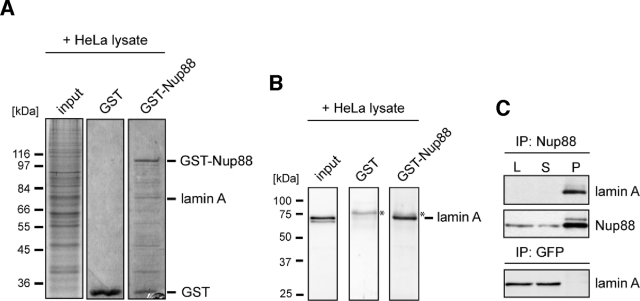

	FIGURE 1:. Lamin A is a novel interaction partner of Nup88. Bacterially expressed GST-Nup88 and GST were bound to glutathione sepharose beads and incubated with HeLa S3 nuclear extract. Bound fractions were analyzed by SDS–PAGE, colloidal blue staining, and mass spectroscopy (A) and immunoblotting using anti–lamin A antibodies (B). Lamin A was bound to GST-Nup88, but not to GST. (C) HeLa cell lysates were immunoprecipitated with anti-Nup88 antibodies, and the lysate (L), immune supernatant (S), and immune precipitate (P) were analyzed by SDS–PAGE and immunoblotted with anti-Nup88 and anti–lamin A antibodies. Lamin A coimmunoprecipitated with Nup88.

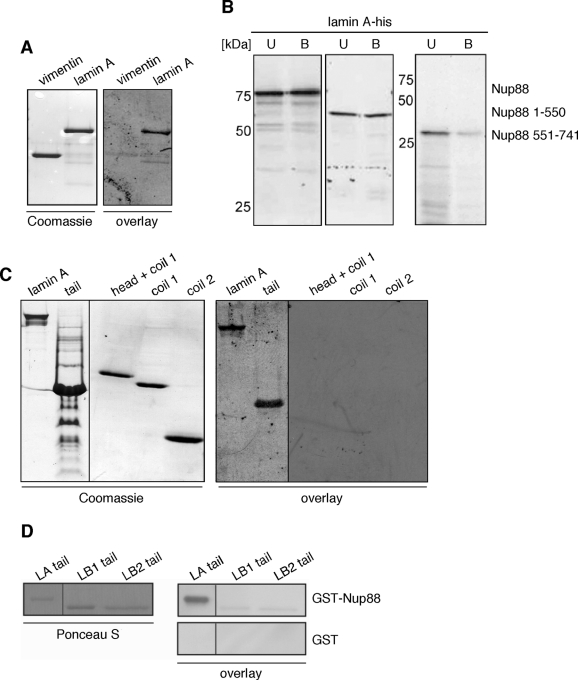

	FIGURE 2:. The N-terminal domain of Nup88 is interacting with the tail domain of lamin A. (A) Blot-overlay assay employing bacterially expressed and purified vimentin and lamin A and in vitro expressed and 35S-labeled Nup88. Samples of purified vimentin and lamin A were separated by SDS–PAGE, stained with Coomassie blue (left panel), or transferred to a PVDF membrane and overlaid with 35S-labeled Nup88 (right panel). 35S-labeled Nup88 was visualized by autoradiography. (B) Bacterially expressed his-tagged lamin A was bound to nickel beads and incubated with in vitro synthesized 35S-labeled, full-length, N-terminal (residues 1–550) or C-terminal (residues 551–741) Nup88. Unbound and bound fractions were analyzed by SDS–PAGE and autoradiography. 35S-labeled, full-length Nup88 and N-terminal 35S-Nup88 were binding to lamin A-his, whereas C-terminal 35S-Nup88 was not able to bind lamin A-his. (C) Blot-overlay assay using bacterially expressed and purified lamin A and lamin A fragments and in vitro expressed and 35S-labeled Nup88. Samples of purified lamin A were separated by SDS–PAGE, stained with Coomassie blue (left panel), or transferred to a PVDF membrane and overlaid with 35S-labeled Nup88 (right panel). 35S-labeled Nup88 was visualized by autoradiography. (D) Blot-overlay assay using bacterially expressed and purified tail domains of lamin A, lamin B1 and B2, and bacterially expressed and purified GST-Nup88 as well as GST alone. Samples of purified tail domain of lamin A (LA tail), lamin B1 (LB1 tail), and B2 (LB2 tail) were separated by SDS–PAGE, transferred to a PVDF membrane, stained with Ponceau S (left panel), and overlaid with purified GST-Nup88 and GST, respectively (right panel). Bound Nup88 was visualized by Western blot analysis with anti-Nup88 antibody. No binding of GST to the lamin tail domains was observed by immunoblotting with an anti-GST antibody.

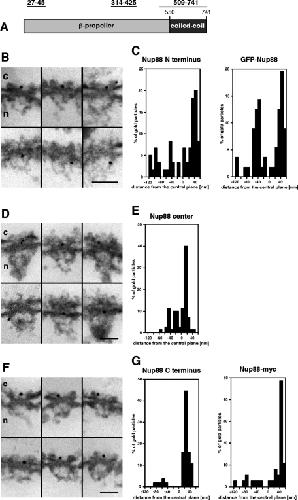

	FIGURE 3:. Domain topology of endogenous and ectopically expressed Nup88 within the NPC. Nuclei were isolated manually and labeled with antibodies directly conjugated to 8-nm colloidal gold. (A) Schematic representation of Nup88 domain organization and antibody epitope. (B and D) Nup88 localizes to both the cytoplasmic and the nuclear side of the NPC with a polyclonal Nup88 antibody directed against the N terminus of Nup88 and a mAb against its central region. Shown are selected examples of gold-labeled NPCs in cross-section. c, cytoplasm; n, nucleus. (C and E) Quantitative analysis of the gold particle distribution associated with the NPC using an antibody against the N terminus of Nup88 and the central region. Sixty (N terminus) and 70 (center) gold particles were scored. (C) Quantitative analysis of the gold particle distribution associated with the NPC using an antibody against the N-terminal GFP-tag of Nup88. Fifty-five gold particles were scored. (F) Nup88 is found mainly on the cytoplasmic side of the NPC with a monoclonal Nup88 antibody directed against an epitope in the C terminus of Nup88. Shown are selected examples of gold-labeled NPCs in cross-section. c, cytoplasm; n, nucleus. (G) Left: Quantitative analysis of the gold particle distribution associated with the NPC using antibodies against the Nup88 C terminus. Fifty-seven gold particles were scored. Right: Quantitative analysis of the gold particle distribution with anti-myc antibodies. Thirty-eight gold particles were scored. Scale bars, 100 nm.
	FIGURE 4:. Expression of GFP-lamin A is masking an antibody epitope within the N terminus of Nup88. (A) HEK cells transfected with GFP-lamin A (d–f, g–i, and j–l) were prepared for immunofluorescence 24 h after transfection using mAbs directed against residues 314–425 of Nup88 (e and f). Cells transfected with GFP-lamin A showed a decreased signal for Nup88 staining as compared with untransfected control cells (a–c). The masking can be circumvented by the use of a polyclonal antibody directed against residues 27–45 in the N terminus of Nup88 (h and i) or methanol fixation in combination with the monoclonal Nup88 antibody against residues 314–425 (k and l). Scale bars, 10 μm. (B) Protein levels of Nup88 were analyzed in HEK cells transfected with GFP-lamin A or mock transfected control cells. No changes in protein levels of Nup88 were observed when compared with β-tubulin.
	FIGURE 5:. EDMD-associated lamin A(R453W) and FPLD-associated lamin A(R482W) mutants do not interact with Nup88. HEK cells transfected with GFP-lamin A(R453W) (d–f), GFP-lamin A(R482W) (g–i), GFP-lamin AΔ50 (j–l), or wild-type GFP-lamin A (a–c) were prepared for immunofluorescence 24 h posttransfection using mAbs directed against residues 314–425. Epitope masking was observed in cells transfected with wild-type GFP-lamin A (b) and GFP-lamin AΔ50 (k), respectively, but not in cells expressing the GFP-tagged lamin A(R453W) (e) and lamin A(R482W) (h) mutants.

Adam, Regulation of nuclear lamin polymerization by importin alpha. 2008, Pubmed, Xenbase

Adam, Regulation of nuclear lamin polymerization by importin alpha. 2008, Pubmed , Xenbase
Agudo, Nup88 mRNA overexpression is associated with high aggressiveness of breast cancer. 2004, Pubmed
Akey, Architecture of the Xenopus nuclear pore complex revealed by three-dimensional cryo-electron microscopy. 1993, Pubmed , Xenbase
Andrés, Role of A-type lamins in signaling, transcription, and chromatin organization. 2009, Pubmed
Bastos, Nup84, a novel nucleoporin that is associated with CAN/Nup214 on the cytoplasmic face of the nuclear pore complex. 1997, Pubmed
Beck, Nuclear pore complex structure and dynamics revealed by cryoelectron tomography. 2004, Pubmed
Bernad, Nup214-Nup88 nucleoporin subcomplex is required for CRM1-mediated 60 S preribosomal nuclear export. 2006, Pubmed
Bernad, Nup358/RanBP2 attaches to the nuclear pore complex via association with Nup88 and Nup214/CAN and plays a supporting role in CRM1-mediated nuclear protein export. 2004, Pubmed , Xenbase
Broers, Nuclear lamins: laminopathies and their role in premature ageing. 2006, Pubmed
Capelson, Chromatin-bound nuclear pore components regulate gene expression in higher eukaryotes. 2010, Pubmed
Cronshaw, Proteomic analysis of the mammalian nuclear pore complex. 2002, Pubmed
Dechat, Alterations in mitosis and cell cycle progression caused by a mutant lamin A known to accelerate human aging. 2007, Pubmed
Dechat, Nuclear lamins: major factors in the structural organization and function of the nucleus and chromatin. 2008, Pubmed
De Sandre-Giovannoli, Lamin a truncation in Hutchinson-Gilford progeria. 2003, Pubmed
Dhe-Paganon, Structure of the globular tail of nuclear lamin. 2002, Pubmed
Eriksson, Recurrent de novo point mutations in lamin A cause Hutchinson-Gilford progeria syndrome. 2003, Pubmed
Fahrenkrog, Domain-specific antibodies reveal multiple-site topology of Nup153 within the nuclear pore complex. 2002, Pubmed , Xenbase
Fornerod, The human homologue of yeast CRM1 is in a dynamic subcomplex with CAN/Nup214 and a novel nuclear pore component Nup88. 1997, Pubmed
Frosst, Tpr is localized within the nuclear basket of the pore complex and has a role in nuclear protein export. 2002, Pubmed
Furukawa, A-type and B-type lamins initiate layer assembly at distinct areas of the nuclear envelope in living cells. 2009, Pubmed
Gould, Nup88 (karyoporin) in human malignant neoplasms and dysplasias: correlations of immunostaining of tissue sections, cytologic smears, and immunoblot analysis. 2002, Pubmed
Griffis, Nup98 localizes to both nuclear and cytoplasmic sides of the nuclear pore and binds to two distinct nucleoporin subcomplexes. 2003, Pubmed
Gruenbaum, The nuclear lamina comes of age. 2005, Pubmed
Harborth, Identification of essential genes in cultured mammalian cells using small interfering RNAs. 2001, Pubmed
Hawryluk-Gara, Vertebrate Nup53 interacts with the nuclear lamina and is required for the assembly of a Nup93-containing complex. 2005, Pubmed , Xenbase
Herrmann, Intermediate filaments: from cell architecture to nanomechanics. 2007, Pubmed
Hinshaw, Architecture and design of the nuclear pore complex. 1992, Pubmed , Xenbase
Hutchison, Lamins in disease: why do ubiquitously expressed nuclear envelope proteins give rise to tissue-specific disease phenotypes? 2001, Pubmed
Krimm, 1H, 13C and 15N resonance assignments of the C-terminal domain of human lamin A/C. 2002, Pubmed
Krimm, The Ig-like structure of the C-terminal domain of lamin A/C, mutated in muscular dystrophies, cardiomyopathy, and partial lipodystrophy. 2002, Pubmed
Krull, Nucleoporins as components of the nuclear pore complex core structure and Tpr as the architectural element of the nuclear basket. 2004, Pubmed
Lenz-Böhme, Insertional mutation of the Drosophila nuclear lamin Dm0 gene results in defective nuclear envelopes, clustering of nuclear pore complexes, and accumulation of annulate lamellae. 1997, Pubmed
Lim, The nuclear pore complex up close. 2006, Pubmed
Lim, Towards reconciling structure and function in the nuclear pore complex. 2008, Pubmed
Liu, Essential roles for Caenorhabditis elegans lamin gene in nuclear organization, cell cycle progression, and spatial organization of nuclear pore complexes. 2000, Pubmed
Loewinger, Mutations in the nuclear lamin proteins resulting in their aberrant assembly in the cytoplasm. 1988, Pubmed
Ly, Mitotic misregulation and human aging. 2000, Pubmed
Martínez, The nuclear pore complex protein Nup88 is overexpressed in tumor cells. 1999, Pubmed
Moir, Nuclear lamins A and B1: different pathways of assembly during nuclear envelope formation in living cells. 2000, Pubmed
Muralikrishna, Immunolocalization of detergent-susceptible nucleoplasmic lamin A/C foci by a novel monoclonal antibody. 2004, Pubmed
Paulillo, Nucleoporin domain topology is linked to the transport status of the nuclear pore complex. 2005, Pubmed , Xenbase
Roth, The Drosophila nucleoporin DNup88 localizes DNup214 and CRM1 on the nuclear envelope and attenuates NES-mediated nuclear export. 2003, Pubmed
Scaffidi, Lamin A-dependent nuclear defects in human aging. 2006, Pubmed
Schwartz, Modularity within the architecture of the nuclear pore complex. 2005, Pubmed
Schwarz-Herion, Domain topology of the p62 complex within the 3-D architecture of the nuclear pore complex. 2007, Pubmed , Xenbase
Shumaker, The highly conserved nuclear lamin Ig-fold binds to PCNA: its role in DNA replication. 2008, Pubmed , Xenbase
Smythe, Incorporation of the nuclear pore basket protein nup153 into nuclear pore structures is dependent upon lamina assembly: evidence from cell-free extracts of Xenopus eggs. 2000, Pubmed , Xenbase
Stoffler, Cryo-electron tomography provides novel insights into nuclear pore architecture: implications for nucleocytoplasmic transport. 2003, Pubmed , Xenbase
Stuurman, Nuclear lamins: their structure, assembly, and interactions. 1998, Pubmed
Sullivan, Loss of A-type lamin expression compromises nuclear envelope integrity leading to muscular dystrophy. 1999, Pubmed
Takahashi, Tumor marker nucleoporin 88 kDa regulates nucleocytoplasmic transport of NF-kappaB. 2008, Pubmed
Tunnah, The apparent absence of lamin B1 and emerin in many tissue nuclei is due to epitope masking. 2005, Pubmed
Uv, members only encodes a Drosophila nucleoporin required for rel protein import and immune response activation. 2000, Pubmed
Walther, The nucleoporin Nup153 is required for nuclear pore basket formation, nuclear pore complex anchoring and import of a subset of nuclear proteins. 2001, Pubmed , Xenbase
Walther, The cytoplasmic filaments of the nuclear pore complex are dispensable for selective nuclear protein import. 2002, Pubmed , Xenbase
Worman, "Laminopathies": a wide spectrum of human diseases. 2007, Pubmed
Zhang, Nup88 expression in normal mucosa, adenoma, primary adenocarcinoma and lymph node metastasis in the colorectum. 2007, Pubmed
