Kumagai A, Shevchenko A, Shevchenko A, Dunphy WG.

GM043974 NIGMS NIH HHS , GM070891 NIGMS NIH HHS , R01 GM070891-07 NIGMS NIH HHS , R01 GM070891 NIGMS NIH HHS , R01 GM043974 NIGMS NIH HHS , R37 GM043974 NIGMS NIH HHS

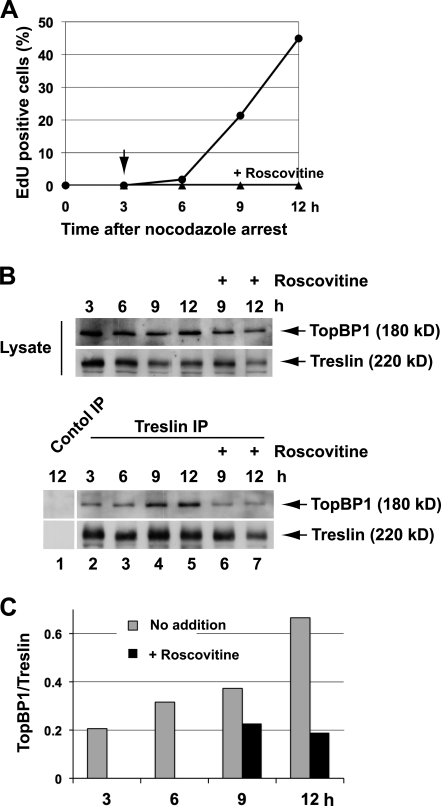

	Figure 1. Treslin and TopBP1 interact in a Cdk-regulated manner in human U2OS cells. (A) U2OS cells were arrested at M phase with nocodazole, isolated from plates by shake-off, and released into fresh nocodazole-free medium. 25 µM roscovitine was added to one of two duplicate cultures at 3 h after the release (arrow). Cells were harvested every 3 h. DNA replication was monitored by incorporation of EdU in cells incubated in the absence (circles) or presence (triangles) of roscovitine. Results are from one representative experiment. A second experiment gave similar results. (B) Cell lysates were immunoprecipitated with control or anti-Treslin antibodies as indicated. Cell lysates (top) and immunoprecipitates (IP; bottom) were immunoblotted for TopBP1 and Treslin. (C) Quantitation of the results from the bottom portion of B. Results are from one representative experiment. A second experiment gave similar results.

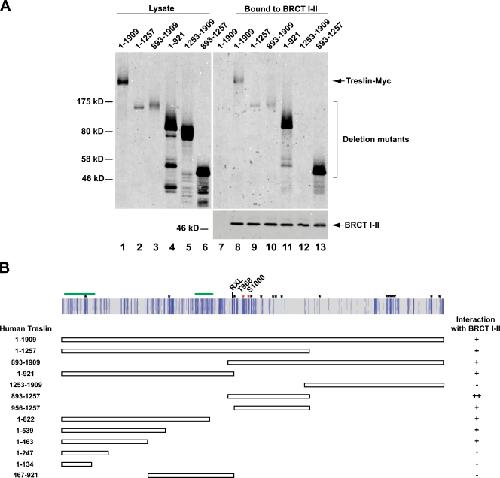

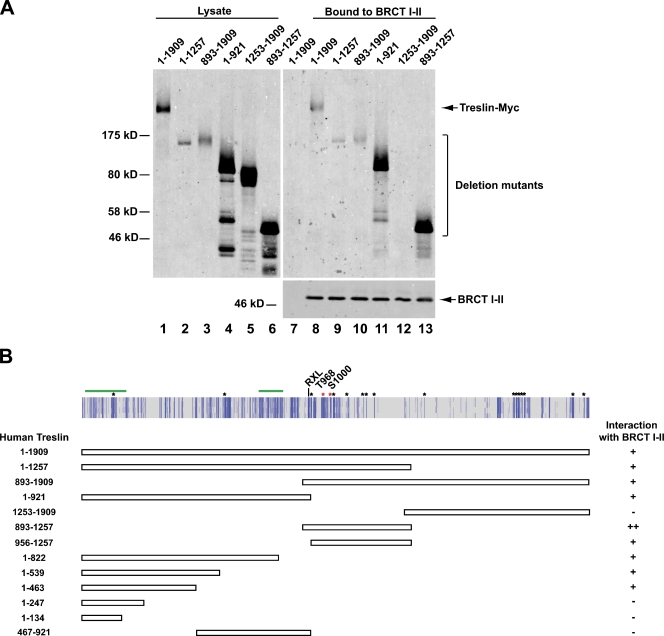

	Figure 2. Deletion studies of the regions in Treslin that interact with the BRCT I–II domains of TopBP1. (A) Full-length Treslin-Myc (lanes 1, 7, and 8) and deletion mutants containing the indicated portions of Treslin (lanes 2–6 and 9–13) were transiently expressed in U2OS cells. Cell lysates (lanes 1–6) were incubated in the absence (lane 7) or presence (lanes 8–13) of a FLAG-tagged fragment of TopBP1 containing BRCT domains I–II. The incubations also contained anti-FLAG antibodies bound to protein G beads. The beads were reisolated, washed, and processed for immunoblotting with anti-Myc (top) and anti-FLAG antibodies (bottom). (B, top) Results of multiple sequence alignments of full-length Treslin using the Kalign program. Dark blue lines represent amino acids that are identical in Treslin from human, X. laevis, chicken, and zebrafish. Light blue lines represent amino acids that are identical in two or three out of these four species. Asterisks denote SP/TP motifs that have been conserved in all four species. Red asterisks indicate SP/TP motifs that are conserved in yeast Sld3 (Fig. 3 A). RXL indicates the location of a putative cyclin-interacting motif. Green lines indicate homology detected by Sanchez-Pulido et al. (2010) between Treslin and Sld3. (bottom) Summary of the abilities of various fragments of Treslin to interact with the BRCT I–II domain of TopBP1. Quantitation was performed from several experiments by measuring with the Odyssey imaging system the amounts of fragments of Treslin that bound to the BRCT I–II fragment of TopBP1. The designations on the right are as follows: −, <1% input Treslin bound to TopBP1; +, 3–6% input bound; and ++, >10% input bound.

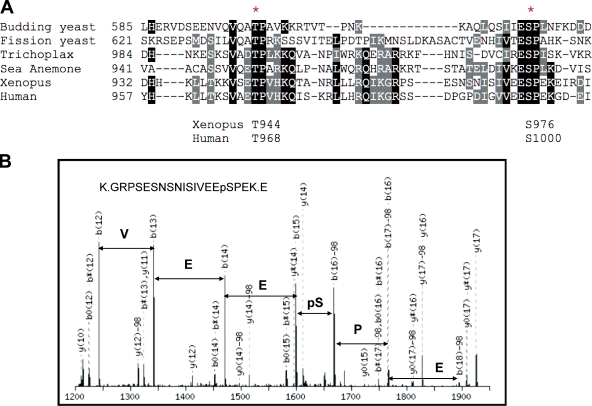

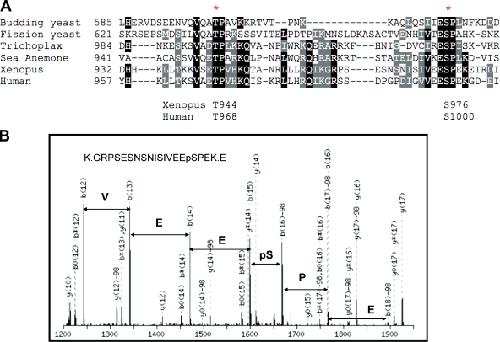

	Figure 3. Analysis of the phosphorylation of Treslin. (A) Amino acids 893–1,257 of human Treslin and the corresponding portions of X. laevis Treslin and Treslin homologues from sea anemone (NCBI Protein database accession no. XP_001628252) and Trichoplax adhaerens (NCBI Protein database accession no. XP_002111061) were aligned with the C-terminal half of budding yeast and fission yeast Sld3 using the T-Coffee (Tree-based Consistency Objective Function for Alignment Evaluation) program. Only the most similar portion of the alignment is shown. Identical and similar residues are shaded in black and gray, respectively. The asterisks denote residues that are homologous with T600 and S622 of budding yeast Sld3 (corresponding to T968 and S1000 of human Treslin). (B) Part of the MS/MS spectrum corresponding to a peptide containing phosphorylated S976 of X. laevis Treslin. MS analysis was performed as described in Materials and methods.

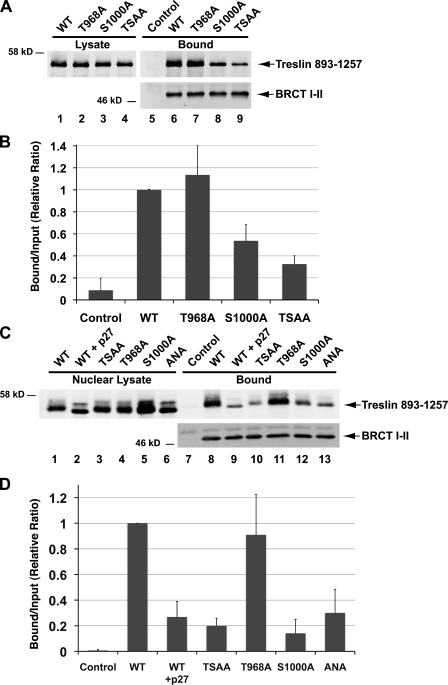

	Figure 4. The S1000A mutation affects the interaction of Treslin (893–1,257) with the BRCT I–II fragment of TopBP1. (A) Wild-type (WT) Treslin (893–1,257)-Myc (lanes 1, 5, and 6) and versions of this fragment containing the point mutations T968A (lanes 2 and 7), S1000A (lanes 3 and 8), and T968AS1000A (lanes 4 and 9) were expressed transiently in U2OS cells. Interaction with the BRCT I–II fragment of TopBP1 was assessed as described in Fig. 2 A. (B) Quantitation of the data as shown in A. Results (mean ± SD) were compiled from three independent experiments. (C) A His-tagged form of human Treslin (893–1,257)-Myc (lanes 1, 2, and 7–9) and versions of this fragment containing the point mutations T968AS1000A (lanes 3 and 10), T968A (lanes 4 and 11), S1000A (lanes 5 and 12), and R913AL915A (lanes 6 and 13) were expressed in bacteria and purified with nickel agarose beads. The fragments were incubated in X. laevis egg extracts containing sperm chromatin. In some cases, the extracts also contained p27 (lanes 2 and 9). After a 60-min incubation, nuclei were isolated from the extracts, and nuclear lysates were prepared as described in Materials and methods. Nuclear lysates (lanes 1–6) were incubated without (lane 7) or with the FLAG-tagged BRCT I–II fragment of TopBP1 (lanes 8–13) in the presence of anti-FLAG antibody beads. The beads were isolated and immunoblotted with anti-Myc (top) and anti-FLAG antibodies (bottom). (D) Quantitation of the data as shown in C. Results (mean ± SD) were compiled from three independent experiments.

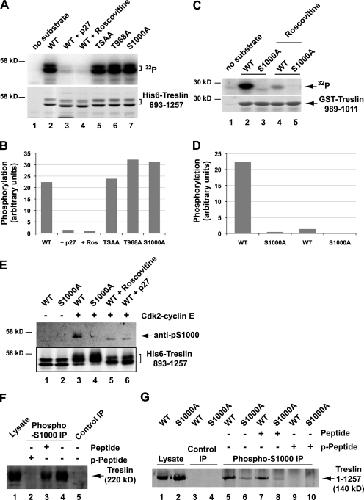

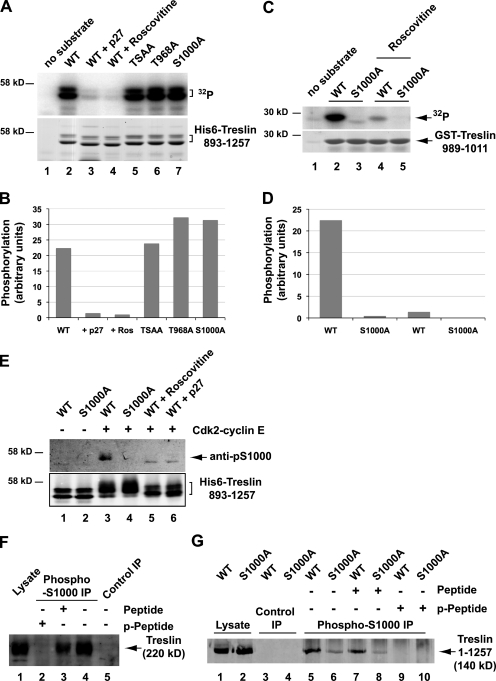

	Figure 5. Phosphorylation of Treslin on S1000 by Cdk2–cyclin E. (A) Cdk2–cyclin E was incubated in the absence (lane 1) or presence of bacterially produced wild-type (WT) His6-Treslin (893–1,257; lanes 2–4) or the TSAA (lane 5), T968A (lane 6), or S1000A (lane 7) forms of this fragment. Incubations were performed in kinase buffer containing [32P]ATP. The incubations in lanes 3 and 4 also contained 2 µM GST-p27 and 25 µM roscovitine, respectively. Samples were subjected to SDS-PAGE and processed for phosphorimaging (top) and Coomassie blue staining (bottom). (B) Quantitation of 32P incorporation in A. Results are from one representative experiment. A second experiment gave similar results. (C) Cdk2–cyclin E was incubated with no substrate (lane 1), GST-Treslin(989–1,011) (lanes 2 and 4), or GST-Treslin (989–1,011)-S1000A (lanes 3 and 5) in a buffer containing [32P]ATP. The incubations were performed in the absence (lanes 1–3) or presence of 25 µM roscovitine (lanes 4 and 5). Samples were subjected to SDS-PAGE and processed for phosphorimaging (top) and Coomassie blue staining (bottom). (D) Quantitation of 32P incorporation in C. Results are from one representative experiment. A second experiment gave similar results. (E) Wild-type Treslin (893–1,257)-Myc (lanes 1, 3, 5, and 6) and its S1000A mutant (lanes 2 and 4) were incubated in the absence (lanes 1 and 2) or presence of Cdk2–cyclin E in a kinase buffer containing 1 mM ATP (lanes 3–6). The incubations in lanes 5 and 6 contained 25 µM roscovitine and 2 µM GST-p27, respectively. The reaction was stopped with SDS sample buffer. Samples were immunoblotted with anti–phospho-S1000 (top) and anti-Myc antibodies (bottom). (F) U2OS cell lysates (lane 1) were immunoprecipitated (IP) with either anti–phospho-S1000 antibodies (lanes 2–4) or control antibodies (lane 5). The immunoprecipitates were performed in the presence of no additional peptide (lanes 4 and 5) or 1 µg/ml of the either the immunizing phosphopeptide (lane 2) or the nonphosphorylated form of the same peptide (lane 3). Samples were immunoblotted with anti-Treslin antibodies. (G) Lysates from stable U2OS T-REx cell lines (lanes 1 and 2) expressing either wild-type Treslin (1–1,257)-Myc (lanes 1, 3, 5, 7, and 9) or the S1000A mutant of this fragment (lanes 2, 4, 6, 8, and 10) were immunoprecipitated with control (lanes 3 and 4) or anti–phospho-S1000 antibodies (lanes 5–10) in the presence of no additional peptide (lanes 3–6) or 1 µg/ml of either immunizing phosphopeptide (lanes 9 and 10) or nonphosphorylated peptide (lanes 7 and 8). Samples were processed for immunoblotting with anti-Myc antibodies.

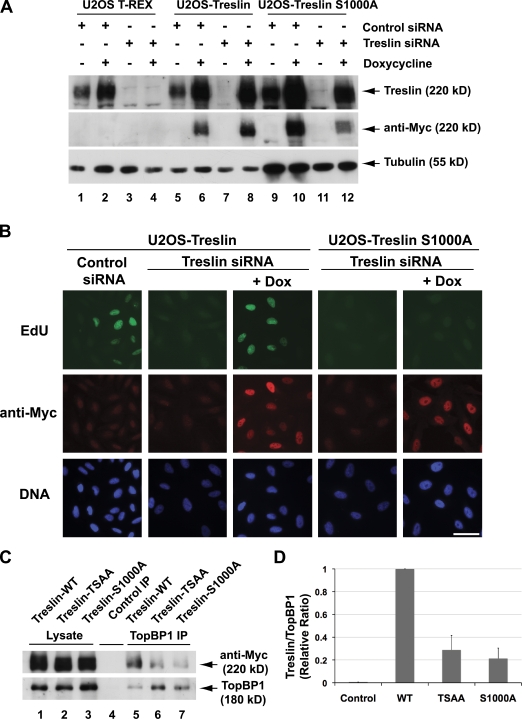

	Figure 6. S1000 of Treslin is essential for DNA replication. (A) Control U2OS T-REx cells (lanes 1–4) and U2OS T-REx cells harboring wild-type (lanes 5–8) or S1000A Treslin-Myc (lanes 9–12) were incubated for 24 h in the absence (lanes 1, 3, 5, 7, 9, and 11) or presence of doxycycline (lanes 2, 4, 6, 8, 10, and 12). Cells were transfected with either control siRNA (lanes 1, 2, 5, 6, 9, and 10) or Treslin siRNA (lanes 3, 4, 7, 8, 11, and 12) and incubated for another 72 h. Cell lysates were immunoblotted with anti-Treslin (top), anti-Myc (middle), and anti-tubulin antibodies (bottom). (B) Cells were incubated with 10 µM EdU for 1 h. Samples were stained with Click-iT reagent to detect newly synthesized DNA (top), anti-Myc antibodies to detect Treslin (middle), and Hoechst 33342 dye to detect total DNA (bottom). Bar, 50 µM. (C) Expression of wild-type (WT) Treslin (lanes 1, 4, and 5), Treslin-T968AS1000A (lanes 2 and 6), and Treslin-S1000A (lanes 3 and 7) was induced with 1 µg/ml doxycycline for 24 h. Cell lysates were prepared and immunoprecipitated (IP) with either control (lane 4) or anti–human TopBP1 antibodies (lanes 5–7). Samples were immunoblotted with anti-Myc (top) or anti-TopBP1 antibodies (bottom). (D) Quantitation of the binding of various forms of Treslin to TopBP1 as shown in C. Results (mean ± SD) were compiled from three independent experiments.

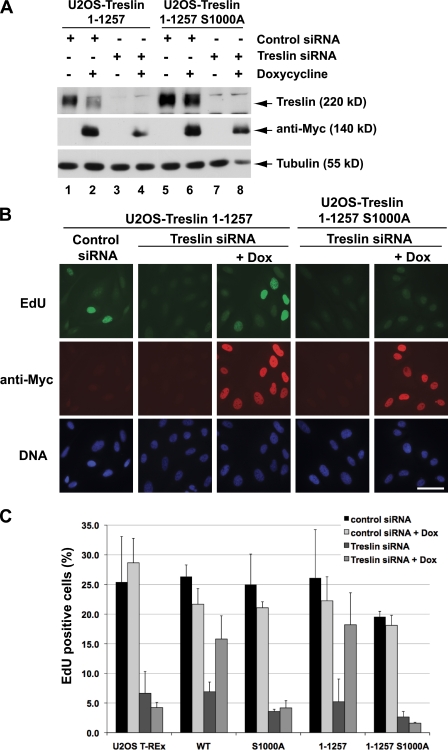

	Figure 7. A C-terminal domain of Treslin is dispensable for DNA replication. (A) U2OS cells harboring wild-type (lanes 1–4) or S1000A Treslin (1–1,257)-Myc (lanes 5–8) were incubated for 24 h in the absence (lanes 1, 3, 5, and 7) or presence of doxycycline (lanes 2, 4, 6, and 8). Cells were transfected with either control siRNA (lanes 1, 2, 5, and 6) or Treslin siRNA (lanes 3, 4, 7, and 8) and incubated for another 72 h. Cell lysates were immunoblotted with anti-Treslin (top), anti-Myc (middle), and anti-tubulin antibodies (bottom). (B) Cells treated with siRNA were incubated with 10 µM EdU for 1 h and then processed for staining with Click-iT reagent (top), anti-Myc antibodies (middle), and Hoechst dye DNA (bottom). Bar, 50 µM. (C) Quantitation of the data from Figs. 6 B and 7 B. Results (mean ± SD) were compiled from three independent experiments.

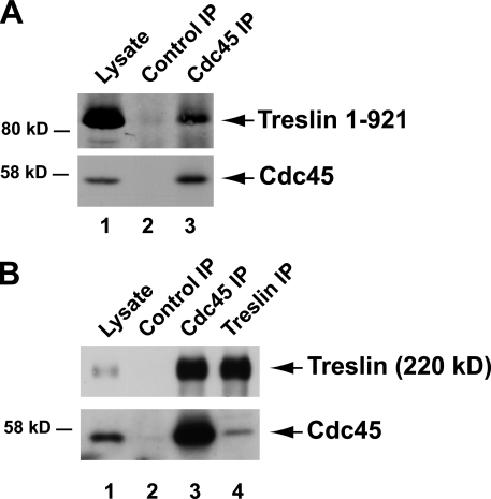

	Figure 8. Treslin interacts with Cdc45 in human cells. (A) Treslin (1–921)-Myc and human Cdc45 were transiently expressed in U2OS cells. Cell lysates (lane 1) were immunoprecipitated (IP) with either control antibodies (lane 2) or anti–human Cdc45 antibodies (lane 3) and immunoblotted for the Myc tag (top) or Cdc45 (bottom). (B) Benzonase-digested nuclear lysates (lane 1) from interphase X. laevis egg extracts were immunoprecipitated with control (lane 2), anti-Cdc45 (lane 3), and anti-Treslin antibodies (lane 4). The samples were immunoblotted for Treslin (top) and Cdc45 (bottom).

Araki, Cyclin-dependent kinase-dependent initiation of chromosomal DNA replication. 2010, Pubmed

Araki, Cyclin-dependent kinase-dependent initiation of chromosomal DNA replication. 2010, Pubmed
Balestrini, GEMC1 is a TopBP1-interacting protein required for chromosomal DNA replication. 2010, Pubmed , Xenbase
Botchan, Cell biology: a switch for S phase. 2007, Pubmed
Chowdhury, The DNA unwinding element binding protein DUE-B interacts with Cdc45 in preinitiation complex formation. 2010, Pubmed , Xenbase
Diffley, Regulation of early events in chromosome replication. 2004, Pubmed , Xenbase
Fu, DNA replication: metazoan Sld3 steps forward. 2010, Pubmed
Garcia, Identification and functional analysis of TopBP1 and its homologs. 2005, Pubmed
Hashimoto, Xenopus Cut5 is essential for a CDK-dependent process in the initiation of DNA replication. 2003, Pubmed , Xenbase
Ilves, Activation of the MCM2-7 helicase by association with Cdc45 and GINS proteins. 2010, Pubmed
Junqueira, Separating the wheat from the chaff: unbiased filtering of background tandem mass spectra improves protein identification. 2008, Pubmed
Kamimura, Sld3, which interacts with Cdc45 (Sld4), functions for chromosomal DNA replication in Saccharomyces cerevisiae. 2001, Pubmed
Kumagai, Treslin collaborates with TopBP1 in triggering the initiation of DNA replication. 2010, Pubmed , Xenbase
Labib, How do Cdc7 and cyclin-dependent kinases trigger the initiation of chromosome replication in eukaryotic cells? 2010, Pubmed
Lee, Roles of replication fork-interacting and Chk1-activating domains from Claspin in a DNA replication checkpoint response. 2005, Pubmed , Xenbase
Loog, Cyclin specificity in the phosphorylation of cyclin-dependent kinase substrates. 2005, Pubmed
Matsuno, The N-terminal noncatalytic region of Xenopus RecQ4 is required for chromatin binding of DNA polymerase alpha in the initiation of DNA replication. 2006, Pubmed , Xenbase
Mayya, Quantitative phosphoproteomic analysis of T cell receptor signaling reveals system-wide modulation of protein-protein interactions. 2009, Pubmed
Méndez, Perpetuating the double helix: molecular machines at eukaryotic DNA replication origins. 2003, Pubmed , Xenbase
Morgan, Cyclin-dependent kinases: engines, clocks, and microprocessors. 1997, Pubmed
Pacek, Localization of MCM2-7, Cdc45, and GINS to the site of DNA unwinding during eukaryotic DNA replication. 2006, Pubmed , Xenbase
Remus, Eukaryotic DNA replication control: lock and load, then fire. 2009, Pubmed
Sanchez-Pulido, Homology explains the functional similarities of Treslin/Ticrr and Sld3. 2010, Pubmed
Sangrithi, Initiation of DNA replication requires the RECQL4 protein mutated in Rothmund-Thomson syndrome. 2005, Pubmed , Xenbase
Sansam, A vertebrate gene, ticrr, is an essential checkpoint and replication regulator. 2010, Pubmed
Schulman, Substrate recruitment to cyclin-dependent kinase 2 by a multipurpose docking site on cyclin A. 1998, Pubmed
Sclafani, Cell cycle regulation of DNA replication. 2007, Pubmed
Shevchenko, In-gel digestion for mass spectrometric characterization of proteins and proteomes. 2006, Pubmed
Shou, Cell cycle control by Xenopus p28Kix1, a developmentally regulated inhibitor of cyclin-dependent kinases. 1996, Pubmed , Xenbase
Tanaka, Regulation of the initiation step of DNA replication by cyclin-dependent kinases. 2010, Pubmed
Tanaka, CDK-dependent phosphorylation of Sld2 and Sld3 initiates DNA replication in budding yeast. 2007, Pubmed
Tanaka, The role of CDK in the initiation step of DNA replication in eukaryotes. 2007, Pubmed
Van Hatten, The Xenopus Xmus101 protein is required for the recruitment of Cdc45 to origins of DNA replication. 2002, Pubmed , Xenbase
Yabuuchi, Ordered assembly of Sld3, GINS and Cdc45 is distinctly regulated by DDK and CDK for activation of replication origins. 2006, Pubmed
Zegerman, Phosphorylation of Sld2 and Sld3 by cyclin-dependent kinases promotes DNA replication in budding yeast. 2007, Pubmed
