Proc Natl Acad Sci U S A
2012 Apr 03;10914:E812-20. doi: 10.1073/pnas.1114802109.
Show Gene links
Show Anatomy links
Wnt/β-catenin signaling requires interaction of the Dishevelled DEP domain and C terminus with a discontinuous motif in Frizzled.
Tauriello DV, Jordens I, Kirchner K, Slootstra JW, Kruitwagen T, Bouwman BA, Noutsou M, Rüdiger SG, Schwamborn K, Schambony A, Maurice MM.
???displayArticle.abstract???
Wnt binding to members of the seven-span transmembrane Frizzled (Fz) receptor family controls essential cell fate decisions and tissue polarity during development and in adulthood. The Fz-mediated membrane recruitment of the cytoplasmic effector Dishevelled (Dvl) is a critical step in Wnt/β-catenin signaling initiation, but how Fz and Dvl act together to drive downstream signaling events remains largely undefined. Here, we use an Fz peptide-based microarray to uncover a mechanistically important role of the bipartite Dvl DEP domain and C terminal region (DEP-C) in binding a three-segmented discontinuous motif in Fz. We show that cooperative use of two conserved motifs in the third intracellular loop and the classic C-terminal motif of Fz is required for DEP-C binding and Wnt-induced β-catenin activation in cultured cells and Xenopus embryos. Within the complex, the Dvl DEP domain mainly binds the Fz C-terminal tail, whereas a short region at the Dvl C-terminal end is required to bind the Fz third loop and stabilize the Fz-Dvl interaction. We conclude that Dvl DEP-C binding to Fz is a key event in Wnt-mediated signaling relay to β-catenin. The discontinuous nature of the Fz-Dvl interface may allow for precise regulation of the interaction in the control of Wnt-dependent cellular responses.

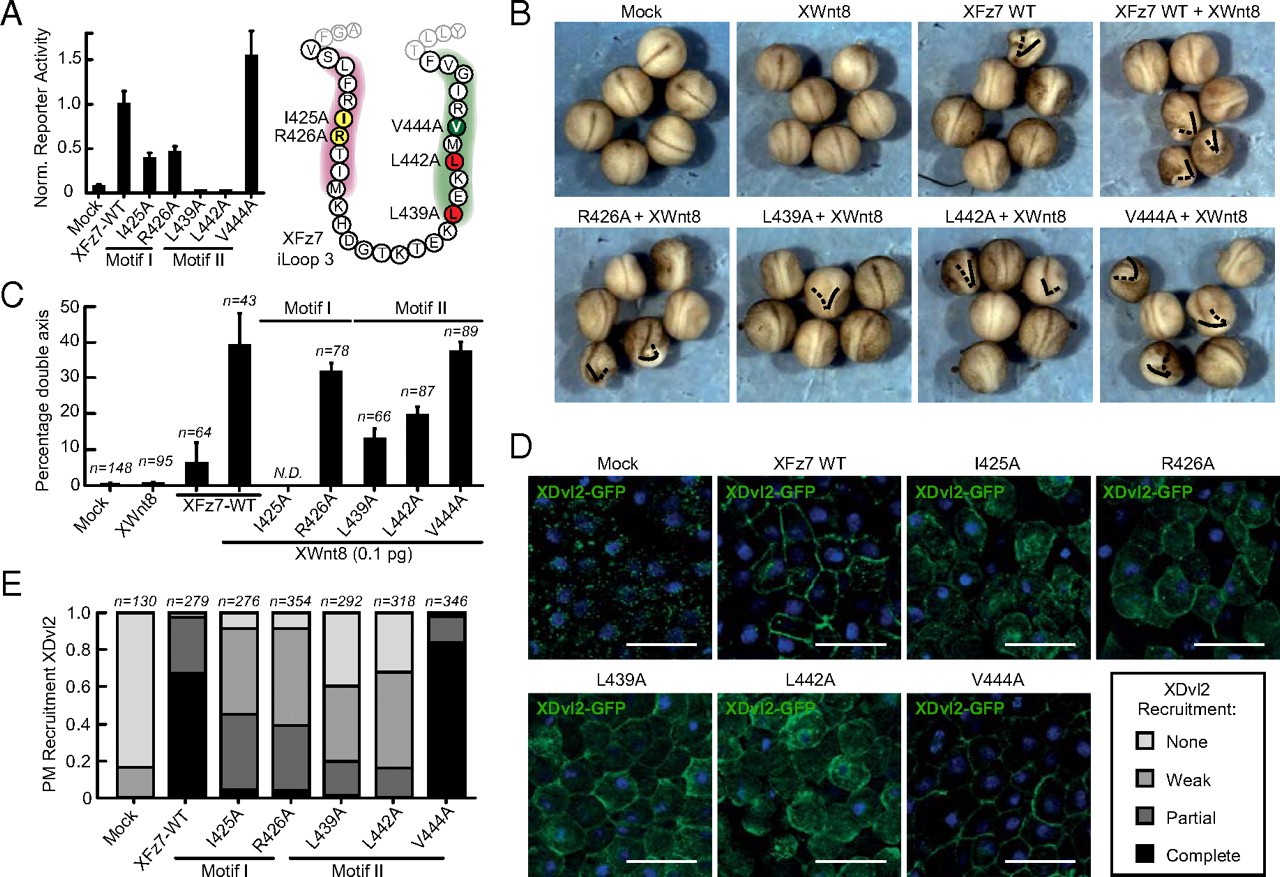

Fig. 3. XFz7 motifs I and II are essential for Wnt-mediated signaling and XDvl2 recruitment in Xenopus embryos. (A) XFz7 iLoop3 motif I and II mutants display decreased Wnt3a-induced signaling. Indicated motif I and II XFz7 mutants were tested in the TOPFlash luciferase reporter assay as in Fig. 2A. (Left) Shown are the average normalized values of three individual experiments; error bars indicate SDs. Mock, empty vector. (Right) Color-coded activity map of tested XFz7 iLoop3 residues (as in Fig. 2C). (B) XFz7 motif II mutants are defective in secondary axis formation in Xenopus embryos. Ventral injections of combined mRNAs encoding for XFz7 variants and XWnt8 were used to compare β-catenin–mediated secondary axis formation. The primary axis is indicated by straight lines, and (partial) secondary axes are indicated by dotted lines. (C) Quantification of the results presented in B. XFz7 I425A caused severe embryonic lethality and was not quantified. Shown are the average percentages of axis duplication of three independent experiments; error bars depict SEs. The number of counted embryos per condition is indicated. (D) Colocalization of XFz7 motif I and II mutants and XDvl2-GFP in Xenopus animal cap explants is impaired. (Scale bars: 100 μm.) (E) Quantification of the results in D (as in Fig. 2 D and E). The number of counted cells is indicated.
Axelrod,
Differential recruitment of Dishevelled provides signaling specificity in the planar cell polarity and Wingless signaling pathways.
1998, Pubmed,
Xenbase
Axelrod,
Differential recruitment of Dishevelled provides signaling specificity in the planar cell polarity and Wingless signaling pathways.
1998,
Pubmed
,
Xenbase Ballon,
DEP-domain-mediated regulation of GPCR signaling responses.
2006,
Pubmed Bhanot,
A new member of the frizzled family from Drosophila functions as a Wingless receptor.
1996,
Pubmed Bilic,
Wnt induces LRP6 signalosomes and promotes dishevelled-dependent LRP6 phosphorylation.
2007,
Pubmed Boutros,
Dishevelled activates JNK and discriminates between JNK pathways in planar polarity and wingless signaling.
1998,
Pubmed Christopoulos,
G protein-coupled receptor allosterism and complexing.
2002,
Pubmed Clevers,
Wnt/beta-catenin signaling in development and disease.
2006,
Pubmed Cong,
Wnt signals across the plasma membrane to activate the beta-catenin pathway by forming oligomers containing its receptors, Frizzled and LRP.
2004,
Pubmed Djiane,
The apical determinants aPKC and dPatj regulate Frizzled-dependent planar cell polarity in the Drosophila eye.
2005,
Pubmed Fujii,
An antagonist of dishevelled protein-protein interaction suppresses beta-catenin-dependent tumor cell growth.
2007,
Pubmed Gao,
Dishevelled: The hub of Wnt signaling.
2010,
Pubmed Jameson,
Fluorescence polarization/anisotropy in diagnostics and imaging.
2010,
Pubmed Jones,
Molecular analysis of EMS-induced frizzled mutations in Drosophila melanogaster.
1996,
Pubmed Kishida,
DIX domains of Dvl and axin are necessary for protein interactions and their ability to regulate beta-catenin stability.
1999,
Pubmed Lee,
Identification of transmembrane protein 88 (TMEM88) as a dishevelled-binding protein.
2010,
Pubmed
,
Xenbase Li,
Dishevelled proteins lead to two signaling pathways. Regulation of LEF-1 and c-Jun N-terminal kinase in mammalian cells.
1999,
Pubmed Logan,
The Wnt signaling pathway in development and disease.
2004,
Pubmed MacDonald,
Wnt/beta-catenin signaling: components, mechanisms, and diseases.
2009,
Pubmed
,
Xenbase Mahindroo,
Indole-2-amide based biochemical antagonist of Dishevelled PDZ domain interaction down-regulates Dishevelled-driven Tcf transcriptional activity.
2008,
Pubmed Moriguchi,
Distinct domains of mouse dishevelled are responsible for the c-Jun N-terminal kinase/stress-activated protein kinase activation and the axis formation in vertebrates.
1999,
Pubmed
,
Xenbase Noutsou,
Critical scaffolding regions of the tumor suppressor Axin1 are natively unfolded.
2011,
Pubmed Pan,
Characterization of function of three domains in dishevelled-1: DEP domain is responsible for membrane translocation of dishevelled-1.
2004,
Pubmed Penton,
A mutational analysis of dishevelled in Drosophila defines novel domains in the dishevelled protein as well as novel suppressing alleles of axin.
2002,
Pubmed Povelones,
Genetic evidence that Drosophila frizzled controls planar cell polarity and Armadillo signaling by a common mechanism.
2005,
Pubmed Reya,
Wnt signalling in stem cells and cancer.
2005,
Pubmed Rothbächer,
Dishevelled phosphorylation, subcellular localization and multimerization regulate its role in early embryogenesis.
2000,
Pubmed
,
Xenbase Sabharanjak,
GPI-anchored proteins are delivered to recycling endosomes via a distinct cdc42-regulated, clathrin-independent pinocytic pathway.
2002,
Pubmed Schulte,
The Frizzled family of unconventional G-protein-coupled receptors.
2007,
Pubmed Schwarz-Romond,
The DIX domain of Dishevelled confers Wnt signaling by dynamic polymerization.
2007,
Pubmed Schweizer,
Wnt/Wingless signaling through beta-catenin requires the function of both LRP/Arrow and frizzled classes of receptors.
2003,
Pubmed Seifert,
Frizzled/PCP signalling: a conserved mechanism regulating cell polarity and directed motility.
2007,
Pubmed Shan,
Identification of a specific inhibitor of the dishevelled PDZ domain.
2005,
Pubmed
,
Xenbase Simons,
Electrochemical cues regulate assembly of the Frizzled/Dishevelled complex at the plasma membrane during planar epithelial polarization.
2009,
Pubmed Slootstra,
Structural aspects of antibody-antigen interaction revealed through small random peptide libraries.
1996,
Pubmed Tauriello,
Loss of the tumor suppressor CYLD enhances Wnt/beta-catenin signaling through K63-linked ubiquitination of Dvl.
2010,
Pubmed Timmerman,
Functional reconstruction and synthetic mimicry of a conformational epitope using CLIPS technology.
2007,
Pubmed Umbhauer,
The C-terminal cytoplasmic Lys-thr-X-X-X-Trp motif in frizzled receptors mediates Wnt/beta-catenin signalling.
2000,
Pubmed
,
Xenbase van Amerongen,
Alternative wnt signaling is initiated by distinct receptors.
2008,
Pubmed Veeman,
A second canon. Functions and mechanisms of beta-catenin-independent Wnt signaling.
2003,
Pubmed Wang,
The role of Frizzled3 and Frizzled6 in neural tube closure and in the planar polarity of inner-ear sensory hair cells.
2006,
Pubmed Wang,
Structure-function analysis of Frizzleds.
2006,
Pubmed Wong,
Direct binding of the PDZ domain of Dishevelled to a conserved internal sequence in the C-terminal region of Frizzled.
2003,
Pubmed
,
Xenbase Wong,
Structural basis of the recognition of the dishevelled DEP domain in the Wnt signaling pathway.
2000,
Pubmed Wu,
Frizzled-Dishevelled signaling specificity outcome can be modulated by Diego in Drosophila.
2008,
Pubmed Wu,
Subcellular localization of frizzled receptors, mediated by their cytoplasmic tails, regulates signaling pathway specificity.
2004,
Pubmed Yang-Snyder,
A frizzled homolog functions in a vertebrate Wnt signaling pathway.
1996,
Pubmed
,
Xenbase Yu,
Structural analysis of the interaction between Dishevelled2 and clathrin AP-2 adaptor, a critical step in noncanonical Wnt signaling.
2010,
Pubmed Yu,
Association of Dishevelled with the clathrin AP-2 adaptor is required for Frizzled endocytosis and planar cell polarity signaling.
2007,
Pubmed
,
Xenbase Zhang,
Inhibition of Wnt signaling by Dishevelled PDZ peptides.
2009,
Pubmed
