Live imaging of targeted cell ablation in Xenopus: a new model to study demyelination and repair.
Kaya F, Mannioui A, Chesneau A, Sekizar S, Maillard E, Ballagny C, Houel-Renault L, Dupasquier D, Bronchain O, Holtzmann I, Desmazieres A, Thomas JL, Demeneix BA, Brophy PJ, Zalc B, Mazabraud A.
???displayArticle.abstract???
Live imaging studies of the processes of demyelination and remyelination have so far been technically limited in mammals. We have thus generated a Xenopus laevis transgenic line allowing live imaging and conditional ablation of myelinating oligodendrocytes throughout the CNS. In these transgenic pMBP-eGFP-NTR tadpoles the myelin basic protein (MBP) regulatory sequences, specific to mature oligodendrocytes, are used to drive expression of an eGFP (enhanced green fluorescent protein) reporter fused to the Escherichia coli nitroreductase (NTR) selection enzyme. This enzyme converts the innocuous prodrug metronidazole (MTZ) to a cytotoxin. Using two-photon imaging in vivo, we show that pMBP-eGFP-NTR tadpoles display a graded oligodendrocyte ablation in response to MTZ, which depends on the exposure time to MTZ. MTZ-induced cell death was restricted to oligodendrocytes, without detectable axonal damage. After cessation of MTZ treatment, remyelination proceeded spontaneously, but was strongly accelerated by retinoic acid. Altogether, these features establish the Xenopus pMBP-eGFP-NTR line as a novel in vivo model for the study of demyelination/remyelination processes and for large-scale screens of therapeutic agents promoting myelin repair.

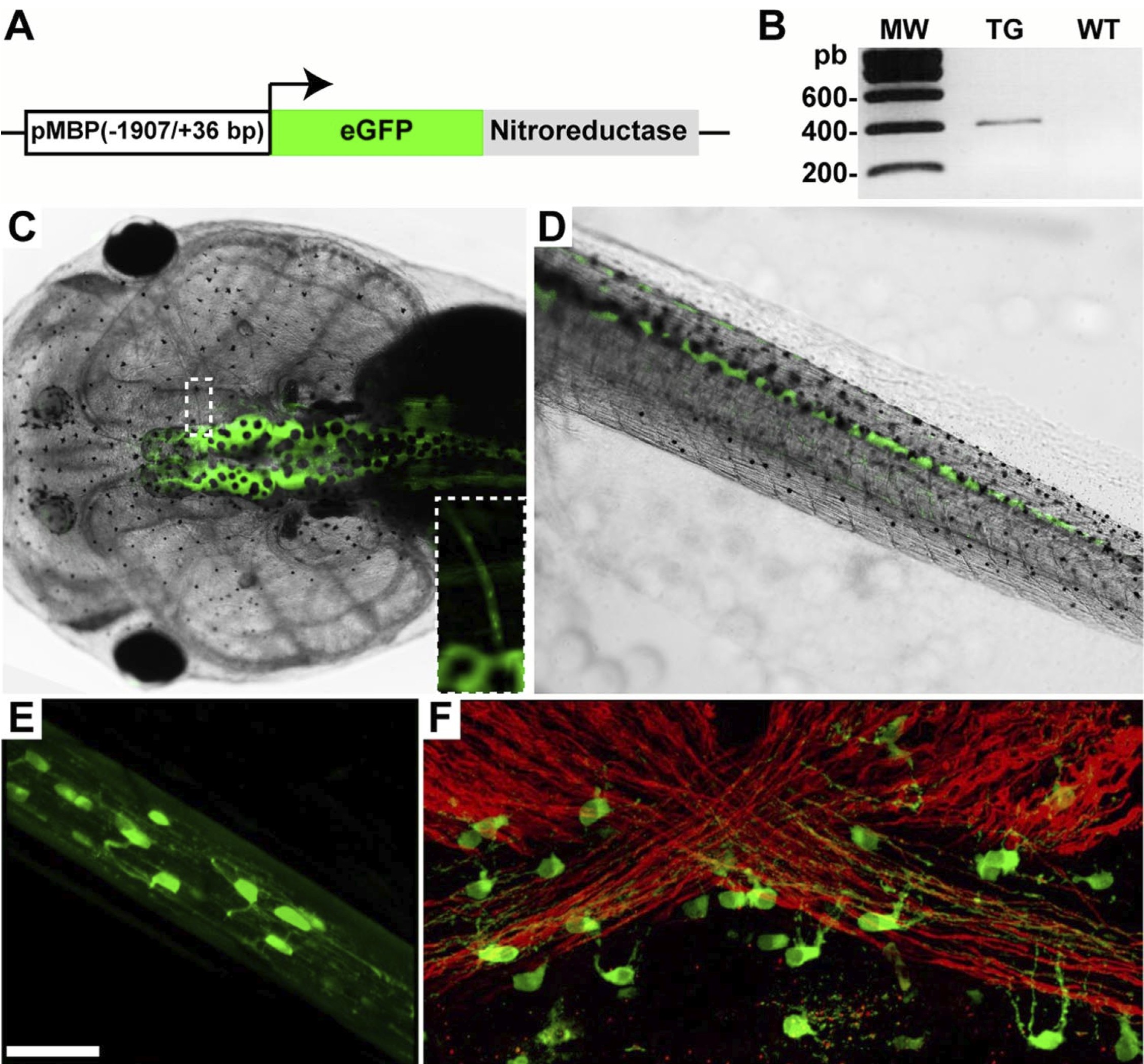

Figure 1. Structure and expression of the pMBP-eGFP-NTR transgene. A, Schematic diagram of the pMBP-eGFP-NTR construct. The transgene contains the eGFP open reading frame fused to that of E. coli NTR placed under the control of the DNA regulatory sequence of the murine MBP gene (-1907 bp and +36 bp). B, RT-PCR performed on RNA extracted from brains of transgenic (TG) or wild-type (WT) tadpoles used to amplify a 394 bp fragment corresponding to the junction of eGFP/NTR sequence. C–F, Transgene expression as assessed by GFP fluorescence (C–E) or immunolabeling (F ) in a pMBP-eGFP-NTR transgenic tadpole at stage 55. Dorsal view of the head (C) and sagittal view of the tail (D). Expression is only observed in the CNS (brain and spinal cord) but not in the peripheral nervous system. Inset in C is a higher magnification to illustrate the detection of GFP in the optic nerve. E, In vivo stack of images of the optic nerve obtained by two-photon microscopy. Note the fluorescent processes of the GFP + cells. F, Confocal image of a whole mount of the optic chiasm immunostained for MBP (red) and GFP (green). Note the GFP + cell bodies extending their processes toward the strongly MBP +myelinated fibers. Scale bar (in E) C, D, 2 mm; E, F, 50 um; inset (C), 1 mm.
Movie 1 (still from). Faint detection of GFP in myelin along optic nerve axons of stage 50 pMBP-eGFP- NTR transgenic tadpole. At this early developmental stage, the wrapping process is ongoing, therefore myelin is still not completely compact and this allows diffusion of GFP in the myelin cytoplasmic compartment. This movie represents the Z-projection of 17 successive optical sec- tions across the thickness of the optic nerve imaged by two-photon microscopy.
Figure 2. The pMBP-eGFP-NTR transgene drives expression in mature oligodendrocytes. Coronal tissue sections across the medulla of pMBP-eGFP-NTRtadpole at stage 55 co-immunostained for GFP and successive markers of different cells types. A–C, GFP and APC, a specific marker of mature oligodendrocytes. Note the complete overlap of GFP labeling with that of APC. D–F, GFP and Nkx2.2, a marker of progenitor of oligodendrocytes and mature oligodendrocytes. Note that cells doubly labeled for GFP and Nkx2.2 are localized in the white matter tract, with no GFP detection in Nkx2.2 ô°‡ progenitors in the ventralventricular layer (white arrows in F ). G–I, GFP and GFAP, a marker of astrocytes. J–L, GFP and Hu, a pan-neuronal marker. Note the complete exclusion of GFP labeling with either GFAP (I ) or Hu (L). Scale bar (in C) A–F, J–L, 50 um; G–I, 25 um.
Figure 3. Oligodendrocyte depletion and apoptosis in transgenic tadpoles following MTZ treatment. A,B, Whole-mount two-photon microscopy of the optic nerve at stage 55 showing GFP+cells in transgenic animals untreated (A) or MTZ-treated for 3 d (B). MTZ induced a severe depletion of GFP+ cells in the optic nerve. C–H, Immunolabeling for GFP and activated caspase3 (Casp3) on coronal sections across the medulla in untreated (C, E, G) or MTZ-treated (D, F, H ) transgenic animals. In MTZ-treated animals, activated caspase3 is detected in GFP + cells. Scale bar (in G) A, B, 150um; C–H, 50 um.
Figure 4. MTZ treatment induces demyelination without axonal damage. A, B, Myelinated fibers staining with Luxol fast blue on coronal sections across the medulla at stage 55 in untreated (A) or MTZ-treated (B) transgenic animals. C–H, Whole mount of optic nerve at stage 55 immunostained for neurofascin (green) and SMI-31 (red) in untreated (C–E) or MTZ-treated (F–H ) transgenic animals. Insets in C and F are high magnifications of nodes of Ranvier showing a strong signal for NF 155 in the paranodal domain and a weaker signal in the node (NF186) in a control animal (C), where in case of partial demyelination, only hemiparanodes are labeled (F ). MTZ treatment induced demyelination, characterized by disorganization of the neurofascin nodes of Ranvier (F, H ) with numerous heminodes compared with control (C, E). In MTZ-treated tadpoles, SMI-31 axons had a normal appearance (G, compared with D), suggesting that MTZ-induced demyelination does not affect the axons. Scale bar (in F ) A,B,17 um; C–H, 5um;insets (C,F), 2um.
Ainger,
Transport and localization elements in myelin basic protein mRNA.
1997, Pubmed
Ainger,
Transport and localization elements in myelin basic protein mRNA.
1997,
Pubmed Bailey,
Investigation of alternative prodrugs for use with E. coli nitroreductase in 'suicide gene' approaches to cancer therapy.
1996,
Pubmed Baker,
Critical appraisal of animal models of multiple sclerosis.
2011,
Pubmed Batoulis,
Experimental autoimmune encephalomyelitis--achievements and prospective advances.
2011,
Pubmed Bhat,
Expression of the APC tumor suppressor protein in oligodendroglia.
1996,
Pubmed Blakemore,
Remyelination of the superior cerebellar peduncle in the mouse following demyelination induced by feeding cuprizone.
1973,
Pubmed Blakemore,
Ethidium bromide induced demyelination in the spinal cord of the cat.
1982,
Pubmed Bridgewater,
Expression of the bacterial nitroreductase enzyme in mammalian cells renders them selectively sensitive to killing by the prodrug CB1954.
1995,
Pubmed Buckley,
Drug reprofiling using zebrafish identifies novel compounds with potential pro-myelination effects.
2010,
Pubmed Chesneau,
Transgenesis procedures in Xenopus.
2008,
Pubmed
,
Xenbase Choi,
Cone degeneration following rod ablation in a reversible model of retinal degeneration.
2011,
Pubmed
,
Xenbase Cima,
Development of the optic nerve in Xenopus laevis. II. Gliogenesis, myelination and metamorphic remodelling.
1982,
Pubmed
,
Xenbase Constantinescu,
Experimental autoimmune encephalomyelitis (EAE) as a model for multiple sclerosis (MS).
2011,
Pubmed Curado,
Nitroreductase-mediated cell/tissue ablation in zebrafish: a spatially and temporally controlled ablation method with applications in developmental and regeneration studies.
2008,
Pubmed Curado,
Conditional targeted cell ablation in zebrafish: a new tool for regeneration studies.
2007,
Pubmed Czopka,
Dissecting mechanisms of myelinated axon formation using zebrafish.
2011,
Pubmed de Luze,
Thyroid hormone-dependent transcriptional regulation of exogenous genes transferred into Xenopus tadpole muscle in vivo.
1993,
Pubmed
,
Xenbase Denarier,
Functional organization of a Schwann cell enhancer.
2005,
Pubmed De Smet,
Fishing and frogging for anti-angiogenic drugs.
2006,
Pubmed
,
Xenbase Diekmann,
Analysis of the reticulon gene family demonstrates the absence of the neurite growth inhibitor Nogo-A in fish.
2005,
Pubmed Drabek,
The expression of bacterial nitroreductase in transgenic mice results in specific cell killing by the prodrug CB1954.
1997,
Pubmed Eng,
An acidic protein isolated from fibrous astrocytes.
1971,
Pubmed Fenrich,
Long-term in vivo imaging of normal and pathological mouse spinal cord with subcellular resolution using implanted glass windows.
2012,
Pubmed Geisler,
An optimized method for simultaneous demonstration of neurons and myelinated fiber tracts for delineation of individual trunco- and palliothalamic nuclei in the mammalian brain.
2002,
Pubmed Giacomotto,
High-throughput screening and small animal models, where are we?
2010,
Pubmed Gow,
Myelin basic protein gene contains separate enhancers for oligodendrocyte and Schwann cell expression.
1992,
Pubmed Graus,
Analysis of a neuronal antigen (Hu) expression in the developing rat brain detected by autoantibodies from patients with paraneoplastic encephalomyelitis.
1990,
Pubmed Hall,
The effect of injections of lysophosphatidyl choline into white matter of the adult mouse spinal cord.
1972,
Pubmed Howell,
Disruption of neurofascin localization reveals early changes preceding demyelination and remyelination in multiple sclerosis.
2006,
Pubmed Huang,
Retinoid X receptor gamma signaling accelerates CNS remyelination.
2011,
Pubmed Jarjour,
In vitro modeling of central nervous system myelination and remyelination.
2012,
Pubmed Joubert,
Chemical inducers and transcriptional markers of oligodendrocyte differentiation.
2010,
Pubmed Kanfer,
Developmental expression of myelin proteolipid, basic protein, and 2',3'-cyclic nucleotide 3'-phosphodiesterase transcripts in different rat brain regions.
1989,
Pubmed Kerschensteiner,
Targeting experimental autoimmune encephalomyelitis lesions to a predetermined axonal tract system allows for refined behavioral testing in an animal model of multiple sclerosis.
2004,
Pubmed Kirby,
In vivo time-lapse imaging shows dynamic oligodendrocyte progenitor behavior during zebrafish development.
2006,
Pubmed Kroll,
Transgenic Xenopus embryos from sperm nuclear transplantations reveal FGF signaling requirements during gastrulation.
1996,
Pubmed
,
Xenbase Lanwert,
Structure, heterologous expression, and adhesive properties of the P(0)-like myelin glycoprotein IP1 of trout CNS.
2001,
Pubmed Latasa,
Retinoic acid regulates myelin formation in the peripheral nervous system.
2010,
Pubmed Ludwin,
Central nervous system demyelination and remyelination in the mouse: an ultrastructural study of cuprizone toxicity.
1978,
Pubmed Miller,
Restoring the balance between disease and repair in multiple sclerosis: insights from mouse models.
2010,
Pubmed Möbius,
Phylogeny of proteolipid proteins: divergence, constraints, and the evolution of novel functions in myelination and neuroprotection.
2008,
Pubmed Moll,
Molecular cloning, tissue expression, and partial characterization of the major fish CNS myelin protein 36k.
2003,
Pubmed Palmer,
Mechanism of cell death induced by the novel enzyme-prodrug combination, nitroreductase/CB1954, and identification of synergism with 5-fluorouracil.
2003,
Pubmed PERIER,
[DEMYELINIZATION OF CENTRAL NERVOUS TISSUE CULTURES BY LYSOLECITHIN].
1965,
Pubmed Perlin,
Neuronal Neuregulin 1 type III directs Schwann cell migration.
2011,
Pubmed Pernet,
Nogo-A and myelin-associated glycoprotein differently regulate oligodendrocyte maturation and myelin formation.
2008,
Pubmed Pisharath,
Targeted ablation of beta cells in the embryonic zebrafish pancreas using E. coli nitroreductase.
2007,
Pubmed Saito,
Malignant worms: what cancer research can learn from C. elegans.
2002,
Pubmed Schliess,
Evolution of the myelin integral membrane proteins of the central nervous system.
1991,
Pubmed
,
Xenbase Soula,
Distinct sites of origin of oligodendrocytes and somatic motoneurons in the chick spinal cord: oligodendrocytes arise from Nkx2.2-expressing progenitors by a Shh-dependent mechanism.
2001,
Pubmed Sparrow,
A simplified method of generating transgenic Xenopus.
2000,
Pubmed
,
Xenbase Stankoff,
Transcription of myelin basic protein promoted by regulatory elements in the proximal 5' sequence requires myelinogenesis.
1996,
Pubmed Steinman,
Virtues and pitfalls of EAE for the development of therapies for multiple sclerosis.
2005,
Pubmed Tepavčević,
Inflammation-induced subventricular zone dysfunction leads to olfactory deficits in a targeted mouse model of multiple sclerosis.
2011,
Pubmed Yajima,
Demyelination and remyelination in the rat central nervous system following ethidium bromide injection.
1979,
Pubmed Yoshida,
Parallel evolution and coexpression of the proteolipid proteins and protein zero in vertebrate myelin.
1996,
Pubmed Yoshida,
Oligodendrocyte development and myelination in GFP-transgenic zebrafish.
2005,
Pubmed Yoshida,
Oligodendrocyte maturation in Xenopus laevis.
1997,
Pubmed
,
Xenbase Zalc,
The origin of the myelination program in vertebrates.
2008,
Pubmed
,
Xenbase Zalc,
Origins of vertebrate success.
2000,
Pubmed Zonta,
Glial and neuronal isoforms of Neurofascin have distinct roles in the assembly of nodes of Ranvier in the central nervous system.
2008,
Pubmed Zonta,
A critical role for Neurofascin in regulating action potential initiation through maintenance of the axon initial segment.
2011,
Pubmed
