???displayArticle.abstract???
Recent studies underscore a role for the differential degeneration of enhancers in the evolutionary diversification of paralogue expression. However, no one has reported evidence for the involvement of innovative cis-regulatory changes. Here we show that silencer innovation diversified expression of the vertebrate paralogues, pax2 and pax8. pax2 shows multi-tissue expression, as does the ancestral amphioxus orthologue, pax2/5/8, whereas pax8 expression localizes to a subset of pax2-expressing tissues. We reveal that both pax2 and pax8 retain ancestral enhancers capable of directing pax2-like, multi-tissue expression. However, a silencer within the pax8proximal promoter suppresses pleiotropic enhancer activity outside the pax8-expressing tissues. In contrast, the combination of the pax2proximal promoter with either the pax8 or pax2 enhancer recapitulates pax2-like expression, as in the amphioxus pax2/5/8 promoter. We propose that silencer innovation, rather than enhancer degeneration, was crucial for the divergent expression of paralogues with pleiotropic enhancers inherited from their common progenitor.

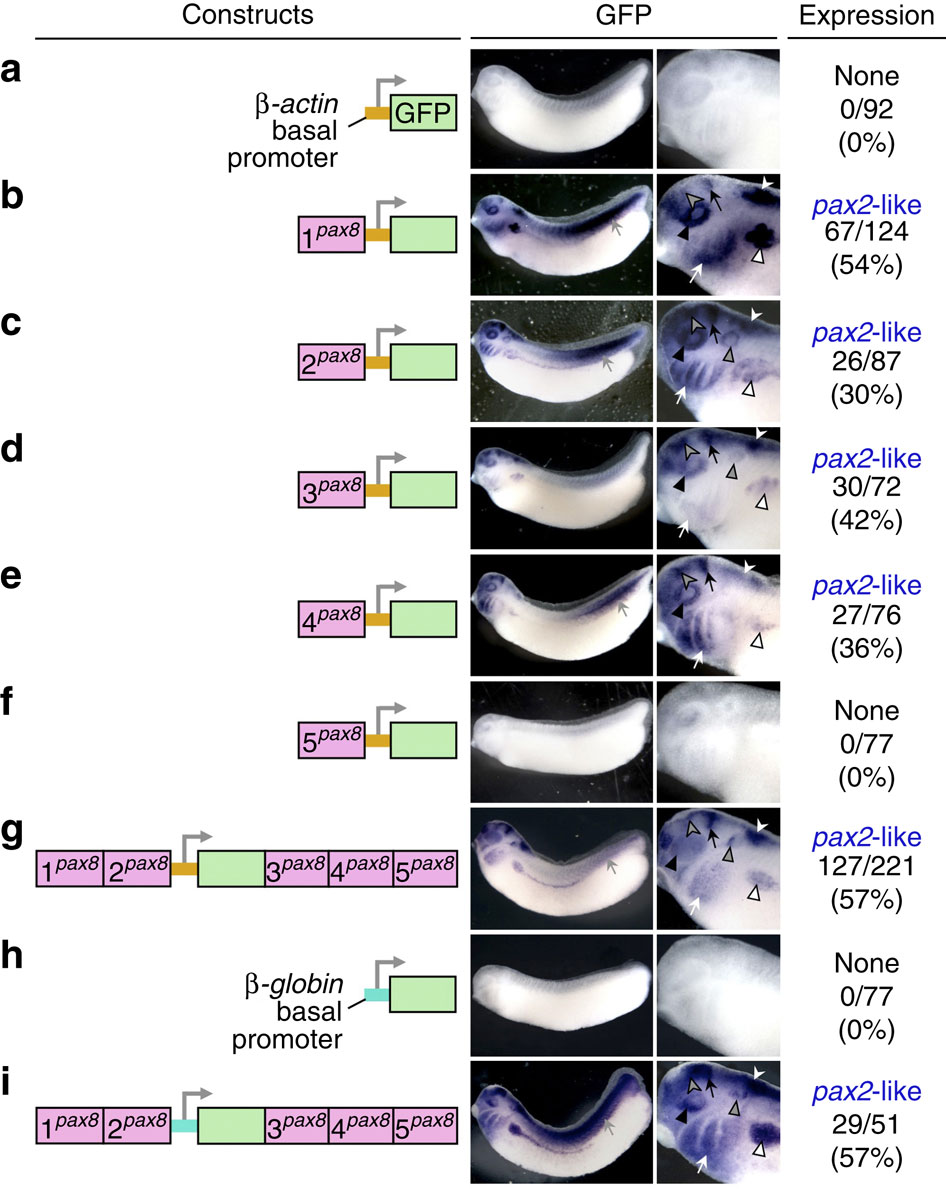

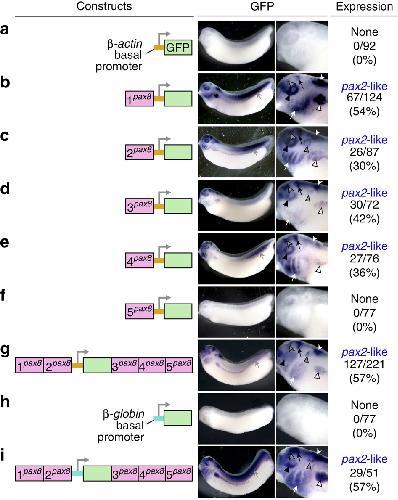

Figure 2: GFP expression driven by pax8-CNSs recapitulates the pleiotropic expression of pax2. Transgenic X. laevis embryos were generated with the following reporter constructs and their expression was analysed using in situ hybridization. (a) The β-actin basal promoter alone was linked to GFP. (b–f) The β-actin promoter-GFP cassette was flanked by either X. tropicalis pax8-CNS1 (b), pax8-CNS2 (c), pax8-CNS3 (d), pax8-CNS4 (e) or pax8-CNS5 (f). (g) The β-actin promoter-GFP cassette was flanked by all the pax8-CNSs. (h) The β-globin basal promoter alone was linked to GFP. (i) The β-globin promoter-GFP cassette was flanked by all the pax8-CNSs. The X. tropicalis pax8-CNS1 to pax8-CNS5 are shown as 1pax8 to 5pax8. Representative examples of GFP expression are shown together with the injected reporter constructs. The right-hand panels show high-magnification views of the embryonic head regions illustrated in the left-hand panels. GFP expression patterns are summarized on the extreme right with the scoring results. Numbers of embryos with the positive expression similar to the representative examples, and the total number of analysed embryos injected with each construct are indicated with percentages of the former cases. White, grey and black triangles indicate expression in the pronephros, otic vesicle and eye, respectively. White, grey and black arrows indicate expression in the pharyngeal arches, somites and MHB, respectively. White and grey arrowheads indicate expression in the hindbrain and anteriormidbrain, respectively.

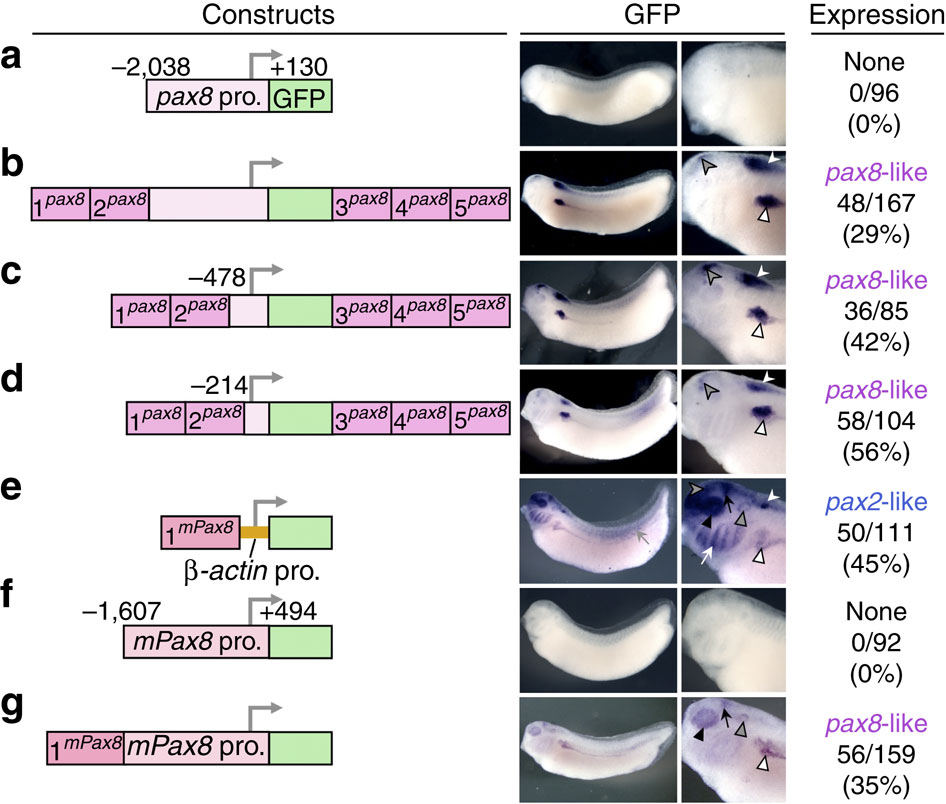

Figure 3: Identification of tissue-specific silencer activity associated with the pax8 proximal promoter. Transgenic X. laevis embryos were generated with the following GFP constructs. (a) The proximal promoter region of X. tropicalis pax8 (−2038 to +130) alone was linked to GFP. (b–d) A deletion series of the X. tropicalis pax8 proximal promoter (b, −2038 to +130; c, −478 to +130; and d, −214 to +130) was flanked by the X. tropicalis pax8-CNS1 to pax8-CNS5. (e) The mouse Pax8-CNS1 (shown as 1mPax8) was linked to the β-actin basal promoter-GFP cassette. (f) The proximal promoter region of mouse Pax8 (−1607 to +494) alone was linked to GFP. (g) The mouse Pax8 proximal promoter was flanked by mouse Pax8-CNS1. White, grey and black triangles indicate expression in the pronephros, otic vesicle and eye, respectively. White, grey and black arrows indicate expression in the pharyngeal arches, somites and MHB, respectively. White and grey arrowheads indicate expression in the hindbrain and an anterior part of the midbrain, respectively.

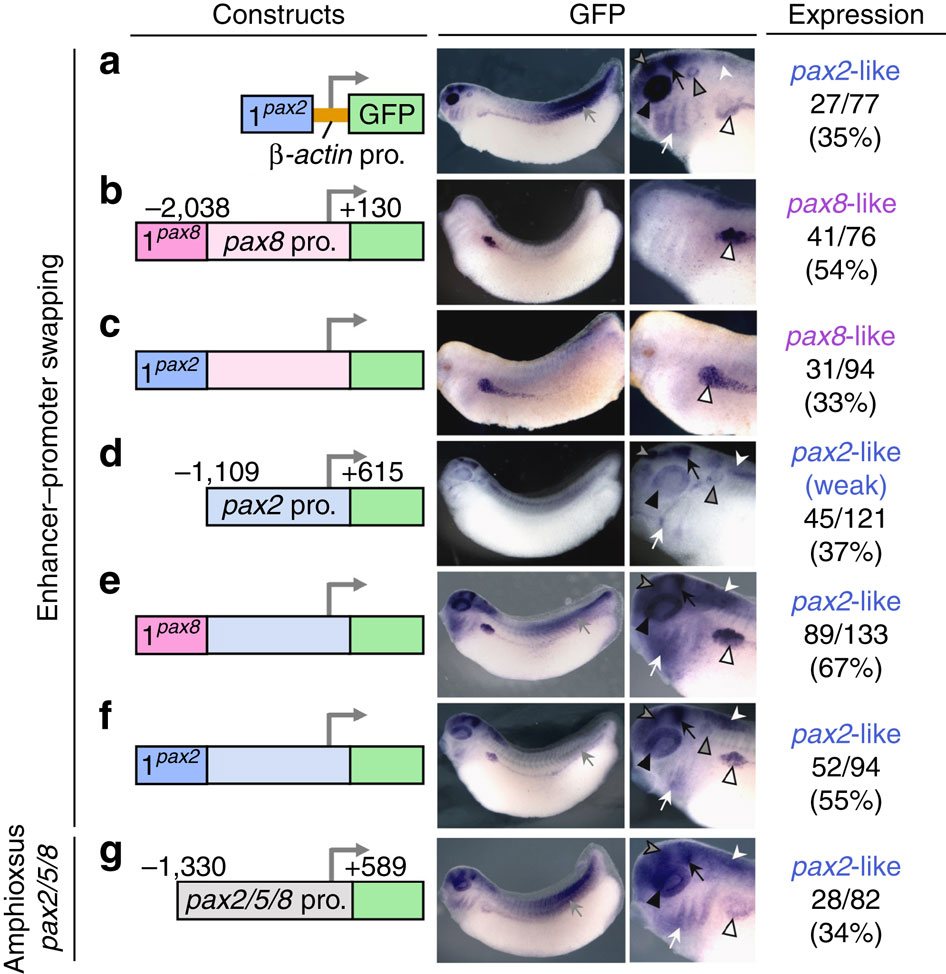

Figure 4: Silencer innovation in pax8 is crucial for generating divergence in the expression of pax8 and pax2. Transgenic X. laevis embryos were generated with the following GFP constructs. (a) The X. tropicalis pax2-CNS1 (shown as 1pax2) was linked to the β-actin basal promoter-GFP cassette. (b,c) The X. tropicalis pax8 proximal promoter (−2038 to +130) was flanked by either the X. tropicalis pax8-CNS1 (b) or pax2-CNS1 (c). (d) The proximal promoter region of X. tropicalis pax2 (−1109 to +615) alone was linked to GFP. (e,f) The X. tropicalis pax2 proximal promoter was flanked by either the X. tropicalis pax8-CNS1 (e) or pax2-CNS1 (f). (g) The amphioxus pax2/5/8 promoter (−1330 to +589) was linked to GFP. White, grey and black triangles indicate expression in the pronephros, otic vesicle and eye, respectively. White, grey and black arrows indicate expression in the pharyngeal arches, somites and MHB, respectively. White and grey arrowheads indicate expression in the hindbrain and in an anterior part of the midbrain, respectively.
Ballas,
The many faces of REST oversee epigenetic programming of neuronal genes.
2005, Pubmed
Ballas,
The many faces of REST oversee epigenetic programming of neuronal genes.
2005,
Pubmed Bassham,
Evolution of developmental roles of Pax2/5/8 paralogs after independent duplication in urochordate and vertebrate lineages.
2008,
Pubmed Bouchard,
Nephric lineage specification by Pax2 and Pax8.
2002,
Pubmed Brand,
Characterization of a "silencer" in yeast: a DNA sequence with properties opposite to those of a transcriptional enhancer.
1985,
Pubmed Chen,
Identification of novel DNA binding targets and regulatory domains of a murine tinman homeodomain factor, nkx-2.5.
1995,
Pubmed
,
Xenbase DeLaurier,
Zebrafish sp7:EGFP: a transgenic for studying otic vesicle formation, skeletogenesis, and bone regeneration.
2010,
Pubmed Dressler,
Pax2, a new murine paired-box-containing gene and its expression in the developing excretory system.
1990,
Pubmed Dressler,
Pax2 in development and renal disease.
1999,
Pubmed Ertzer,
Cooperation of sonic hedgehog enhancers in midline expression.
2007,
Pubmed Force,
Preservation of duplicate genes by complementary, degenerative mutations.
1999,
Pubmed Frankel,
Phenotypic robustness conferred by apparently redundant transcriptional enhancers.
2010,
Pubmed Goode,
Minor change, major difference: divergent functions of highly conserved cis-regulatory elements subsequent to whole genome duplication events.
2011,
Pubmed Goode,
The PAX258 gene subfamily: a comparative perspective.
2009,
Pubmed Gray,
Transcriptional repression in development.
1996,
Pubmed Heller,
Xenopus Pax-2 displays multiple splice forms during embryogenesis and pronephric kidney development.
1997,
Pubmed
,
Xenbase Heller,
Xenopus Pax-2/5/8 orthologues: novel insights into Pax gene evolution and identification of Pax-8 as the earliest marker for otic and pronephric cell lineages.
1999,
Pubmed
,
Xenbase Hirsch,
Xenopus tropicalis transgenic lines and their use in the study of embryonic induction.
2002,
Pubmed
,
Xenbase Hobert,
Gene regulation: enhancers stepping out of the shadow.
2010,
Pubmed Hong,
Shadow enhancers as a source of evolutionary novelty.
2008,
Pubmed Jaillon,
Genome duplication in the teleost fish Tetraodon nigroviridis reveals the early vertebrate proto-karyotype.
2004,
Pubmed Johnson,
Genome-wide mapping of in vivo protein-DNA interactions.
2007,
Pubmed Karolchik,
The UCSC Genome Browser Database.
2003,
Pubmed Kleinjan,
Subfunctionalization of duplicated zebrafish pax6 genes by cis-regulatory divergence.
2008,
Pubmed Kozmik,
Characterization of an amphioxus paired box gene, AmphiPax2/5/8: developmental expression patterns in optic support cells, nephridium, thyroid-like structures and pharyngeal gill slits, but not in the midbrain-hindbrain boundary region.
1999,
Pubmed Kroll,
Transgenic Xenopus embryos from sperm nuclear transplantations reveal FGF signaling requirements during gastrulation.
1996,
Pubmed
,
Xenbase Larkin,
Clustal W and Clustal X version 2.0.
2007,
Pubmed Lee,
A highly efficient Escherichia coli-based chromosome engineering system adapted for recombinogenic targeting and subcloning of BAC DNA.
2001,
Pubmed McGaughey,
Asymmetrical distribution of non-conserved regulatory sequences at PHOX2B is reflected at the ENCODE loci and illuminates a possible genome-wide trend.
2009,
Pubmed Muhr,
Groucho-mediated transcriptional repression establishes progenitor cell pattern and neuronal fate in the ventral neural tube.
2001,
Pubmed Ogino,
Convergence of a head-field selector Otx2 and Notch signaling: a mechanism for lens specification.
2008,
Pubmed
,
Xenbase Plachov,
Pax8, a murine paired box gene expressed in the developing excretory system and thyroid gland.
1990,
Pubmed Portales-Casamar,
JASPAR 2010: the greatly expanded open-access database of transcription factor binding profiles.
2010,
Pubmed Postlethwait,
Subfunction partitioning, the teleost radiation and the annotation of the human genome.
2004,
Pubmed Prince,
Splitting pairs: the diverging fates of duplicated genes.
2002,
Pubmed Reese,
Application of a time-delay neural network to promoter annotation in the Drosophila melanogaster genome.
2001,
Pubmed Schwartz,
MultiPipMaker and supporting tools: Alignments and analysis of multiple genomic DNA sequences.
2003,
Pubmed Wendl,
Pax2.1 is required for the development of thyroid follicles in zebrafish.
2002,
Pubmed Werner,
Multiple conserved regulatory elements with overlapping functions determine Sox10 expression in mouse embryogenesis.
2007,
Pubmed Wingender,
The TRANSFAC project as an example of framework technology that supports the analysis of genomic regulation.
2008,
Pubmed Yee,
The regulation of myogenin gene expression during the embryonic development of the mouse.
1993,
Pubmed
