Exp Eye Res
2013 Aug 01;113:32-40. doi: 10.1016/j.exer.2013.04.022.
Show Gene links
Show Anatomy links
The water permeability of lens aquaporin-0 depends on its lipid bilayer environment.
Tong J, Canty JT, Briggs MM, McIntosh TJ.
???displayArticle.abstract???
Aquaporin-0 (AQP0), the primary water channel in lens fiber cells, is critical to lens development, organization, and function. In the avascular lens there is thought to be an internal microcirculation associated with fluid movement. Although AQP0 is known to be important in fluid fluxes across membranes, the water permeability of this channel has only been measured in Xenopus oocytes and in outer lens cortical membranes, but not in inner nuclear membranes, which have an increased cholesterol/phospholipid ratio. Here we measure the unit water permeability of AQP0 in different proteoliposomes with cholesterol/phospholipid ratios and external pHs similar to those found in the cortex and nucleus of the lens. Osmotic stress measurements were performed with proteoliposomes containing AQP0 and three different lipids mixtures: (1) phosphatidylcholine (PC) and phosphatidylglycerol (PG), (2) PC, PG, with 40 mol% cholesterol, and (3) sphingomyelin (SM), PG, with 40 mol% cholesterol. At pH 7.5 the unit permeabilities of AQP0 were 3.5 ± 0.5 × 10(-14) cm(3)/s (mean ± SEM), 1.1 ± 0.1 × 10(-14) cm(3)/s, and 0.50 ± 0.04 × 10(-14) cm(3)/s in PC:PG, PC:PG:cholesterol, and SM:PG:cholesterol, respectively. For lipid mixtures at pH 6.5, corresponding to conditions found in the lensnucleus, the AQP0 permeabilities were 1.5 ± 0.4 × 10(-14) cm(3)/s and 0.76 ± 0.03 × 10(-14) cm(3)/s in PC:PG:cholesterol and SM:PG:cholesterol, respectively. Thus, although AQP0 unit permeability can be modified by changes in pH, it is also sensitive to changes in bilayer lipid composition, and decreases with increasing cholesterol and SM content. These data imply that AQP0 water permeability is regulated by bilayer lipid composition, so that AQP0 permeability would be significantly less in the lensnucleus than in the lens cortex.
???displayArticle.pubmedLink???
23680159 ???displayArticle.pmcLink???PMC3771355 ???displayArticle.link???Exp Eye Res ???displayArticle.grants???[+]
Fig. 1. Osmotic gradient-driven changes in light scattering for POPC:POPG:cholesterol bilayers without protein or in the presence of AQP0 at a protein/lipid molar ratio of 0.002. For both systems, the osmotic gradient was applied at t = 0 and the traces were graphed on the same relative scale by normalizing the light scattering to go from 0 at t = 0 to +1 when the scattering plateaued. Fits to the data (single-exponential in the absence of AQP0 and double-exponential in the presence of AQP0) are shown as dotted black lines. With and without AQP0 the fits to the data gave root mean square errors (RMSE) <0.005.

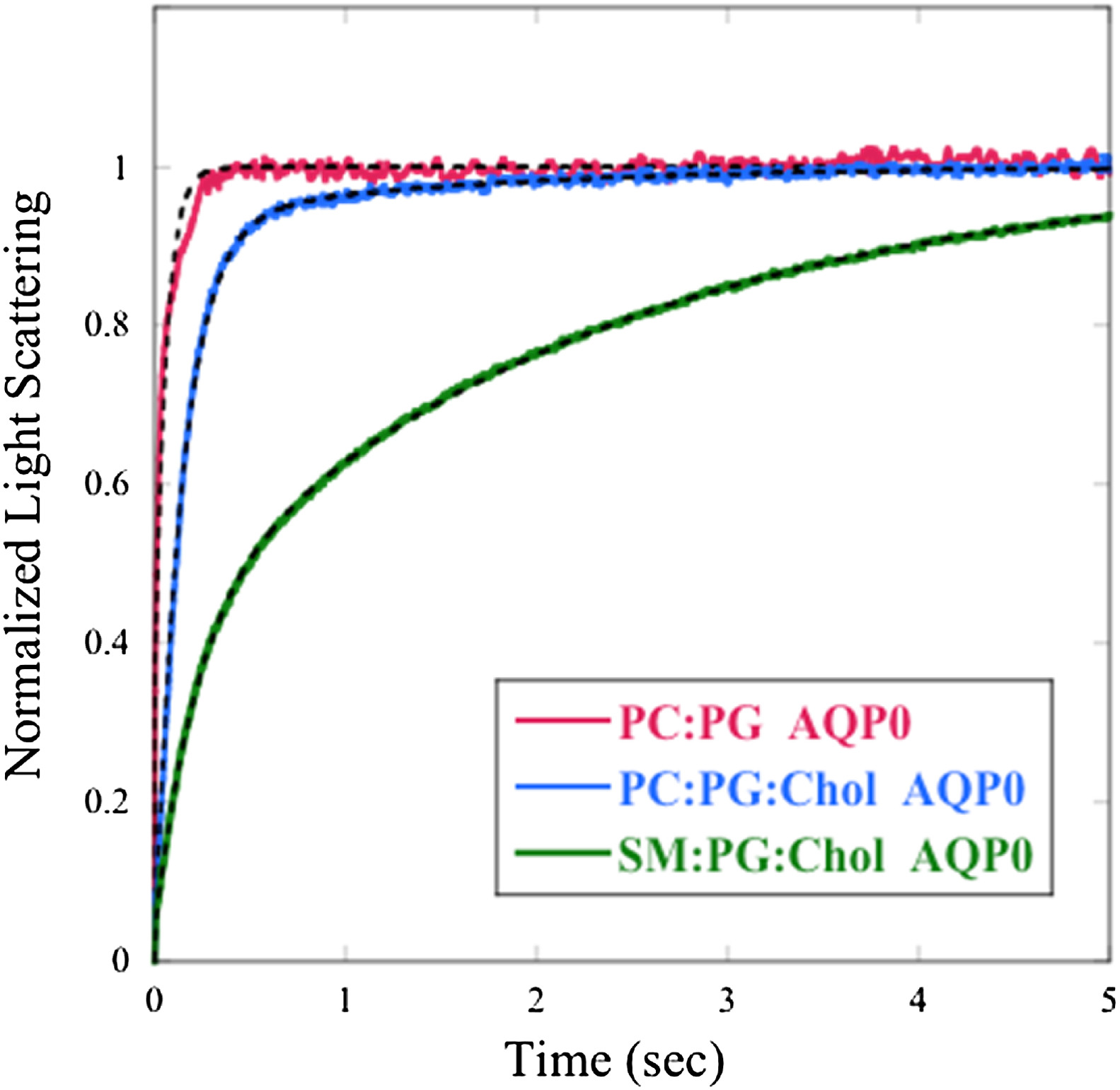

Fig. 2. Traces of osmotic gradient-driven changes in light scattering for proteoliposomes containing AQP0 at similar protein/lipid (P/L) molar ratios: POPC:POPG (P/L = 0.002) (red), POPC:POPG:cholesterol (P/L = 0.002) (blue), and SM:DPPG:cholesterol (P/L = 0.003) (green). The light scattering traces were normalized as in Fig. 1. Although data were recorded for a 20-s time period in order for the SM:DPPG:cholesterol trace to plateau, the light-scattering data are displayed for only the first five seconds to better show the differences among the three lipid systems. Double-exponential fits to the data are shown as dotted black lines with fits to all data sets in this paper giving RMSE <0.005.

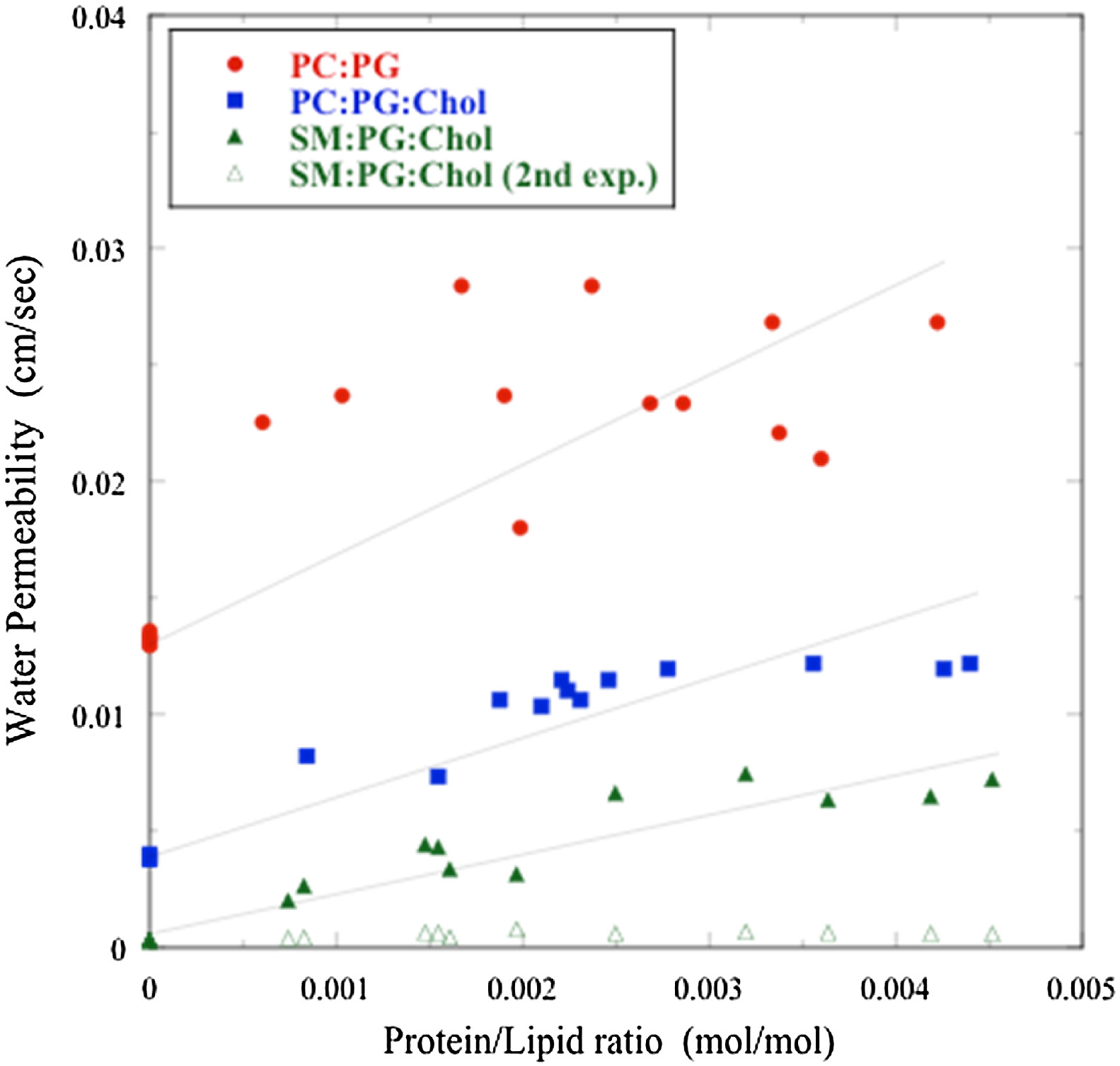

Fig. 3. Plot of proteoliposome permeability (pf) as a function of molar protein/lipid (P/L) ratio for AQP0 in bilayers composed of POPC:POPG (red circles), POPC:POPG:cholesterol (blue squares), and SM:DPPG:cholesterol (green triangles). For each lipid composition fits to the osmotic gradient-driven traces (Fig. 2) yielded two shrinkage rates, with k1 giving values of pf that increased linearly with increasing values of P/L (solid symbols), and k2 giving values of pf that were nearly independent of P/L (open green triangles show these values for SM:DPPG:cholesterol).

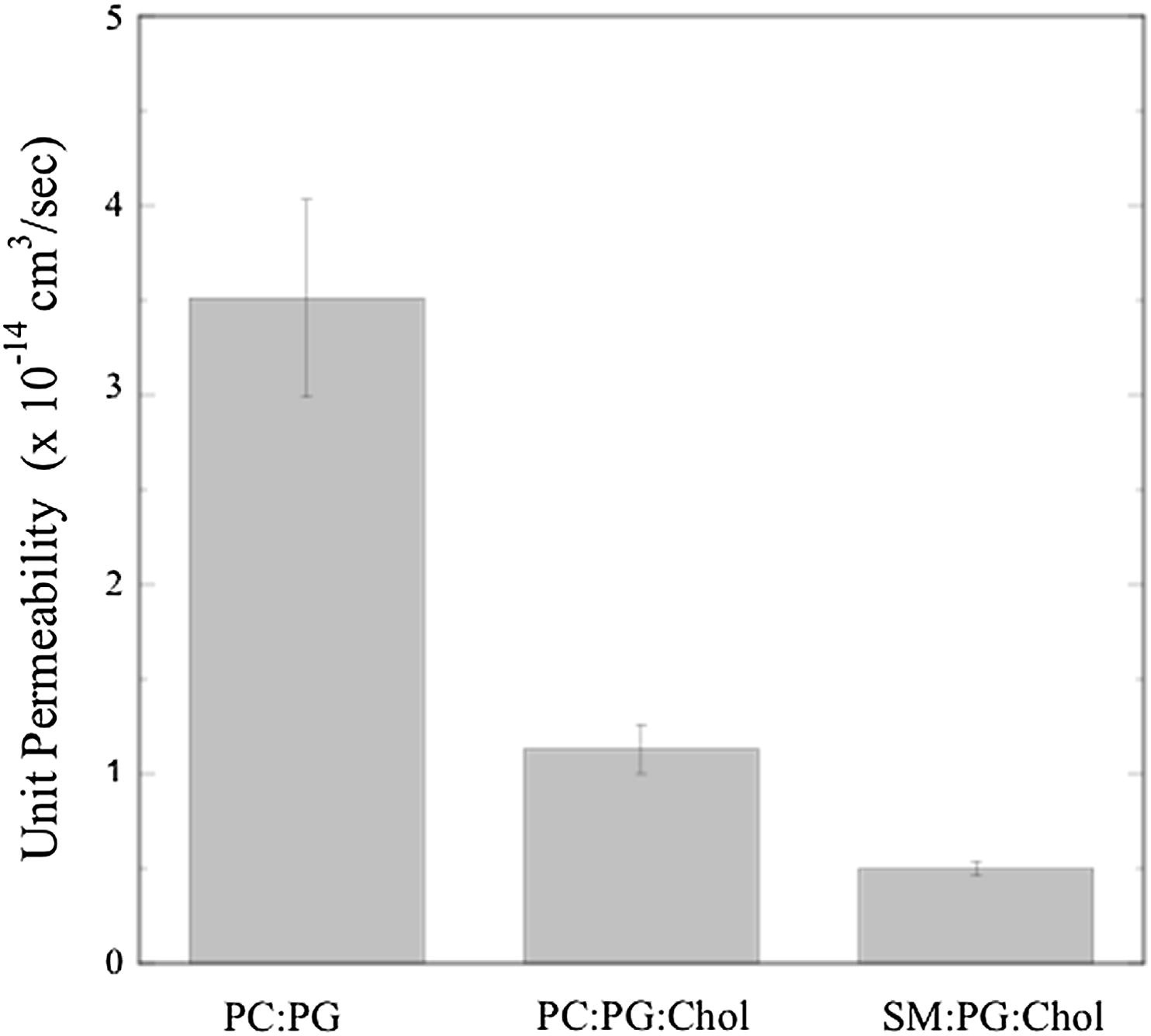

Fig. 4. Single-channel (unit) permeabilities for AQP0 for bilayers composed of POPC:POPG, POPC:POPG:cholesterol, and SM:DPPG:cholesterol obtained at pH 7.5. (For simplicity, the lipid labels on the x-axis do not include the relevant PG.)
Fig. 5. Single-channel (unit) permeabilities for AQP0 and AQP4-M1 isoform in bilayers composed of POPC:POPG, POPC:POPG:cholesterol, and SM:DPPG:cholesterol at pH 7.5. The AQP4-M1 data are taken from Tong et al. (2012).

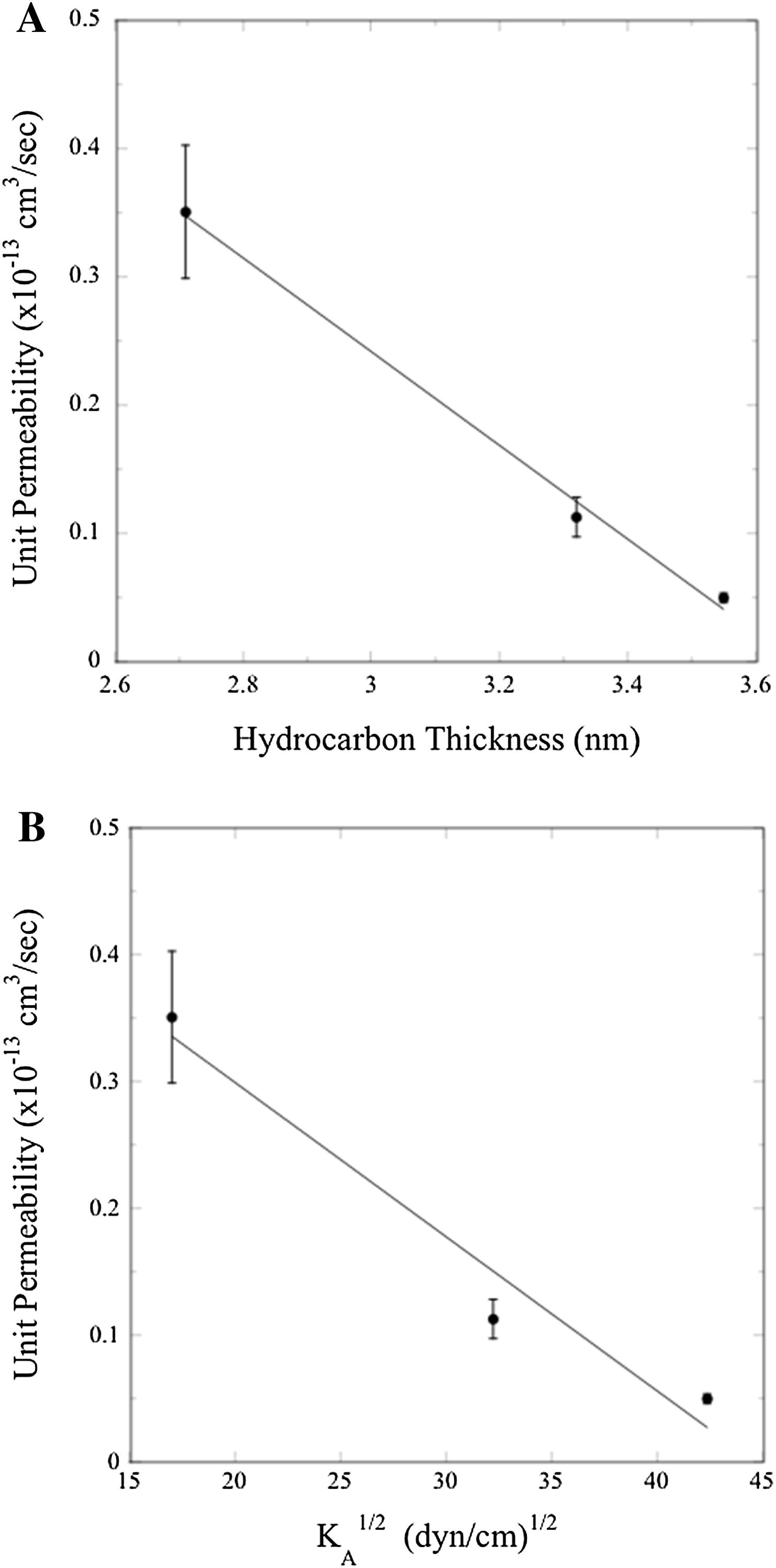

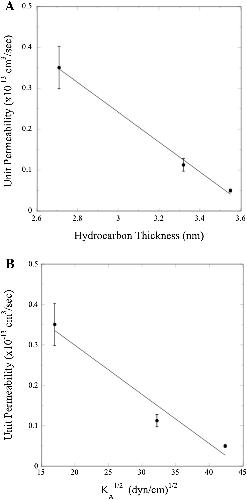

Fig. 6. Single-channel (unit) permeabilities for AQP0 in bilayers composed of POPC:POPG:cholesterol and SM:DPPG:cholesterol at pH 7.5 and at pH 6.5.
Fig. 7. Single-channel (unit) water permeabilities at pH 7.5 for AQP0 in bilayers composed of POPC:POPG, POPC:POPG:cholesterol, and SM:DPPG:cholesterol plotted as a function of (A) bilayer hydrocarbon thickness and (B) the square-root of bilayer area compressibility modulus
. Linear fits to the data are shown to guide the eye.
Agre,
Aquaporin CHIP: the archetypal molecular water channel.
1993, Pubmed,
Xenbase
Agre,
Aquaporin CHIP: the archetypal molecular water channel.
1993,
Pubmed
,
Xenbase Agre,
Aquaporin water channels: molecular mechanisms for human diseases.
2003,
Pubmed Al-Ghoul,
Lens structure in MIP-deficient mice.
2003,
Pubmed Andersen,
Single-molecule methods for monitoring changes in bilayer elastic properties.
2007,
Pubmed Baenziger,
Effect of membrane lipid composition on the conformational equilibria of the nicotinic acetylcholine receptor.
2000,
Pubmed Ball,
Water permeability of C-terminally truncated aquaporin 0 (AQP0 1-243) observed in the aging human lens.
2003,
Pubmed
,
Xenbase Borchman,
Lipids and the ocular lens.
2010,
Pubmed Borchman,
Age-related lipid oxidation in human lenses.
1998,
Pubmed Borchman,
Lens lipids and maximum lifespan.
2004,
Pubmed Borchman,
Lipid composition, membrane structure relationships in lens and muscle sarcoplasmic reticulum membranes.
1999,
Pubmed Borchman,
Role of cholesterol in the structural order of lens membrane lipids.
1996,
Pubmed Borgnia,
Functional reconstitution and characterization of AqpZ, the E. coli water channel protein.
1999,
Pubmed Buzhynskyy,
The supramolecular architecture of junctional microdomains in native lens membranes.
2007,
Pubmed Cantor,
Lipid composition and the lateral pressure profile in bilayers.
1999,
Pubmed Cantor,
The lateral pressure profile in membranes: a physical mechanism of general anesthesia.
1997,
Pubmed Cantor,
The influence of membrane lateral pressures on simple geometric models of protein conformational equilibria.
1999,
Pubmed Carbrey,
Aquaglyceroporin AQP9: solute permeation and metabolic control of expression in liver.
2003,
Pubmed
,
Xenbase Cenedella,
Status of caveolin-1 in various membrane domains of the bovine lens.
2007,
Pubmed Chandy,
Comparison of the water transporting properties of MIP and AQP1.
1997,
Pubmed
,
Xenbase Chang,
Attenuation of channel kinetics and conductance by cholesterol: an interpretation using structural stress as a unifying concept.
1995,
Pubmed Costello,
Membrane specializations in mammalian lens fiber cells: distribution of square arrays.
1985,
Pubmed Deeley,
Human lens lipids differ markedly from those of commonly used experimental animals.
2008,
Pubmed Donaldson,
Regulation of lens volume: implications for lens transparency.
2009,
Pubmed Donaldson,
Molecular solutions to mammalian lens transparency.
2001,
Pubmed Dumas,
Consequences of hydrophobic mismatch between lipids and melibiose permease on melibiose transport.
2000,
Pubmed Engel,
Junction-forming aquaporins.
2008,
Pubmed Estrada,
Alternative approaches for the detection of various phospholipid classes by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry.
2004,
Pubmed Eto,
Phosphorylation of aquaporin-2 regulates its water permeability.
2010,
Pubmed Francis,
Functional impairment of lens aquaporin in two families with dominantly inherited cataracts.
2000,
Pubmed
,
Xenbase Gandhavadi,
Structure, composition, and peptide binding properties of detergent soluble bilayers and detergent resistant rafts.
2002,
Pubmed Gensure,
Lipid raft components cholesterol and sphingomyelin increase H+/OH- permeability of phosphatidylcholine membranes.
2006,
Pubmed Gold,
AKAP2 anchors PKA with aquaporin-0 to support ocular lens transparency.
2012,
Pubmed Gonen,
Aquaporin-0 membrane junctions form upon proteolytic cleavage.
2004,
Pubmed Gonen,
Aquaporin-0 membrane junctions reveal the structure of a closed water pore.
2004,
Pubmed Grey,
Verification and spatial localization of aquaporin-5 in the ocular lens.
2013,
Pubmed Harries,
The channel architecture of aquaporin 0 at a 2.2-A resolution.
2004,
Pubmed Hill,
Isolation and characterization of the Xenopus oocyte plasma membrane: a new method for studying activity of water and solute transporters.
2005,
Pubmed
,
Xenbase Hite,
Interactions of lipids with aquaporin-0 and other membrane proteins.
2008,
Pubmed Hong,
Elastic coupling of integral membrane protein stability to lipid bilayer forces.
2004,
Pubmed Huang,
Human lens phospholipid changes with age and cataract.
2005,
Pubmed Israelachvili,
Theory of self-assembly of lipid bilayers and vesicles.
1977,
Pubmed Jarvis,
Purification and oligomeric state of the major lens fiber cell membrane proteins.
1995,
Pubmed Kai,
Preparative scale production of functional mouse aquaporin 4 using different cell-free expression modes.
2010,
Pubmed Kucerka,
Structure of fully hydrated fluid phase lipid bilayers with monounsaturated chains.
2005,
Pubmed Kuikka,
Membrane properties of D-erythro-N-acyl sphingomyelins and their corresponding dihydro species.
2001,
Pubmed Kumari,
Intact AQP0 performs cell-to-cell adhesion.
2009,
Pubmed Lamba,
Infrared study of the structure and composition of rabbit lens membranes: a comparative analysis of the lipids of the nucleus, cortex and epithelium.
1993,
Pubmed Li,
Membrane cholesterol and phospholipid in consecutive concentric sections of human lenses.
1985,
Pubmed Li,
Age-dependent changes in the distribution and concentration of human lens cholesterol and phospholipids.
1987,
Pubmed Lindsey Rose,
The C terminus of lens aquaporin 0 interacts with the cytoskeletal proteins filensin and CP49.
2006,
Pubmed Liu,
Confocal fluorescence microscopy study of interaction between lens MIP26/AQP0 and crystallins in living cells.
2008,
Pubmed Liu,
Purification and functional characterization of aquaporin-8.
2006,
Pubmed Lundbaek,
Capsaicin regulates voltage-dependent sodium channels by altering lipid bilayer elasticity.
2005,
Pubmed Mathias,
The lens circulation.
2007,
Pubmed Mathias,
Cell to cell communication and pH in the frog lens.
1991,
Pubmed Michea,
Biochemical evidence for adhesion-promoting role of major intrinsic protein isolated from both normal and cataractous human lenses.
1995,
Pubmed Mulders,
Water channel properties of major intrinsic protein of lens.
1995,
Pubmed
,
Xenbase Nakazawa,
The effect of the interaction between aquaporin 0 (AQP0) and the filensin tail region on AQP0 water permeability.
2011,
Pubmed
,
Xenbase Needham,
Elastic deformation and failure of lipid bilayer membranes containing cholesterol.
1990,
Pubmed Németh-Cahalan,
Molecular basis of pH and Ca2+ regulation of aquaporin water permeability.
2004,
Pubmed
,
Xenbase Németh-Cahalan,
Regulation of AQP0 water permeability is enhanced by cooperativity.
2013,
Pubmed
,
Xenbase Németh-Cahalan,
pH and calcium regulate the water permeability of aquaporin 0.
2000,
Pubmed
,
Xenbase Nielsen,
Energetics of inclusion-induced bilayer deformations.
1998,
Pubmed Nyholm,
How protein transmembrane segments sense the lipid environment.
2007,
Pubmed Pan,
Temperature dependence of structure, bending rigidity, and bilayer interactions of dioleoylphosphatidylcholine bilayers.
2008,
Pubmed Patel,
Lipid and mechano-gated 2P domain K(+) channels.
2001,
Pubmed Perozo,
Physical principles underlying the transduction of bilayer deformation forces during mechanosensitive channel gating.
2002,
Pubmed Phillips,
Emerging roles for lipids in shaping membrane-protein function.
2009,
Pubmed Pilot,
Effects of bilayer thickness on the activity of diacylglycerol kinase of Escherichia coli.
2001,
Pubmed Rawicz,
Elasticity, strength, and water permeability of bilayers that contain raft microdomain-forming lipids.
2008,
Pubmed Rawicz,
Effect of chain length and unsaturation on elasticity of lipid bilayers.
2000,
Pubmed Reichow,
Noncanonical binding of calmodulin to aquaporin-0: implications for channel regulation.
2008,
Pubmed Rose,
Aquaporin 0-calmodulin interaction and the effect of aquaporin 0 phosphorylation.
2008,
Pubmed Rujoi,
Isolation and lipid characterization of cholesterol-enriched fractions in cortical and nuclear human lens fibers.
2003,
Pubmed Samuli Ollila,
Role of sterol type on lateral pressure profiles of lipid membranes affecting membrane protein functionality: Comparison between cholesterol, desmosterol, 7-dehydrocholesterol and ketosterol.
2007,
Pubmed Schey,
Novel fatty acid acylation of lens integral membrane protein aquaporin-0.
2010,
Pubmed Schmidt,
Voltage-dependent K+ channel gating and voltage sensor toxin sensitivity depend on the mechanical state of the lipid membrane.
2008,
Pubmed
,
Xenbase Shiels,
Disruption of lens fiber cell architecture in mice expressing a chimeric AQP0-LTR protein.
2000,
Pubmed Shiels,
Focus on molecules: major intrinsic protein.
2012,
Pubmed Shiels,
Mutations in the founder of the MIP gene family underlie cataract development in the mouse.
1996,
Pubmed Shiels,
Optical dysfunction of the crystalline lens in aquaporin-0-deficient mice.
2001,
Pubmed Tong,
Sorting of lens aquaporins and connexins into raft and nonraft bilayers: role of protein homo-oligomerization.
2009,
Pubmed Tong,
Water permeability of aquaporin-4 channel depends on bilayer composition, thickness, and elasticity.
2012,
Pubmed Varadaraj,
Regulation of aquaporin water permeability in the lens.
2005,
Pubmed
,
Xenbase Varadaraj,
Functional expression of aquaporins in embryonic, postnatal, and adult mouse lenses.
2007,
Pubmed Varadaraj,
Functional characterization of a human aquaporin 0 mutation that leads to a congenital dominant lens cataract.
2008,
Pubmed
,
Xenbase Varadaraj,
The role of MIP in lens fiber cell membrane transport.
1999,
Pubmed Verkman,
Role of aquaporin water channels in eye function.
2003,
Pubmed Verkman,
Functions of aquaporins in the eye.
2008,
Pubmed Virkki,
Cloning and functional expression of an MIP (AQP0) homolog from killifish (Fundulus heteroclitus) lens.
2001,
Pubmed
,
Xenbase Walz,
Biologically active two-dimensional crystals of aquaporin CHIP.
1994,
Pubmed Werten,
Large-scale purification of functional recombinant human aquaporin-2.
2001,
Pubmed Widomska,
Physical properties of the lipid bilayer membrane made of calf lens lipids: EPR spin labeling studies.
2007,
Pubmed Wiggins,
Membrane-protein interactions in mechanosensitive channels.
2005,
Pubmed Yang,
Water and glycerol permeabilities of aquaporins 1-5 and MIP determined quantitatively by expression of epitope-tagged constructs in Xenopus oocytes.
1997,
Pubmed
,
Xenbase Yang,
Very high single channel water permeability of aquaporin-4 in baculovirus-infected insect cells and liposomes reconstituted with purified aquaporin-4.
1997,
Pubmed Yappert,
Sphingolipids in human lens membranes: an update on their composition and possible biological implications.
2004,
Pubmed Yappert,
Glycero- versus sphingo-phospholipids: correlations with human and non-human mammalian lens growth.
2003,
Pubmed Yuan,
Regulation of the gating of BKCa channel by lipid bilayer thickness.
2007,
Pubmed Yukutake,
Mercury chloride decreases the water permeability of aquaporin-4-reconstituted proteoliposomes.
2008,
Pubmed
,
Xenbase Zampighi,
On the structural organization of isolated bovine lens fiber junctions.
1982,
Pubmed Zampighi,
Micro-domains of AQP0 in lens equatorial fibers.
2002,
Pubmed Zeidel,
Reconstitution of functional water channels in liposomes containing purified red cell CHIP28 protein.
1992,
Pubmed
,
Xenbase Zeidel,
Ultrastructure, pharmacologic inhibition, and transport selectivity of aquaporin channel-forming integral protein in proteoliposomes.
1994,
Pubmed Zelenka,
Lens lipids.
1984,
Pubmed Zigman,
Lipids of human lens fiber cell membranes.
1984,
Pubmed
