???displayArticle.abstract???
Heterotaxy is a disorder of left-right body patterning, or laterality, that is associated with major congenital heart disease. The aetiology and mechanisms underlying most cases of human heterotaxy are poorly understood. In vertebrates, laterality is initiated at the embryonic left-rightorganizer, where motile cilia generate leftward flow that is detected by immotile sensory cilia, which transduce flow into downstream asymmetric signals. The mechanism that specifies these two cilia types remains unknown. Here we show that the N-acetylgalactosamine-type O-glycosylation enzyme GALNT11 is crucial to such determination. We previously identified GALNT11 as a candidate disease gene in a patient with heterotaxy, and now demonstrate, in Xenopus tropicalis, that galnt11 activates Notch signalling. GALNT11 O-glycosylates human NOTCH1 peptides in vitro, thereby supporting a mechanism of Notch activation either by increasing ADAM17-mediated ectodomain shedding of the Notch receptor or by modification of specific EGF repeats. We further developed a quantitative live imaging technique for Xenopus left-rightorganizercilia and show that Galnt11-mediated Notch1 signalling modulates the spatial distribution and ratio of motile and immotile cilia at the left-rightorganizer. galnt11 or notch1 depletion increases the ratio of motile cilia at the expense of immotile cilia and produces a laterality defect reminiscent of loss of the ciliary sensor Pkd2. By contrast, Notch overexpression decreases this ratio, mimicking the ciliopathy primary ciliary dyskinesia. Together our data demonstrate that Galnt11 modifies Notch, establishing an essential balance between motile and immotile cilia at the left-rightorganizer to determine laterality, and reveal a novel mechanism for human heterotaxy.

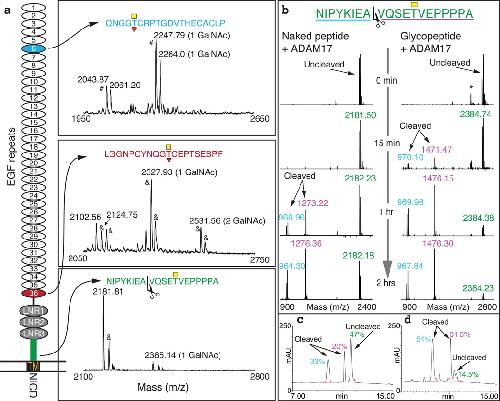

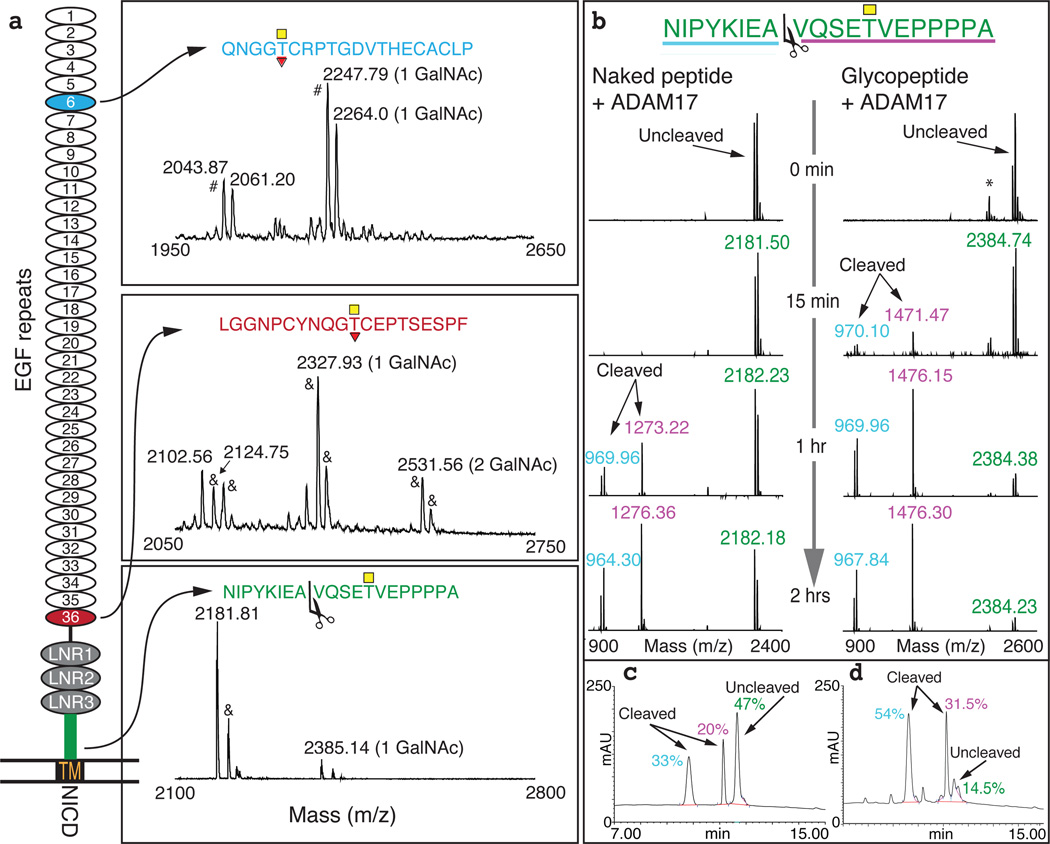

Figure 2. GALNT11 glycosylation of NOTCH1 derived peptides and effects on ADAM-mediated cleavagea) Depiction of NOTCH1 with MALDI-TOF spectra demonstrating O-GalNAc glycosylation of peptides derived from EGF6 (blue), EGF36 (magenta) and the juxtamembrane region (green). Yellow squares: O-GalNAc, Red triangles: O-Fuc. TM: transmembrane domain; NICD: Notch intracellular domain; # deammoniated peptide; & sodium adducts. b) MALDI-TOF time-course analysis of in vitro cleavage of the juxtamembrane peptide and glycopeptide by ADAM17. Scissors: Cleavage site. *nonspecific N-terminal degradation of two amino acids. c–d) HPLC analysis of the cleavage reactions with c) naked peptide and d) glycopeptide after 2 hrs (percentages above the peaks) with p<0.05 (two-tailed t-test).

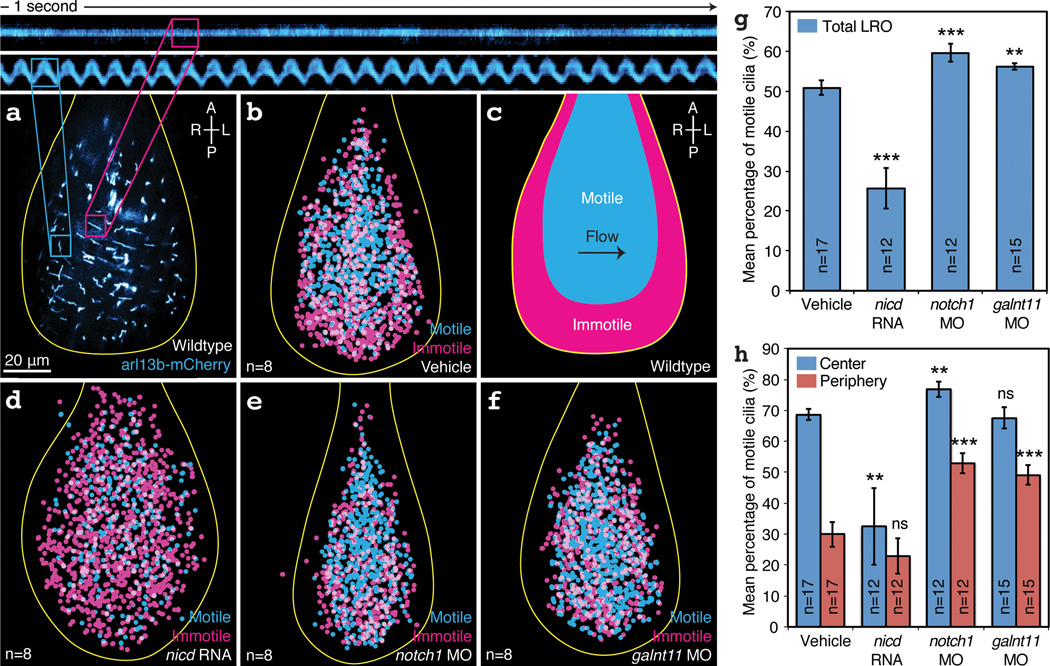

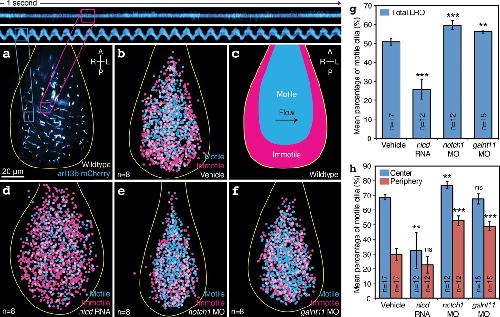

Figure 3. Galnt11/Notch signaling switches cilia between motile and immotile typesa) Wildtype LRO explants expressing arl13b-mCherry reveal distinct populations of immotile and motile cilia. Cyan box highlights a single motile cilium, with a corresponding kymograph analyzing beating frequency. Magenta box highlights immotile cilium and kymograph. b) Analysis of multiple vehicle LROs reveals a specific geography for cilia types: immotile cilia are enriched along the fringes, while motile cilia are enriched in the center. c) Schematic of a wildtype LRO A: anterior, P: posterior, L: left, R: right. d) nicd overexpressants exhibit a decrease in motile cilia in the center of the LRO. notch1 (e) and galnt11 (f) morphants display a decrease in immotile cilia along the LRO periphery. (g–h) Quantification of motile cilia distribution in total LROs (g), and in the center and along the periphery of the LRO (h). Bars depict means and error bars are standard error. b,d,e,f) n=8. g,h) vehicle n=17, nicd RNA n=12, notch1 MO n=12, galnt11 MO n=15. Additional details are in Methods.
Artavanis-Tsakonas,
Notch: the past, the present, and the future.
2010, Pubmed
Artavanis-Tsakonas,
Notch: the past, the present, and the future.
2010,
Pubmed Bennett,
Control of mucin-type O-glycosylation: a classification of the polypeptide GalNAc-transferase gene family.
2012,
Pubmed Bisgrove,
RFX2 is essential in the ciliated organ of asymmetry and an RFX2 transgene identifies a population of ciliated cells sufficient for fluid flow.
2012,
Pubmed Brou,
A novel proteolytic cleavage involved in Notch signaling: the role of the disintegrin-metalloprotease TACE.
2000,
Pubmed Caspary,
The graded response to Sonic Hedgehog depends on cilia architecture.
2007,
Pubmed
,
Xenbase Chung,
RFX2 is broadly required for ciliogenesis during vertebrate development.
2012,
Pubmed
,
Xenbase Deblandre,
A two-step mechanism generates the spacing pattern of the ciliated cells in the skin of Xenopus embryos.
1999,
Pubmed
,
Xenbase del Viso,
Generating diploid embryos from Xenopus tropicalis.
2012,
Pubmed
,
Xenbase Duldulao,
Cilia localization is essential for in vivo functions of the Joubert syndrome protein Arl13b/Scorpion.
2009,
Pubmed Fakhro,
Rare copy number variations in congenital heart disease patients identify unique genes in left-right patterning.
2011,
Pubmed
,
Xenbase Greenway,
De novo copy number variants identify new genes and loci in isolated sporadic tetralogy of Fallot.
2009,
Pubmed Kamura,
Pkd1l1 complexes with Pkd2 on motile cilia and functions to establish the left-right axis.
2011,
Pubmed Kato,
The multiple roles of Notch signaling during left-right patterning.
2011,
Pubmed Khokha,
Techniques and probes for the study of Xenopus tropicalis development.
2002,
Pubmed
,
Xenbase Kramer-Zucker,
Cilia-driven fluid flow in the zebrafish pronephros, brain and Kupffer's vesicle is required for normal organogenesis.
2005,
Pubmed Krebs,
Notch signaling regulates left-right asymmetry determination by inducing Nodal expression.
2003,
Pubmed Lopes,
Notch signalling regulates left-right asymmetry through ciliary length control.
2010,
Pubmed McGrath,
Two populations of node monocilia initiate left-right asymmetry in the mouse.
2003,
Pubmed Nonaka,
Randomization of left-right asymmetry due to loss of nodal cilia generating leftward flow of extraembryonic fluid in mice lacking KIF3B motor protein.
1998,
Pubmed Pedersen,
Lectin domains of polypeptide GalNAc transferases exhibit glycopeptide binding specificity.
2011,
Pubmed Pennekamp,
The ion channel polycystin-2 is required for left-right axis determination in mice.
2002,
Pubmed Piperno,
Monoclonal antibodies specific for an acetylated form of alpha-tubulin recognize the antigen in cilia and flagella from a variety of organisms.
1985,
Pubmed
,
Xenbase Rana,
Fringe benefits: functional and structural impacts of O-glycosylation on the extracellular domain of Notch receptors.
2011,
Pubmed Raya,
Notch activity acts as a sensor for extracellular calcium during vertebrate left-right determination.
2004,
Pubmed Schjoldager,
A systematic study of site-specific GalNAc-type O-glycosylation modulating proprotein convertase processing.
2011,
Pubmed Schweickert,
The nodal inhibitor Coco is a critical target of leftward flow in Xenopus.
2010,
Pubmed
,
Xenbase Schweickert,
Cilia-driven leftward flow determines laterality in Xenopus.
2007,
Pubmed
,
Xenbase Schwientek,
Functional conservation of subfamilies of putative UDP-N-acetylgalactosamine:polypeptide N-acetylgalactosaminyltransferases in Drosophila, Caenorhabditis elegans, and mammals. One subfamily composed of l(2)35Aa is essential in Drosophila.
2002,
Pubmed Shinohara,
Two rotating cilia in the node cavity are sufficient to break left-right symmetry in the mouse embryo.
2012,
Pubmed Steentoft,
Precision mapping of the human O-GalNAc glycoproteome through SimpleCell technology.
2013,
Pubmed Steentoft,
Mining the O-glycoproteome using zinc-finger nuclease-glycoengineered SimpleCell lines.
2011,
Pubmed Stubbs,
The forkhead protein Foxj1 specifies node-like cilia in Xenopus and zebrafish embryos.
2008,
Pubmed
,
Xenbase Sutherland,
Disorders of left-right asymmetry: heterotaxy and situs inversus.
2009,
Pubmed Vick,
Flow on the right side of the gastrocoel roof plate is dispensable for symmetry breakage in the frog Xenopus laevis.
2009,
Pubmed
,
Xenbase Vonica,
The left-right axis is regulated by the interplay of Coco, Xnr1 and derrière in Xenopus embryos.
2007,
Pubmed
,
Xenbase Walentek,
ATP4a is required for Wnt-dependent Foxj1 expression and leftward flow in Xenopus left-right development.
2012,
Pubmed
,
Xenbase Wettstein,
The Xenopus homolog of Drosophila Suppressor of Hairless mediates Notch signaling during primary neurogenesis.
1997,
Pubmed
,
Xenbase Yoshiba,
Cilia at the node of mouse embryos sense fluid flow for left-right determination via Pkd2.
2012,
Pubmed Zaidi,
De novo mutations in histone-modifying genes in congenital heart disease.
2013,
Pubmed
