???displayArticle.abstract??? Bottle cell-driven blastopore lip formation externally marks the initiation of gastrulation in amphibian embryos. The blastopore groove is formed when bottle cells undergo apical constriction and transform from cuboidal to flask-shaped. Apical constriction is sufficient to cause invagination and is a highly conserved mechanism for sheet bending and folding during morphogenesis; therefore, studying apical constriction in Xenopus bottle cells could provide valuable insight into this fundamental shape change. Initially described over a century ago, the dramatic shape change that occurs in bottle cells has long captured the imaginations of embryologists. However, only recently have investigators begun to examine the cellular and molecular mechanisms underlying bottle cell apical constriction. Bottle cell apical constriction is driven by actomyosin contractility as well as by endocytosis of the apical membrane. The Nodal signaling pathway, Wnt5a, and Lgl1 are all required for bottle cell formation, but how they induce subcellular changes resulting in apical constriction remains to be elucidated. Xenopus bottle cells now represent an excellent vertebrate system for the dissection of how molecular inputs can drive cellular outputs, specifically the cell shape change of apical constriction.
Figure 1.
Bottle cell formation as the first external sign of Xenopus gastrulation. Top, vegetal view of blastopore formation, with bottle cells forming initially in the dorsal marginal zone (DMZ), then laterally and ventrally to form the circular blastopore. Arrows mark the extent of apically constricting bottle cells. Bottom, midsagittal confocal images of bottle cells immunostained with α-tubulin antibody. Embryos are oriented apical down and animal to the right. Arrows point to center of blastopore invagination. St., stage. (Reprinted with permission from Ref 3. Copyright 2007 Elsevier)
Figure 2.

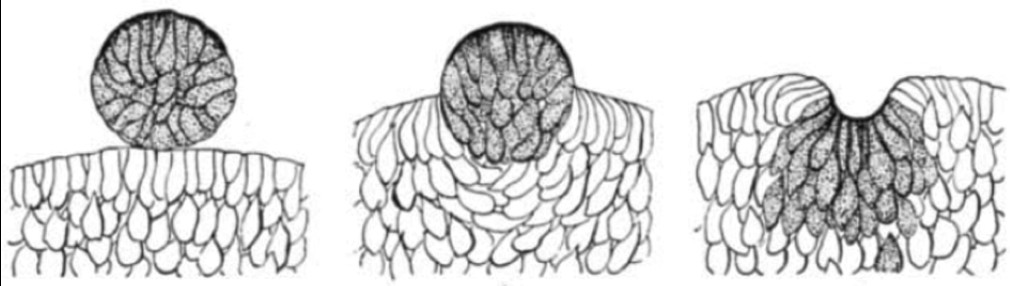

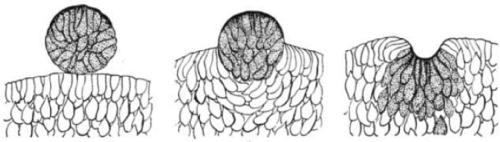

Holtfreter's classic experiment of blastoporal cells incorporating, then invaginating, into an endodermal substrate. (Reprinted with permission from Ref 16. Copyright 1944 JD Wiley and Sons)
Figure 3.
F-actin and activated Myosin (pMLC) are enriched apically in bottle cells, whereas microtubules (α-tubulin) are arranged in apicobasal arrays. Midsagittal confocal images; embryos are oriented apical down and animal to the right. Scale bar = 50 µm. (Reprinted with permisson from Ref 3. Copyright 2007 Elsevier)
Figure 4.

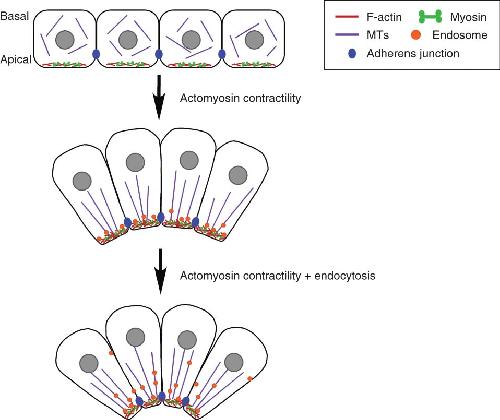

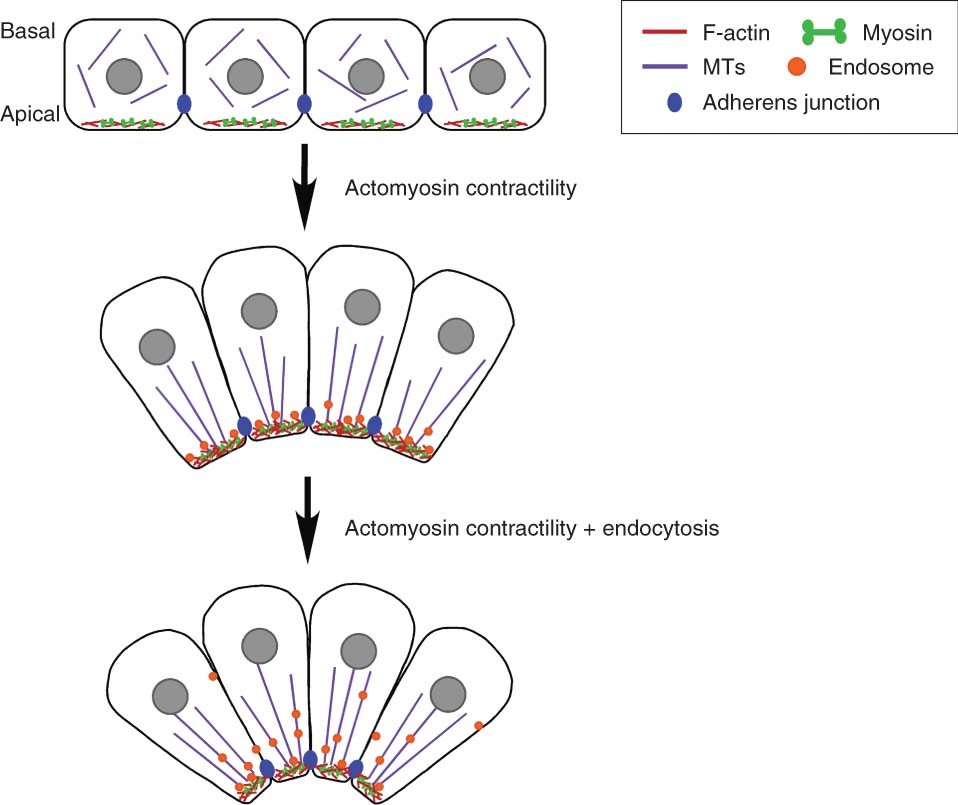

Schematic of the cytoskeletal mechanisms underlying bottle cell apical constriction, as described in Refs 3 and 24. Actomyosin contractility is the main driving force, but endocytosis is also required for efficient constriction later in the process. Adherens junctions have not been directly implicated but are drawn in at their presumed subcellular location.
Agius,
Endodermal Nodal-related signals and mesoderm induction in Xenopus.
2000, Pubmed,
Xenbase
Agius,
Endodermal Nodal-related signals and mesoderm induction in Xenopus.
2000,
Pubmed
,
Xenbase Baker,
A novel mesoderm inducer, Madr2, functions in the activin signal transduction pathway.
1996,
Pubmed
,
Xenbase BAKER,
FINE STRUCTURE AND MORPHOGENIC MOVEMENTS IN THE GASTRULA OF THE TREEFROG, HYLA REGILLA.
1965,
Pubmed Bilder,
Epithelial polarity and proliferation control: links from the Drosophila neoplastic tumor suppressors.
2004,
Pubmed Black,
Experimental reversal of the normal dorsal-ventral timing of blastopore formation does not reverse axis polarity in Xenopus laevis embryos.
1989,
Pubmed
,
Xenbase Bolker,
Gastrulation and mesoderm morphogenesis in the white sturgeon.
1993,
Pubmed
,
Xenbase Bouwmeester,
Cerberus is a head-inducing secreted factor expressed in the anterior endoderm of Spemann's organizer.
1996,
Pubmed
,
Xenbase Choi,
The involvement of lethal giant larvae and Wnt signaling in bottle cell formation in Xenopus embryos.
2009,
Pubmed
,
Xenbase Chua,
Dynamin 2 orchestrates the global actomyosin cytoskeleton for epithelial maintenance and apical constriction.
2009,
Pubmed Cooke,
Local autonomy of gastrulation movements after dorsal lip removal in two anuran amphibians.
1975,
Pubmed
,
Xenbase Dollar,
Regulation of Lethal giant larvae by Dishevelled.
2005,
Pubmed
,
Xenbase Haigo,
Shroom induces apical constriction and is required for hingepoint formation during neural tube closure.
2003,
Pubmed
,
Xenbase Hardin,
The behaviour and function of bottle cells during gastrulation of Xenopus laevis.
1988,
Pubmed
,
Xenbase Hildebrand,
Shroom regulates epithelial cell shape via the apical positioning of an actomyosin network.
2005,
Pubmed Humbert,
Control of tumourigenesis by the Scribble/Dlg/Lgl polarity module.
2008,
Pubmed Jones,
Nodal-related signals induce axial mesoderm and dorsalize mesoderm during gastrulation.
1995,
Pubmed
,
Xenbase Keller,
An experimental analysis of the role of bottle cells and the deep marginal zone in gastrulation of Xenopus laevis.
1981,
Pubmed
,
Xenbase Keller,
The function and mechanism of convergent extension during gastrulation of Xenopus laevis.
1985,
Pubmed
,
Xenbase Kimberly,
Bottle cells are required for the initiation of primary invagination in the sea urchin embryo.
1998,
Pubmed Kurth,
Bottle cell formation in relation to mesodermal patterning in the Xenopus embryo.
2000,
Pubmed
,
Xenbase Lee,
Wnt/Frizzled signaling controls C. elegans gastrulation by activating actomyosin contractility.
2006,
Pubmed Lee,
Actomyosin contractility and microtubules drive apical constriction in Xenopus bottle cells.
2007,
Pubmed
,
Xenbase Lee,
Endocytosis is required for efficient apical constriction during Xenopus gastrulation.
2010,
Pubmed
,
Xenbase Lee,
Shroom family proteins regulate gamma-tubulin distribution and microtubule architecture during epithelial cell shape change.
2007,
Pubmed
,
Xenbase Lee,
Mechanisms of cell positioning during C. elegans gastrulation.
2003,
Pubmed LEWIS,
Mechanics of invagination.
1947,
Pubmed Lundmark,
Role of bilateral zones of ingressing superficial cells during gastrulation of Ambystoma mexicanum.
1986,
Pubmed Lustig,
Expression cloning of a Xenopus T-related gene (Xombi) involved in mesodermal patterning and blastopore lip formation.
1996,
Pubmed
,
Xenbase Luxardi,
Distinct Xenopus Nodal ligands sequentially induce mesendoderm and control gastrulation movements in parallel to the Wnt/PCP pathway.
2010,
Pubmed
,
Xenbase Martin,
Pulsed contractions of an actin-myosin network drive apical constriction.
2009,
Pubmed Martin,
Pulsation and stabilization: contractile forces that underlie morphogenesis.
2010,
Pubmed Morita,
Nectin-2 and N-cadherin interact through extracellular domains and induce apical accumulation of F-actin in apical constriction of Xenopus neural tube morphogenesis.
2010,
Pubmed
,
Xenbase Nishimura,
Shroom3-mediated recruitment of Rho kinases to the apical cell junctions regulates epithelial and neuroepithelial planar remodeling.
2008,
Pubmed Odell,
The mechanical basis of morphogenesis. I. Epithelial folding and invagination.
1981,
Pubmed Perry,
Ultrastructure of the blastopore cells in the newt.
1966,
Pubmed Rao,
Microfilament actin remodeling as a potential target for cancer drug development.
2004,
Pubmed Rogers,
Drosophila RhoGEF2 associates with microtubule plus ends in an EB1-dependent manner.
2004,
Pubmed Sadler,
Embryology of neural tube development.
2005,
Pubmed Sawyer,
The Drosophila afadin homologue Canoe regulates linkage of the actin cytoskeleton to adherens junctions during apical constriction.
2009,
Pubmed Sawyer,
Apical constriction: a cell shape change that can drive morphogenesis.
2010,
Pubmed
,
Xenbase Sweeton,
Gastrulation in Drosophila: the formation of the ventral furrow and posterior midgut invaginations.
1991,
Pubmed Winklbauer,
Vegetal rotation, a new gastrulation movement involved in the internalization of the mesoderm and endoderm in Xenopus.
1999,
Pubmed
,
Xenbase Yamanaka,
Role of Lgl/Dlg/Scribble in the regulation of epithelial junction, polarity and growth.
2008,
Pubmed
