Stephen LA, Johnson EJ, Davis GM, McTeir L, Pinkham J, Jaberi N, Davey MG.

BB/D526745/2 Biotechnology and Biological Sciences Research Council , BB/F024347/1 Biotechnology and Biological Sciences Research Council , BBS/E/R/00001614 Biotechnology and Biological Sciences Research Council , BB_BBS/E/R/00001614 Biotechnology and Biological Sciences Research Council , BBS/E/D/20320000 Biotechnology and Biological Sciences Research Council

	Figure 1. Organ asymmetry is abnormal in Talpid3−/− mouse, but normal in talpid3 chicken embryos. Wildtype mouse and chicken embryos exhibit dextral cardiac looping (a, c). This is reversed in the Talpid3−/− mouse (b) but not in the talpid3 chicken (d). Regression of the right gonad occurs in both the wildtype and talpid3 chicken by E10 (e, f). Abbreviations: GR, Right gonad; GL, Left gonad; C, Kidney cyst; K, Kidney. a–d magnification comparable, e, f magnification comparable.
	Figure 2. FOXJ1 expression is not sufficient to induce motile cilia formation in the chicken node. (a) FOXJ1 expression in the future choroid plexus of hindbrain, forebrain (outlined, arrows), and otic vesicle (asterisk) of stage 20HH embryos which precedes motile ciliogenesis, compared with stage 3HH and 4HH embryos, where no FOXJ1 can be observed (all embryos photographed underwent RNA in situ hybridization in the same tube). Red arrow indicates node, green arrow indicates primitive streak. (b) Expression of FOXJ1 by RT-PCR does show expression in stage 3HH and 4HH embryos compared to stage 20HH hindbrain (H) and forebrain (F) [negative control is stage 20HH limb bud (L)]. (c) qPCR, shows that FOXJ1 at 4HH is approximately 60% of that of the hindbrain (P = 0.000245). (d–f) Stage 4HH embryos underwent immunocytochemistry for acetylated tubulin (ciliary axoneme, green) and γ tubulin (basal body, red) to identify cilia (white arrows). Short cilia were identified in the mesoderm of the node (arrows e), while longer cilia were identified in greater abundance, in the epiblast (epi) and hypoblast (hypo) peripheral to the node (arrows f, arrowheads indicate telophase bridges which look similar to cilia but are not associated with a basal body). PG-Primitive groove; d-magnification 10×; e-magnification 50×; f-magnification 100×.
	Figure 3. Cilia are present and functional in the node of 4HH-8HH talpid3 chickens. (a–f). Stage 4HH wildtype and talpid3 embryos underwent section immunocytochemistry for acetylated tubulin (ciliary axoneme, green) and γ tubulin (basal body, red) to identify cilia (white arrows). Short cilia were identified in the mesoderm of the nodes of both genotypes (b, e, arrows), while longer cilia were identified in greater abundance, in the epiblast (epi) and hypoblast (hypo) peripheral to the node (c, f, arrows. Arrowheads indicate telophase bridges which look similar to cilia but are not associated with a basal body). (g–j). Immunocytochemistry was carried out on 8HH embryos for acetylated tubulin to identify cilia (red arrows; blue arrow denotes telophase bridge). Cilia were identified in both nodal (g, i) and nonnodal tissues (h, j) in both wildtype (g, h) and talpid3 (i, j) embryos at 8HH. (k) qPCR show no significant difference between expression of PTCH1 in wildtype and talpid3 embryos (P = 0.84). PG-Primitive groove. (a–f) Magnifications comparable: a, d-magnification 10×, b-magnification 50×, c, e, f-magnification 100×. Magnification of g–j the same (not comparable to a–f).

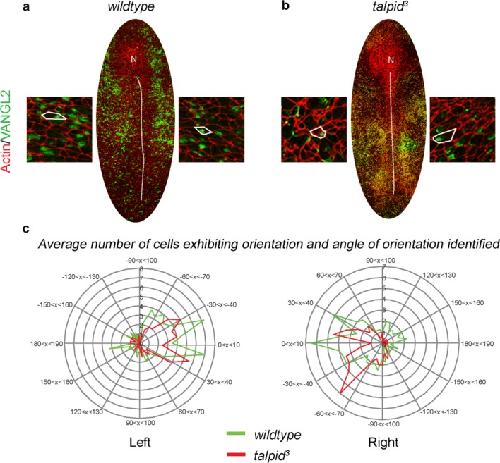

	Figure 4. The core PCP component VANGL2 is normally localized in talpid3 chickens at 4HH. (a, b) examples of wholemount labeled 4HH embryos, green = VANGL2 localization, red = actin, outlining the edges within the epiblast. Insets show magnification of cells lateral to the primitive streak and examples of cells outlined in white with a green asterisk highlighting VANGL2 localization. In wildtype embryos (a) and talpid3 embryos (b), VANGL2 protein within the cell was orientated toward the primitive streak in 72.4% of embryos (green, c), while 83.58% of talpid3 embryos were orientated toward the primitive streak (red, c). Abbreviations: N, Hensen's Node; dotted line—primitive streak.
	Figure 5. SHH expression is normal in the talpid3 chicken at 5HH. SHH is expressed bilaterally at the node, through the rostral notochord at 3–4HH (a, b) but is lateralized, becoming expressed on the left side of the node from 5HH (arrows, c–f) in both wildtype (c, e) and talpid3 (d, f) embryos. Magnification a–d comparable (1.6×), e–f (4×).
	Figure 6. Laterality markers are unperturbed in the talpid3 chicken. In situ hybridization in mouse embryos demonstrated expression of laterality markers Lefty1/2 in wildtype mouse embryos (a), where Lefty2 is expressed the left lateral plate mesoderm and cardiac folds (arrows) and in the Talpid3−/− mouse which exhibits expression bilaterally (arrows, b). LEFTY1 in wildtype chicken embryos at 8HH (c) and talpid3 chicken embryos (d) show the same expression throughout the notochord. PITX2 is expressed in the left lateral plate mesoderm (arrow e, f) in both the wildtype (e) and talpid3 chicken in both wildtype and talpid3 chickens.

Aw, What's left in asymmetry? 2008, Pubmed

Aw, What's left in asymmetry? 2008, Pubmed
Bangs, Generation of mice with functional inactivation of talpid3, a gene first identified in chicken. 2011, Pubmed
Ben, Targeted mutation of the talpid3 gene in zebrafish reveals its conserved requirement for ciliogenesis and Hedgehog signalling across the vertebrates. 2011, Pubmed
Boardman, A comprehensive collection of chicken cDNAs. 2002, Pubmed
Brennan, Nodal signalling in the epiblast patterns the early mouse embryo. 2001, Pubmed
Brugmann, A primary cilia-dependent etiology for midline facial disorders. 2010, Pubmed
Campione, The homeobox gene Pitx2: mediator of asymmetric left-right signaling in vertebrate heart and gut looping. 1999, Pubmed , Xenbase
Chen, Two modes by which Lefty proteins inhibit nodal signaling. 2004, Pubmed , Xenbase
Chiang, Cyclopia and defective axial patterning in mice lacking Sonic hedgehog gene function. 1996, Pubmed
Conlon, A primary requirement for nodal in the formation and maintenance of the primitive streak in the mouse. 1994, Pubmed
Corbit, Vertebrate Smoothened functions at the primary cilium. 2005, Pubmed
Cruz, Foxj1 regulates floor plate cilia architecture and modifies the response of cells to sonic hedgehog signalling. 2010, Pubmed
Davey, The chicken talpid3 gene encodes a novel protein essential for Hedgehog signaling. 2006, Pubmed
Davey, The chicken as a model for embryonic development. 2007, Pubmed
Essner, Conserved function for embryonic nodal cilia. 2002, Pubmed , Xenbase
Eyal-Giladi, Axis determination in uterine chick blastodiscs under changing spatial positions during the sensitive period for polarity. 1980, Pubmed
Goetz, The primary cilium: a signalling centre during vertebrate development. 2010, Pubmed
Gros, Cell movements at Hensen's node establish left/right asymmetric gene expression in the chick. 2009, Pubmed , Xenbase
Guioli, PITX2 controls asymmetric gonadal development in both sexes of the chick and can rescue the degeneration of the right ovary. 2007, Pubmed
Guioli, Gonadal asymmetry and sex determination in birds. 2014, Pubmed
HAMBURGER, A series of normal stages in the development of the chick embryo. 1951, Pubmed
Harvey, Patterning the vertebrate heart. 2002, Pubmed
Haycraft, Gli2 and Gli3 localize to cilia and require the intraflagellar transport protein polaris for processing and function. 2005, Pubmed
Hildebrandt, Ciliopathies. 2011, Pubmed
Huangfu, Cilia and Hedgehog responsiveness in the mouse. 2005, Pubmed
Krebs, Notch signaling regulates left-right asymmetry determination by inducing Nodal expression. 2003, Pubmed
Layton, Expression of the IV (reversed and/or heterotaxic) phenotype in SWV mice. 1993, Pubmed
Lee, Morphogenesis of the node and notochord: the cellular basis for the establishment and maintenance of left-right asymmetry in the mouse. 2008, Pubmed
Levin, Left/right patterning signals and the independent regulation of different aspects of situs in the chick embryo. 1997, Pubmed
Levin, Gap junction-mediated transfer of left-right patterning signals in the early chick blastoderm is upstream of Shh asymmetry in the node. 1999, Pubmed , Xenbase
Levin, Left-right patterning from the inside out: widespread evidence for intracellular control. 2007, Pubmed
Levin, A molecular pathway determining left-right asymmetry in chick embryogenesis. 1995, Pubmed
Levin, Asymmetries in H+/K+-ATPase and cell membrane potentials comprise a very early step in left-right patterning. 2002, Pubmed , Xenbase
Lewis, Expression of ptc and gli genes in talpid3 suggests bifurcation in Shh pathway. 1999, Pubmed
Liem, Mouse Kif7/Costal2 is a cilia-associated protein that regulates Sonic hedgehog signaling. 2009, Pubmed
Logan, The transcription factor Pitx2 mediates situs-specific morphogenesis in response to left-right asymmetric signals. 1998, Pubmed
Ma, Embryonic left-right separation mechanism allows confinement of mutation-induced phenotypes to one lateral body half of bilaterians. 2013, Pubmed
Macdonald, Efficient genetic modification and germ-line transmission of primordial germ cells using piggyBac and Tol2 transposons. 2012, Pubmed
Männer, Does an equivalent of the "ventral node" exist in chick embryos? A scanning electron microscopic study. 2001, Pubmed
Männer, Cardiac looping in the chick embryo: a morphological review with special reference to terminological and biomechanical aspects of the looping process. 2000, Pubmed
McGrath, Two populations of node monocilia initiate left-right asymmetry in the mouse. 2003, Pubmed
Meno, Diffusion of nodal signaling activity in the absence of the feedback inhibitor Lefty2. 2001, Pubmed
Meno, Two closely-related left-right asymmetrically expressed genes, lefty-1 and lefty-2: their distinct expression domains, chromosomal linkage and direct neuralizing activity in Xenopus embryos. 1997, Pubmed , Xenbase
Meyers, Differences in left-right axis pathways in mouse and chick: functions of FGF8 and SHH. 1999, Pubmed
Nakamura, Left-right patterning: conserved and divergent mechanisms. 2012, Pubmed
Nieto, In situ hybridization analysis of chick embryos in whole mount and tissue sections. 1996, Pubmed
Nonaka, Determination of left-right patterning of the mouse embryo by artificial nodal flow. 2002, Pubmed
Nonaka, Randomization of left-right asymmetry due to loss of nodal cilia generating leftward flow of extraembryonic fluid in mice lacking KIF3B motor protein. 1998, Pubmed
Nonaka, De novo formation of left-right asymmetry by posterior tilt of nodal cilia. 2005, Pubmed
Norris, Asymmetric and node-specific nodal expression patterns are controlled by two distinct cis-acting regulatory elements. 1999, Pubmed
Pagán-Westphal, The transfer of left-right positional information during chick embryogenesis. 1998, Pubmed
Psychoyos, Restoration of the organizer after radical ablation of Hensen's node and the anterior primitive streak in the chick embryo. 1996, Pubmed
Raya, Notch activity induces Nodal expression and mediates the establishment of left-right asymmetry in vertebrate embryos. 2003, Pubmed
Roelink, Floor plate and motor neuron induction by different concentrations of the amino-terminal cleavage product of sonic hedgehog autoproteolysis. 1995, Pubmed
Rohatgi, Patched1 regulates hedgehog signaling at the primary cilium. 2007, Pubmed
Saijoh, Left-right patterning of the mouse lateral plate requires nodal produced in the node. 2003, Pubmed
Sheng, Day-1 chick development. 2014, Pubmed
Smith, Sex determination: insights from the chicken. 2004, Pubmed
Stephen, Failure of centrosome migration causes a loss of motile cilia in talpid(3) mutants. 2013, Pubmed
Tsukui, Multiple left-right asymmetry defects in Shh(-/-) mutant mice unveil a convergence of the shh and retinoic acid pathways in the control of Lefty-1. 1999, Pubmed
van de Lavoir, Germline transmission of genetically modified primordial germ cells. 2006, Pubmed
Vandenberg, A unified model for left-right asymmetry? Comparison and synthesis of molecular models of embryonic laterality. 2013, Pubmed
Vandenberg, Polarity proteins are required for left-right axis orientation and twin-twin instruction. 2012, Pubmed , Xenbase
Vassena, Waves of early transcriptional activation and pluripotency program initiation during human preimplantation development. 2011, Pubmed
Yin, The Talpid3 gene (KIAA0586) encodes a centrosomal protein that is essential for primary cilia formation. 2009, Pubmed
Yoshiba, Cilia at the node of mouse embryos sense fluid flow for left-right determination via Pkd2. 2012, Pubmed
Yu, Differential expression and functional analysis of Pitx2 isoforms in regulation of heart looping in the chick. 2001, Pubmed
Yuan, De novo induction of the organizer and formation of the primitive streak in an experimental model of notochord reconstitution in avian embryos. 1998, Pubmed
Zhang, Left-right asymmetry in the chick embryo requires core planar cell polarity protein Vangl2. 2009, Pubmed
Zhao, Somatic sex identity is cell autonomous in the chicken. 2010, Pubmed
