???displayArticle.abstract???
The coordinated growth of cells and their organelles is a fundamental and poorly understood problem, with implications for processes ranging from embryonic development to oncogenesis. Recent experiments have shed light on the cell size-dependent assembly of membrane-less cytoplasmic and nucleoplasmic structures, including ribonucleoprotein (RNP) granules and other intracellular bodies. Many of these structures behave as condensed liquid-like phases of the cytoplasm/nucleoplasm. The phase transitions that appear to govern their assembly exhibit an intrinsic dependence on cell size, and may explain the size scaling reported for a number of structures. This size scaling could, in turn, play a role in cell growth and size control.
Figure 1. RNA/protein droplets. (A) Nucleoli (and other RNP droplets) within the nucleus of an X. laevis oocyte. Adapted from Brangwynne et al. (2011). (B) In vitro droplets formed from myelin basic protein (MBP). Adapted from Aggarwal et al. (2013). (C) In vitro droplets of fluorescently labeled multi-domain SH34/PRM4 proteins. Adapted with permission from Macmillan Publishers Ltd.: Nature (Li et al., 2012).

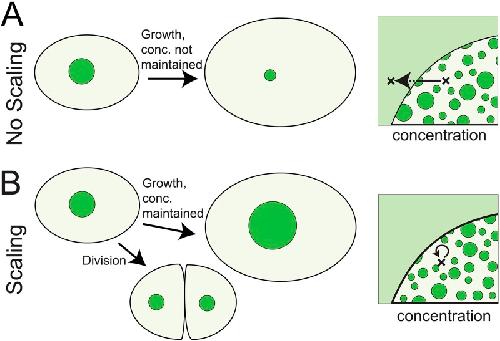

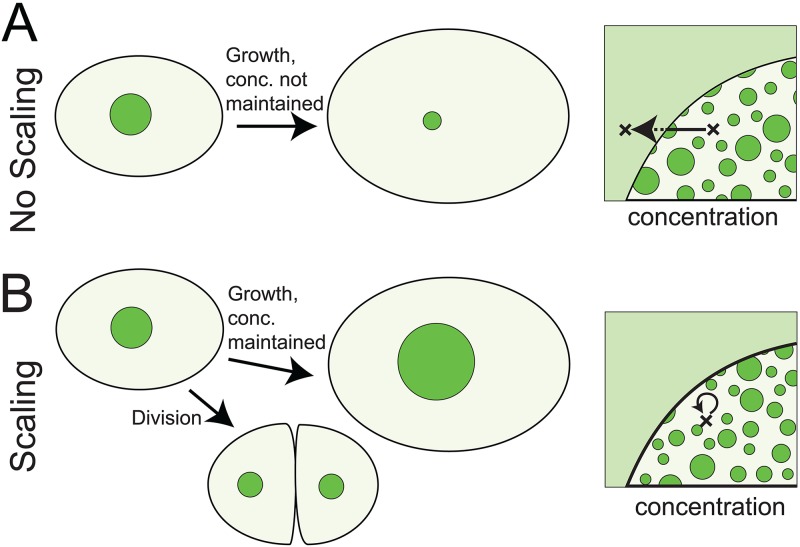

Figure 2. Phase transitions and size scaling. (A) Growth of a cell without the production of droplet component(s) will lead to decreased total component concentration (conc.), shifting the location within the phase diagram. In this case, a single nucleated droplet would dissolve (no scaling). (B) In a situation where cell size changes either through growth with a constant total component concentration or where cell size changes through division, the location in the phase diagram will not change, and the size of a single nucleated droplet will scale with cell size.
Figure 3. Cell growth and RNP size scaling. In this image, dorsal root ganglia neurons of different size are stained with propidium iodide to visualize a single large nucleolus (white spot) within each cell nucleus. The size of nuclei and nucleoli increases with cell size. Adapted from Berciano et al. (2007) with permission from Elsevier.

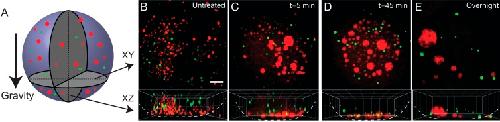

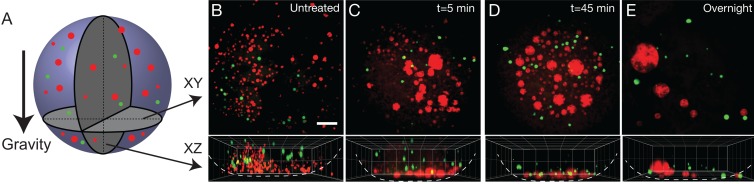

Figure 4. Gravity and large droplets in large cells. (A and B) An intact X. laevis oocyte nucleus (GV) contains hundreds of RNP droplets, including nucleoli (red) and histone locus bodies (green), distributed through the GV (XY projection shown in top panels, XZ projection shown in bottom panels). A nuclear actin scaffold keeps these droplets from fusing. Bar, 50 μm. (C and D) Upon actin disruption, nucleoli undergo gravitational sedimentation to the bottom of the nucleus, where they undergo massive fusion events, ultimately resulting in a few large droplets (E). Panels B–E adapted from Feric and Brangwynne (2013), copyright Nature Publishing Group.
Ader,
Amyloid-like interactions within nucleoporin FG hydrogels.
2010, Pubmed
Ader,
Amyloid-like interactions within nucleoporin FG hydrogels.
2010,
Pubmed Aggarwal,
Myelin membrane assembly is driven by a phase transition of myelin basic proteins into a cohesive protein meshwork.
2013,
Pubmed An,
Reversible compartmentalization of de novo purine biosynthetic complexes in living cells.
2008,
Pubmed Asherie,
Protein crystallization and phase diagrams.
2004,
Pubmed Berciano,
Cajal body number and nucleolar size correlate with the cell body mass in human sensory ganglia neurons.
2007,
Pubmed Bohnsack,
A selective block of nuclear actin export stabilizes the giant nuclei of Xenopus oocytes.
2006,
Pubmed
,
Xenbase Brangwynne,
Germline P granules are liquid droplets that localize by controlled dissolution/condensation.
2009,
Pubmed Brangwynne,
Active liquid-like behavior of nucleoli determines their size and shape in Xenopus laevis oocytes.
2011,
Pubmed
,
Xenbase Chan,
How cells know the size of their organelles.
2012,
Pubmed Decker,
Edc3p and a glutamine/asparagine-rich domain of Lsm4p function in processing body assembly in Saccharomyces cerevisiae.
2007,
Pubmed Decker,
Limiting amounts of centrosome material set centrosome size in C. elegans embryos.
2011,
Pubmed Feric,
A nuclear F-actin scaffold stabilizes ribonucleoprotein droplets against gravity in large cells.
2013,
Pubmed
,
Xenbase Gall,
Exporting actin.
2006,
Pubmed
,
Xenbase Goehring,
Organelle growth control through limiting pools of cytoplasmic components.
2012,
Pubmed Good,
Cytoplasmic volume modulates spindle size during embryogenesis.
2013,
Pubmed
,
Xenbase Greenan,
Centrosome size sets mitotic spindle length in Caenorhabditis elegans embryos.
2010,
Pubmed
,
Xenbase Handwerger,
Cajal bodies, nucleoli, and speckles in the Xenopus oocyte nucleus have a low-density, sponge-like structure.
2005,
Pubmed
,
Xenbase Hazel,
Changes in cytoplasmic volume are sufficient to drive spindle scaling.
2013,
Pubmed
,
Xenbase Jockusch,
Tracking down the different forms of nuclear actin.
2006,
Pubmed Jorgensen,
Systematic identification of pathways that couple cell growth and division in yeast.
2002,
Pubmed Jorgensen,
The size of the nucleus increases as yeast cells grow.
2007,
Pubmed Jørgensen,
Metabolon formation and metabolic channeling in the biosynthesis of plant natural products.
2005,
Pubmed Kato,
Cell-free formation of RNA granules: low complexity sequence domains form dynamic fibers within hydrogels.
2012,
Pubmed Knowles,
Observation of spatial propagation of amyloid assembly from single nuclei.
2011,
Pubmed Koga,
Peptide-nucleotide microdroplets as a step towards a membrane-free protocell model.
2011,
Pubmed Lee,
Spatial organization of the cell cytoplasm by position-dependent phase separation.
2013,
Pubmed Levy,
Nuclear size is regulated by importin α and Ntf2 in Xenopus.
2010,
Pubmed
,
Xenbase Levy,
Mechanisms of intracellular scaling.
2012,
Pubmed
,
Xenbase Li,
Phase transitions in the assembly of multivalent signalling proteins.
2012,
Pubmed Marshall,
What determines cell size?
2012,
Pubmed Nigg,
The centrosome cycle: Centriole biogenesis, duplication and inherent asymmetries.
2011,
Pubmed Novotný,
In vivo kinetics of U4/U6·U5 tri-snRNP formation in Cajal bodies.
2011,
Pubmed Pederson,
Protein mobility within the nucleus--what are the right moves?
2001,
Pubmed Pederson,
The nucleolus.
2011,
Pubmed Phair,
High mobility of proteins in the mammalian cell nucleus.
2000,
Pubmed Rafelski,
Mitochondrial network size scaling in budding yeast.
2012,
Pubmed Reber,
XMAP215 activity sets spindle length by controlling the total mass of spindle microtubules.
2013,
Pubmed
,
Xenbase Schulz,
Big bacteria.
2001,
Pubmed Shav-Tal,
Dynamic sorting of nuclear components into distinct nucleolar caps during transcriptional inhibition.
2005,
Pubmed Shevtsov,
Nucleation of nuclear bodies by RNA.
2011,
Pubmed Singer,
An inducible nuclear body in the Drosophila germinal vesicle.
2011,
Pubmed Sokolova,
Enhanced transcription rates in membrane-free protocells formed by coacervation of cell lysate.
2013,
Pubmed Strulson,
RNA catalysis through compartmentalization.
2012,
Pubmed Strzelecka,
Coilin-dependent snRNP assembly is essential for zebrafish embryogenesis.
2010,
Pubmed Updike,
P granules extend the nuclear pore complex environment in the C. elegans germ line.
2011,
Pubmed Walter,
Phase separation in cytoplasm, due to macromolecular crowding, is the basis for microcompartmentation.
1995,
Pubmed Weber,
Getting RNA and protein in phase.
2012,
Pubmed Wippich,
Dual specificity kinase DYRK3 couples stress granule condensation/dissolution to mTORC1 signaling.
2013,
Pubmed Wu,
Higher-order assemblies in a new paradigm of signal transduction.
2013,
Pubmed Yamaguchi,
Controlling one protein crystal growth by droplet-based microfluidic system.
2013,
Pubmed
