Identification of small ubiquitin-like modifier substrates with diverse functions using the Xenopus egg extract system.
Ma L, Aslanian A, Sun H, Jin M, Shi Y, Yates JR, Hunter T.
???displayArticle.abstract???

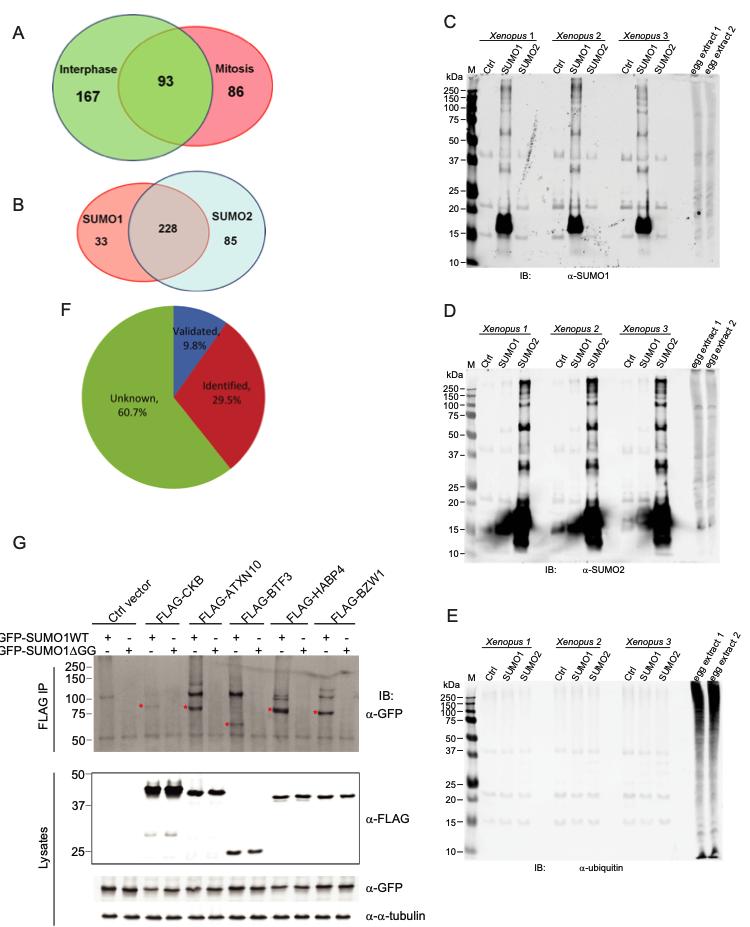

Post-translational modification by SUMO is a highly conserved pathway in eukaryotes that plays very important regulatory roles in many cellular processes. Deregulation of the SUMO pathway contributes to the development and progression of many diseases including cancer. Therefore, identifying additional SUMO substrates and studying how their cellular and biological functions are regulated by sumoylation should provide new insights. Our studies showed that sumoylation activity was significant in Xenopus egg extracts, and that a high level of sumoylation was associated with sperm chromatin when SUMO was incubated with Xenopus egg extracts. By isolating SUMO-conjugated substrates using His-tagged SUMO1 or SUMO2 proteins under denaturing conditions, we identified 346 proteins by mass spectrometry analysis that were not present in control pull-downs. Among them, 167 proteins were identified from interphase egg extracts, 86 proteins from mitotic phase egg extracts, and 93 proteins from both. Thirty-three proteins were pulled down by SUMO1, 85 proteins by SUMO2, and 228 proteins by both. We validated the sumoylation of five candidates, CKB, ATXN10, BTF3, HABP4, and BZW1, by co-transfecting them along with SUMO in HEK293T cells. Gene ontology analysis showed that SUMO substrates identified in this study were involved in diverse biological processes. Additionally, SUMO substrates identified from different cell cycle stages or pulled down by different SUMO homologs were enriched for distinct cellular components and functional categories. Our results comprehensively profile the sumoylation occurring in the Xenopus egg extract system.
Fig. 2. C

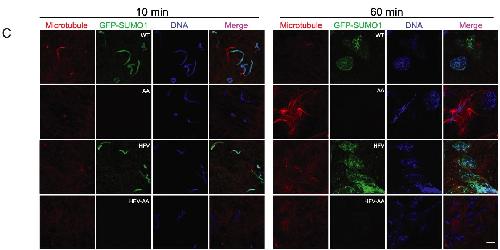

C, SUMO1 could be conjugated to sperm chromatin. Sperm chromatin isolated from male Xenopus was incubated with interphase Xenopus egg extracts and purified His-GFP-tagged SUMO1 mutant proteins. A strong GFP signal appeared on the chromatin in Xenopus egg extracts in less than 10 min and persisted even after the nuclear formation in WT and HFV groups. No GFP signal was observed on sperm chromatin with the AA or HFV-AA SUMO mutants. Microtubule structures formed by rhodamine-labeled tubulin indicate the cell cycle stage of Xenopus egg extracts. DAPI was used for DNA staining. Scale bar equals 10um

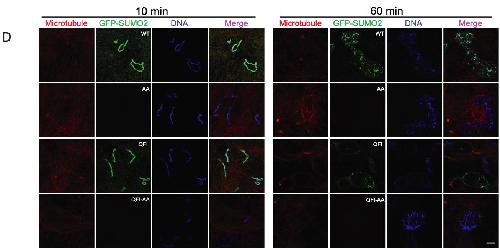

Fig. 2D, SUMO2 could be conjugated on sperm chromatin. Sperm chromatin isolated from male Xenopus was incubated with interphase Xenopus egg extracts and purified His-GFP-tagged SUMO2 mutant proteins. A strong GFP signal appeared on the chromatin with WT and QFI SUMO. No GFP signal was observed with the AA or QFI-AA SUMO mutants. Microtubule structures formed by rhodamine-labeled tubulin indicate the cell cycle stage of Xenopus egg extracts. DAPI was used for DNA staining. Scale bar equals 10um

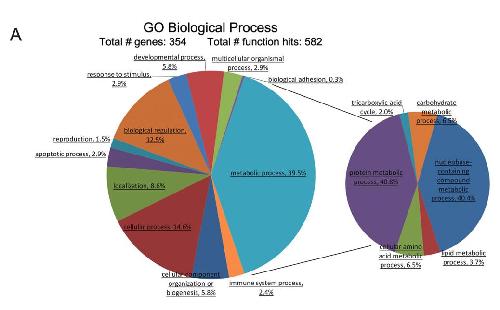

FIG. 5. Functional analysis of SUMO substrates. A, Pie chart showing gene ontology analysis of the SUMO candidate proteins. The genes were grouped into categories defined by GO Biological Processes by the PANTHER classification system. The largest category is that containing gene products that play roles in metabolic process.
FIG. 5. Functional analysis of SUMO substrates.

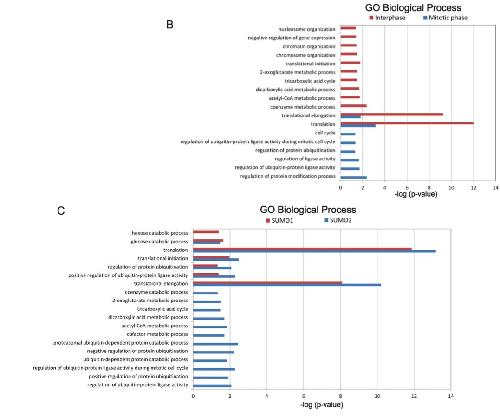

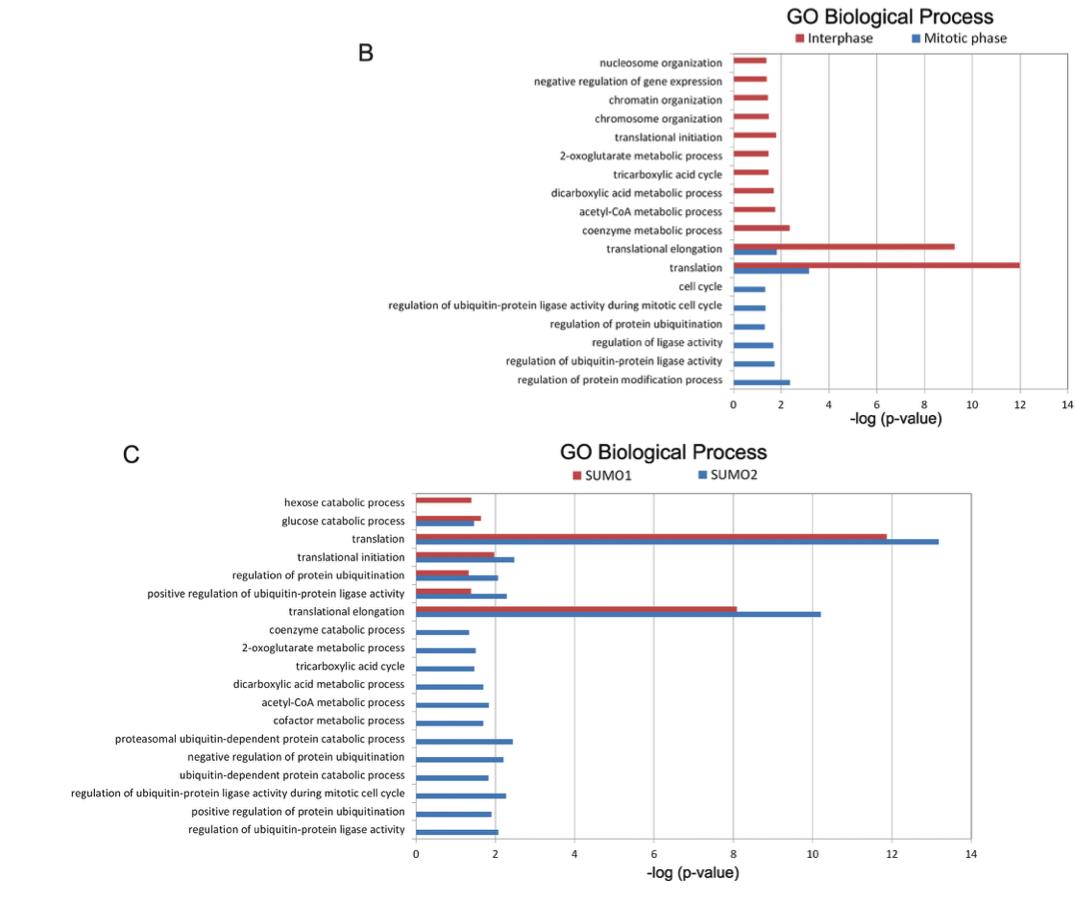

B, Bar chart showing enrichment p values of SUMO substrates identified from interphase or mitotic phase for GO Biological Process terms generated by DAVID database. C, Bar chart showing enrichment p values of SUMO1 and SUMO2 substrates for GO Biological Process terms generated by DAVID database.

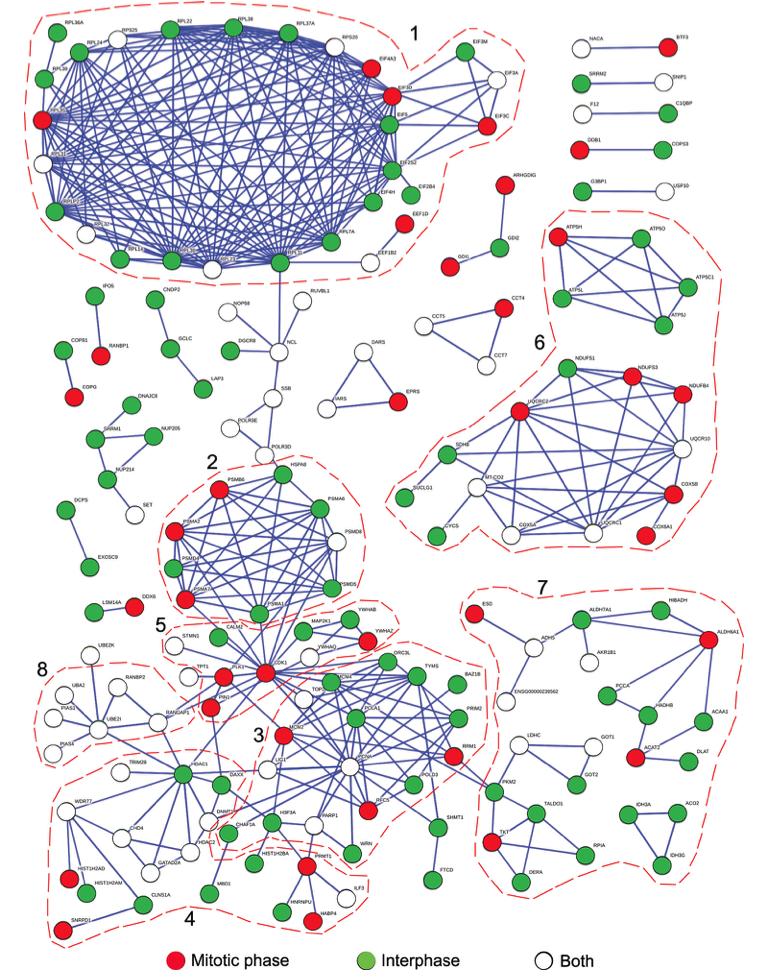

FIG. 6. Functional protein interaction network analysis based on the STRING database. The image illustrates a network analysis of sumoylated proteins that was created with STRING. Proteins isolated from mitotic phase, interphase or both were highlighted in red, green or white, respectively. The protein complexes and pathways highlighted by red circle are involved in: (1) ribosome assembly and translation; (2) proteasomal degradation; (3) DNA replication and repair; (4) chromatin remodeling and transcriptional regulation; (5) cell cycle regulation; (6) the mitochondrial respiratory chain; (7) metabolic regulation; and (8) the sumoylation pathway.
