???displayArticle.abstract???
BACKGROUND: Neuronal differentiation is largely under the control of basic Helix-Loop-Helix (bHLH) proneural transcription factors that play key roles during development of the embryonic nervous system. In addition to well-characterised regulation of their expression, increasing evidence is emerging for additional post-translational regulation of proneural protein activity. Of particular interest is the bHLH proneural factor Neurogenin2 (Ngn2), which orchestrates progression from neural progenitor to differentiated neuron in several regions of the central nervous system. Previous studies have demonstrated a key role for cell cycle-dependent multi-site phosphorylation of Ngn2 protein at Serine-Proline (SP) sites for regulation of its neuronal differentiation activity, although the potential structural and functional consequences of phosphorylation at different regions of the protein are unclear.
RESULTS: Here we characterise the role of phosphorylation of specific regions of Ngn2 on the stability of Ngn2 protein and on its neuronal differentiation activity in vivo in the developing embryo, demonstrating clearly that the location of SP sites is less important than the number of SP sites available for control of Ngn2 activity in vivo. We also provide structural evidence that Ngn2 contains large, intrinsically disordered regions that undergo phosphorylation by cyclin-dependent kinases (cdks).
CONCLUSIONS: Phosphorylation of Ngn2 occurs in both the N- and C-terminal regions, either side of the conserved basic Helix-Loop-Helix domain. While these phosphorylation events do not change the intrinsic stability of Ngn2, phosphorylation on multiple sites acts to limit its ability to drive neuronal differentiation in vivo. Phosphorylated regions of Ngn2 are predicted to be intrinsically disordered and cdk-dependent phosphorylation of these intrinsically disordered regions contributes to Ngn2 regulation.

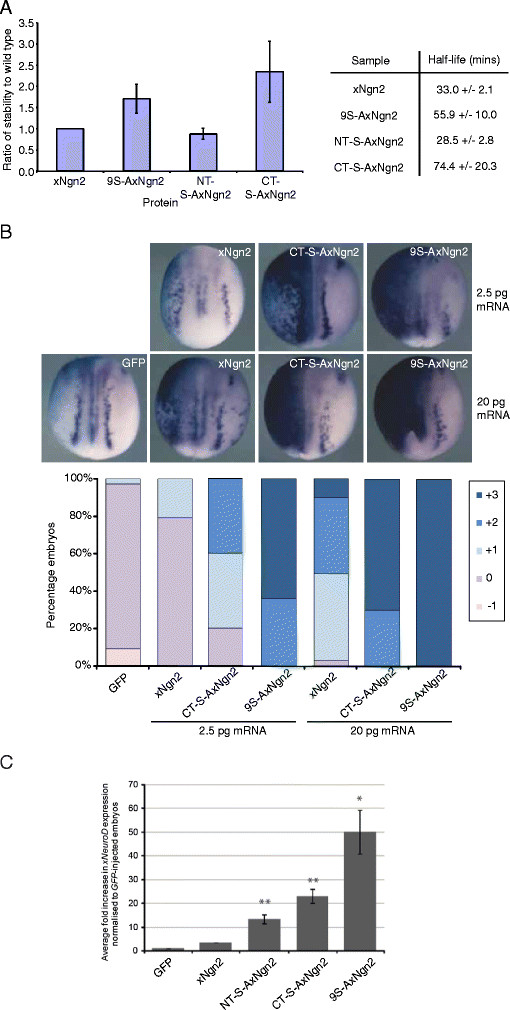

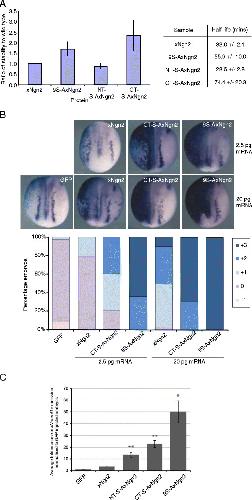

Figure 1. Phosphorylation at SP sites in both the N- and C-terminal regions regulates xNgn2 activity. (A)35S-labelled IVT xNgn2, or the indicated Serine-Proline to Alanine-Proline xNgn2 mutants, full phosphomutant (9S-AxNgn2), N-terminal region (NT-S-AxNgn2) or C-terminal region (CT-S-AxNgn2), were added to Xenopus laevis mitotic egg extracts and incubated at 21°C. Samples were taken at 0, 15, 30, 45, 60, 75, 90 and 120 mins and separated on 15% SDS-PAGE gels. Gels were analyzed by quantitative phosphorimaging analysis, calculating the average stabilization relative to wild-type xNgn2 within mitotic extract. Half-lives were calculated using first-order rate kinetics, and errors calculated using the Standard Error of the Mean (SEM). (B) Embryos were injected into 1 cell of 2 cells with the indicated amount of mRNA encoding GFP, xNgn2, CT-S-AxNgn2 or 9S-AxNgn2, injected side to the left. Embryos were fixed at stage 15 and subjected to in situ hybridization for neural ß-tubulin expression before being scored for increased neurogenesis on the injected side compared to the uninjected side on a scale of 0¿3 [38]. The experiment was performed in duplicate (n?=?17-37). (C) 1 cell-stage embryos were injected with 20 pg of mRNA encoding GFP, xNgn2, NT-S-AxNgn2, CT-S-AxNgn2 or 9S-AxNgn2, harvested at stage 15 and expression of xNeuroD analysed by qPCR (5 embryos per sample, n?=?3).

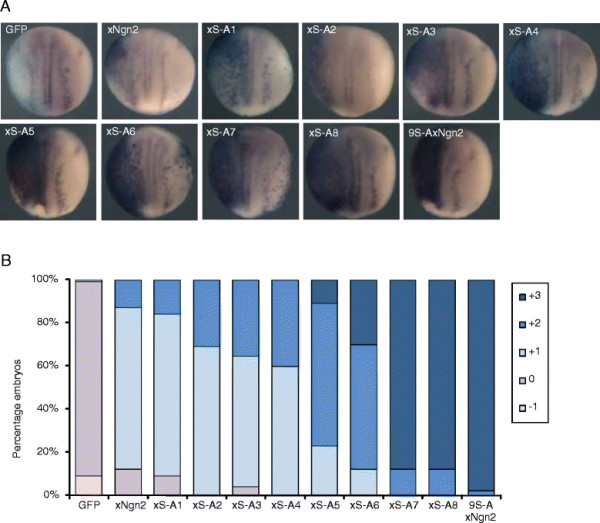

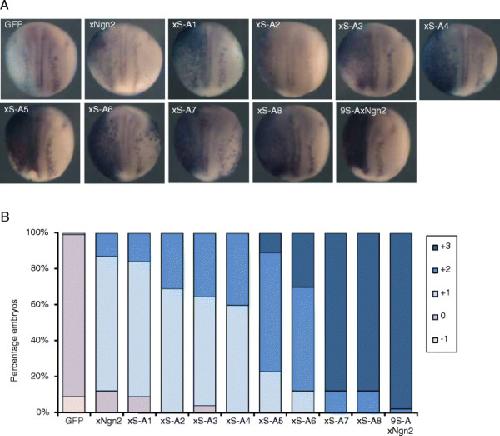

Figure 2. SP site availability semi-quantitatively controls neuronal differentiation activity of xNgn2in vivo. (A) Embryos were injected into 1 cell of 2 cells with 20 pg of mRNA encoding GFP, xNgn2, or the indicated mutant version of xNgn2 from the cumulative mutant series (see Additional file 2: Figure S2), injected side to the left. Embryos were fixed at stage 15 and subject to in situ hybridization for neural ß-tubulin expression. (B) Scoring of ectopic neurogenesis on the injected side of embryos from (A) on a scale of ?1 - +3 [38]. The experiment was performed in triplicate (n?=?47-87).

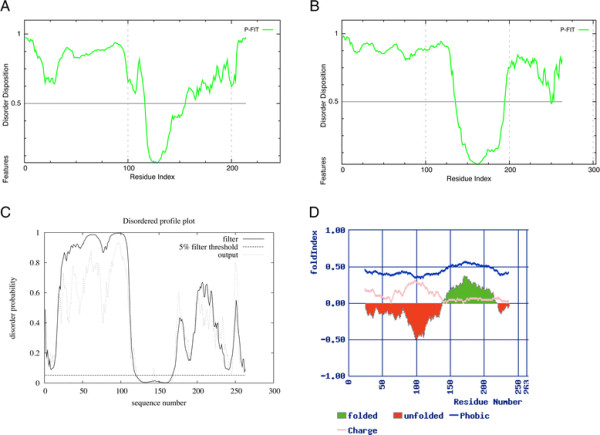

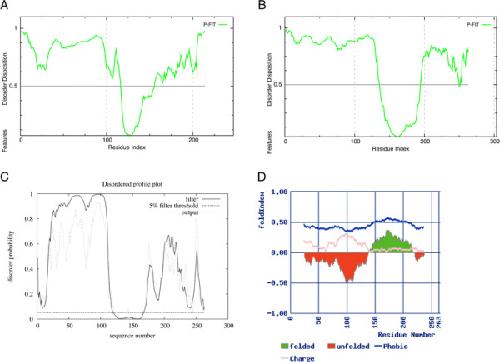

Figure 3. The terminal regions of Ngn2 are predicted to be intrinsically disordered. PONDR-FIT disorder predictions of (A) xNgn2 and (B) mNgn2. (C) DISOPRED2 and (D) FoldIndex disorder predictions of mNgn2.

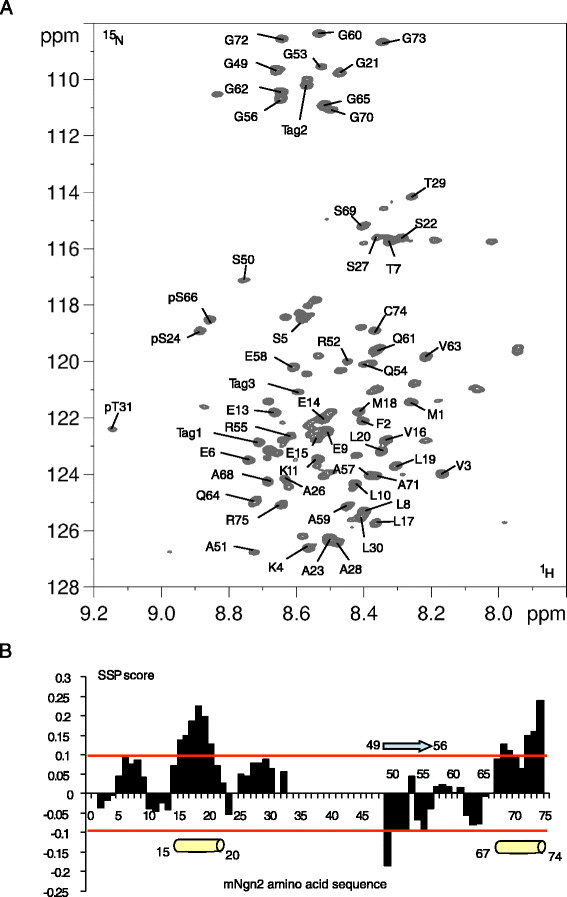

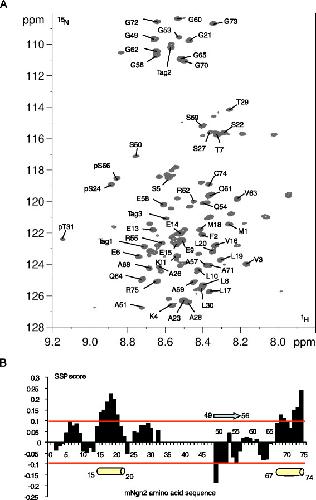

Figure 4. Annotated1H,15N 2D spectra of phosphorylated15N-mNgn2 showing altered structural positions of phosphorylated residues. (A) Detail of overlayed 2D [1H, 15N] HSQC spectra of 15N mNgn2 phosphorylated with cycA/CDK2. Resonances corresponding to phosphorylated Ser and Thr residues are labelled. (B) Secondary Structure Propensity (SSP, [46]) along the mNgn2 sequence calculated based on the available CA and CB chemical shifts (Additional file 4: Table S1). SSP scores correspond to a calculated percentage of occupancy: the 0.1/-0.1 thresholds, here represented as red lines, being empirically proposed for significance. Regions with positive values are associated with a preferential ?-helical conformation, here presented as cylinders. Regions with negative values are associated with a preferential extended conformation, here presented as arrows.
Aguado-Llera,
The basic helix-loop-helix region of human neurogenin 1 is a monomeric natively unfolded protein which forms a "fuzzy" complex upon DNA binding.
2010, Pubmed
Aguado-Llera,
The basic helix-loop-helix region of human neurogenin 1 is a monomeric natively unfolded protein which forms a "fuzzy" complex upon DNA binding.
2010,
Pubmed Ali,
Cell cycle-regulated multi-site phosphorylation of Neurogenin 2 coordinates cell cycling with differentiation during neurogenesis.
2011,
Pubmed
,
Xenbase Amniai,
Alzheimer disease specific phosphoepitopes of Tau interfere with assembly of tubulin but not binding to microtubules.
2009,
Pubmed Bertrand,
Proneural genes and the specification of neural cell types.
2002,
Pubmed Bienkiewicz,
Random-coil chemical shifts of phosphorylated amino acids.
1999,
Pubmed Brown,
The structural basis for specificity of substrate and recruitment peptides for cyclin-dependent kinases.
1999,
Pubmed Brown,
Evolutionary rate heterogeneity in proteins with long disordered regions.
2002,
Pubmed Chenna,
Multiple sequence alignment with the Clustal series of programs.
2003,
Pubmed Dunker,
Intrinsic disorder and protein function.
2002,
Pubmed Dunker,
The protein trinity--linking function and disorder.
2001,
Pubmed Dunker,
Intrinsically disordered protein.
2001,
Pubmed Dyson,
Coupling of folding and binding for unstructured proteins.
2002,
Pubmed Dyson,
The role of hydrophobic interactions in initiation and propagation of protein folding.
2006,
Pubmed Falk,
Gene delivery to adult neural stem cells.
2002,
Pubmed Farah,
Generation of neurons by transient expression of neural bHLH proteins in mammalian cells.
2000,
Pubmed Fode,
The bHLH protein NEUROGENIN 2 is a determination factor for epibranchial placode-derived sensory neurons.
1998,
Pubmed Gast,
Prothymosin alpha: a biologically active protein with random coil conformation.
1995,
Pubmed Gsponer,
Tight regulation of unstructured proteins: from transcript synthesis to protein degradation.
2008,
Pubmed Hager,
Transcription dynamics.
2009,
Pubmed Heng,
Neurogenin 2 controls cortical neuron migration through regulation of Rnd2.
2008,
Pubmed Hindley,
Post-translational modification of Ngn2 differentially affects transcription of distinct targets to regulate the balance between progenitor maintenance and differentiation.
2012,
Pubmed
,
Xenbase Iakoucheva,
The importance of intrinsic disorder for protein phosphorylation.
2004,
Pubmed Kaelin,
Expression cloning of a cDNA encoding a retinoblastoma-binding protein with E2F-like properties.
1992,
Pubmed Kitzmann,
cdk1- and cdk2-mediated phosphorylation of MyoD Ser200 in growing C2 myoblasts: role in modulating MyoD half-life and myogenic activity.
1999,
Pubmed Korzh,
Proneural, prosensory, antiglial: the many faces of neurogenins.
2002,
Pubmed
,
Xenbase Koyano-Nakagawa,
Activation of Xenopus genes required for lateral inhibition and neuronal differentiation during primary neurogenesis.
1999,
Pubmed
,
Xenbase Landrieu,
NMR analysis of a Tau phosphorylation pattern.
2006,
Pubmed Longo,
Crystal structure of E47-NeuroD1/beta2 bHLH domain-DNA complex: heterodimer selectivity and DNA recognition.
2008,
Pubmed Ma,
Regulation of motor neuron specification by phosphorylation of neurogenin 2.
2008,
Pubmed Ma,
Neurogenin1 and neurogenin2 control two distinct waves of neurogenesis in developing dorsal root ganglia.
1999,
Pubmed
,
Xenbase Marsh,
Sensitivity of secondary structure propensities to sequence differences between alpha- and gamma-synuclein: implications for fibrillation.
2006,
Pubmed Mattar,
A screen for downstream effectors of Neurogenin2 in the embryonic neocortex.
2004,
Pubmed McDowell,
Complex domain interactions regulate stability and activity of closely related proneural transcription factors.
2014,
Pubmed
,
Xenbase McDowell,
Non-canonical ubiquitylation of the proneural protein Ngn2 occurs in both Xenopus embryos and mammalian cells.
2010,
Pubmed
,
Xenbase Michel,
Fine tuning gene expression through short DNA-protein binding cycles.
2009,
Pubmed Prabakaran,
Post-translational modification: nature's escape from genetic imprisonment and the basis for dynamic information encoding.
2012,
Pubmed Prilusky,
FoldIndex: a simple tool to predict whether a given protein sequence is intrinsically unfolded.
2005,
Pubmed Russo,
Myogenic conversion of NIH3T3 cells by exogenous MyoD family members: dissociation of terminal differentiation from myotube formation.
1998,
Pubmed Seo,
The SWI/SNF chromatin remodeling protein Brg1 is required for vertebrate neurogenesis and mediates transactivation of Ngn and NeuroD.
2005,
Pubmed
,
Xenbase Strickfaden,
A mechanism for cell-cycle regulation of MAP kinase signaling in a yeast differentiation pathway.
2007,
Pubmed Sun,
Neurogenin promotes neurogenesis and inhibits glial differentiation by independent mechanisms.
2001,
Pubmed
,
Xenbase Takahashi,
Induction of pluripotent stem cells from mouse embryonic and adult fibroblast cultures by defined factors.
2006,
Pubmed Tao,
Purifying natively folded proteins from inclusion bodies using sarkosyl, Triton X-100, and CHAPS.
2010,
Pubmed Theillet,
Cell signaling, post-translational protein modifications and NMR spectroscopy.
2012,
Pubmed Vierbuchen,
Direct conversion of fibroblasts to functional neurons by defined factors.
2010,
Pubmed Vosper,
Regulation of neurogenin stability by ubiquitin-mediated proteolysis.
2007,
Pubmed
,
Xenbase Vosper,
Ubiquitylation on canonical and non-canonical sites targets the transcription factor neurogenin for ubiquitin-mediated proteolysis.
2009,
Pubmed
,
Xenbase Ward,
The DISOPRED server for the prediction of protein disorder.
2004,
Pubmed Ward,
Prediction and functional analysis of native disorder in proteins from the three kingdoms of life.
2004,
Pubmed Weinreb,
NACP, a protein implicated in Alzheimer's disease and learning, is natively unfolded.
1996,
Pubmed Wendt,
DNA-mediated folding and assembly of MyoD-E47 heterodimers.
1998,
Pubmed Wishart,
1H, 13C and 15N chemical shift referencing in biomolecular NMR.
1995,
Pubmed Wright,
Linking folding and binding.
2009,
Pubmed Xue,
PONDR-FIT: a meta-predictor of intrinsically disordered amino acids.
2010,
Pubmed Zhang,
Rapid single-step induction of functional neurons from human pluripotent stem cells.
2013,
Pubmed Zhou,
In vivo reprogramming of adult pancreatic exocrine cells to beta-cells.
2008,
Pubmed
