???displayArticle.abstract???
Completion of the Xenopus laevis genome sequence from inbred J strain animals has facilitated the generation of germline mutant X. laevis using targeted genome editing. In the last few years, numerous reports have demonstrated that TALENs are able to induce mutations in F0 Xenopus embryos, but none has demonstrated germline transmission of such mutations in X. laevis. In this report we used the oocyte host-transfer method to generate mutations in both tyrosinase homeologs and found highly-penetrant germline mutations; in contrast, embryonic injections yielded few germline mutations. We also compared the distribution of mutations in several F0 somatic tissues and germ cells and found that the majority of mutations in each tissue were different. These results establish that X. laevis J strain animals are very useful for generating germline mutations and that the oocyte host-transfer method is an efficient technique for generating mutations in both homeologs.
Fig. 1. Examples of F0 and F1 X. laevis tyr mutants. (A) Schematic diagram of tyrosinase locus, showing the five exons. The scissors show where the TALENs were designed to target the 3′ end of the first exon, and the arrows show the location of primers used for genotyping. (B) Picture of an 8-month-old tyr mutant F0 J strain frog generated by oocyte host transfer. Notice small patch of pigmentation in the body and eye (arrows). (C) Picture of an 8-month-old F0 tyr mutant frog generated by injection of TALEN mRNAs into one-cell stage embryos. (D) Picture of natural mating of two tyr mutant F0 frogs (OHT female and OHT male #1) at 14 months. (E) Picture of an F1 tyr mutant frog from mating of OHT female and OHT male #1 at 6 months of age.

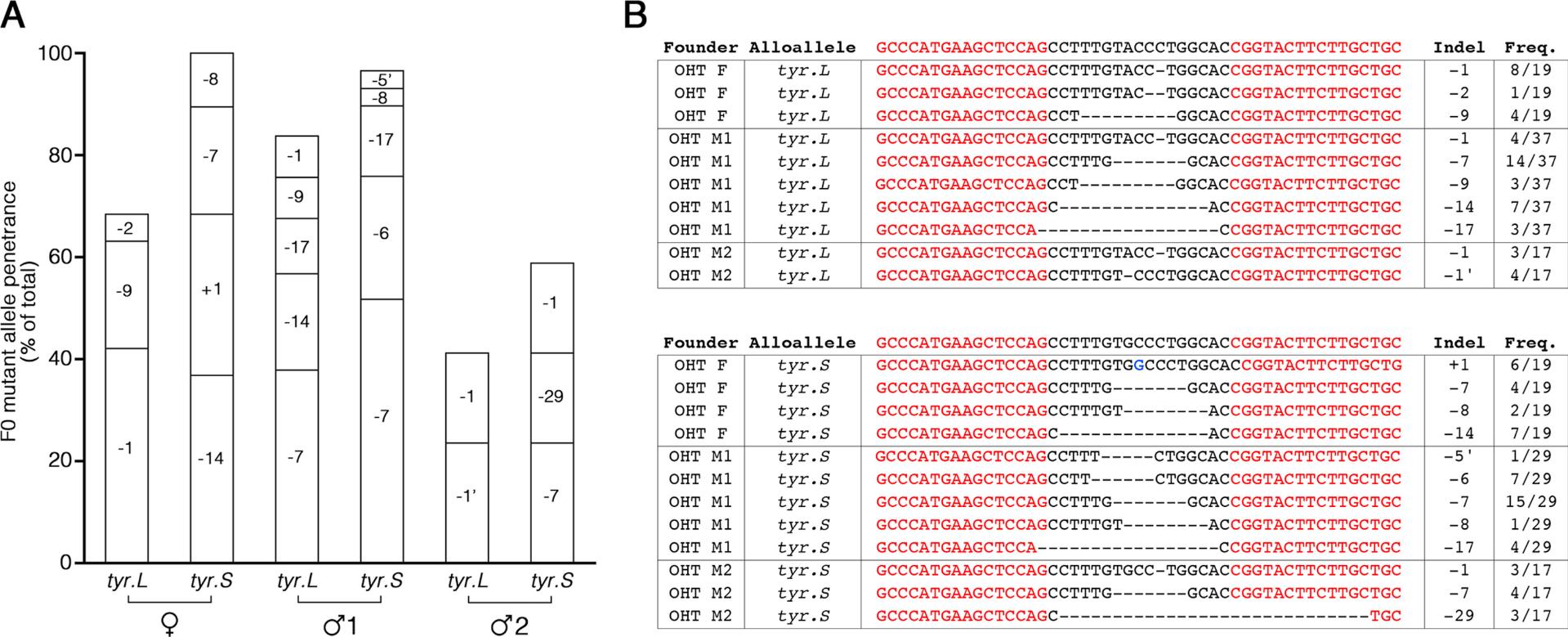

Fig. 2. Genotyping of F1 tyr mutant embryos. (A) Bar graph illustrating the frequency of tyr.L and tyr.S mutations in F1 embryos generated by mating F0 OHT frog with wild type J strain. Wild type alleles make up the remainder of each column. (B) Sequence of mutations identified in F1 embryos. Frequency refers to the number of F1 embryos that contained the mutation. Red font indicates TALEN target sites.

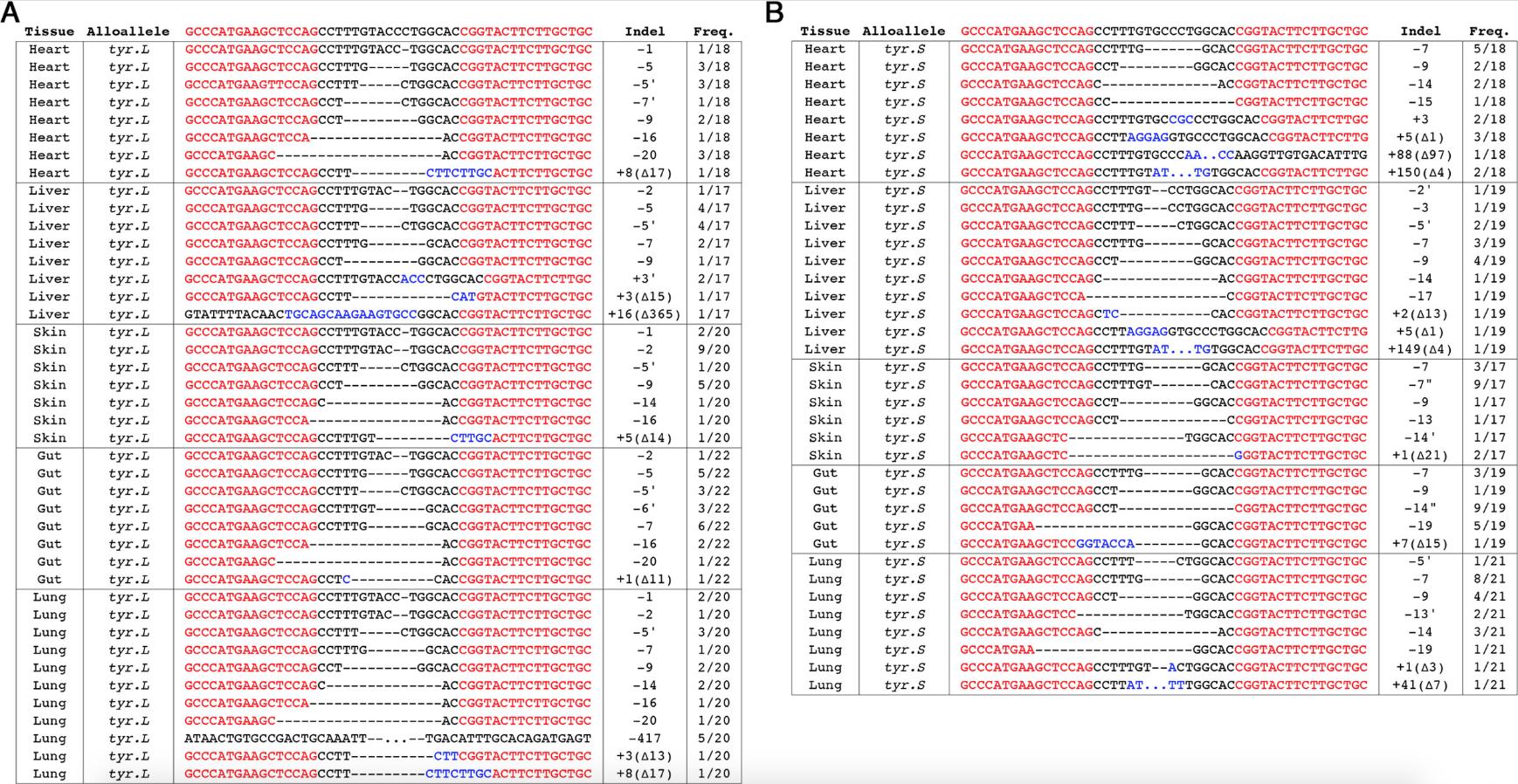

Fig. 3. Genotyping of F0 somatic tissue of female OHT tyr mutant frog. (A) Sequence of tyr.L mutations identified in the heart, liver, skin, gut and lung of F0 female OHT frog. (B) Sequence of tyr.S mutations identified in heart, liver, skin, gut and lung of F0 female OHT frog. Frequency refers to the number of clones that contained the mutation. Red font indicates TALEN target sites.
Blitz,
Biallelic genome modification in F(0) Xenopus tropicalis embryos using the CRISPR/Cas system.
2013, Pubmed,
Xenbase
Blitz,
Biallelic genome modification in F(0) Xenopus tropicalis embryos using the CRISPR/Cas system.
2013,
Pubmed
,
Xenbase Cermak,
Efficient design and assembly of custom TALEN and other TAL effector-based constructs for DNA targeting.
2011,
Pubmed Dale,
Fate map for the 32-cell stage of Xenopus laevis.
1987,
Pubmed
,
Xenbase Gantress,
Development and characterization of a model system to study amphibian immune responses to iridoviruses.
2003,
Pubmed
,
Xenbase Guo,
Efficient RNA/Cas9-mediated genome editing in Xenopus tropicalis.
2014,
Pubmed
,
Xenbase Harrison,
A CRISPR view of development.
2014,
Pubmed Heasman,
Fertilization of cultured Xenopus oocytes and use in studies of maternally inherited molecules.
1991,
Pubmed
,
Xenbase Houston,
A Xenopus DAZ-like gene encodes an RNA component of germ plasm and is a functional homologue of Drosophila boule.
1998,
Pubmed
,
Xenbase Hu,
Targeting human microRNA genes using engineered Tal-effector nucleases (TALENs).
2013,
Pubmed Ishibashi,
Highly efficient bi-allelic mutation rates using TALENs in Xenopus tropicalis.
2012,
Pubmed
,
Xenbase James-Zorn,
Xenbase: Core features, data acquisition, and data processing.
2015,
Pubmed
,
Xenbase Joung,
TALENs: a widely applicable technology for targeted genome editing.
2013,
Pubmed Kim,
A guide to genome engineering with programmable nucleases.
2014,
Pubmed Krylov,
Xenopus Cytogenetics and Chromosomal Evolution.
2015,
Pubmed
,
Xenbase Lei,
Efficient targeted gene disruption in Xenopus embryos using engineered transcription activator-like effector nucleases (TALENs).
2012,
Pubmed
,
Xenbase Matsuda,
A New Nomenclature of Xenopus laevis Chromosomes Based on the Phylogenetic Relationship to Silurana/Xenopus tropicalis.
2015,
Pubmed
,
Xenbase Miyamoto,
The Expression of TALEN before Fertilization Provides a Rapid Knock-Out Phenotype in Xenopus laevis Founder Embryos.
2015,
Pubmed
,
Xenbase Moody,
Segregation of fate during cleavage of frog (Xenopus laevis) blastomeres.
1990,
Pubmed
,
Xenbase Moody,
Fates of the blastomeres of the 32-cell-stage Xenopus embryo.
1987,
Pubmed
,
Xenbase Moody,
Fates of the blastomeres of the 16-cell stage Xenopus embryo.
1987,
Pubmed
,
Xenbase Nakade,
Homeolog-specific targeted mutagenesis in Xenopus laevis using TALENs.
2015,
Pubmed
,
Xenbase Nakajima,
Development of a new approach for targeted gene editing in primordial germ cells using TALENs in Xenopus.
2015,
Pubmed
,
Xenbase Nakajima,
Generation of albino Xenopus tropicalis using zinc-finger nucleases.
2012,
Pubmed
,
Xenbase Nakajima,
Highly efficient gene knockout by injection of TALEN mRNAs into oocytes and host transfer in Xenopus laevis.
2015,
Pubmed
,
Xenbase Nakayama,
Simple and efficient CRISPR/Cas9-mediated targeted mutagenesis in Xenopus tropicalis.
2013,
Pubmed
,
Xenbase Olson,
Maternal mRNA knock-down studies: antisense experiments using the host-transfer technique in Xenopus laevis and Xenopus tropicalis.
2012,
Pubmed
,
Xenbase Pearl,
Development of Xenopus resource centers: the National Xenopus Resource and the European Xenopus Resource Center.
2012,
Pubmed
,
Xenbase Peng,
Making designer mutants in model organisms.
2014,
Pubmed Ressom,
Relocation and reorganization of germ plasm in Xenopus embryos after fertilization.
1988,
Pubmed
,
Xenbase Sakane,
Targeted mutagenesis of multiple and paralogous genes in Xenopus laevis using two pairs of transcription activator-like effector nucleases.
2014,
Pubmed
,
Xenbase Suzuki,
High efficiency TALENs enable F0 functional analysis by targeted gene disruption in Xenopus laevis embryos.
2013,
Pubmed
,
Xenbase Tochinai,
COMPLETE ABROGATION OF IMMUNE RESPONSE TO SKIN ALLOGRAFTS AND RABBIT ERYTHROCYTES IN THE EARLY THYMECTOMIZED XENOPUS.
1975,
Pubmed
,
Xenbase
