???displayArticle.abstract???
Background: Understanding the general trends in developmental changes during animal evolution, which are often associated with morphological diversification, has long been a central issue in evolutionary developmental biology. Recent comparative transcriptomic studies revealed that gene expression profiles of mid-embryonic period tend to be more evolutionarily conserved than those in earlier or later periods. While the hourglass-like divergence of developmental processes has been demonstrated in a variety of animal groups such as vertebrates, arthropods, and nematodes, the exact mechanism leading to this mid-embryonic conservation remains to be clarified. One possibility is that the mid-embryonic period (pharyngula period in vertebrates) is highly prone to embryonic lethality, and the resulting negative selections lead to evolutionary conservation of this phase. Here, we tested this "mid-embryonic lethality hypothesis" by measuring the rate of lethal phenotypes of three different species of vertebrate embryos subjected to two kinds of perturbations: transient perturbations and genetic mutations.
Results: By subjecting zebrafish (Danio rerio), African clawed frog (Xenopus laevis), and chicken (Gallus gallus) embryos to transient perturbations, namely heat shock and inhibitor treatments during three developmental periods [early (represented by blastula and gastrula), pharyngula, and late], we found that the early stages showed the highest rate of lethal phenotypes in all three species. This result was corroborated by perturbation with genetic mutations. By tracking the survival rate of wild-type embryos and embryos with genetic mutations induced by UV irradiation in zebrafish and African clawed frogs, we found that the highest decrease in survival rate was at the early stages particularly around gastrulation in both these species.
Conclusion: In opposition to the "mid-embryonic lethality hypothesis," our results consistently showed that the stage with the highest lethality was not around the conserved pharyngula period, but rather around the early period in all the vertebrate species tested. These results suggest that negative selection by embryonic lethality could not explain hourglass-like conservation of animal embryos. This highlights the potential contribution of alternative mechanisms such as the diversifying effect of positive selections against earlier and later stages, and developmental constraints which lead to conservation of mid-embryonic stages.

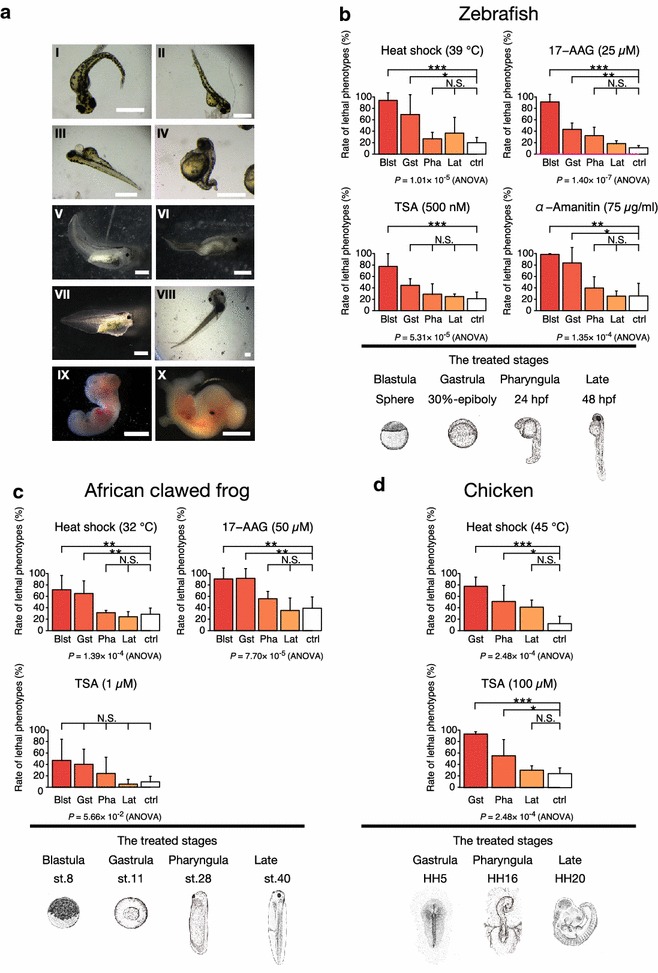

Fig. 1. Pharyngula stages did not show the highest rate of lethal phenotypes following transient perturbations. a Representative embryos that showed malformation or lethal phenotype. (I–IV) Zebrafish embryos with (I) curled trunk, (II) bent trunk axis, (III) pericardial edema, and (IV) shortened trunk. (V–VIII) African clawed frog embryos with (V) curled trunk and small eyes, (VI) severely bent trunk, (VII) edema and abnormal head, and (VIII) bent trunk axis. (IX, X) Chicken embryos with (IX) abnormal head and growth arrest, and (X) small eyes. Scale bars represent 1 mm (I–VIII) and 5 mm (IX, X). b–d Rate of lethal phenotypes rate after transient perturbation in b zebrafish, c African clawed frog, and d chicken. Phenotype evaluation was performed at hatch period in zebrafish, st. 45 in African clawed frog, and HH25 in chicken. Blst blastula, Gst gastrula, Pha pharyngula, Lat late embryo, ctrl untreated control group. Data are displayed as means, and error bars denote SD. Only significant differences between each treated group and the control group are shown. *P < 0.05, **P < 0.01, ***P < 0.001 (Tukey–Kramer method)

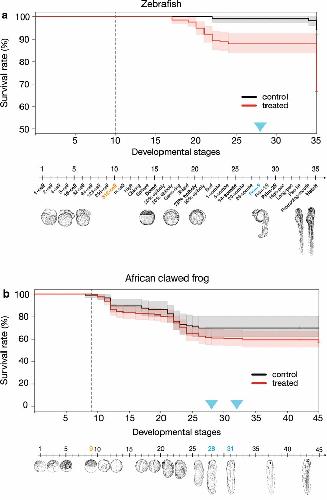

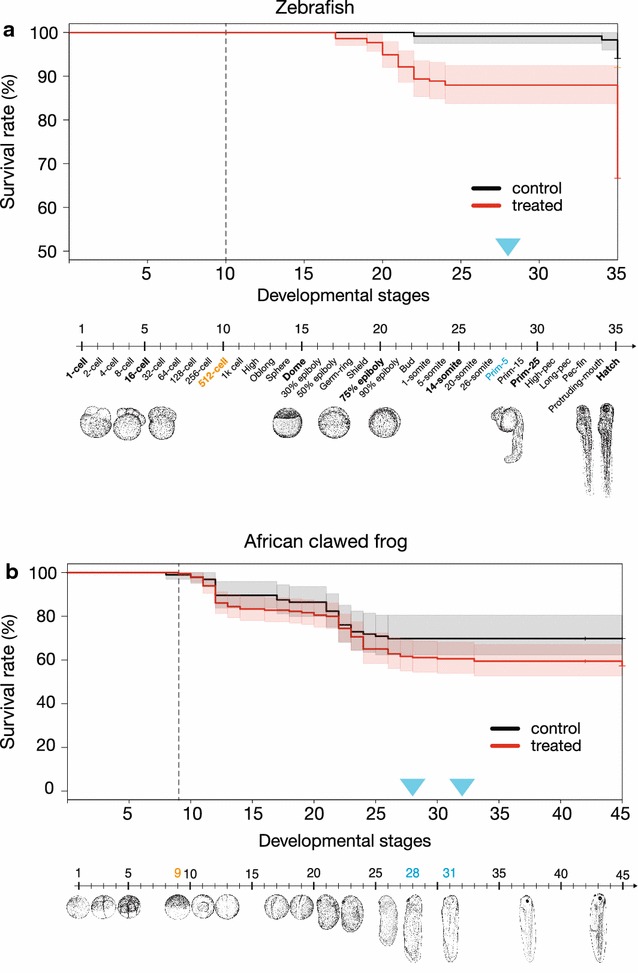

Fig. 2. Survival rate after UV irradiation decreased in the gastrula period, but not the pharyngula period. Kaplan–Meier survival curves of a zebrafish and b African clawed frog embryos after UV irradiation at the MZT period. Note that the horizontal axis shows successive developmental stages rather than actual time length. For zebrafish, developmental stages described by Kimmel et al. [35] were numbered sequentially from 1 to 35. Images of the developmental stages are shown below, with the numbers on the line corresponding to those in the survival curve x axis. Blue arrowheads, most conserved developmental periods in previous reports [18, 20]; black line, control; red line, UV-irradiated embryos; shaded area, 95% CI (confidence interval); vertical dotted line, UV irradiation. Numbers of embryos used in this analysis: zebrafish control group, n = 72; zebrafish treated group, n = 216; African clawed frog control group, n = 72; and African clawed frog treated group, n = 108
Ali,
Teratological effects of a panel of sixty water-soluble toxicants on zebrafish development.
2014, Pubmed
Ali,
Teratological effects of a panel of sixty water-soluble toxicants on zebrafish development.
2014,
Pubmed ALLEN,
Studies on sterility and prenatal mortality in wild rabbits; the reliability of estimates of prenatal mortality based on counts of corpora lutea, implantation sites and embryos.
1947,
Pubmed Balchin,
In vivo aspects of protein folding and quality control.
2016,
Pubmed Bininda-Emonds,
Inverting the hourglass: quantitative evidence against the phylotypic stage in vertebrate development.
2003,
Pubmed Bogdanović,
Active DNA demethylation at enhancers during the vertebrate phylotypic period.
2016,
Pubmed
,
Xenbase Campisi,
Cellular senescence: when bad things happen to good cells.
2007,
Pubmed Cheng,
A "developmental hourglass" in fungi.
2015,
Pubmed Cruickshank,
Microevolutionary support for a developmental hourglass: gene expression patterns shape sequence variation and divergence in Drosophila.
2008,
Pubmed Dickinson,
High-throughput discovery of novel developmental phenotypes.
2016,
Pubmed Domazet-Lošo,
A phylogenetically based transcriptome age index mirrors ontogenetic divergence patterns.
2010,
Pubmed Duboule,
Temporal colinearity and the phylotypic progression: a basis for the stability of a vertebrate Bauplan and the evolution of morphologies through heterochrony.
1994,
Pubmed Galis,
Why do almost all mammals have seven cervical vertebrae? Developmental constraints, Hox genes, and cancer.
1999,
Pubmed Galis,
Testing the vulnerability of the phylotypic stage: on modularity and evolutionary conservation.
2001,
Pubmed Haberland,
The many roles of histone deacetylases in development and physiology: implications for disease and therapy.
2009,
Pubmed Hamburger,
A series of normal stages in the development of the chick embryo. 1951.
1992,
Pubmed Hazkani-Covo,
In search of the vertebrate phylotypic stage: a molecular examination of the developmental hourglass model and von Baer's third law.
2005,
Pubmed Hu,
Constrained vertebrate evolution by pleiotropic genes.
2017,
Pubmed Ikehata,
The mechanisms of UV mutagenesis.
2011,
Pubmed Irie,
The developmental hourglass model: a predictor of the basic body plan?
2014,
Pubmed Irie,
The vertebrate phylotypic stage and an early bilaterian-related stage in mouse embryogenesis defined by genomic information.
2007,
Pubmed Irie,
Remaining questions related to the hourglass model in vertebrate evolution.
2017,
Pubmed Irie,
Comparative transcriptome analysis reveals vertebrate phylotypic period during organogenesis.
2011,
Pubmed
,
Xenbase Kalinka,
Gene expression divergence recapitulates the developmental hourglass model.
2010,
Pubmed Kalinka,
The evolution of early animal embryos: conservation or divergence?
2012,
Pubmed Khurana,
Hsp90, the concertmaster: tuning transcription.
2015,
Pubmed Kimmel,
Stages of embryonic development of the zebrafish.
1995,
Pubmed
,
Xenbase Levin,
Developmental milestones punctuate gene expression in the Caenorhabditis embryo.
2012,
Pubmed Lindell,
Specific inhibition of nuclear RNA polymerase II by alpha-amanitin.
1970,
Pubmed Macklon,
Conception to ongoing pregnancy: the 'black box' of early pregnancy loss.
2002,
Pubmed McAllister,
Neutral evolution of the sex-determining gene transformer in Drosophila.
2000,
Pubmed Onai,
The evolutionary origin of the vertebrate body plan: the problem of head segmentation.
2014,
Pubmed Pelham,
Speculations on the functions of the major heat shock and glucose-regulated proteins.
1986,
Pubmed Pfeifer,
Mutations induced by ultraviolet light.
2005,
Pubmed Pype,
Incubation at 32.5°C and above causes malformations in the zebrafish embryo.
2015,
Pubmed Quint,
A transcriptomic hourglass in plant embryogenesis.
2012,
Pubmed Richardson,
There is no highly conserved embryonic stage in the vertebrates: implications for current theories of evolution and development.
1997,
Pubmed Richardson,
Phylotypic stage theory.
1998,
Pubmed Roux,
Developmental constraints on vertebrate genome evolution.
2008,
Pubmed Schep,
A comparative analysis of transcription factor expression during metazoan embryonic development.
2013,
Pubmed
,
Xenbase Slack,
The zootype and the phylotypic stage.
1993,
Pubmed Tadros,
The maternal-to-zygotic transition: a play in two acts.
2009,
Pubmed Wagner,
Neutralism and selectionism: a network-based reconciliation.
2008,
Pubmed Wang,
The draft genomes of soft-shell turtle and green sea turtle yield insights into the development and evolution of the turtle-specific body plan.
2013,
Pubmed Whitsel,
An in ovo chicken model to study the systemic and localized teratogenic effects of valproic acid.
2002,
Pubmed Xu,
High expression of new genes in trochophore enlightening the ontogeny and evolution of trochozoans.
2016,
Pubmed Yanai,
Mapping gene expression in two Xenopus species: evolutionary constraints and developmental flexibility.
2011,
Pubmed
,
Xenbase Yeyati,
Hsp90 selectively modulates phenotype in vertebrate development.
2007,
Pubmed Young,
Embryonic bauplans and the developmental origins of facial diversity and constraint.
2014,
Pubmed Young,
Hsp90: a specialized but essential protein-folding tool.
2001,
Pubmed Zalts,
Developmental constraints shape the evolution of the nematode mid-developmental transition.
2017,
Pubmed
