???displayArticle.abstract???
Locomotion relies on the coordinated activity of rhythmic neurons in the hindbrain and spinal cord and depends critically on the intrinsic properties of excitatory interneurons. Therefore, understanding how ion channels sculpt the properties of these interneurons, and the consequences for circuit function and behavior, is an important task. The hyperpolarization-activated cation current, Ih, is known to play important roles in shaping neuronal properties and for rhythm generation in many neuronal networks. We show in stage 42 Xenopus laevis frog tadpoles that Ih is strongly expressed only in excitatory descending interneurons (dINs), an important ipsilaterally projecting population that drives swimming activity. The voltage-dependent HCN channel blocker ZD7288 completely abolished a prominent depolarizing sag potential in response to hyperpolarization, the hallmark of Ih, and hyperpolarized dINs. ZD7288 also affected dIN post-inhibitory rebound firing, upon which locomotor rhythm generation relies, and disrupted locomotor output. Block of Ih also unmasked an activity-dependent ultraslow afterhyperpolarization (usAHP) in dINs following swimming, mediated by a dynamic Na/K pump current. This usAHP, unmasked in dINs by ZD7288, resulted in suprathreshold stimuli failing to evoke swimming at short inter-swim intervals, indicating an important role for Ih in maintaining swim generation capacity and in setting the post-swim refractory period of the network. Collectively, our data suggest that the selective expression of Ih in dINs determines specific dIN properties that are important for rhythm generation and counteracts an activity-dependent usAHP to ensure that dINs can maintain coordinated swimming over a wide range of inter-swim intervals.

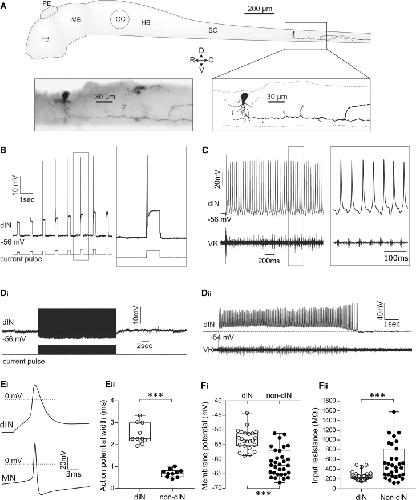

Figure 1. Properties of dINs in Stage 42 Larval Xenopus Tadpoles(A) The anatomy of a dIN. The axon courses ventrally and then caudally. Arrows on the image indicate the direction of the axon. FB, forebrain; HB, hindbrain; MB, midbrain; OC, otic capsule; PE, pineal eye; SC, spinal cord.(B) Responses of a dIN to depolarizing current pulses of increasing amplitude. Unlike non-dINs, suprathreshold pulses at all amplitudes generate only a single spike.(C) During swimming, dINs also only fire a single spike per swim cycle. VR, ventral root.(D) Unlike all other neuron types in the Xenopus spinal motor circuit, dINs never display a usAHP in response to a protocol inducing repetitive spiking (Di) or after swimming (Dii). Note that action potentials in (Di) have been truncated.(E) The action potential shape of larval dINs is different from non-dINs. Examples of a dIN and motoneuron (MN) action potential in response to a suprathreshold depolarizing pulse (Ei) are shown. Pooled action potential width of dINs and non-dINs measured at 0 mV (Eii; n = 10; ∗∗∗p < 0.001; median with 50% interquartile range (IQR) displayed as box-and-whisker plots).(F) The intrinsic properties of dINs (n = 28) differ from non-dINs (n = 31) and display a significantly more depolarized RMP (Fi) and significantly lower input resistance (Fii; median with 50% IQR displayed as box-and-whisker plots). ∗∗∗p < 0.001. See also Figure S1.

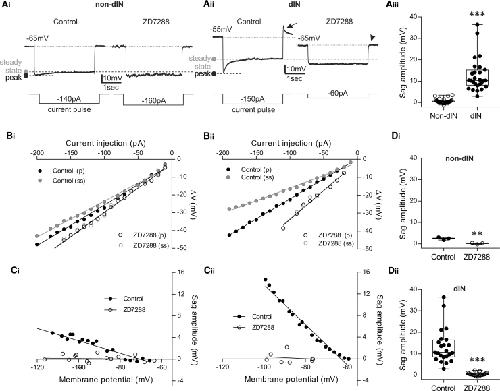

Figure 2. Ih Is Present in All dINs and in Some Non-dINs and Is Blocked by ZD7288(A) An example of a sag potential in a non-dIN (Ai) with and without ZD7288 (50 μM). The peak and steady-state membrane potential responses are indicated by dashed lines. (Aii) An example response of a dIN to hyperpolarizing current pulses (3-s duration). ZD7288 (10 μM) hyperpolarized the RMP (see also Figure 3) and abolished the large sag potentials observed at hyperpolarized membrane potentials. Arrow, post-inhibitory depolarization seen in control; arrow head, the membrane potential rebound was absent in the presence of ZD7288. (Aiii) Pooled data showing a comparison of the sag amplitude between −80 and −90 mV in dINs (n = 27) and non-dINs (n = 34; ∗∗∗p < 0.001; median with 50% IQR displayed as box-and-whisker plots).(B) The voltage-current (V-I) relationship for a non-dIN (Bi) and a dIN (Bii) in response to hyperpolarizing current pulses (3-s duration) of increasing amplitude (10 pA incremental steps) and the effect of 10–50 μM ZD7288. For both control (closed circles) and in ZD7288 (open circles), the peak (p) and the steady-state (ss) membrane potential change are plotted against each injected current amplitude.(C) The amplitude of the sag potentials in a non-dIN (Ci) and a dIN (Cii) was plotted against the membrane potential with (open circles) or without (closed circles) ZD7288.(D) Pooled data showing that ZD7288 (10–50 μM) significantly abolished the sag potential observed around −80 mV. Data are expressed as median with 50% IQR and displayed as box-and-whisker plots with individual data points. (Di): 3 non-dINs, p = 0.0048; (Dii): 23 dINs, p < 0.001; ∗∗p < 0.01; ∗∗∗p < 0.001. See also Figure S2.

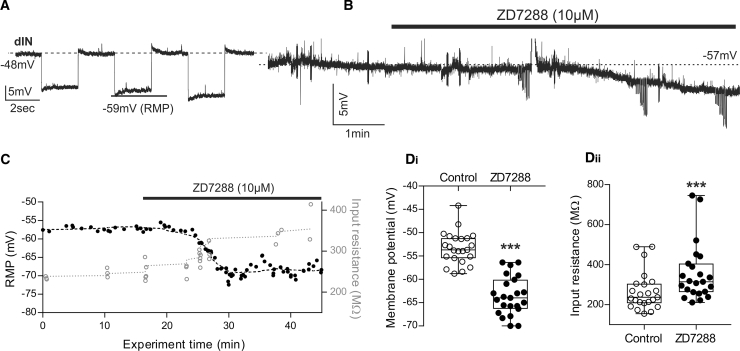

Figure 3. Ih Current Is Active at Rest and Contributes to the Intrinsic Properties of dINs(A) When dINs were held depolarized (∼−48 mV), hyperpolarizing pulses revealed a sag response around the original RMP.(B) Raw trace on a slow time base showing a clear membrane hyperpolarization of approximately 10 mV following the application of ZD7288 (10 μM). Blockade of Ih hyperpolarized all dINs.(C) Resting membrane potential (RMP) and input resistance plotted against experiment time for the experiment shown in (B). The hyperpolarization was accompanied by an increase in input resistance. Dashed line indicates the change of IR of the dIN in (B).(D) Pooled paired data showing that (Di) the membrane potential of dINs was significant hyperpolarized by ZD7288 (n = 23; p < 0.001; median with 50% IQR displayed as box-and-whisker plots). (Dii) Pooled paired data show a significant increase in input resistance in ZD7288 (n = 23; p < 0.001; median with 50% IQR displayed as box-and-whisker plots). ∗∗∗p < 0.001. See also Figure S2.

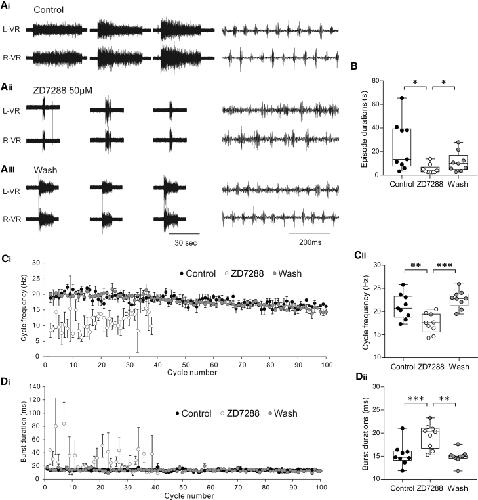

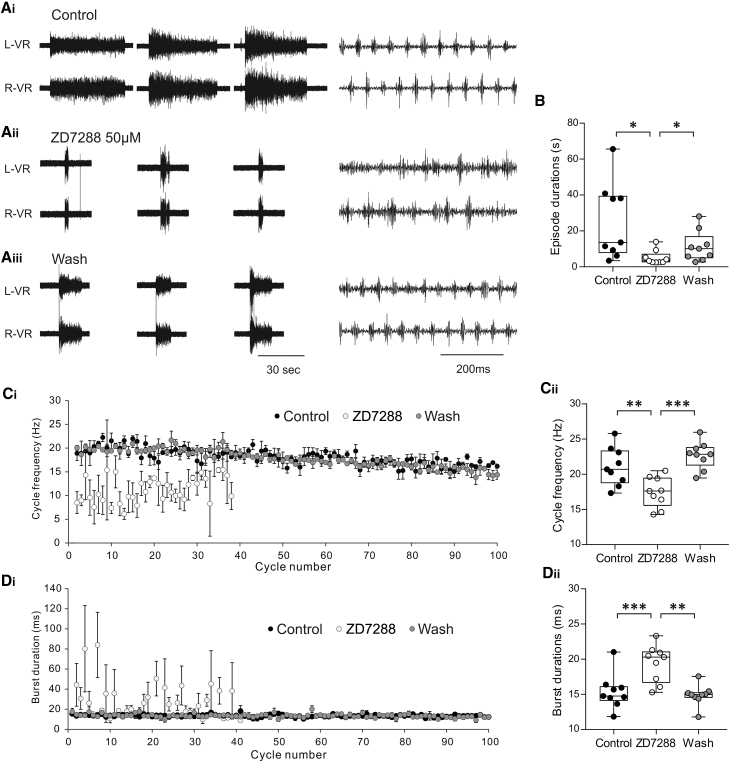

Figure 4. The Effects of ZD7288 on Xenopus Swim Network Output(A) Two simultaneously recorded raw ventral root traces on the left and right sides showing evoked swim episodes in control (Ai), in the presence of the Ih current blocker ZD7288 (50 μM; Aii), and after washout (Aiii). The right side panels show an expansion of fictive swimming activity.(B) ZD7288 (10–50 μM) significantly shortened episode duration (p = 0.026), and the effect was reversed following washout of ZD7288 (n = 9 complete experiments; p = 0.027; median with 50% IQR displayed as box-and-whisker plots).(C) Time plot showing (Ci) mean swim cycle frequency across 3 evoked episodes in control, ZD7288, and after washout. Note that the swim frequency is lower and more variable. (Cii) ZD7288 (50 μM) caused a significant decrease in cycle frequency (p = 0.0008; n = 9; median with 50% IQR displayed as box-and-whisker plots).(D) Time plot showing (Di) mean burst durations across 3 evoked episodes in control, ZD7288, and following washout. (Dii) ZD7288 (50 μM) caused a significant increase in burst duration (p = 0.0018; n = 9; median with 50% IQR displayed as box-and-whisker plots).∗p < 0.05; ∗∗p < 0.01; ∗∗∗p < 0.001. See also Figure S3.

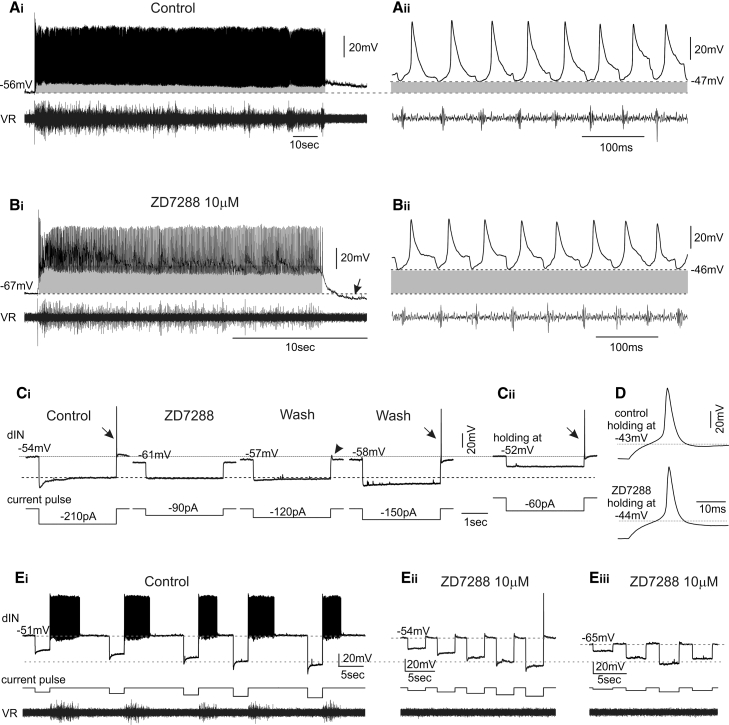

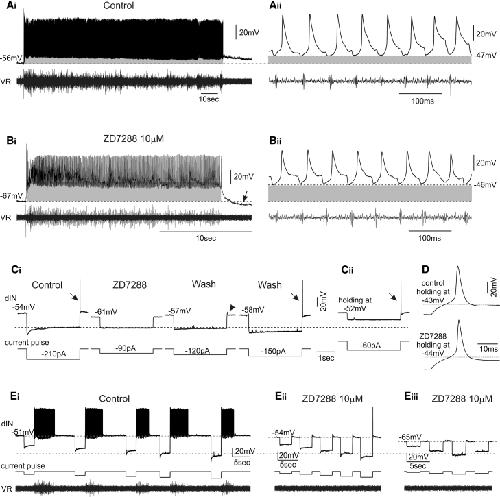

Figure 5. Blocking Ih Currents Alters dIN Firing during Swimming and Affects Rhythm Initiation(A) Example of a dIN firing during swimming.(B) In the presence of ZD7288, the tonic depolarization indicated by the gray area is larger and dINs fire at a more depolarized level. Note the different timescales in (Ai) and (Bi) and the shorter episode duration in the presence of ZD7288. The action potentials shown in (Bii) are smaller than those in (Aii). Arrow indicates a membrane hyperpolarization following the end of the swimming episode.(C) Membrane responses to (Ci) current pulses in control, in the presence of the Ih blocker ZD7288 (10 μM), and in wash. ZD7288 abolished both the sag currents and the PIR action potentials (arrow). Its effect could be partially reversed after a long wash. The post-inhibitory depolarization seen in control disappeared in the presence of ZD7288 and re-appeared during wash (arrow head). (Cii) In the presence of ZD7288, the PIR action potential could be induced when holding RMP to the control level by current injection.(D) The rebound action potential shapes in control condition and in ZD7288.(E) In some dINs (n = 3), (Ei) a single rebound action potential induced by a hyperpolarizing pulse initiated fictive swimming activity (note ventral root [VR] activity). (Eii) The property shown in (Ei) was abolished soon after ZD7288 was applied (approx. 10 min after drug application; n = 3), although PIR firing could still be evoked and the sag potential is only partially blocked. (Eiii) Later in ZD7288 treatment, both the PIR firing and the sag potential were totally abolished.

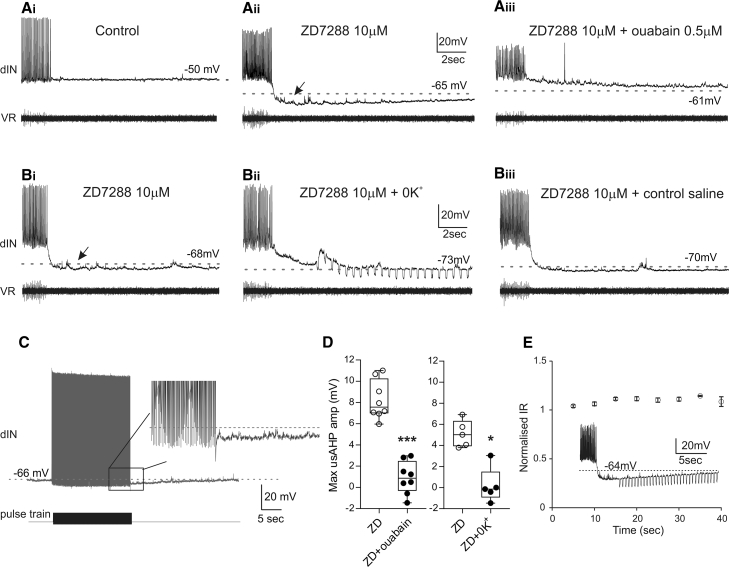

Figure 6. Blocking Ih Revealed a Post-swim usAHP(A) Following dIN firing in control, (Ai) the membrane potential repolarized to the baseline. (Aii) In the presence of 10 μM ZD7288, the RMP hyperpolarized (dashed line) and a long-lasting AHP appeared following the end of a swimming episode. (Aiii) The usAHP was abolished after adding 0.5 μM ouabain in the bath.(B) Another dIN displayed a usAHP in the presence of ZD7288 (Bi). Removing K+ ions from saline abolished the usAHP (Bii). After replacing 0K+ saline with control saline, the usAHP reappeared (Biii). Dotted lines in (A) and (B) indicate the resting membrane potentials. Downward deflections in (Bii) are conductance pulses.(C) A train of depolarizing pulses that mimics swimming was applied to dINs following ZD7288 treatment. A small afterhyperpolarization was observed in some dINs (8 out 12), which was never observed in control (see Figure 1Di).(D) Pooled data indicate that the maximum amplitude of usAHP was reduced significantly by 0.5 μM ouabain (left panel; n = 8; ∗∗∗p < 0.001) or 0K+ saline (right panel; n = 5; ∗p = 0.011). Data are expressed as median with 50% IQR and displayed as box-and-whisker plots with individual data points.(E) The input resistance (IR) during the usAHP period was tested and plotted against time. The inset shows an example of current pulses injected during usAHP period. Pooled data indicate that there was no significant change in input resistance during the usAHP (n = 3; one-way ANOVA; p = 0.26; mean ± SD).

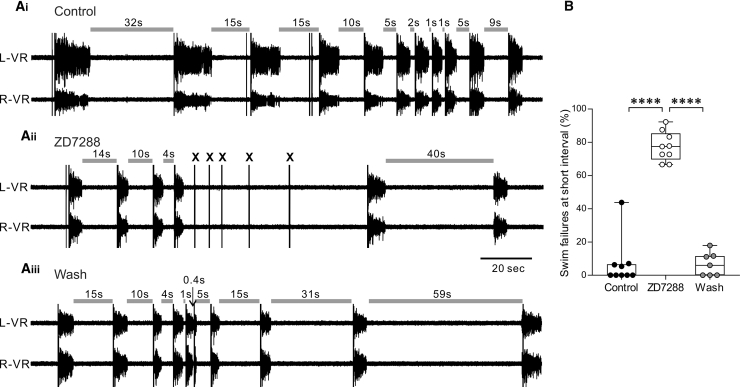

Figure 7. Block of Ih Current Disrupts the Relationship between Swim Interval and Episode Duration and Increases Swimming Failure at Short Intervals(A) Raw traces showing two simultaneously recorded ventral root traces on the left (L-VR) and right (R-VR) sides showing evoked swim episodes using variable inter-episode intervals. In control conditions (Ai), shortening the inter-episode interval reduces episode duration, but swimming can still be reliably evoked at very short intervals (≤2 s). In the presence of ZD7288, swimming initiation failed at short intervals (Aii; crosses, stimuli failing to evoke swimming), an effect which reversed upon drug washout (Aiii).(B) Pooled data illustrating that block of Ih significantly increases the swim failure rate at short inter-swim intervals (n = 6; median with 50% IQR displayed as box-and-whisker plot). ∗∗∗∗p < 0.0001.
Angstadt,
A hyperpolarization-activated inward current in heart interneurons of the medicinal leech.
1989, Pubmed
Angstadt,
A hyperpolarization-activated inward current in heart interneurons of the medicinal leech.
1989,
Pubmed Baginskas,
The H-current secures action potential transmission at high frequencies in rat cerebellar parallel fibers.
2009,
Pubmed Biel,
Hyperpolarization-activated cation channels: from genes to function.
2009,
Pubmed Butt,
Firing properties of identified interneuron populations in the mammalian hindlimb central pattern generator.
2002,
Pubmed Craven,
CNG and HCN channels: two peas, one pod.
2006,
Pubmed Currie,
Developmental changes in spinal neuronal properties, motor network configuration, and neuromodulation at free-swimming stages of Xenopus tadpoles.
2018,
Pubmed
,
Xenbase Darbon,
INaP underlies intrinsic spiking and rhythm generation in networks of cultured rat spinal cord neurons.
2004,
Pubmed Gerard,
Functional properties and cell type specific distribution of I(h) channels in leech neurons.
2012,
Pubmed Gulledge,
A sodium-pump-mediated afterhyperpolarization in pyramidal neurons.
2013,
Pubmed Hardie,
Active and passive membrane properties and intrinsic kinetics shape synaptic inhibition in hippocampal CA1 pyramidal neurons.
2006,
Pubmed Harris-Warrick,
Neuromodulation and flexibility in Central Pattern Generator networks.
2011,
Pubmed Harris-Warrick,
Dopamine modulation of two subthreshold currents produces phase shifts in activity of an identified motoneuron.
1995,
Pubmed Hull,
Modelling Feedback Excitation, Pacemaker Properties and Sensory Switching of Electrically Coupled Brainstem Neurons Controlling Rhythmic Activity.
2016,
Pubmed
,
Xenbase Kang,
Bidirectional interactions between h-channels and Na+-K+ pumps in mesencephalic trigeminal neurons.
2004,
Pubmed Kiehn,
Decoding the organization of spinal circuits that control locomotion.
2016,
Pubmed Kiehn,
Contributions of intrinsic motor neuron properties to the production of rhythmic motor output in the mammalian spinal cord.
2000,
Pubmed Kim,
Suppression of spikes during posttetanic hyperpolarization in auditory neurons: the role of temperature, I(h) currents, and the Na(+)-K(+)-ATPase pump.
2012,
Pubmed Kueh,
Na(+)/K(+) pump interacts with the h-current to control bursting activity in central pattern generator neurons of leeches.
2016,
Pubmed Kuo,
Na+ channels must deactivate to recover from inactivation.
1994,
Pubmed Li,
Persistent responses to brief stimuli: feedback excitation among brainstem neurons.
2006,
Pubmed
,
Xenbase Li,
The control of locomotor frequency by excitation and inhibition.
2012,
Pubmed
,
Xenbase Maccaferri,
The hyperpolarization-activated current (Ih) and its contribution to pacemaker activity in rat CA1 hippocampal stratum oriens-alveus interneurones.
1996,
Pubmed Magee,
Dendritic hyperpolarization-activated currents modify the integrative properties of hippocampal CA1 pyramidal neurons.
1998,
Pubmed McCormick,
Properties of a hyperpolarization-activated cation current and its role in rhythmic oscillation in thalamic relay neurones.
1990,
Pubmed Moosmang,
Cellular expression and functional characterization of four hyperpolarization-activated pacemaker channels in cardiac and neuronal tissues.
2001,
Pubmed Moult,
Fast silencing reveals a lost role for reciprocal inhibition in locomotion.
2013,
Pubmed
,
Xenbase Noma,
Membrane currents in the rabbit sinoatrial node cell as studied by the double microelectrode method.
1976,
Pubmed Pape,
Queer current and pacemaker: the hyperpolarization-activated cation current in neurons.
1996,
Pubmed Pavlov,
I(h)-mediated depolarization enhances the temporal precision of neuronal integration.
2011,
Pubmed Peck,
Amine modulation of Ih in a small neural network.
2006,
Pubmed Picton,
Sodium Pumps Mediate Activity-Dependent Changes in Mammalian Motor Networks.
2017,
Pubmed Pirtle,
A hyperpolarization-activated inward current alters swim frequency of the pteropod mollusk Clione limacina.
2010,
Pubmed Pirtle,
The role of postinhibitory rebound in the locomotor central-pattern generator of Clione limacina.
2007,
Pubmed Robert,
Axonal and glial currents activated during the post-tetanic hyperpolarization in non-myelinated nerve.
1998,
Pubmed Roberts,
How neurons generate behavior in a hatchling amphibian tadpole: an outline.
2010,
Pubmed
,
Xenbase Robinson,
Hyperpolarization-activated cation currents: from molecules to physiological function.
2003,
Pubmed Rozzo,
Experimental and modeling studies of novel bursts induced by blocking na(+) pump and synaptic inhibition in the rat spinal cord.
2002,
Pubmed Sautois,
Role of type-specific neuron properties in a spinal cord motor network.
2007,
Pubmed Sillar,
The development of swimming rhythmicity in post-embryonic Xenopus laevis.
1991,
Pubmed
,
Xenbase Smith,
Intrinsic properties shape the firing pattern of ventral horn interneurons from the spinal cord of the adult turtle.
2006,
Pubmed Svensson,
The modulation of two motor behaviors by persistent sodium currents in Xenopus laevis tadpoles.
2017,
Pubmed
,
Xenbase Takahashi,
Inward rectification in neonatal rat spinal motoneurones.
1990,
Pubmed Thoby-Brisson,
The role of the hyperpolarization-activated current in modulating rhythmic activity in the isolated respiratory network of mice.
2000,
Pubmed Tobin,
Myomodulin increases Ih and inhibits the NA/K pump to modulate bursting in leech heart interneurons.
2005,
Pubmed Yi,
Dendritic HCN channels shape excitatory postsynaptic potentials at the inner hair cell afferent synapse in the mammalian cochlea.
2010,
Pubmed Zhang,
Short-term memory of motor network performance via activity-dependent potentiation of Na+/K+ pump function.
2012,
Pubmed
,
Xenbase Zhang,
Overexpression of a hyperpolarization-activated cation current (Ih) channel gene modifies the firing activity of identified motor neurons in a small neural network.
2003,
Pubmed Zhang,
Mechanisms underlying the activity-dependent regulation of locomotor network performance by the Na+ pump.
2015,
Pubmed
,
Xenbase Zhang,
Development of a spinal locomotor rheostat.
2011,
Pubmed
,
Xenbase
