Hongo H et al. (2023), Somatic GJA4 gain-of-function mutation in orbit...

XB-ART-59239

Angiogenesis 2023 Feb 01;261:37-52. doi: 10.1007/s10456-022-09846-5.

Show Gene links Show Anatomy links

Somatic GJA4 gain-of-function mutation in orbital cavernous venous malformations.

Hongo H, Miyawaki S, Teranishi Y, Mitsui J, Katoh H, Komura D, Tsubota K, Matsukawa T, Watanabe M, Kurita M, Yoshimura J, Dofuku S, Ohara K, Ishigami D, Okano A, Kato M, Hakuno F, Takahashi A, Kunita A, Ishiura H, Shin M, Nakatomi H, Nagao T, Goto H, Takahashi SI, Ushiku T, Ishikawa S, Okazaki M, Morishita S, Tsuji S, Saito N.

???displayArticle.abstract???
Orbital cavernous venous malformation (OCVM) is a sporadic vascular anomaly of uncertain etiology characterized by abnormally dilated vascular channels. Here, we identify a somatic missense mutation, c.121G > T (p.Gly41Cys) in GJA4, which encodes a transmembrane protein that is a component of gap junctions and hemichannels in the vascular system, in OCVM tissues from 25/26 (96.2%) individuals with OCVM. GJA4 expression was detected in OCVM tissue including endothelial cells and the stroma, through immunohistochemistry. Within OCVM tissue, the mutation allele frequency was higher in endothelial cell-enriched fractions obtained using magnetic-activated cell sorting. Whole-cell voltage clamp analysis in Xenopus oocytes revealed that GJA4 c.121G > T (p.Gly41Cys) is a gain-of-function mutation that leads to the formation of a hyperactive hemichannel. Overexpression of the mutant protein in human umbilical vein endothelial cells led to a loss of cellular integrity, which was rescued by carbenoxolone, a non-specific gap junction/hemichannel inhibitor. Our data suggest that GJA4 c.121G > T (p.Gly41Cys) is a potential driver gene mutation for OCVM. We propose that hyperactive hemichannel plays a role in the development of this vascular phenotype.

???displayArticle.pubmedLink??? 35902510
???displayArticle.pmcLink??? PMC9908695
???displayArticle.link??? Angiogenesis
???displayArticle.grants??? [+]

Species referenced: Xenopus laevis
Genes referenced: arhgap26 bpgm cntn1 col6a5 cyp4b1 flt1 gja4 gjd2 gpx3 kcnd2 lamb2 mtus1 ncoa1 ncs1 ptch1 ptprt slc12a1 slc34a2 slco2a1 sp7 trip12 upb1

???attribute.lit??? ???displayArticles.show???

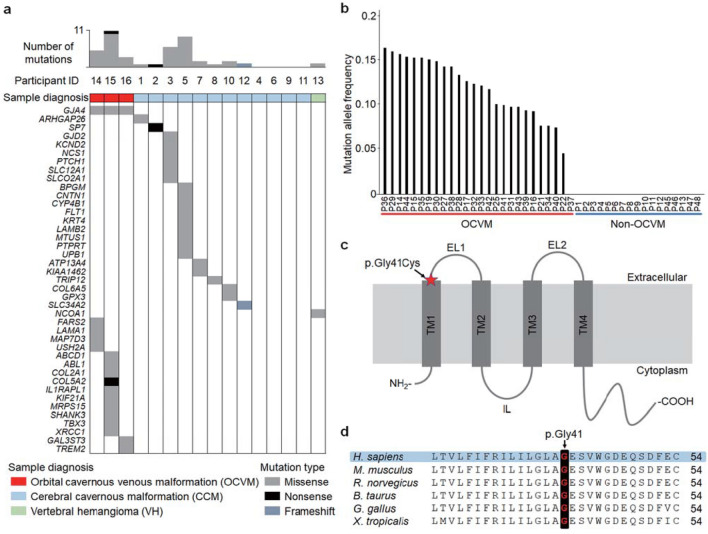

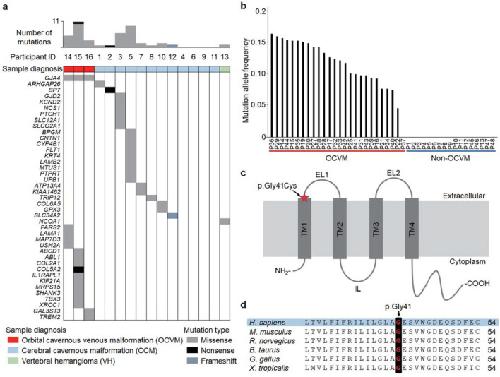

	Fig. 1. Identification of GJA4 c.121G > T (p.Gly41Cys) in OCVM tissues. a Mutational profiles of vascular anomalies in the discovery cohort. Gene names on the left belong to genes in which somatic mutations were detected. Colored cells represent somatically mutated genes, and color denotes mutation type. b MAF of GJA4 c.121G > T (p.Gly41Cys) was determined using ddPCR analysis in tissue samples from the discovery and validation cohorts. c Position of GJA4 c.121G > T (p.Gly41Cys) in GJA4 (NP_002051.2). TM, transmembrane; EL extracellular loop, IL intracellular loop. d Conservation of Gly41 position in GJA4 orthologs. H. sapiens, human (NP_002051.2); M. musculus, mouse (NP_032146.1); R. norvegicus, rat (NP_067686.1); B. taurus, cattle (NP_001077207.1); G. gallus, chicken (NP_996867.3); X. tropicalis, western clawed frog (NP_001072904.1). Sequence alignments, CLUSTALW

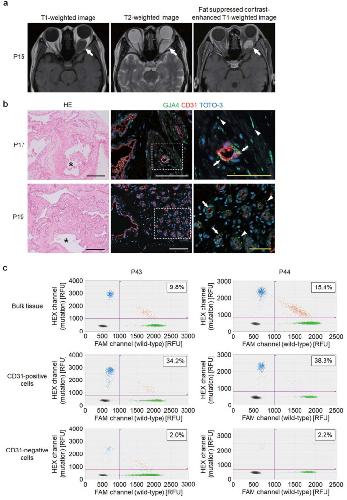

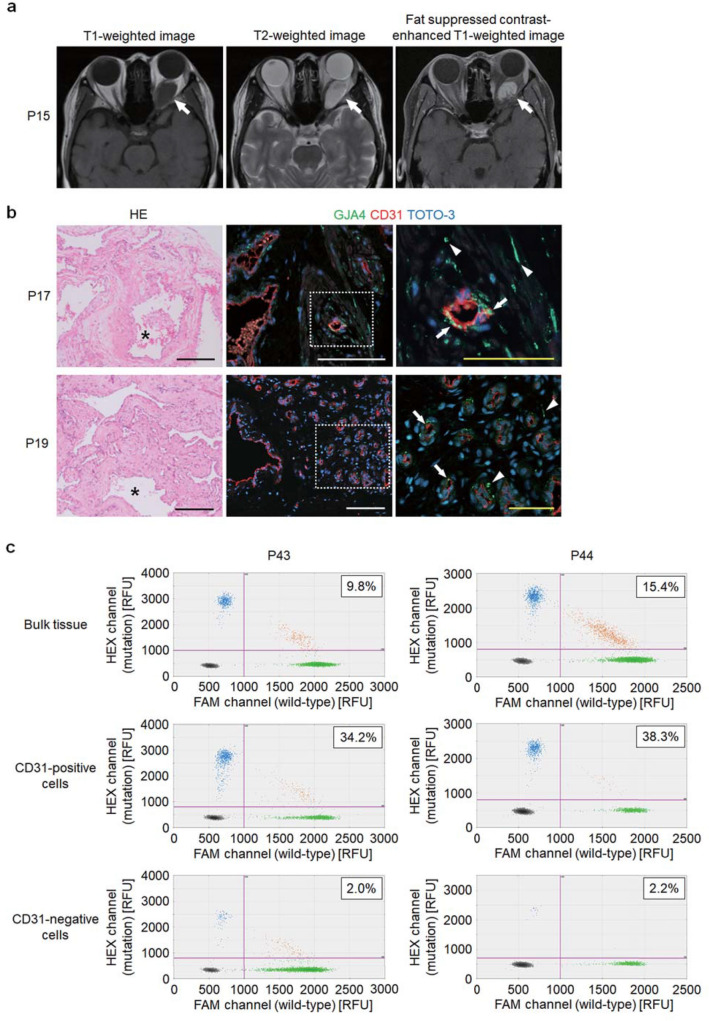

	Fig. 2. GJA4 expression and GJA4 c.121G > T (p.Gly41Cys) mutation allele frequency in OCVM endothelial cells. a Representative MRI images of OCVM lesions (images of P15). b Hematoxylin and eosin (HE) staining (left) and immunostaining images for GJA4, endothelial cell marker CD31, and nuclear marker TOTO®-3 (middle and right) of sections of OCVM tissue from P17 and P19. Asterisks indicate vascular channels. White dotted lines indicate the positions of magnified panels (right). Arrows indicate GJA4 expression in endothelial cells, and arrowheads indicate GJA4 expression in non-endothelial cells. Black, white, and yellow scale bars indicate 200, 100, and 50 μm respectively. c Results of the quantification of mutation allele abundance using ddPCR in bulk tissue, CD31-positive and negative cells, from prospectively collected samples from 2 OCVMs (P43 and P44). Each dot represents a droplet, with blue being mutation positive, green being wild-type positive, and orange being positive for both. The boxed number is the fractional abundance of mutation allele in each sample

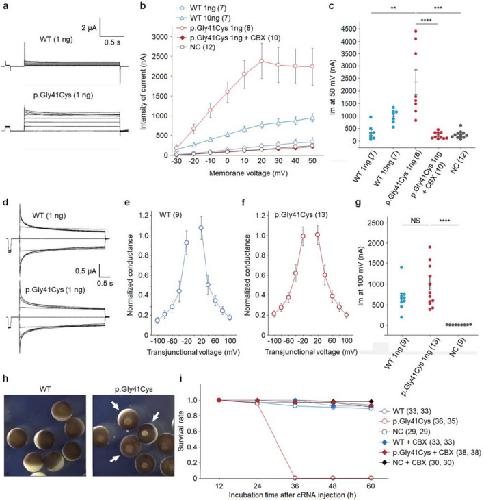

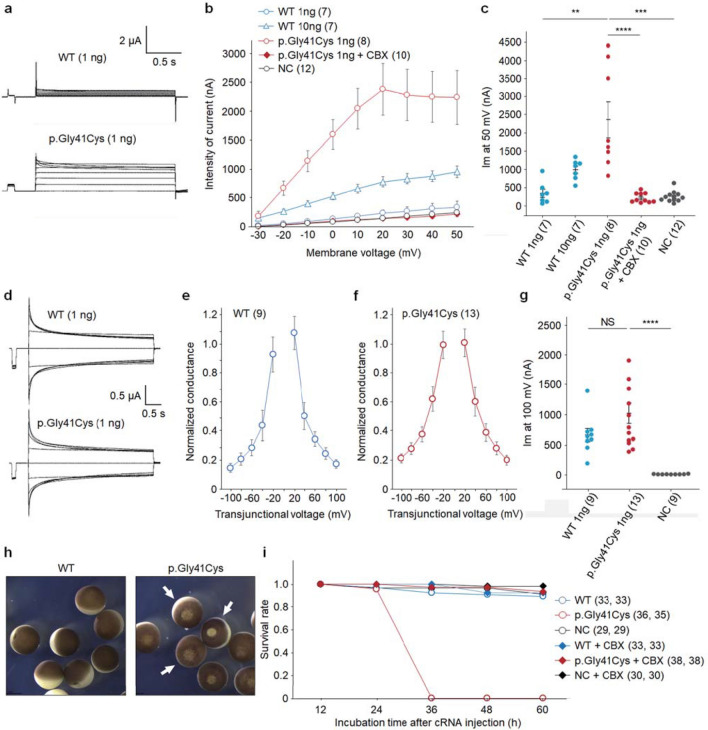

	Fig. 3. GJA4 p.Gly41Cys increases GJA4 hemichannel activity. a Representative whole-cell voltage clamp hemichannel-recording of Xenopus oocytes injected with 1 ng of GJA4 WT or GJA4 p.Gly41Cys cRNA. b Intensity of hemichannel currents at the steady state plotted as a function of membrane voltage. The number of oocytes analyzed is given in parentheses. Data are shown as means ± SEM. c Comparison of hemichannel currents at a steady state of 50 mV membrane voltage. Data are shown as means ± SEM. d Representative whole-cell voltage clamp gap junction-recording of Xenopus oocytes injected with 1 ng GJA4 WT or GJA4 p.Gly41Cys cRNA. e A plot of normalized steady state junctional conductance versus transjunctional voltage (Gj–Vj plot) for GJA4 WT. The number of oocytes analyzed is given in parentheses. Data are shown as means ± SEM. f Plots of normalized steady state junctional conductance versus transjunctional voltage (Gj–Vj plot) for GJA4 p.Gly41Cys. The number of oocytes analyzed is given in parentheses. Data are shown as means ± SEM. g Comparison of transjunctional current at a steady state of 100 mV membrane voltage. Data are shown as means ± SEM. P value was calculated using a two-tailed t test. h Images showing the deleterious effect of GJA4 on oocytes (arrows) injected with GJA4 c.121G > T (p.Gly41Cys) compared with GJA4 WT 36 h after cRNA injections. i Plots of survival rates of oocytes injected with GJA4 WT and c.121G > T (p.Gly41Cys). The number of oocytes analyzed is given in parentheses. The averages of two replicated experiments were plotted. P values were calculated using a two-tailed t test. NS not significant; p < 0.05; p < 0.01; p < 0.001; **p < 0.0001

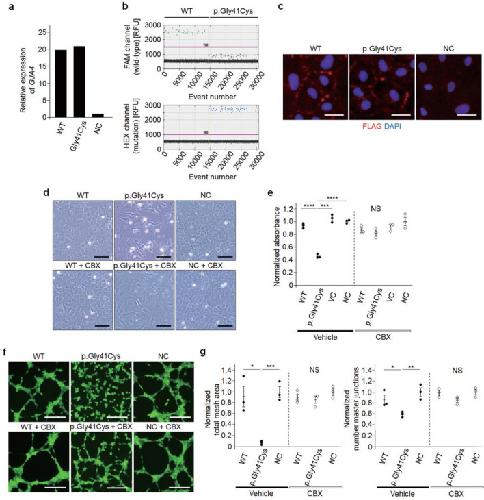

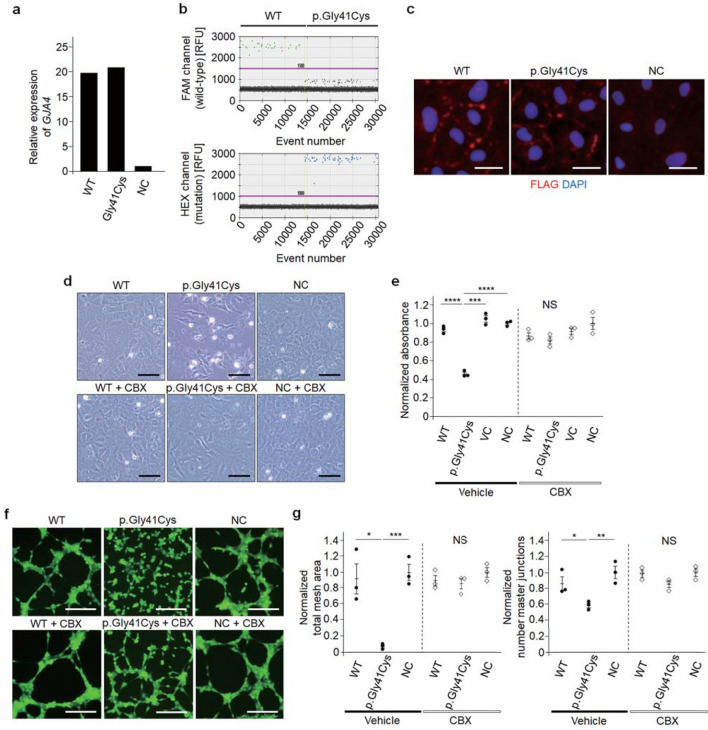

	Fig. 4. GJA4 p.Gly41Cys dysregulates endothelial cell-function, which is rescued by a connexin inhibitor. a qPCR analyses of GJA4 mRNA in HUVECs transfected with GJA4 WT or GJA4 c.121G > T (p.Gly41Cys). b ddPCR analysis of GJA4 cDNA in HUVECs transfected with GJA4 WT or GJA4 c.121G > T (p.Gly41Cys). Each dot represents a droplet, with blue being mutation positive, and green being wild-type positive. c Immunostaining for FLAG and nuclear marker DAPI of HUVECs transfected with GJA4 WT-FLAG, GJA4 c.121G > T (p.Gly41Cys)-FLAG, or normal control. Scale bars, 15 μm. d Representative image of HUVECs transfected with GJA4 WT, GJA4 c.121G > T (p.Gly41Cys), or normal control, and efficacy of CBX. Scale bars, 50 μm. e Quantification of cell viability of HUVECs transfected with GJA4 WT, GJA4 c.121G > T (p.Gly41Cys), vector control, and normal control using the MTT assay. f Representative images of tube formation assay of HUVECs transfected with GJA4 WT, GJA4 c.121G > T (p.Gly41Cys), or normal control, and the efficacy of CBX. Scale bars, 200 μm. g Quantification of tube formation in HUVECs transfected with GJA4 WT, GJA4 c.121G > T (p.Gly41Cys), and normal control by total mesh area (left) and number master junctions (right). P values were calculated using a two-tailed t test. NS, not significant; p < 0.05; p < 0.01; p < 0.001; **p < 0.0001

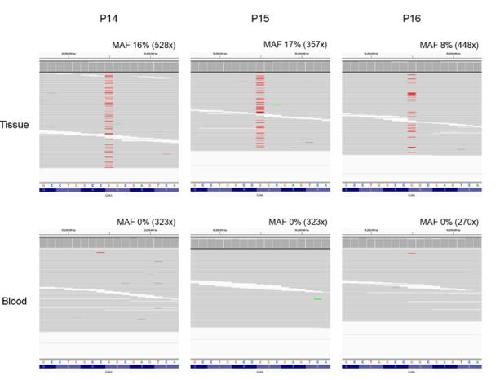

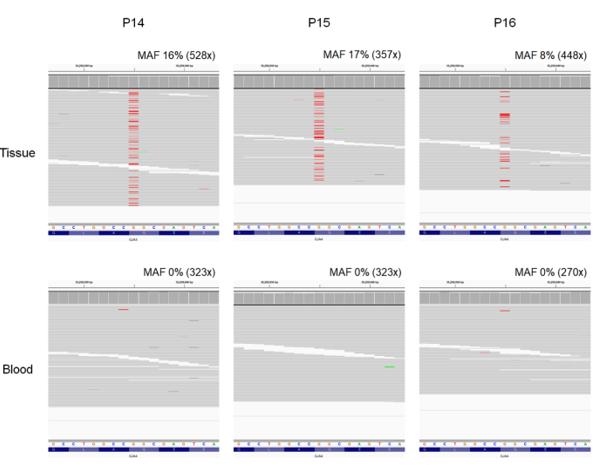

	Fig. S1 Integrative Genomic Viewer screenshots showing targeted deep sequencing reads of 3 orbital cavernous venous malformation (OCVM) participants across the area of GJA4 c.121G>T (p.Gly41Cys). Upper and lower columns show images of tissue samples and blood samples, respectively. Variant nucleotides (T) are shown in red. The reference nucleotide and amino acid sequences are at the bottom. Participant IDs are shown above. The mutation allele frequencies (MAFs) and sequencing coverages at the position are shown above each image

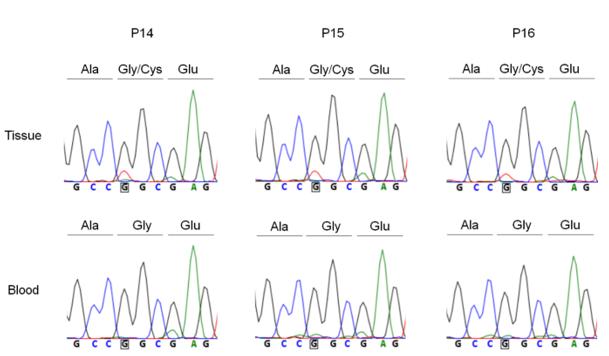

	Fig. S2 Sanger sequencing chromatograms showing GJA4 sequences of 3 OCVM participants in the discovery cohort. Each curve represents a trace of a signal intensity; black, blue, green, and red represent G (guanine), C (cytosine), A (adenine), and T (thymine), respectively. Boxed characters represent nucleotides at the position of the GJA4 mutation (c.121G>T). Upper and lower columns show chromatograms of tissue samples and blood samples, respectively. Participant IDs are shown above. Amino acid sequences are shown above each chromatogram

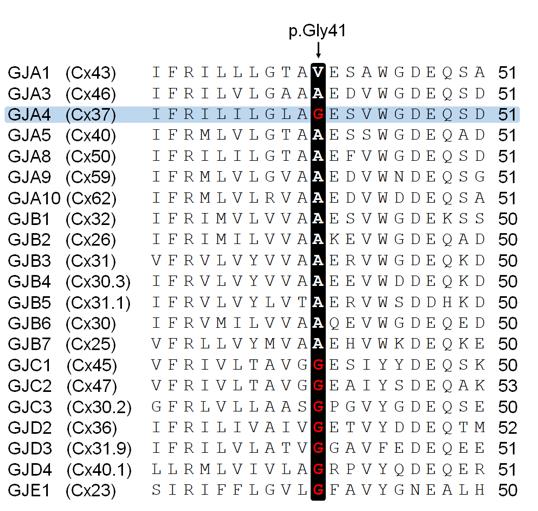

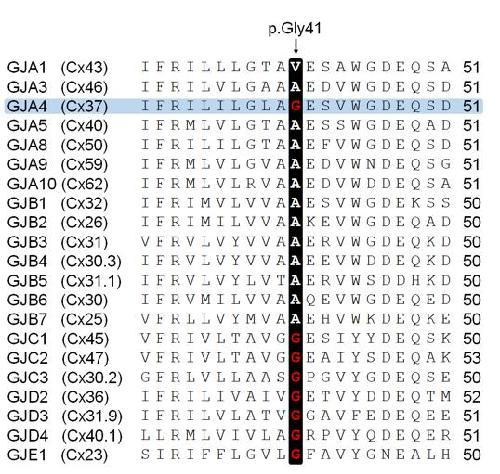

	Fig. S3 Conservation of amino acid position among connexin families in humans. Sequence alignments, CLUSTALW. Genbank numbers are as follows: GJA1, NP_000156.1; GJA3, NP_068773.2; GJA4, NP_002051.2; GJA5, NP_005257.2; GJA8, NP_005258.2; GJA9, NP_110399.2; GJA10, NP_115991.1; GJB1, NP_000157.1; GJB2, NP_003995.2; GJB3, NP_001005752.1; GJB4, NP_694944.1; GJB5, NP_005259.1; GJB6, NP_001103691.1; GJB7, NP_940970.1; GJC1, NP_001073852.1; GJC2, NP_065168.2; GJC3, NP_853516.1; GJD2, NP_065711.1; GJD3, NP_689343.3; GJD4, NP_699199.2; GJE1, NP_001345339.1
	Fig. S4 Immunostaining of a section of OCVM for Ki-67, endothelial cell marker CD31, and smooth muscle cell marker αSMA. Tissue is from Participant 15. Asterisks indicate vascular channels. Arrows indicate smooth muscle bundles. Scale bars, 100 μm
