PLoS Genet
2023 Jun 29;196:e1010814. doi: 10.1371/journal.pgen.1010814.
Show Gene links
Show Anatomy links
G3'MTMD3 in the insect GABA receptor subunit, RDL, confers resistance to broflanilide and fluralaner.
Zhang Y, Huang Q, Sheng C, Liu G, Zhang K, Jia Z, Tang T, Mao X, Jones AK, Han Z, Zhao C.
???displayArticle.abstract???
Meta-diamides (e.g. broflanilide) and isoxazolines (e.g. fluralaner) are novel insecticides that target the resistant to dieldrin (RDL) subunit of insect γ-aminobutyric acid receptors (GABARs). In this study, we used in silico analysis to identify residues that are critical for the interaction between RDL and these insecticides. Substitution of glycine at the third position (G3') in the third transmembrane domain (TMD3) with methionine (G3'M TMD3), which is present in vertebrate GABARs, had the strongest effect on fluralaner binding. This was confirmed by expression of RDL from the rice stem borer, Chilo suppressalis (CsRDL) in oocytes of the African clawed frog, Xenopus laevis, where the G3'MTMD3 mutation almost abolished the antagonistic action of fluralaner. Subsequently, G3'MTMD3 was introduced into the Rdl gene of the fruit fly, Drosophila melanogaster, using the CRISPR/Cas9 system. Larvae of heterozygous lines bearing G3'MTMD3 did not show significant resistance to avermectin, fipronil, broflanilide, and fluralaner. However, larvae homozygous for G3'MTMD3 were highly resistant to broflanilide and fluralaner whilst still being sensitive to fipronil and avermectin. Also, homozygous lines showed severely impaired locomotivity and did not survive to the pupal stage, indicating a significant fitness cost associated with G3'MTMD3. Moreover, the M3'GTMD3 mutation in the mouse Mus musculus α1β2 GABAR increased sensitivity to fluralaner. Taken together, these results provide convincing in vitro and in vivo evidence for both broflanilide and fluralaner acting on the same amino acid site, as well as insights into potential mechanisms leading to target-site resistance to these insecticides. In addition, our findings could guide further modification of isoxazolines to achieve higher selectivity for the control of insect pests with minimal effects on mammals.

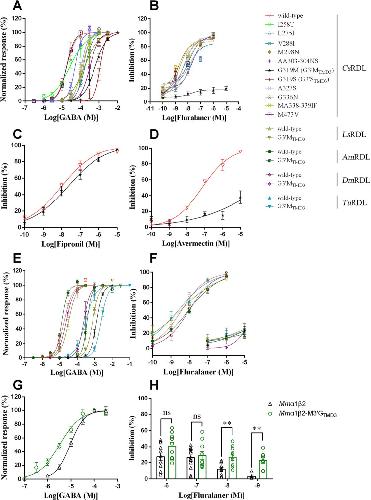

Fig 1. Responses to GABA and antagonists in Xenopus laevis oocytes expressing wild-type and mutant arthropod or mammalian GABAR subunits.(A) and (B) Concentration-response curves of GABA (A) and inhibition of GABA-induced currents by fluralaner (B) from wild-type or mutant RDL receptors. (C) and (D) Inhibition of GABA-induced currents by fipronil (C) and avermectin (D) in wild-type or G3’MTMD3 RDL. (E) and (F) Effect of the G3’MTMD3 mutation in RDL of different arthropod species on response to GABA (E) or fluralaner (F). (G) and (H) Concentration-response curves of GABA (G) and inhibition of GABA-induced currents by fluralaner (H) from heteromeric Mmα1β2 or mutant Mmα1β2-M3’GTMD3 channels. Error bars indicated the standard error of the mean (SE). Significant difference was determined by Student’s t-test (ns, not significant; **, P < 0.01).

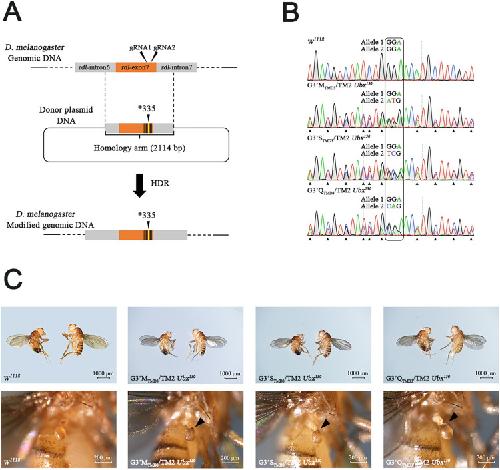

Fig 2. CRISPR/Cas9-mediated point-mutation at G3’TMD3 in the Rdl gene of Drosophila melanogaster.(A) Diagram of the genome editing strategy. Black triangles indicated the gRNA-targeted sites. A 2114 bp homologous region with a modified codon corresponding to the G3’TMD3 residue was cloned into the donor plasmid, and nine synonymous mutations indicated by vertical lines were designed around the G3’TMD3 residue to prevent repeated editing. (B) Genotypes of the heterozygous mutant strains were confirmed by sequencing of genomic DNA. The corresponding codon of the G3’TMD3 residue is boxed, and the synonymous mutations are indicated by black equilateral triangles. (C) Balancer-associated phenotype of heterozygous mutant strains. Additional bristles on the haltere are indicated by a black triangle.

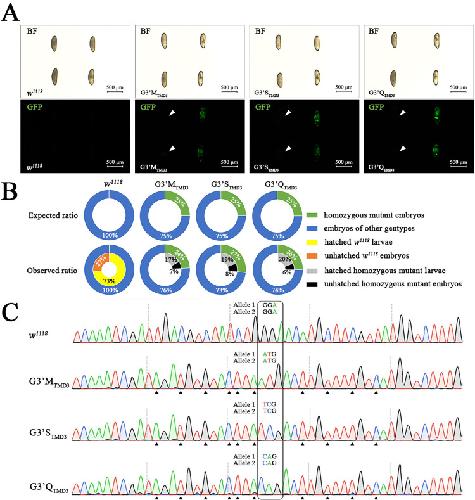

Fig 3. Identification of D. melanogaster embryos bearing homozygous mutations at RDL G3’TMD3.(A) Fluorescence detection of embryos. Heterozygous mutant or TM3 Sb GFP/ TM3 Sb GFP embryos showing a GFP signal. Homozygous mutant embryos labeled with white triangles showed no GFP signal. BF, bright field. (B) The proportion and hatching rate of embryos bearing homozygous mutations. For each strain, genotypes of 100 embryos were identified. 70.83% (17 of 24), 70.37% (19 of 27) and 76.92% (20 of 26) embryos hatched that were homozygous for G3’MTMD3, G3’STMD3 and G3’QTMD3, respectively. (C) Genotypes of the homozygous mutant larvae were confirmed by sequencing of genomic DNA. The codon of the G3’TMD3 residue is boxed and the synonymous mutations are labeled with black equilateral triangles.

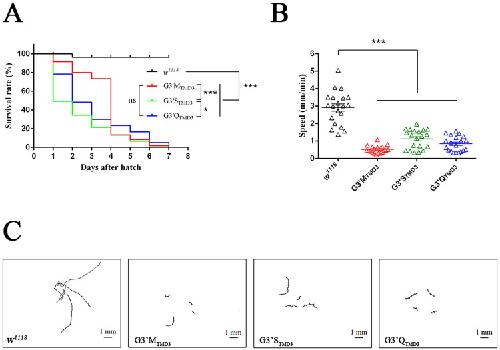

Fig 4. Lethality and reduced locomotion in D. melanogaster larvae caused by homozygous mutations at G3’TMD3.(A) Temporal characteristics of lethality in homozygous mutants. Data were analyzed using the Log-rank test for trend and the Mantel-Cox test (ns, not significant; *, P < 0.05; ***, P < 0.001). (B) Crawling speed of homozygous mutants. Error bars indicate the standard error of the mean (SE). Significant difference was determined by Student’s t-test (***, P < 0.001). (C) Representative motion path of homozygous mutants in 2 minutes (S1 Video).
Bassett,
Highly efficient targeted mutagenesis of Drosophila with the CRISPR/Cas9 system.
2013, Pubmed
Bassett,
Highly efficient targeted mutagenesis of Drosophila with the CRISPR/Cas9 system.
2013,
Pubmed Blythe,
The mode of action of isocycloseram: A novel isoxazoline insecticide.
2022,
Pubmed Brooks,
Optimization of wrMTrck to monitor Drosophila larval locomotor activity.
2016,
Pubmed Casida,
Golden age of RyR and GABA-R diamide and isoxazoline insecticides: common genesis, serendipity, surprises, selectivity, and safety.
2015,
Pubmed Casida,
Novel GABA receptor pesticide targets.
2015,
Pubmed Chen,
Dual nicotinic acetylcholine receptor subunit gene knockouts reveal limits to functional redundancy.
2022,
Pubmed Choo,
Precise single base substitution in the shibire gene by CRISPR/Cas9-mediated homology directed repair in Bactrocera tryoni.
2020,
Pubmed Cook,
The generation of chromosomal deletions to provide extensive coverage and subdivision of the Drosophila melanogaster genome.
2012,
Pubmed Douris,
Resistance mutation conserved between insects and mites unravels the benzoylurea insecticide mode of action on chitin biosynthesis.
2016,
Pubmed Douris,
Investigation of the contribution of RyR target-site mutations in diamide resistance by CRISPR/Cas9 genome modification in Drosophila.
2017,
Pubmed ffrench-Constant,
A single-amino acid substitution in a gamma-aminobutyric acid subtype A receptor locus is associated with cyclodiene insecticide resistance in Drosophila populations.
1993,
Pubmed Ffrench-Constant,
A point mutation in a Drosophila GABA receptor confers insecticide resistance.
1993,
Pubmed
,
Xenbase Ffrench-Constant,
Gene mapping and cross-resistance in cyclodiene insecticide-resistant Drosophila melanogaster (Mg.).
1991,
Pubmed Ffrench-Constant,
Isolation of dieldrin resistance from field populations of Drosophila melanogaster (Diptera: Drosophilidae).
1990,
Pubmed Ffrench-Constant,
Ion channels as insecticide targets.
2016,
Pubmed Ffrench-Constant,
Molecular cloning and transformation of cyclodiene resistance in Drosophila: an invertebrate gamma-aminobutyric acid subtype A receptor locus.
1991,
Pubmed Gowda,
GABAergic inhibition of leg motoneurons is required for normal walking behavior in freely moving Drosophila.
2018,
Pubmed Gratz,
Highly specific and efficient CRISPR/Cas9-catalyzed homology-directed repair in Drosophila.
2014,
Pubmed Gratz,
Genome engineering of Drosophila with the CRISPR RNA-guided Cas9 nuclease.
2013,
Pubmed Homem,
Evolutionary trade-offs of insecticide resistance - The fitness costs associated with target-site mutations in the nAChR of Drosophila melanogaster.
2020,
Pubmed Huang,
Functional Characteristics of the Lepidopteran Ionotropic GABA Receptor 8916 Subunit Interacting with the LCCH3 or the RDL Subunit.
2021,
Pubmed Huang 黄镜梅,
Multiple target-site mutations occurring in lepidopterans confer resistance to diamide insecticides.
2020,
Pubmed Karageorgi,
Genome editing retraces the evolution of toxin resistance in the monarch butterfly.
2019,
Pubmed Kumar,
MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets.
2016,
Pubmed Kwon,
A point mutation in a glutamate-gated chloride channel confers abamectin resistance in the two-spotted spider mite, Tetranychus urticae Koch.
2010,
Pubmed Laskowski,
AQUA and PROCHECK-NMR: programs for checking the quality of protein structures solved by NMR.
1996,
Pubmed Li,
Investigation of resistance mechanisms to fipronil in diamondback moth (Lepidoptera: Plutellidae).
2006,
Pubmed Ly,
Genetic disruption of the putative binding site for Homer on DmGluRA reduces sleep in Drosophila.
2020,
Pubmed Nakao,
Broflanilide: A meta-diamide insecticide with a novel mode of action.
2016,
Pubmed Nakao,
The A2'N mutation of the RDL gamma-aminobutyric acid receptor conferring fipronil resistance in Laodelphax striatellus (Hemiptera: Delphacidae).
2011,
Pubmed Nakao,
Minireview: Mode of action of meta-diamide insecticides.
2015,
Pubmed Nakao,
Meta-diamide insecticides acting on distinct sites of RDL GABA receptor from those for conventional noncompetitive antagonists.
2013,
Pubmed Nakao,
Mechanisms of resistance to insecticides targeting RDL GABA receptors in planthoppers.
2017,
Pubmed Nakata,
A Single Amino Acid Substitution in the Third Transmembrane Region Has Opposite Impacts on the Selectivity of the Parasiticides Fluralaner and Ivermectin for Ligand-Gated Chloride Channels.
2017,
Pubmed
,
Xenbase Nelson,
Cytogenetic analysis of chromosome region 89A of Drosophila melanogaster: isolation of deficiencies and mapping of Po, Aldox-1 and transposon insertions.
1992,
Pubmed Payton,
Overlapping confidence intervals or standard error intervals: what do they mean in terms of statistical significance?
2003,
Pubmed Port,
Optimized CRISPR/Cas tools for efficient germline and somatic genome engineering in Drosophila.
2014,
Pubmed Ren,
Optimized gene editing technology for Drosophila melanogaster using germ line-specific Cas9.
2013,
Pubmed Rufener,
The novel isoxazoline ectoparasiticide lotilaner (Credelio™): a non-competitive antagonist specific to invertebrates γ-aminobutyric acid-gated chloride channels (GABACls).
2017,
Pubmed
,
Xenbase Savary,
The global burden of pathogens and pests on major food crops.
2019,
Pubmed Sebo,
A simplified and efficient germline-specific CRISPR/Cas9 system for Drosophila genomic engineering.
2014,
Pubmed Singh,
New Drosophila Circadian Clock Mutants Affecting Temperature Compensation Induced by Targeted Mutagenesis of Timeless.
2019,
Pubmed Somers,
In vivo functional analysis of the Drosophila melanogaster nicotinic acetylcholine receptor Dα6 using the insecticide spinosad.
2015,
Pubmed Sparks,
Insecticide resistance management and industry: the origins and evolution of the Insecticide Resistance Action Committee (IRAC) and the mode of action classification scheme.
2021,
Pubmed Suda,
Reduction of Rpd3 suppresses defects in locomotive ability and neuronal morphology induced by the knockdown of Drosophila SLC25A46 via an epigenetic pathway.
2019,
Pubmed Sun,
Resistance and fitness costs in diamondback moths after selection using broflanilide, a novel meta-diamide insecticide.
2022,
Pubmed Wang,
Drosophila ZnT1 is essential in the intestine for dietary zinc absorption.
2020,
Pubmed Wiederstein,
ProSA-web: interactive web service for the recognition of errors in three-dimensional structures of proteins.
2007,
Pubmed Wu,
Molecular basis of selective resistance of the bumblebee BiNav1 sodium channel to tau-fluvalinate.
2017,
Pubmed
,
Xenbase Xue,
Untangling a Gordian knot: the role of a GluCl3 I321T mutation in abamectin resistance in Tetranychus urticae.
2021,
Pubmed
,
Xenbase Yamato,
Effects of intersubunit amino acid substitutions on GABA receptor sensitivity to the ectoparasiticide fluralaner.
2020,
Pubmed
,
Xenbase Yoo,
Knock-in mutations of scarecrow, a Drosophila homolog of mammalian Nkx2.1, reveal a novel function required for development of the optic lobe in Drosophila melanogaster.
2020,
Pubmed Zhao,
Differential resistance and cross-resistance to three phenylpyrazole insecticides in the planthopper Nilaparvata lugens (Hemiptera: Delphacidae).
2011,
Pubmed Zhao,
Insect γ-aminobutyric acid receptors and isoxazoline insecticides: toxicological profiles relative to the binding sites of [³H]fluralaner, [³H]-4'-ethynyl-4-n-propylbicycloorthobenzoate, and [³H]avermectin.
2014,
Pubmed Zhao,
GABAA receptor target of tetramethylenedisulfotetramine.
2014,
Pubmed Zimmer,
A CRISPR/Cas9 mediated point mutation in the alpha 6 subunit of the nicotinic acetylcholine receptor confers resistance to spinosad in Drosophila melanogaster.
2016,
Pubmed
