Orio P, Torres Y, Rojas P, Carvacho I, Garcia ML, Toro L, Valverde MA, Latorre R.

HL54970 NHLBI NIH HHS , GM56312 NIGMS NIH HHS , R01 HL054970 NHLBI NIH HHS

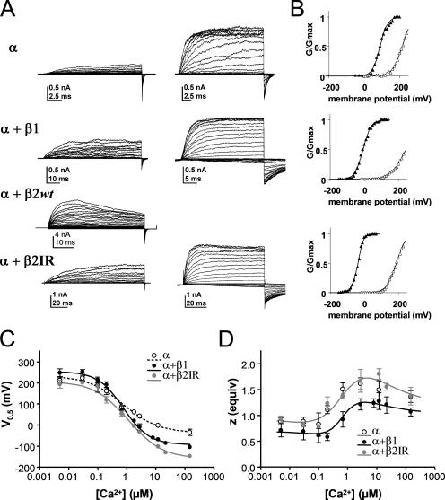

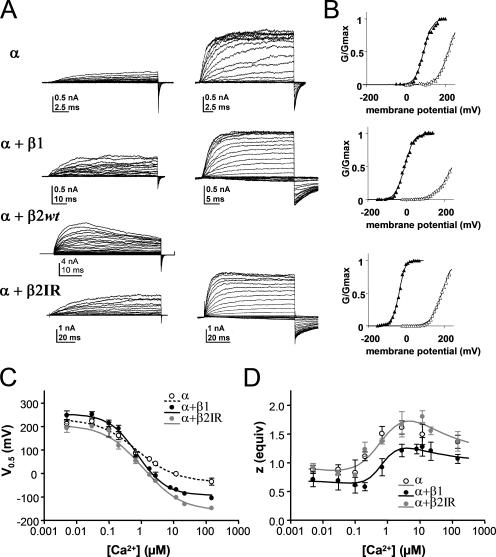

	Figure 1. Effects of β1 and β2IR subunits on BK channel steady-state activation parameters. (A) Macroscopic currents recorded in the inside-out configuration at 5 nM (left) and 3 μM (right) intracellular calcium. The voltage protocol for 5 nM was: holding potential (HP), 0 mV; prepulse (PP), −80 mV; test pulse (TP), −10 to 250 mV in 10-mV steps; tail, −60 mV. The voltage protocol for 3 μM was: HP, 0 mV; PP, −150 mV; TP, −150 to 140 in 10-mV steps; tail, −60 mV. (B) Normalized G/V curves at 3 μM (closed symbols) and 5 nM Ca2+ (open symbols) for the α, α + β1 and α + β2IR current traces shown in A. Lines are the best fit of a Boltzmann distribution (Eq. 1). Fit parameters are as follows. α, V0.5 = 215 mV, z = 0.95 (5 nM); V0.5 = 91 mV, z = 1.19 (3 μM). α + β1, V0.5 = 243 mV, z = 0.61 (5 nM); V0.5 = −7 mV, z = 1.11 (3 μM). α + β2IR, V0.5 = 189 mV, z = 0.91 (5 nM); V0.5 = −37 mV, z = 1.58 (3 μM). (C) Average of the obtained V0.5 values plotted against calcium concentration. A best fit sigmoid concentration–effect curve was added as reference for visual comparison in the following figures. (D) Average of the obtained z values plotted against calcium concentration. A best fit dual effect sigmoid curve was added as reference for visual comparison in the following figures. Error bars are SD, n = 7–8. When SD bars are not visible, they are smaller than symbol size.

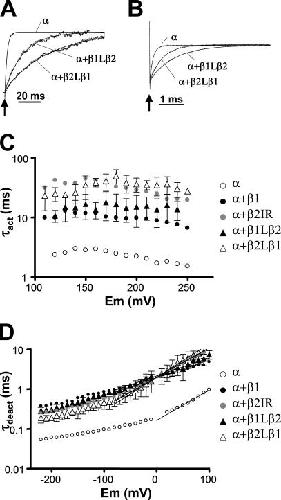

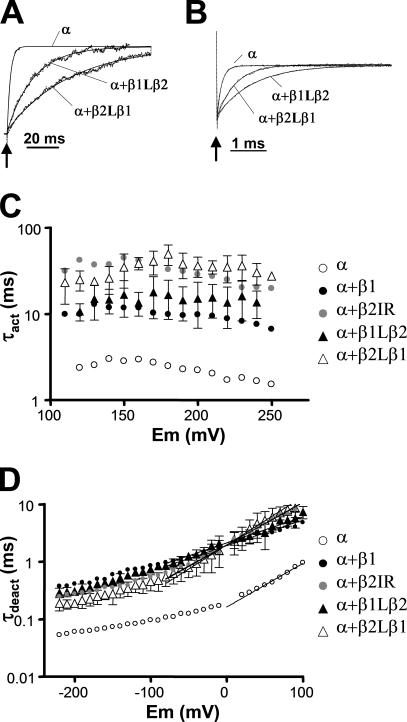

	Figure 4. Effect of the β1Lβ2 and β2Lβ1 subunits on BK channel macroscopic kinetics in the absence of calcium. (A) Current traces evoked by a 200 mV pulse after a −80 mV prepulse. Over the traces, the best fit to an exponential raise is shown. Current magnitude of each trace was normalized by the steady-state current predicted by the fit. For α, the fit was extrapolated to show that the traces are effectively normalized to the same maximum. (B) Tail current traces evoked by a −60 mV pulse after opening the channels with a +200 mV activation pulse. Current magnitude of each trace was normalized by the peak of the tail current. Over the traces, the best fit to an exponential decay is shown. (C) Activation time constant (τact) plotted against activation voltage. Symbols represent mean ± SD. n = 7–10. (D) Deactivation time constant (τdeact) plotted against voltage. Symbols represent mean ± SD. n = 3–5. In the case of α, α + β1, and α + β2IR, only the mean is shown. Lines represent the best fit of a single exponential function to the data between −50 and +60 mV extrapolated from −80 to +100 mV.

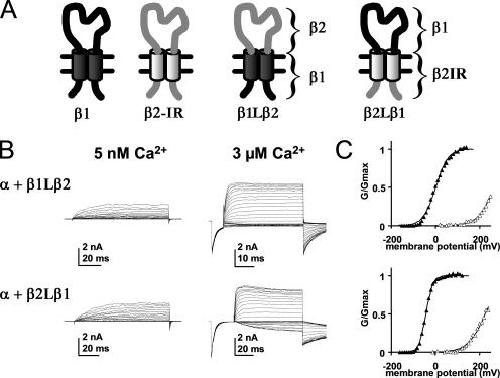

	Figure 2. Effects of β1Lβ2 and β2Lβ1 subunits on BK channel steady-state activation parameters. (A) Schematic description of the β1Lβ2 and β2Lβ1 chimeras. (B) Macroscopic currents recorded in the inside-out configuration at 5 nM (left) and 3.3 μM (right) intracellular calcium, for α + β1Lβ2 (top) and α + β2Lβ1 (bottom) channels. The voltage protocols are as described in legend of Fig. 1. (C) Normalized G/V curves at 3.3 μM (closed symbols) and 5 nM Ca2+ (open symbols) for the current traces shown in B. Lines are the best fit of a Boltzmann distribution (Eq. 1). Fit parameters are as follows. α + β1Lβ2, V0.5 = 267 mV, z = 0.7 (5 nM); V0.5 = 2 mV, z = 0.92 (3.3 μM). α + β2Lβ1, V0.5 = 226 mV, z = 0.65 (5 nM); V0.5 = −42 mV, z = 1.7 (3.3 μM).

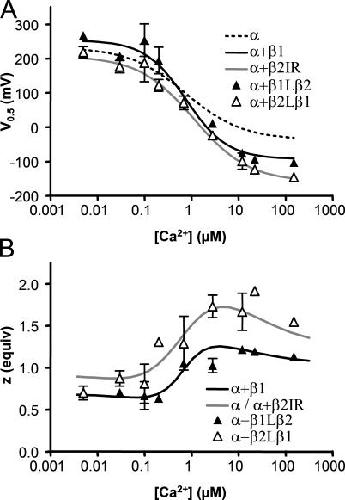

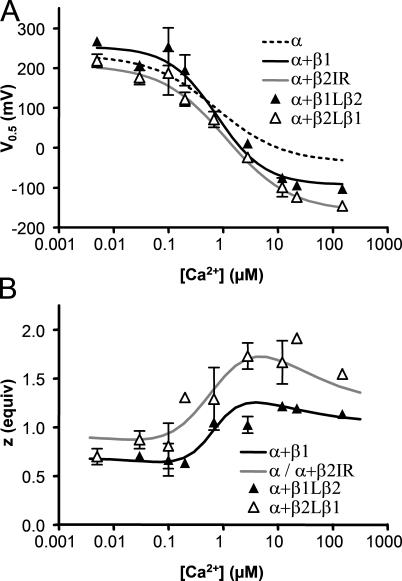

	Figure 3. Steady-state activation parameters for α + β1Lβ2 and α + β2Lβ1 channels. (A) Average of the obtained V0.5 values plotted against calcium concentration. For α, α + β1, and α + β2IR only the best fit sigmoid concentration–effect curve (see Fig. 1 C) is depicted. (B) Average of the obtained z values plotted against calcium concentration. For α, α + β1, and α + β2IR only the best fit curve (see Fig. 1 D) is depicted. Error bars are SD, n = 5–6. When SD bars are not visible, they are smaller than symbol size.

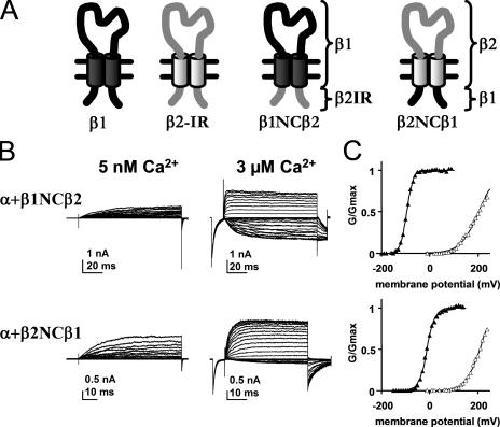

	Figure 5. Effects of β1NCβ2 and β2NCβ1 subunits on BK channel steady-state activation parameters. (A) Schematic description of the β1NCβ2 and β2NCβ1 chimeras. (B) Macroscopic currents recorded in the inside-out configuration at 5 nM (left) and 3.3 μM (right) intracellular calcium, for α + β1NCβ2 (top) and α + β2NCβ1 (bottom) channels. The voltage protocols are as described in legend of Fig. 1. (C) Normalized G/V curves at 3.3 μM (closed symbols) and 5 nM Ca2+ (open symbols) for the current traces shown in B. Lines are the best fit of a Boltzmann distribution (Eq. 1). Fit parameters are as follows. α + β1NCβ2, V0.5 = 204 mV, z = 0.7 (5 nM); V0.5 = −95 mV, z = 2.0 (3.3 μM). α + β2NCβ1, V0.5 = 208 mV, z = 0.9 (5 nM); V0.5 = −10 mV, z = 1.5 (3.3 μM).

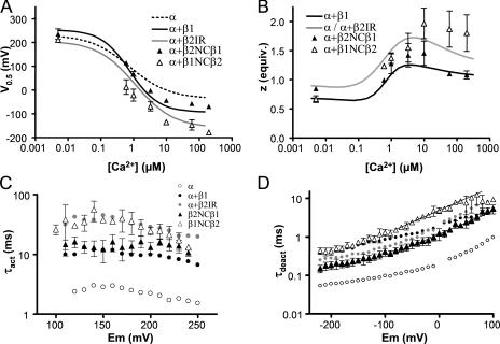

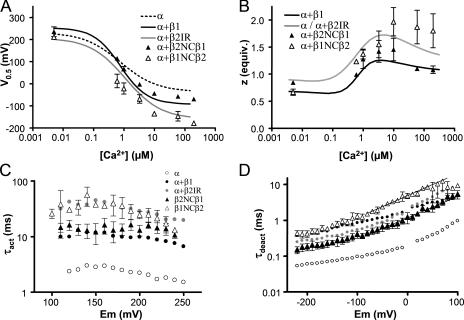

	Figure 6. Activation parameters for α + β1NCβ2 and α + β2NCβ1 channels. (A) Average of the obtained V0.5 values plotted against calcium concentration. For α, α + β1, and α + β2IR, only the best fit sigmoid concentration–effect curve (see Fig. 1 C) is depicted. (B) Average of the obtained z values plotted against calcium concentration. For α, α + β1, and α + β2IR only the best fit curve (see Fig. 1 D) is depicted. Error bars are SD, n = 4–7. When SD bars are not visible, they are smaller than symbol size. (C) Activation time constant (τact) at 5 nM intracellular [Ca2+] plotted against activation voltage. Symbols represent mean ± SD. n = 3–5. (D) Deactivation time constant (τdeact) at 5 nM intracellular [Ca2+] plotted against voltage. Symbols represent mean ± SD. n = 3–7. In the case of α, α + β1, and α + β2IR, only the mean is shown. Lines are defined as in Fig. 4.

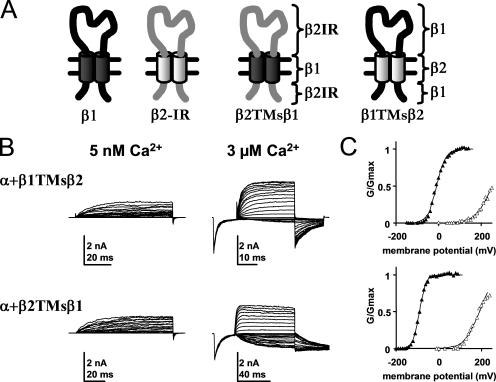

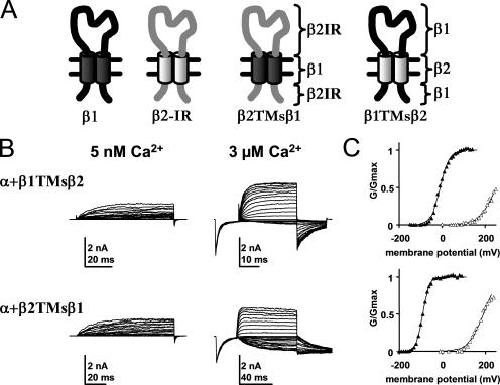

	Figure 7. Effects of β1TMsβ2 and β2TMsβ1 subunits on BK channel steady-state activation parameters. (A) Schematic description of the β1TMsβ2 and β2TMsβ1 chimeras. (B) Macroscopic currents recorded in the inside-out configuration at 5 nM (left) and 3.3 μM (right) intracellular calcium, for α + β1TMsβ2 (top) and α + β2TMsβ1 (bottom) channels. The voltage protocols are as described in legend of Fig. 1. (C) Normalized G/V curves at 3.3 μM (closed symbols) and 5 nM Ca2+ (open symbols) for the current traces shown in B. Lines are the best fit of a Boltzmann distribution (Eq. 1). Fit parameters are as follows. α + β1TMsβ2, V0.5 = 251 mV, z = 0.7 (5 nM); V0.5 = −9 mV, z = 1.2 (3.3 μM). α + β2TMsβ1, V0.5 = 191 mV, z = 0.7 (5 nM); V0.5 = −90 mV, z = 1.7 (3.3 μM).

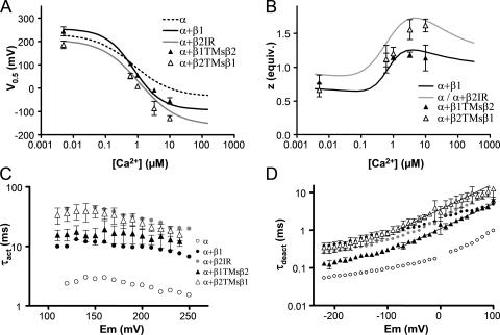

	Figure 8. Activation parameters for α + β1TMsβ2 and α + β2TMsβ1 channels. (A) Average of the obtained V0.5 values plotted against calcium concentration. For α, α + β1, and α + β2IR, only the best fit sigmoid concentration–effect curve (see Fig. 1 C) is depicted. (B) Average of the obtained z values plotted against calcium concentration. For α, α + β1, and α + β2IR, only the best fit curve (see Fig. 1 D) is depicted. Error bars are SD, n = 5–6. Missing error bars are smaller than symbol size. (C) Activation time constant (τact) at 5 nM intracellular [Ca2+] plotted against activation voltage. Symbols represent mean ± SD. n = 6–8. (D) Deactivation time constant (τdeact) at 5 nM intracellular [Ca2+] plotted against voltage. Symbols represent mean ± SD. n = 4–5. In the case of α, α + β1, and α + β2IR, only the mean is shown. Lines are defined as in Fig. 4. The exponent factors expressed as electronic charges (z = slope × RT/F) are α + β1TMsβ2, 0.39 ± 0.01; α + β2TMsβ1, 0.39 ± 0.02.

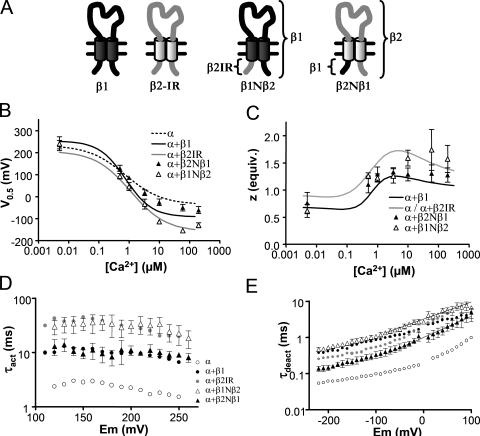

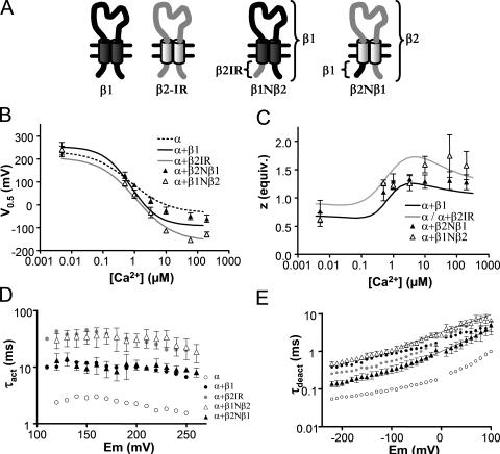

	Figure 9. Activation parameters for α + β1Nβ2 and α + β2Nβ1 channels. (A) Schematic description of the β1Nβ2 and β2Nβ1 chimeras. (B) Average of the obtained V0.5 values plotted against calcium concentration. For α, α + β1, and α + β2IR, only the best fit sigmoid concentration–effect curve (see Fig. 1 C) is depicted. (C) Average of the obtained z values plotted against calcium concentration. For α, α + β1, and α + β2IR, only the best fit curve (see Fig. 1 D) is depicted. Error bars are SD, n = 4–6. Missing error bars are smaller than symbol size. (D) Activation time constant (τact) at 5 nM intracellular [Ca2+] plotted against activation voltage. Symbols represent mean ± SD. n = 4–11. (E) Deactivation time constant (τdeact) at 5 nM intracellular [Ca2+] plotted against voltage. Symbols represent mean ± SD. n = 4–6. In the case of α, α + β1, and α + β2IR, only the mean is shown. Lines represent the best fit of a simple exponential function to the data between −50 and +60 mV, extrapolated from −80 to +100 mV. The exponential factors expressed as electronic charges (z = slope×RT/F) are α + β1Nβ2, 0.28 ± 0.01; α + β2Nβ1, 0.34 ± 0.01.

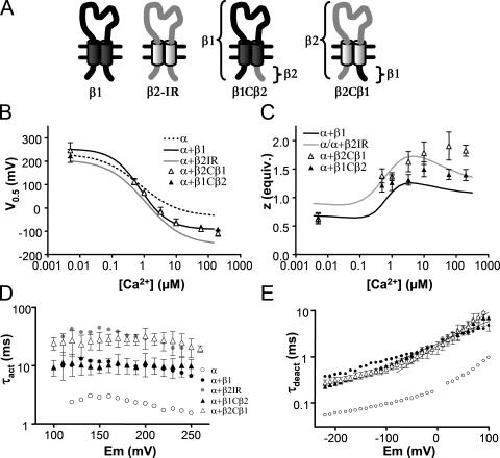

	Figure 10. Activation parameters for α + β1Cβ2 and α + β2Cβ1 channels. (A) Schematic description of the β1Cβ2 and β2Cβ1 chimeras. (B) Average of the obtained V0.5 values plotted against calcium concentration. For α, α + β1, and α + β2IR, only the best fit sigmoid concentration–effect curve (see Fig. 1 C) is depicted. (C) Average of the obtained z values plotted against calcium concentration. For α, α + β1, and α + β2IR, only the best fit curve (see Fig. 1 D) is depicted. Error bars are SD, n = 9–11. Missing error bars are smaller than symbol size. (D) Activation time constant (τact) at 5 nM intracellular [Ca2+] plotted against activation voltage. Symbols represent mean ± SD. n = 8–12. (E) Deactivation time constant (τdeact) at 5 nM intracellular [Ca2+] plotted against voltage. Symbols represent mean ± SD. n = 4–8. In the case of α, α + β1, and α + β2IR, only the mean is shown. Lines represent the best fit of a simple exponential function to the data between −50 and +60 mV, extrapolated from −80 to +100 mV. The exponential factors expressed as electronic charges (z = slope×RT/F) are α + β1Cβ2, 0.29 ± 0.01; α + β2Cβ1, 0.43 ± 0.01.

Bao, Gating and ionic currents reveal how the BKCa channel's Ca2+ sensitivity is enhanced by its beta1 subunit. 2005, Pubmed, Xenbase

Bao, Gating and ionic currents reveal how the BKCa channel's Ca2+ sensitivity is enhanced by its beta1 subunit. 2005, Pubmed , Xenbase
Bao, Elimination of the BK(Ca) channel's high-affinity Ca(2+) sensitivity. 2002, Pubmed , Xenbase
Bao, Mapping the BKCa channel's "Ca2+ bowl": side-chains essential for Ca2+ sensing. 2004, Pubmed , Xenbase
Behrens, hKCNMB3 and hKCNMB4, cloning and characterization of two members of the large-conductance calcium-activated potassium channel beta subunit family. 2000, Pubmed
Bian, Ca2+-binding activity of a COOH-terminal fragment of the Drosophila BK channel involved in Ca2+-dependent activation. 2001, Pubmed
Brenner, Cloning and functional characterization of novel large conductance calcium-activated potassium channel beta subunits, hKCNMB3 and hKCNMB4. 2000, Pubmed
Chen, The S4-S5 linker couples voltage sensing and activation of pacemaker channels. 2001, Pubmed , Xenbase
Cox, Allosteric gating of a large conductance Ca-activated K+ channel. 1997, Pubmed , Xenbase
Cox, Role of the beta1 subunit in large-conductance Ca(2+)-activated K(+) channel gating energetics. Mechanisms of enhanced Ca(2+) sensitivity. 2000, Pubmed , Xenbase
Díaz, Role of the S4 segment in a voltage-dependent calcium-sensitive potassium (hSlo) channel. 1998, Pubmed , Xenbase
Dick, Tamoxifen activates smooth muscle BK channels through the regulatory beta 1 subunit. 2001, Pubmed
Dworetzky, Phenotypic alteration of a human BK (hSlo) channel by hSlobeta subunit coexpression: changes in blocker sensitivity, activation/relaxation and inactivation kinetics, and protein kinase A modulation. 1996, Pubmed
Fernández-Fernández, Gain-of-function mutation in the KCNMB1 potassium channel subunit is associated with low prevalence of diastolic hypertension. 2004, Pubmed
Hanner, The beta subunit of the high conductance calcium-activated potassium channel. Identification of residues involved in charybdotoxin binding. 1998, Pubmed
Horrigan, Coupling between voltage sensor activation, Ca2+ binding and channel opening in large conductance (BK) potassium channels. 2002, Pubmed , Xenbase
Horton, Gene splicing by overlap extension: tailor-made genes using the polymerase chain reaction. 1990, Pubmed
Jiang, Structure of the RCK domain from the E. coli K+ channel and demonstration of its presence in the human BK channel. 2001, Pubmed , Xenbase
Jiang, Crystal structure and mechanism of a calcium-gated potassium channel. 2002, Pubmed
Jiang, Human and rodent MaxiK channel beta-subunit genes: cloning and characterization. 1999, Pubmed
Jin, Phosphorylation-dependent functional coupling of hSlo calcium-dependent potassium channel and its hbeta 4 subunit. 2002, Pubmed
Knaus, Covalent attachment of charybdotoxin to the beta-subunit of the high conductance Ca(2+)-activated K+ channel. Identification of the site of incorporation and implications for channel topology. 1994, Pubmed
Knaus, Primary sequence and immunological characterization of beta-subunit of high conductance Ca(2+)-activated K+ channel from smooth muscle. 1994, Pubmed
Lingle, Inactivation of BK channels mediated by the NH(2) terminus of the beta3b auxiliary subunit involves a two-step mechanism: possible separation of binding and blockade. 2001, Pubmed , Xenbase
Lu, Coupling between voltage sensors and activation gate in voltage-gated K+ channels. 2002, Pubmed , Xenbase
McManus, Functional role of the beta subunit of high conductance calcium-activated potassium channels. 1995, Pubmed , Xenbase
McManus, Accounting for the Ca(2+)-dependent kinetics of single large-conductance Ca(2+)-activated K+ channels in rat skeletal muscle. 1991, Pubmed
Meech, Calcium-dependent potassium activation in nervous tissues. 1978, Pubmed
Meera, A calcium switch for the functional coupling between alpha (hslo) and beta subunits (Kv,cabeta) of maxi K channels. 1996, Pubmed
Meera, Large conductance voltage- and calcium-dependent K+ channel, a distinct member of voltage-dependent ion channels with seven N-terminal transmembrane segments (S0-S6), an extracellular N terminus, and an intracellular (S9-S10) C terminus. 1997, Pubmed
Meera, A neuronal beta subunit (KCNMB4) makes the large conductance, voltage- and Ca2+-activated K+ channel resistant to charybdotoxin and iberiotoxin. 2000, Pubmed , Xenbase
Nimigean, Functional coupling of the beta(1) subunit to the large conductance Ca(2+)-activated K(+) channel in the absence of Ca(2+). Increased Ca(2+) sensitivity from a Ca(2+)-independent mechanism. 2000, Pubmed
Niu, Linker-gating ring complex as passive spring and Ca(2+)-dependent machine for a voltage- and Ca(2+)-activated potassium channel. 2004, Pubmed , Xenbase
Orio, Differential effects of beta 1 and beta 2 subunits on BK channel activity. 2005, Pubmed , Xenbase
Orio, New disguises for an old channel: MaxiK channel beta-subunits. 2002, Pubmed
Qian, Slo1 tail domains, but not the Ca2+ bowl, are required for the beta 1 subunit to increase the apparent Ca2+ sensitivity of BK channels. 2002, Pubmed , Xenbase
Schreiber, A novel calcium-sensing domain in the BK channel. 1997, Pubmed , Xenbase
Schreiber, Transplantable sites confer calcium sensitivity to BK channels. 1999, Pubmed , Xenbase
Shen, Tetraethylammonium block of Slowpoke calcium-activated potassium channels expressed in Xenopus oocytes: evidence for tetrameric channel formation. 1994, Pubmed , Xenbase
Toro, Maxi-K(Ca), a Unique Member of the Voltage-Gated K Channel Superfamily. 1998, Pubmed
Tristani-Firouzi, Interactions between S4-S5 linker and S6 transmembrane domain modulate gating of HERG K+ channels. 2002, Pubmed , Xenbase
Uebele, Cloning and functional expression of two families of beta-subunits of the large conductance calcium-activated K+ channel. 2000, Pubmed
Valverde, Acute activation of Maxi-K channels (hSlo) by estradiol binding to the beta subunit. 1999, Pubmed , Xenbase
Vergara, Calcium-activated potassium channels. 1998, Pubmed
Wallner, Determinant for beta-subunit regulation in high-conductance voltage-activated and Ca(2+)-sensitive K+ channels: an additional transmembrane region at the N terminus. 1996, Pubmed
Wallner, Characterization of and modulation by a beta-subunit of a human maxi KCa channel cloned from myometrium. 1995, Pubmed , Xenbase
Wallner, Molecular basis of fast inactivation in voltage and Ca2+-activated K+ channels: a transmembrane beta-subunit homolog. 1999, Pubmed , Xenbase
Xia, Ligand-dependent activation of Slo family channels is defined by interchangeable cytosolic domains. 2004, Pubmed , Xenbase
Xia, Rectification and rapid activation at low Ca2+ of Ca2+-activated, voltage-dependent BK currents: consequences of rapid inactivation by a novel beta subunit. 2000, Pubmed , Xenbase
Xia, Molecular basis for the inactivation of Ca2+- and voltage-dependent BK channels in adrenal chromaffin cells and rat insulinoma tumor cells. 1999, Pubmed , Xenbase
Xia, Multiple regulatory sites in large-conductance calcium-activated potassium channels. 2002, Pubmed
Zeng, Gating properties conferred on BK channels by the beta3b auxiliary subunit in the absence of its NH(2)- and COOH termini. 2001, Pubmed , Xenbase
Zeng, Redox-sensitive extracellular gates formed by auxiliary beta subunits of calcium-activated potassium channels. 2003, Pubmed
